Product Description


medical pills blister packing machine with CE certificate
















Usage:


This Production line is used for the Pharmaceutical industry for filling tablets and capsules


It is combined with the DPH260 Blister Machine and JDZ300Cartoner and Overwrapping machine.


Features:


Fully Automatic


Controlled by famous PLC and HMI


Option:


Fully servo motor Control


Eye mark system







Working procedure:


Blister forming


Tablet and Capsule Filling.


PVC-Foil sealing


punching





Through the integration of a blister and carton module for packaging and cartooning of pharmaceutical tablets, capsules, and ampoules, this Blister Packaging Line is Our innovative response to the need for high efficiency and low-cost operation, flexibility and maximum productivity for mass batch production.
·Processes all common solid dose products and all types of forming material.
·The machine can achieve 180 minutes of uninterrupted production thanks to the Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter.


·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.


·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to rotary blister cards pick-up arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed.
·Since this Line adopts a transfer belt to connect the Blister Machine and Cartoner, it provides easy changeover for different sizes of formats and cartons.
·This line adopts the fully-enclosed structure and safety door, it is in line with the most stringent European safety standards.

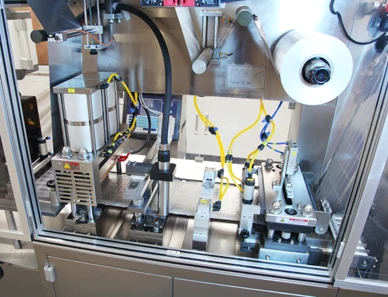

DPP-260H Automatic Al-Plastic Blister packing Machine is our advanced equipment designed under updated improvement. It adopts the integral technology applying frequency inverter for speed control and mechanism, electricity, light, and air to machine. Its design is in strict compliance with GMP standards and takes lead in the blister packer's filed. Featuring advanced functions, ease in operation, high output, the machine is the most ideal packing equipment for large and medium-sized pharmaceutical enterprises, health food, and foodstuff trades.




pharma blister machine


Features:


1. Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.


2. With thermal temperature control and test,main machine overloading protects, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection, and stop running.
3. The machine station module type design of the level frame, good sight, safe and convenient operation.
4. Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.
5. PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicable.

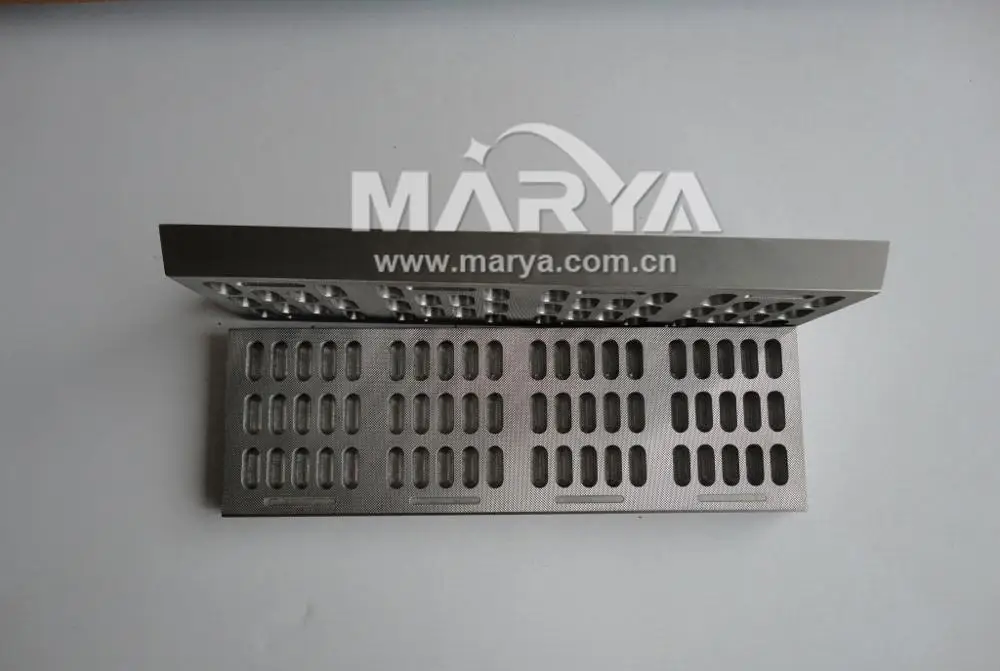

6. The special design of molds in rectangle shape,ladder-type fixing, provide much convenience and ease to molds replacement. All material contact parts adopt high-quality stainless steel and aluminum metal, slap-up surface treatment craft.
7. Discharging finished product in the right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

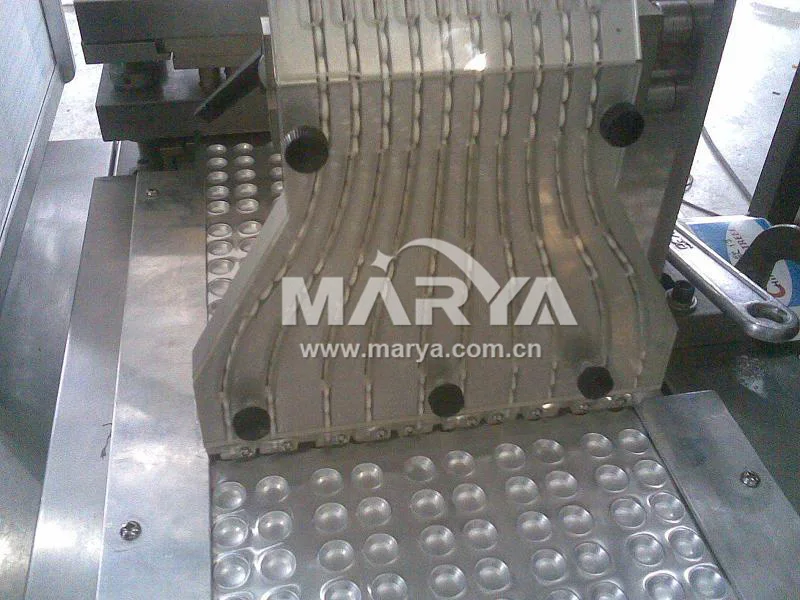

8. Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder).
9. The machine has been designed into a separated body, which is easily moving into lifts or workshops.


pharma blister machine




Technical Parameters for Blister Packing Machine:














































Item/Model



DPP-260H



Punching frequency



AL/Plastic 20-60times/min Al/AL15-30times/min



Max production capacity



AL/Plastic 140thousand Grains/hour


Al/Al 75thousand Grains/hour



Max forming depth



AL/Plastic 22mm Al/Al 18mm (made to order)



Adjustable scope of Travel



made to order 30-140mm



Clean compressed air



Press 0.6-0.8Mpa



Air consumer(air compressor)



≥0.25m3/min(self prepared)



Power



380V 50HZ 8.5Kw



Dimension



4500x760x40500px(can be separated)



Weight



1800kg












Company Information





Shanghai Marya Pharmaceutical Engineering&Project Co., Ltd is a professional Pharmaceutical Turnkey Project Contractor. We have 3 our own factories and more than 30 OEM factories under quality Control of Shanghai Marya, We have a 30 year experienced professional team for doing the turnkey project from design to construction.

Our Pharmaceutical projects can be done according to international standard like EU cGMP, WHO GMP, UK MHRA, Australian TGA, etc
We are not only a manufacturer but also a designing and construction company. We can provide much better price and better technical support and service than other companies

We can design and manufacture machines based on Customer's request, Your satisfaction is our top priority.
With 30 years of the experienced professional design team and construction team. Under the support of our factory, We can provide customer with high efficiency and quality in the project, save your time and cost.
Our machinery and projects have sold all over the country and they are exported to America, Europe, and the middle east, Southeast Asia, Africa, and other countries and regions.

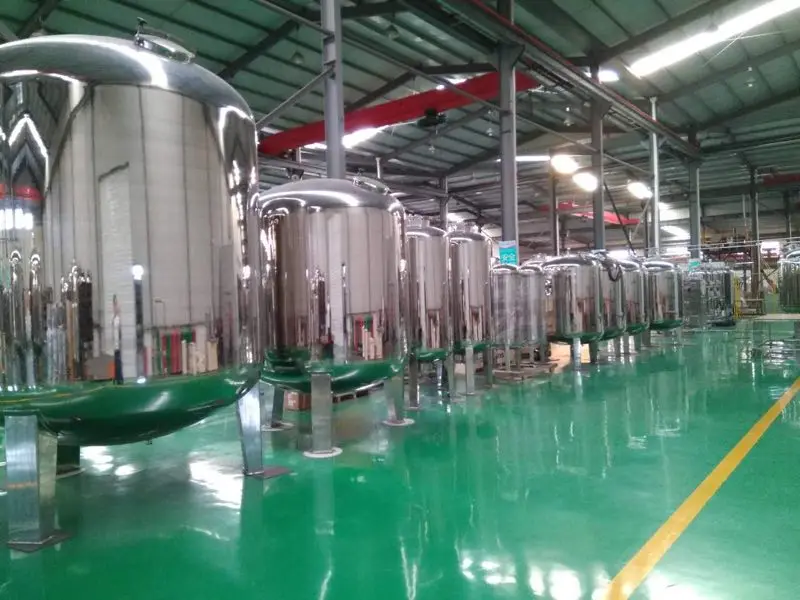

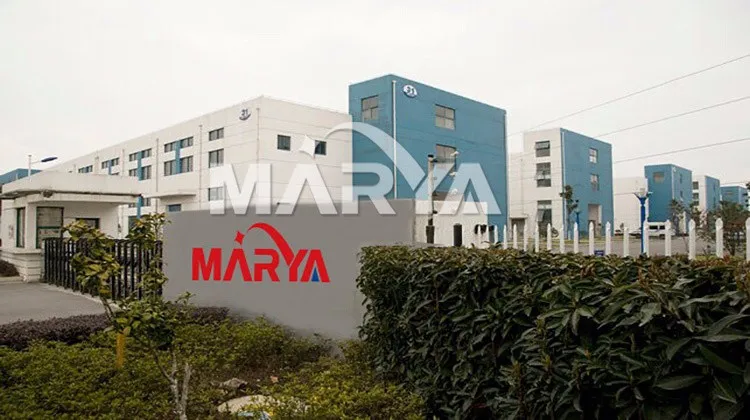

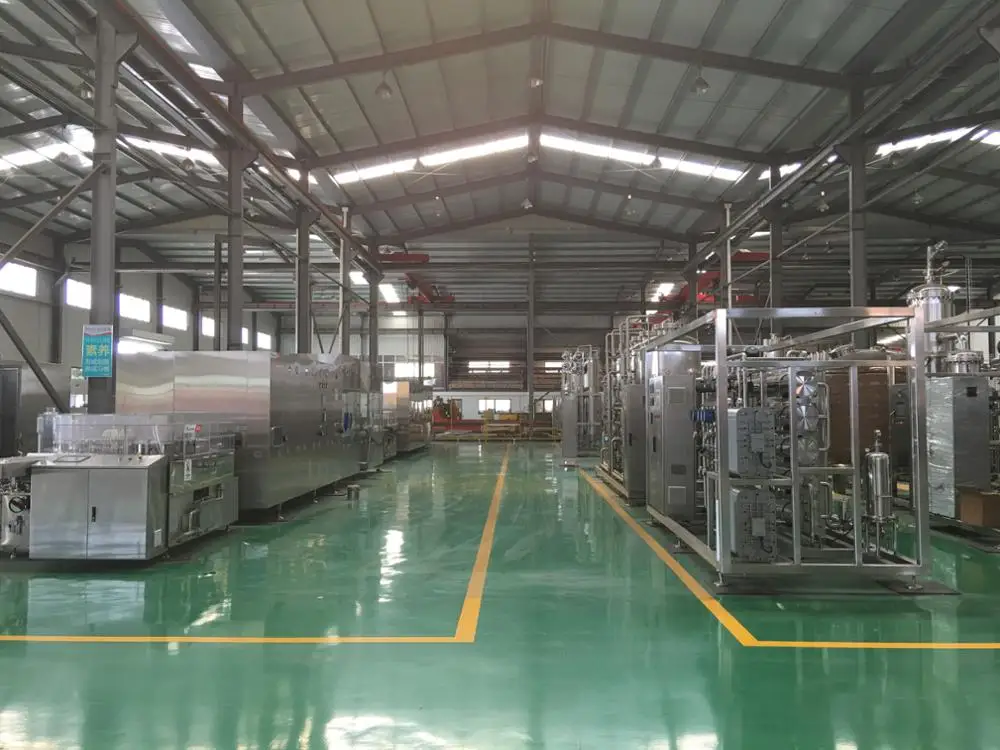

Welcome to Visit Our factory in China

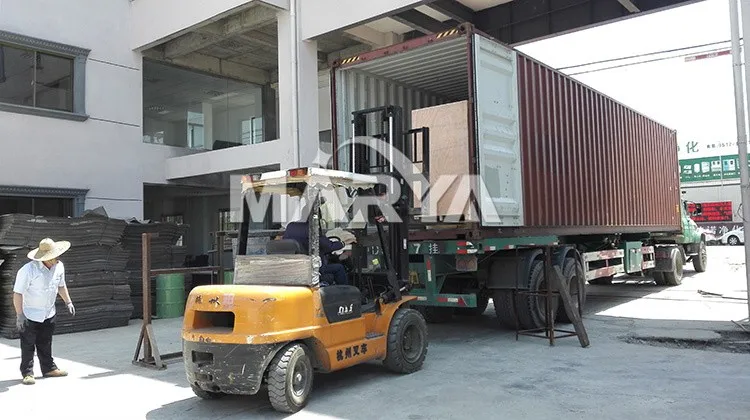

Packaging & Shipping


Standard export wooden case packaging.
Inner package: Stretching film
Delivery time:30-60 working days after receiving 30% deposit or L/C















Our Services





WHY US?





We can provide Pharmaceutical Turnkey project Service including all the pharmaceutical machinery and clean room projects from designing to construction
We can provide our project according to the international regulations like EU cGMP, WHO GMP, UK MHRA, Australian TGA, etc

We can provide 30-year experience engineer team go give you free Consultation service We Can provide FAT and SAT Service
We can provide DQ, IQ, PQ, OQ documents service
We can provide overseas machine installation and commissioning
We can provide free training service for your employee
We can provide One year guarantee for the machine and project
We can provide 24 hours of technical support by email
We can provide our installation team to your country to do the installation
We can provide user-friendly English Software, user manual, and detailed video
You have nothing to worry if you cooperate with us for the pharmaceutical Project

Looking forward to cooperating with you.
