Product Description
U Tech BST series HDPE 10L 20L 25L extrusion blow molding machine is used to produce all kinds of the hollow HDPE containers for beverages, water, etc. The machine is reasonable investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefits.
Detailed Images

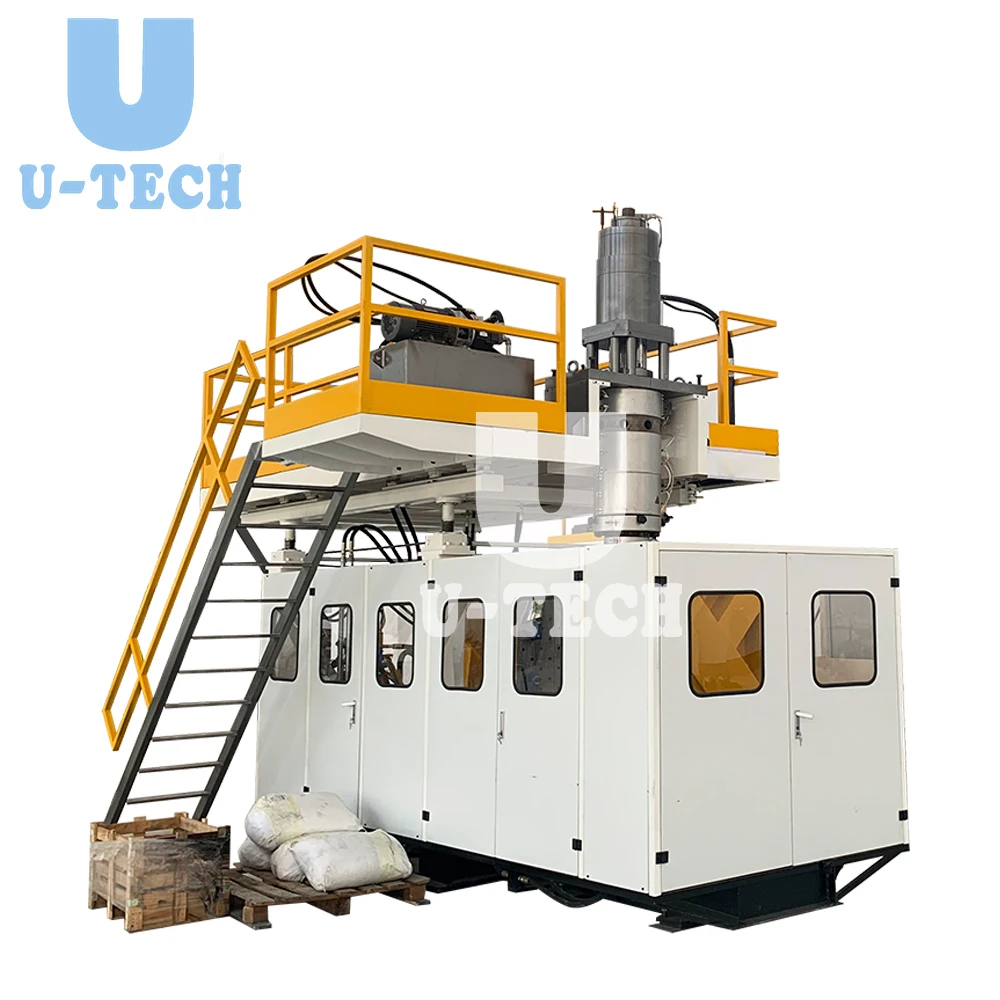

BST-80 HDPE Barrel Drum Extrusion blow molding machine
The BST-80PC full automatic extrusion blow molding machine is specialized for PC barrel & container. The machine with high efficient plasticizing screw and heating zones. The machine equips with LCD touch screen and Mitsubishi PLC system, very easy and high level operation. The blowing pin is designed to be at bottom with multi function.

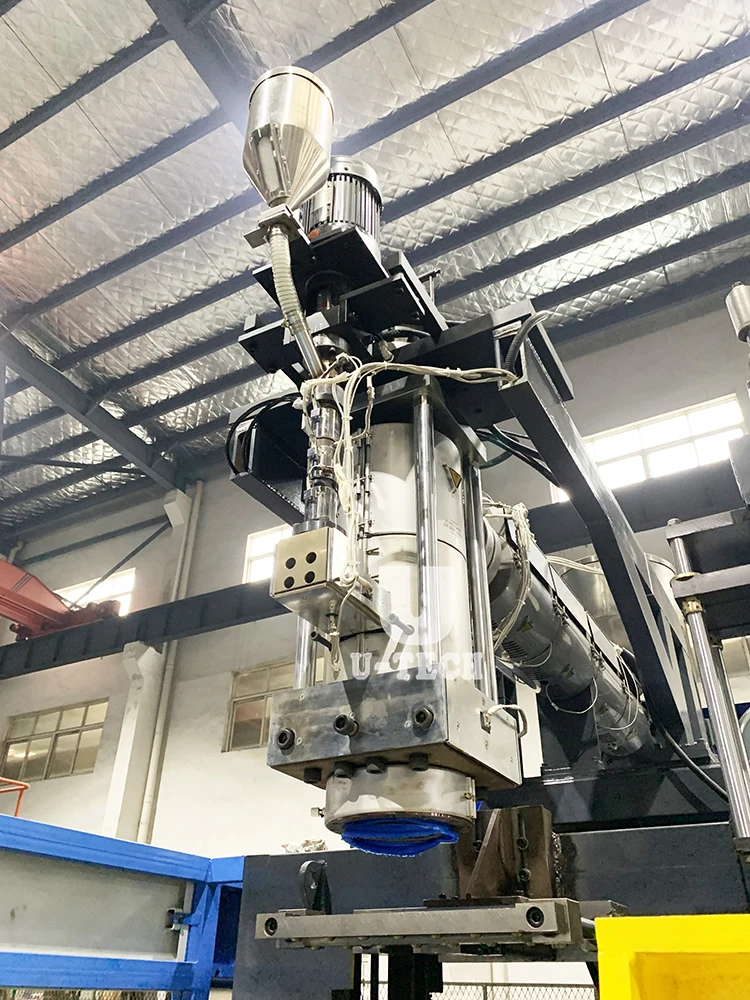

High Efficient Plasticizing Screw
The high efficient plasticizing screw adopts high performance steel alloy to ensure the PC raw material be plasticized fully, and reduce the time of machine pre-heating.

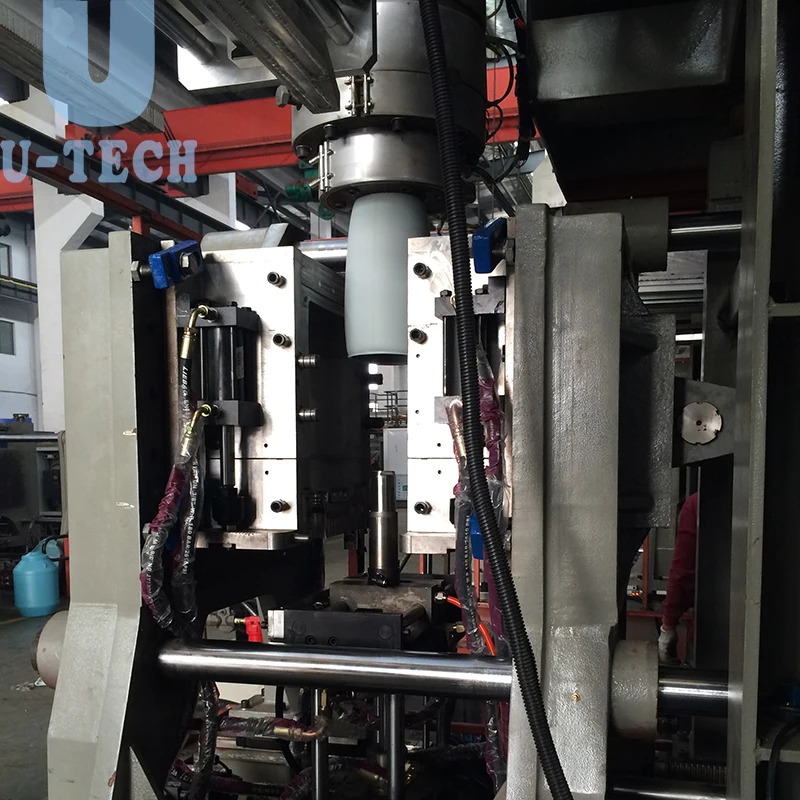

Multi-function Bottom Blowing Pin & Clamp

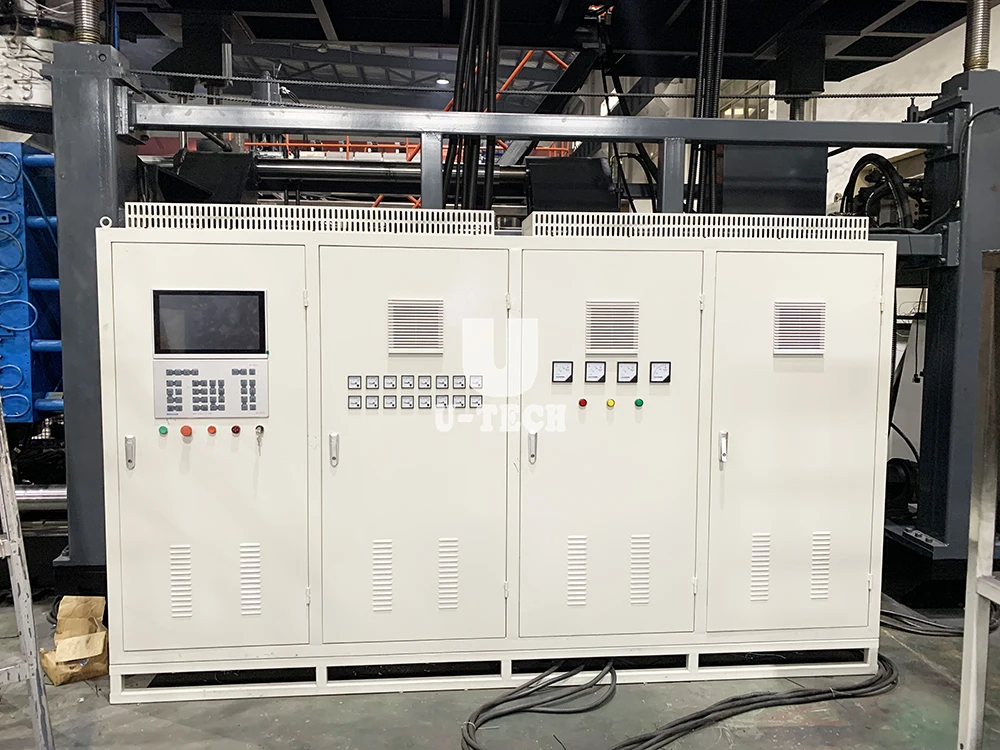

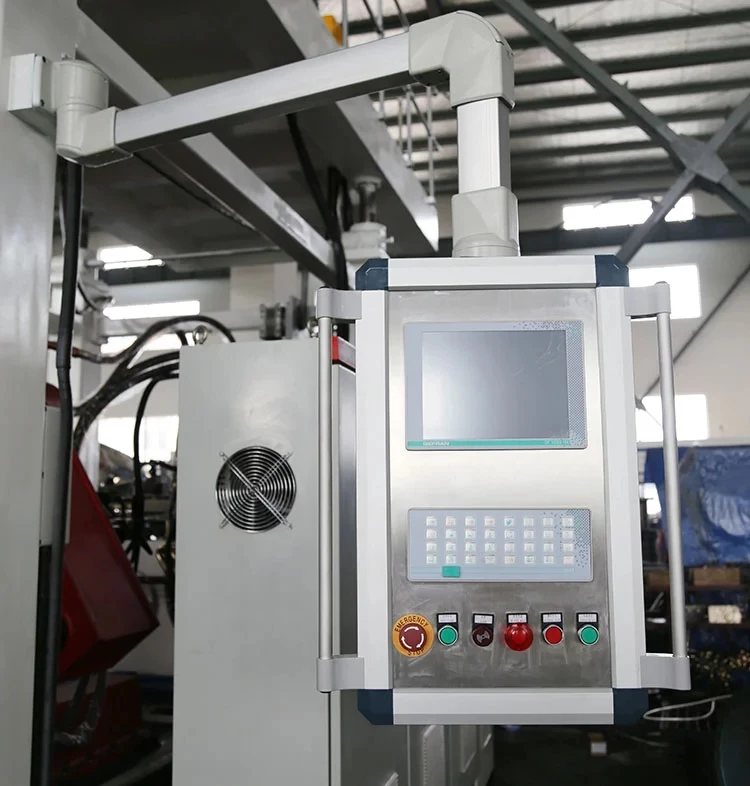

Electric Cabinet
Mitsubishi PLC, Omron relay, Schneider Air switch, Mean well Power resource
Product Features
1. Reasonable machine structure design and solid frame manufacturing to insure running stability.
2. Advanced die-head material precision runner deisgn and metal processing.
3. Our machine can be made with co-extrusion of 2~4 layers with view stripe line.
4. Big LCD digital touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.
5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.
6. The die-head, electric parts, parision thickness controller, and motor , etc all adopt international well-known brands, to ensure the machine quality and easy to get in clients local areas.
2. Advanced die-head material precision runner deisgn and metal processing.
3. Our machine can be made with co-extrusion of 2~4 layers with view stripe line.
4. Big LCD digital touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.
5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.
6. The die-head, electric parts, parision thickness controller, and motor , etc all adopt international well-known brands, to ensure the machine quality and easy to get in clients local areas.
Technical Parameter
Model | Unit | BST-80 |
Max. Product Volume | (L) | 30L |
Dry cycle | (pc/h) | 60 |
Screw Diameter | (mm) | 80 |
Screw L/D ratio | (L/D) | 25 |
Screw drive power | (KW) | 37 |
Screw heating capacity | (KW) | 18 |
No. of heating zone | (ZONE) | 4~6 |
Max. Output of HDPE | (Kg/hr) | 100-140 |
Oil pump drive power | (KW) | 18.5(22) |
Clamping force | (KN) | 240 |
Platen distance | (mm) | 270-820 |
Mold moving stroke | (mm) | 390 |
Max. Size of Mold(W*H) | (mm) | 600x750 |
Max. Die diameter | (mm) | 250 |
Die heat capacity | (KW) | 9.6 |
No. of heating zone | (ZONE) | 4~6 |
Central distance of Double head | (mm) | / |
MOOG Parison controller power | (KW) | 4 |
Average Power Consumption | (KW) | 40 |
Blowing pressure | (Mpa) | 0.7 |
Air volume | (M3/MIN) | 0.8 |
Cooling water pressure | (Mpa) | 0.3~0.5 |
Water consumption | (L/MIN) | 50 |
Size of machine ( L*W*H) | (m) | 5.20*2.90*4.60 |
Weight of machine | (TON) | 13.5 |
Machine components
A. Hydraulic Parts | ||
Name | Brand | |
valve | YUKEN /JAPAN | |
Proportional pressure flow valve | YUKEN/ JAPAN | |
Oil tuding 、attachment | Pike PARKER SIR/USA | |
Sealing element | HANSEN / JAPAN | |
B. Electric appliance | ||
Name | Brand | |
Microcomputer control system | MITSUBSHI PLC / JAPAN | |
Touch screen | HIM/HITECH/TAIWAN | |
Temperature control components | OMRON /JAPAN | |
relay | SCHNEIDER/FRANCE | |
Heating method | SCHNEIDER/FRANCE | |
Air switch | SCHNEIDER/FRANCE | |
motor | SIEMENS/GERMANY | |
power | MINGWEI | |
transducer | DELTA/TAIWAN | |
C. Pneumatic System | ||
Name | Brand | |
Control valve | AIRTAC/TAIWAN | |
cylinder | AIRTAC/TAIWAN | |
U Tech Advantages

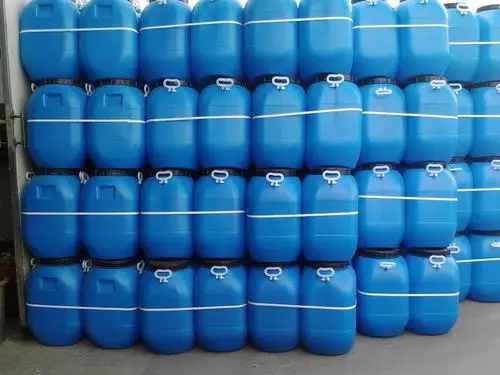

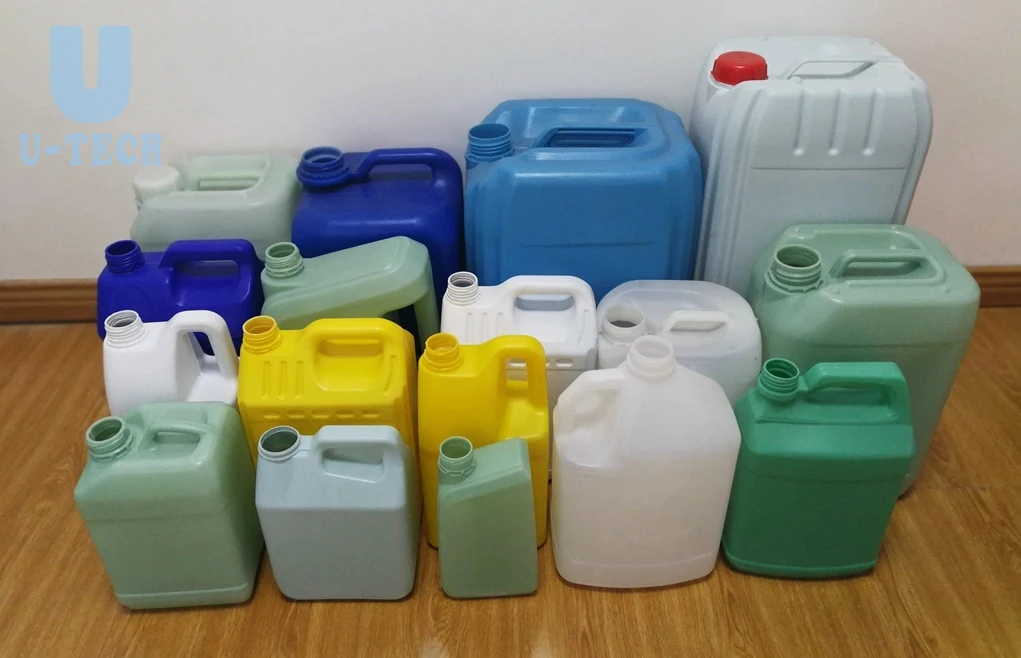

1. Suitable for chemical raw material container, pesticide barrels, car fuel tanks, water tanks and other large amount of plastic hollow products. | ||||||||
2. Using the Japan Mitsubishi High speed PLC and Hitech T700 colorful touch screen | ||||||||
3. With platform lifting function which can adapt to different mold height and blow molding process requirements. | ||||||||
4. The hydraulic system adopts proportional technology to optimize the design of hydraulic circuit and has the characteristics of electricity saving, quick movement and easy to adjust the parameters. | ||||||||
5. Oil path flow velocity and pressure controlled by double-proportion valve; flow direction controlled by reversing valve; deceleration valve brake functions smoothly and quickly. The automatic lubrication system to reduce equipment maintenance workload. | ||||||||
6. It adopts famous factory’s pneumatic, hydraulic and electrical control components which has long service life. | ||||||||
7. Diehead plastic pressurizing piston and material accumulation chamber use extremely hard wear-resistant material and hence long service life and durable. | ||||||||
8. The machine is equipped with down widen device, which can stretch the material tube to both sides, and then blow up to make the bottle shape more symmetrical and full. | ||||||||
9. For large diameter pipe, the machine is equipped with pre-clamped embryo device adhesive nozzle to pen blowing. | ||||||||
10. Pre-sealed cutter device can ensure that the length of the extruded tube is consistent so as to avoid the waste of raw materials and can not be blow molding caused by the too long tube. | ||||||||
11. Strengthen and hard cold processing screw, equipped with plastic die head, double plasticizing, good plasticizing effect, large amount of extrusion screw, barrel wear resistance. | ||||||||
12. The force design of the mould plate center ensures the balance of clamping force. | ||||||||
13. The whole mold template system are used ductile iron, which is stable and solid, durable and not deformed. | ||||||||
14. Pressure gauge, die blowing throttle valve, pen blowing throttle valve arranged in a centralized placement and equipped with platform fence. | ||||||||

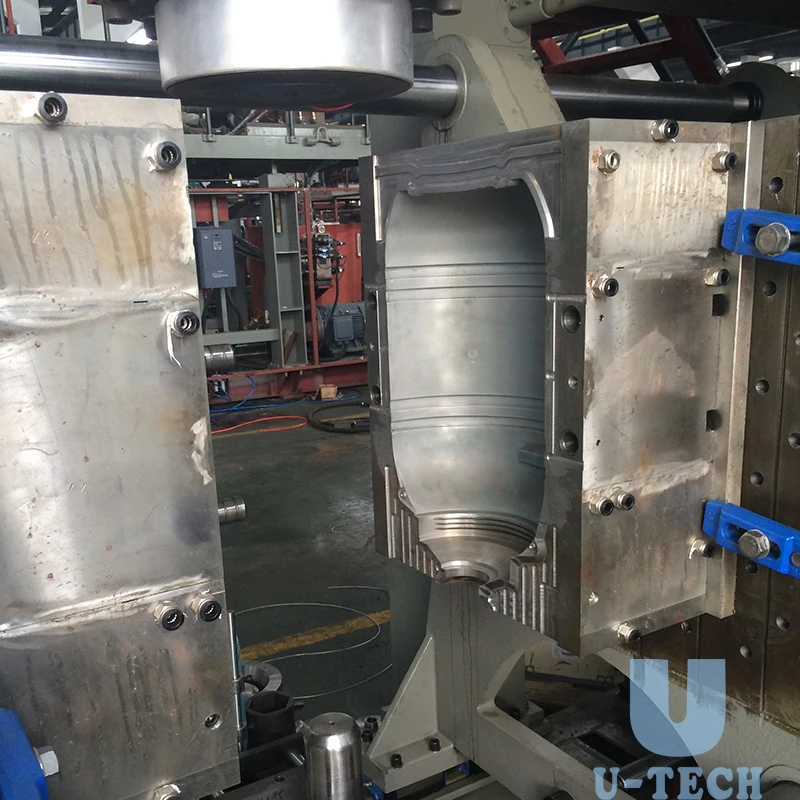

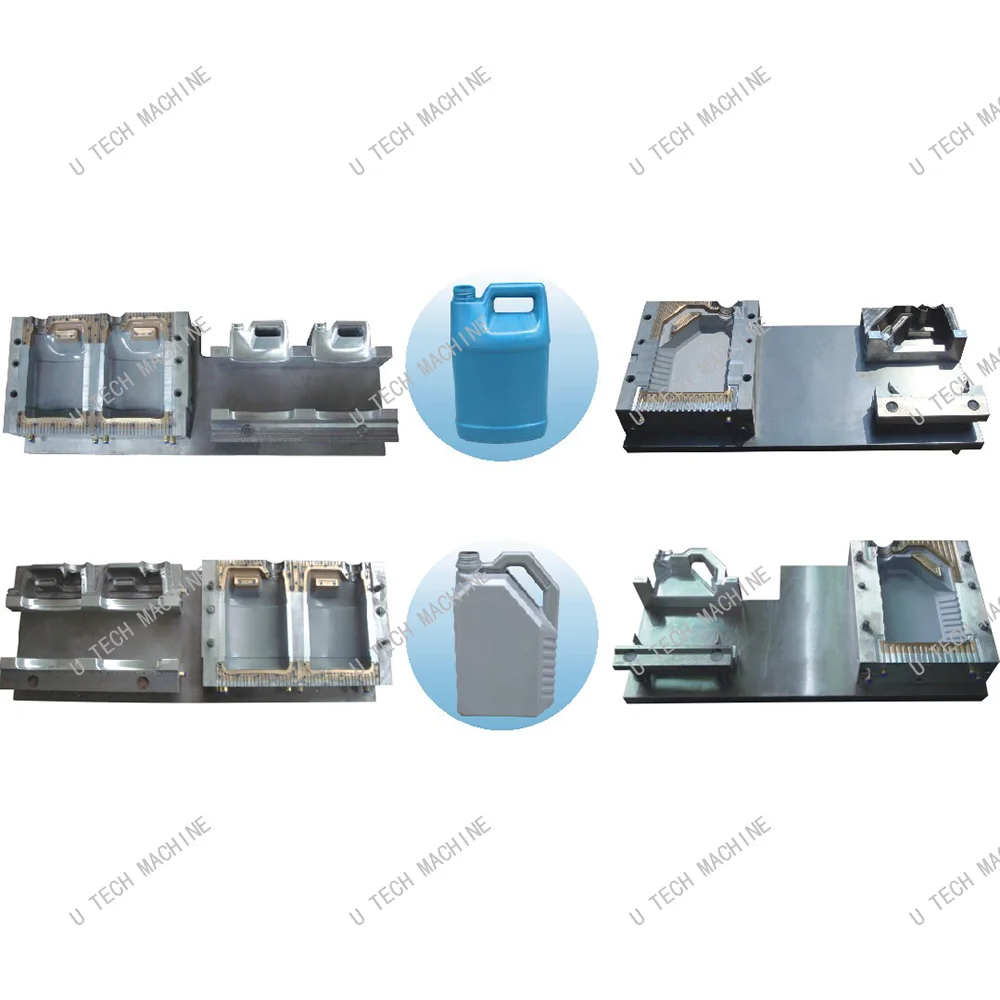

Mold Details
Company Introduction
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.We can provide best services for customers, from plant layout, equipment manufacture and production line setup to operator training and best after-sales service. All machines are two years' service for all parts, 24 hours for engineer response (all services part 5days in customer hand by Intl' courier). Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
FAQ
What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sle service offered, please get back to us if you got any questions
FAQ
Factory Automatic 1-5Liter plastic Jerry can extrusion blow molding machine for good price
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sle service offered, please get back to us if you got any questions
FAQ
Factory Automatic 1-5Liter plastic Jerry can extrusion blow molding machine for good price
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
