Product Description

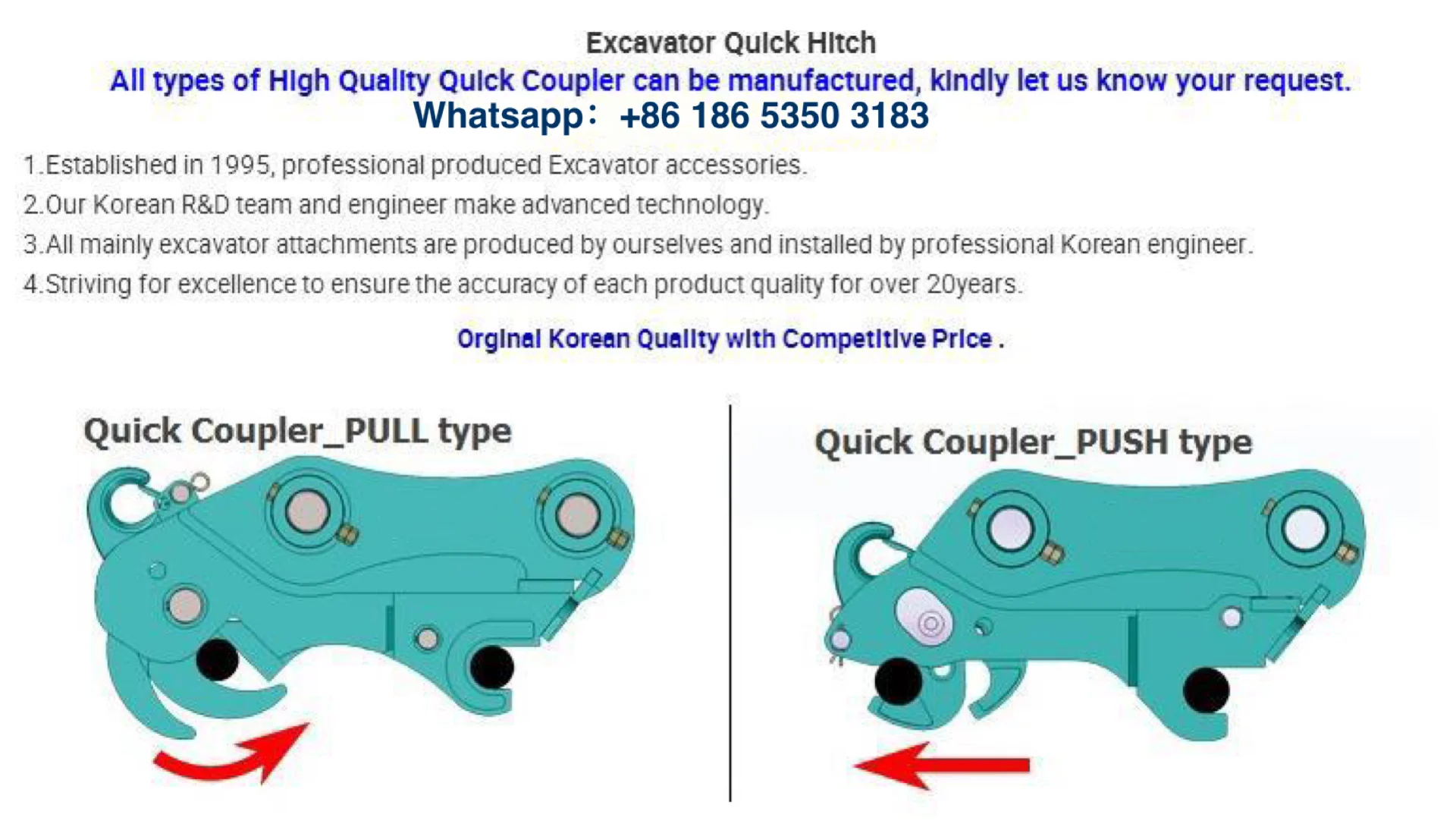

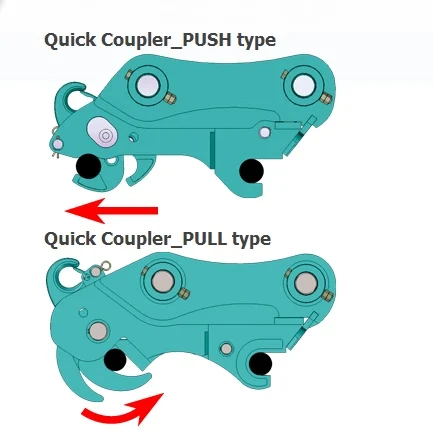

Attachment Quick Hitch Coupler Quick Hitch Excavator for Connecting Excavators




Why choose us !!!

Quick coupler is an ideal tool to mount various attachments on the excavators with easy and speedy. thanks to the advanced safety technology and user- friendly mechanism, it allows you more convenient and reliable on work conditions.






Model
Unit
YLMINI
YL45
YL50/55
YL60/65
YL70/80
YL90
YL100/110
Overall Length
mm
388
534-545
600
765
924-944
983-1050
1006-1173
Overall Height
mm
246
307
310
388
492
574
558-610
Overall Width
mm
175
258-263
270-280
353-436
449-483
543-568
606-663
Pin to Pin Center Distance
mm
80-150
230-270
290-360
380-420
460-480
473-540
550-620
Forearm Open Width
mm
80-140
155-170
180-200
232-315
306-340
375-411
416-469
Retractable Distance of Oil Cylinder
mm
170-206
205-275
340-450
340-486
256-390
413-590
520-290
Top to Bottom Pin Distance
mm
159
195
195
220
275
300
360
Pin Diameter
mm
25-40
45-50
50-55
60-70
70-80
80-90
90-120
Weight
KG
25
50-60
80
120-130
280-290
420-430
450-580
Working Pressure
Kg/cm
40-380
40-380
40-380
40-380
40-380
40-380
40-380
Required Oil Flow
L/min
10.0-20.0
10.0-20.0
10.0-20.0
10.0-20.0
10.0-20.0
10.0-20.0
10.0-20.0
Suitable Excavator
Ton
1.5-4
4.0-7.0
5.0-8.0
9.0-19.0
17.0-23.0
23.0-30.0
33.0-45.0


Our Company


About Us










Certification






Exhibition Show










Packing & Delivery




Package


◇ Inner package hydraulic breakers were packed in stretch film

◇ Outside package with export wooden case

◇ Hydraulic breaker Package can be as per customer's request





Delivery


☆Delivery time: Usually 3-7days (1-5sets) after receiving the payment

☆We can arrange hydraulic breaker shipment by ocean or air transportation according to your request from any port of China.



Our Service


1. 7Days*24Hours after-sales service by email and phone


2. Your inquiry will be replied in 24 hours during working days

3. Our customer-oriented sales and technical team are always at your service

4. OEM Service available

5. Warranty: 12 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).



FAQ


1. Are you a manufacturer?
Yes, our factory was established in 2004

2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.

3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.

4. How about delivery time?
3-7 working days after receiving the payment.

5. After-sale Service
12months warranty for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.


6. Impact Test
Every hydraulic breaker will do impact test before shipment.
