Алюминиевый сплав пользовательские радиатор экструзии
US $4.00-$10.00
Лидер продаж Светодиодный радиатор Cxb3590 50 Вт алюминиевый для промышленных
- Категории: Heat Sinks >>>
- Поставщик: Dongguan,Renxin-Seiko,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

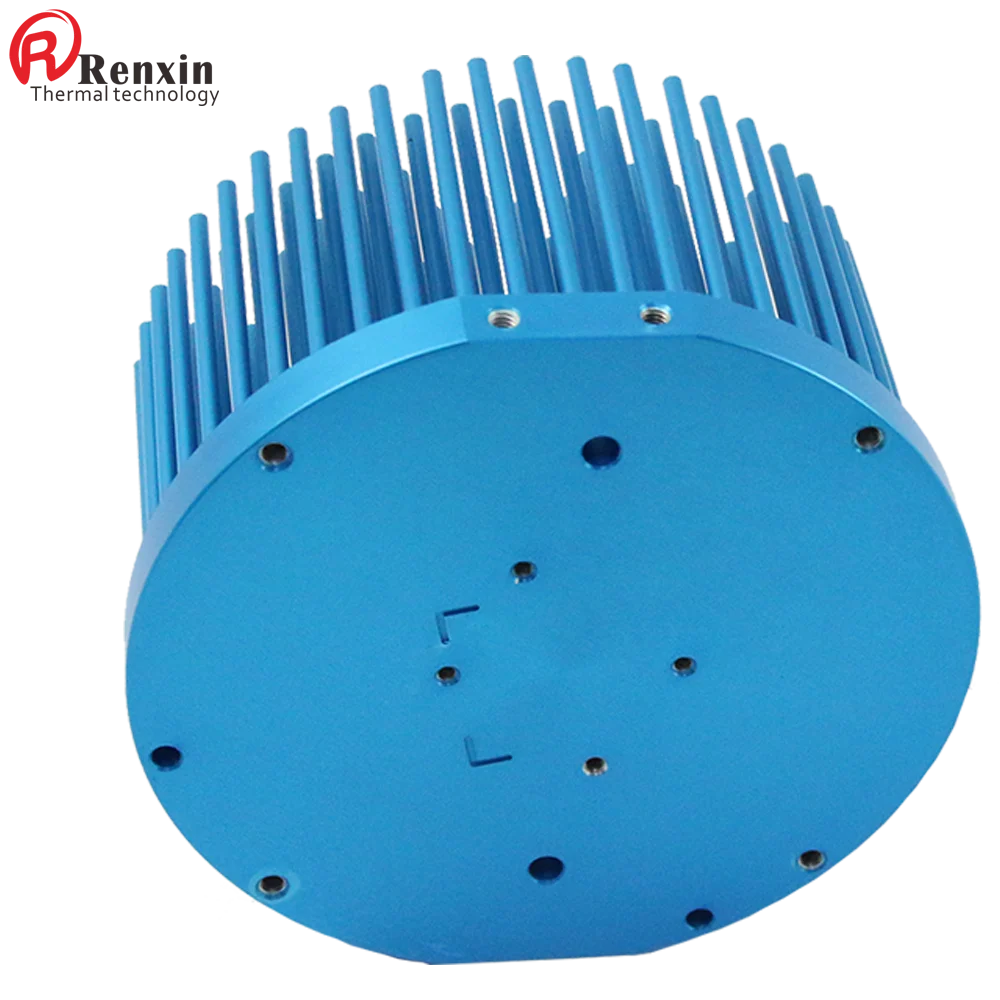

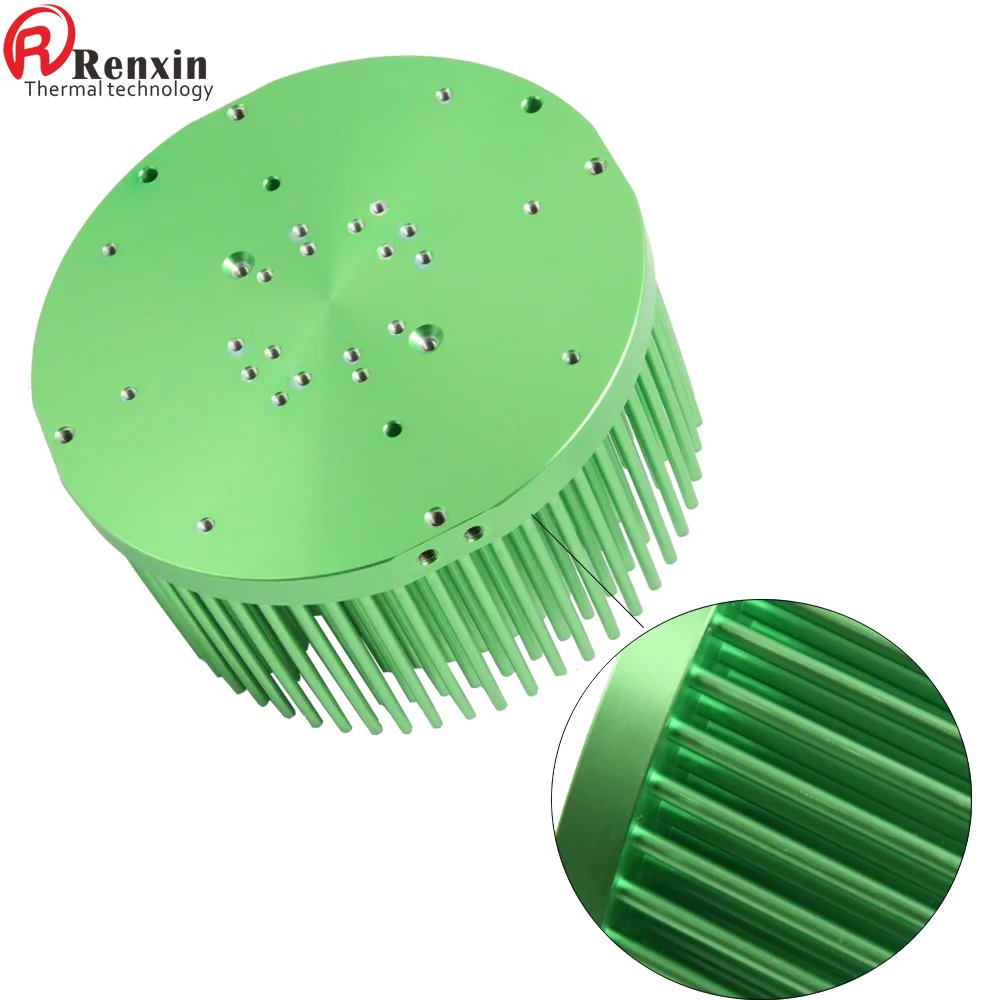

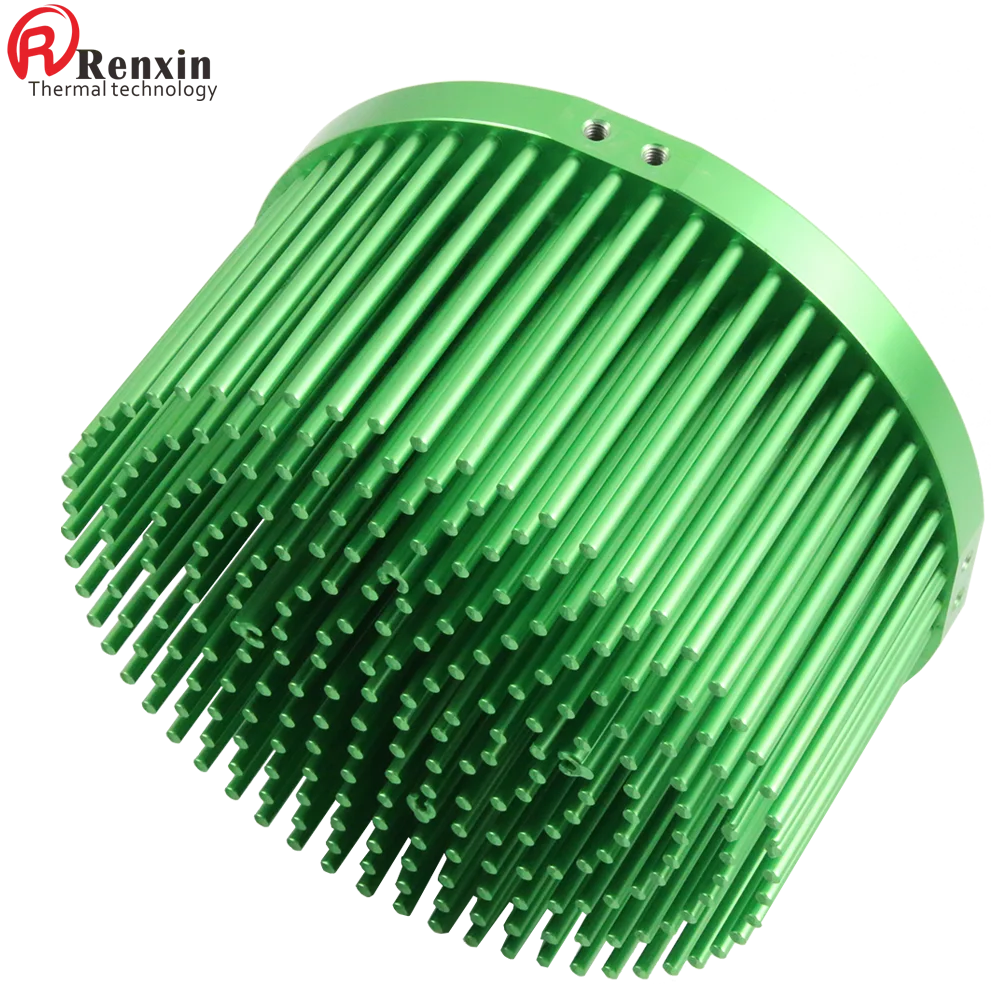

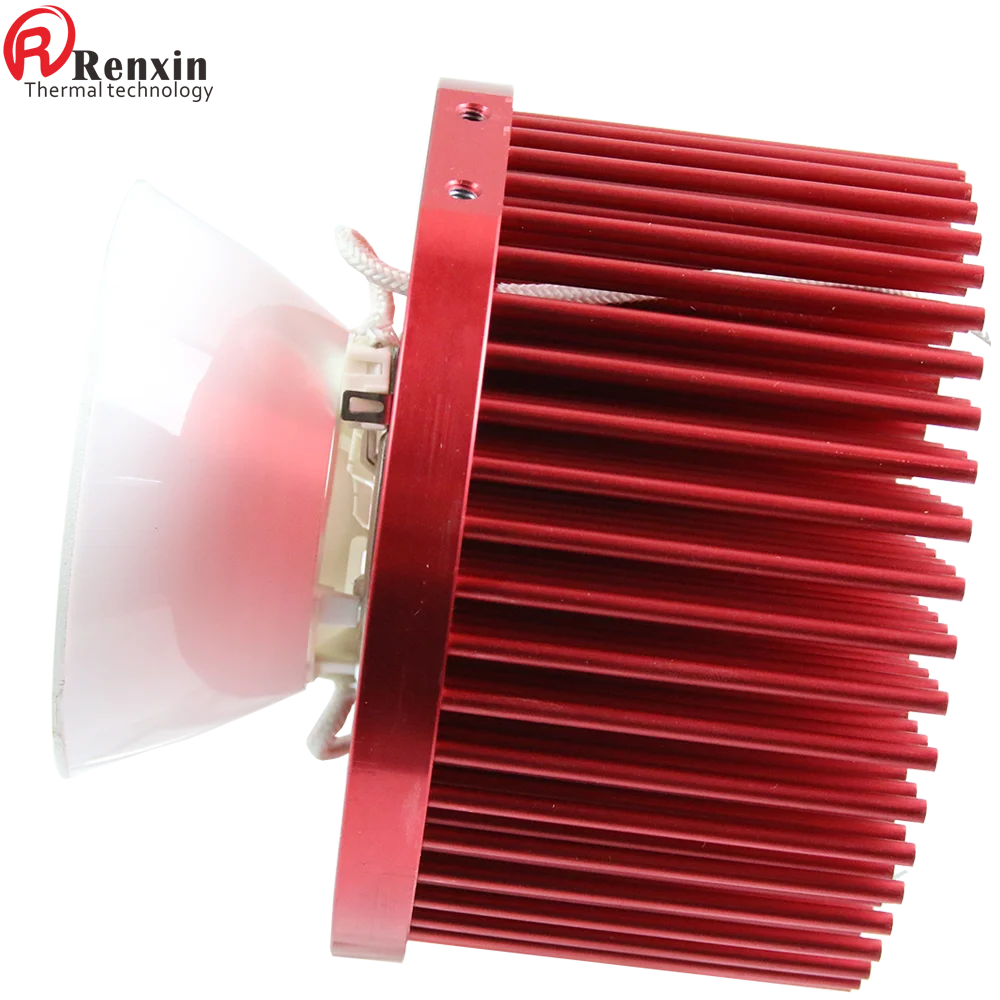

Wide range of pin heatsinks are available for selection. They have very good performance. Please refer to the table below for your slection.
We support customization, please do not hesitate to contact us if you have special requirements.
| Part Number | |||||||
| Shape | Round/ Splayed Round | Square/ Splayed Square | Round/ Splayed Round | Round /Splayed Round | Round/ Splayed Round | Round/ Splayed Round | Round/ Splayed Round |
| Base Diameter | 120mm | 125mm | 133mm | 140mm | 150mm | 163mm | 180mm |
| Height | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Net Weight | 0.54KG | 0.86KG | 0.69KG | 0.72KG | 0.86KG | 1.05KG | 1.25KG |
| Power (Watts) | 45~65 | 75~95 | 50~70 | 55~75 | 70~90 | 80~100 | 90~110 |
| Pin Height | 60mm | ||||||
| Base Thickness | 10mm | ||||||
| Process | Cold forging | ||||||
| Body Material | Aluminum 1070(99.5%) | ||||||
| Finish | Anodize Black, Silver, Green, Blue, Yellow, etc | ||||||
| Drilled | Pre-drilled (Customized as drawing) | ||||||
| Application | LED Lighting | ||||||
Product Details

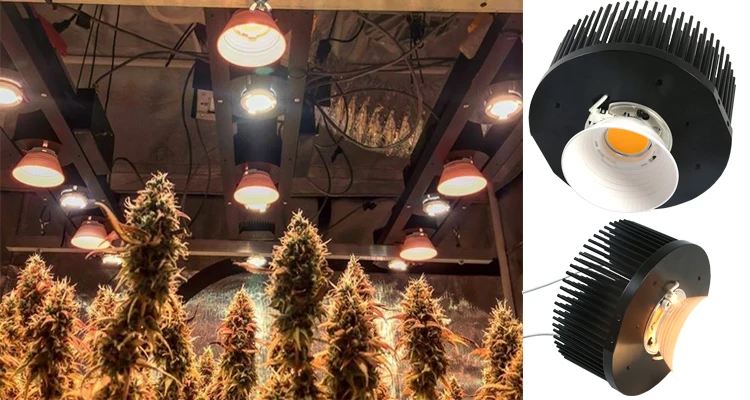

Application
Contact Us
 | Donny Wu
Direct: +86 769 8182 2159 Tel: +86 769 8182 2158 Ext.8028 Mobile: +86 189 3859 8393 E-mail: donny.wu(@)renxin-precision.com Website: http://www.renxin-precision.com |
