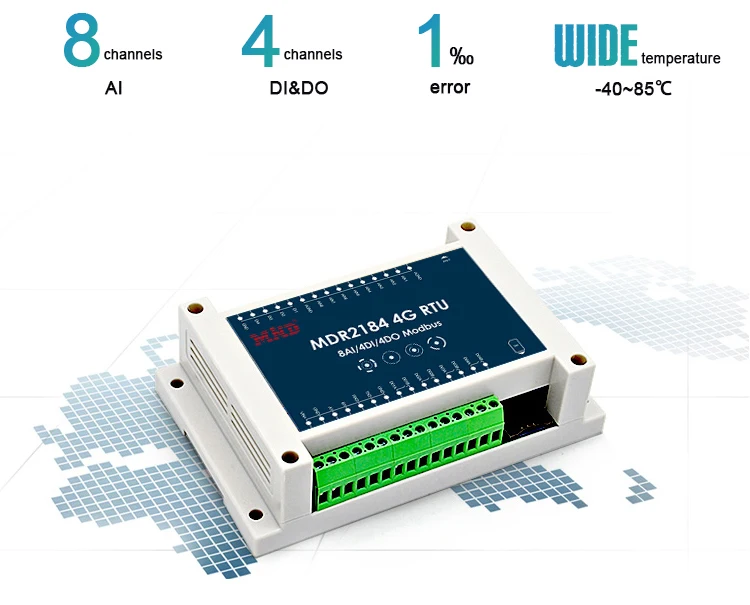

GPRS/4G wireless remote measurement and control technology
Support Modbus master&slave/Polling/Local logic pulse trigger/Remote telemetry
Built-in industrial-grade communication module with independent CPU

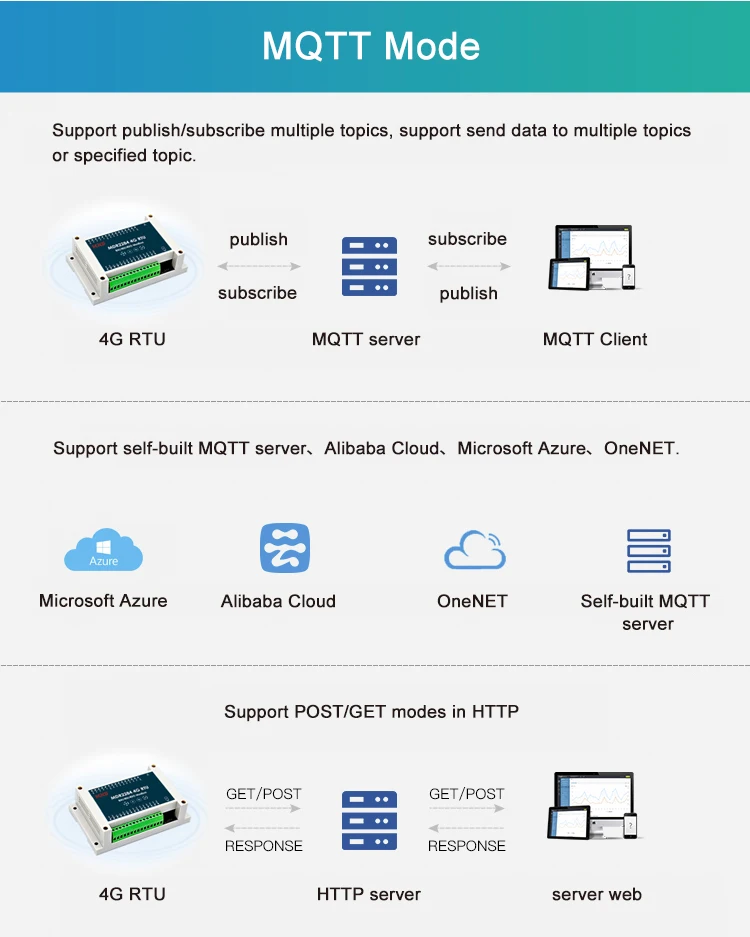

Support TCP/UDP/ModbusRTU/TCP/HTTP/MQTT
High-precision acquisition technology
Support pulse relay output
Rail/wall-mounted design
Basic Function

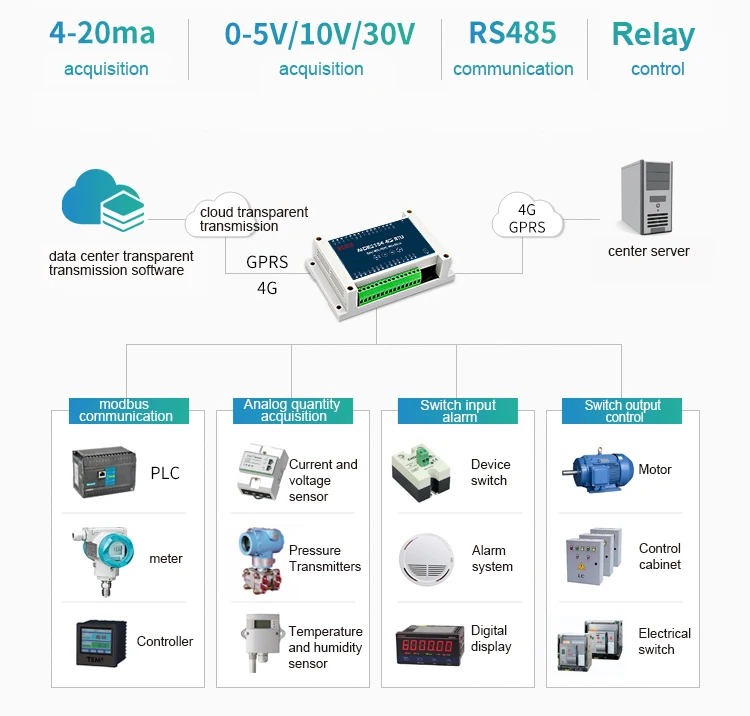

Support data aquisition about digital(switch) value/Analog quantity(4-20mA or 0-5V/10V/30V)
Built-in relay switch (supports DC and 220V power supply on-off control)
Support RS485 / RS232 port which can be connected to serial devices such as front-end instruments or other controllers

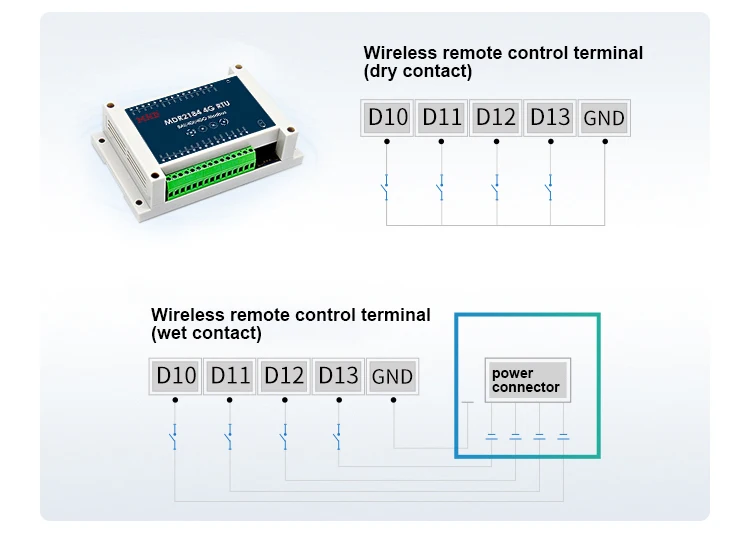

Rail insatallation & Dry/Wet contact
& Optocoupler isolation port
Anti-overcurrent,anti-overvoltage,anti-reverse connection,anti-misconnection,flame retardant material and built-in optocoupler isolation protection port.

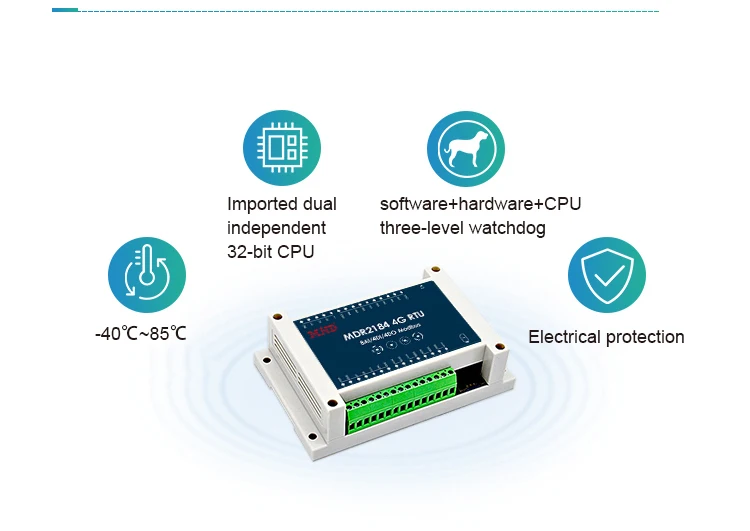

IndustrIal grade hardware

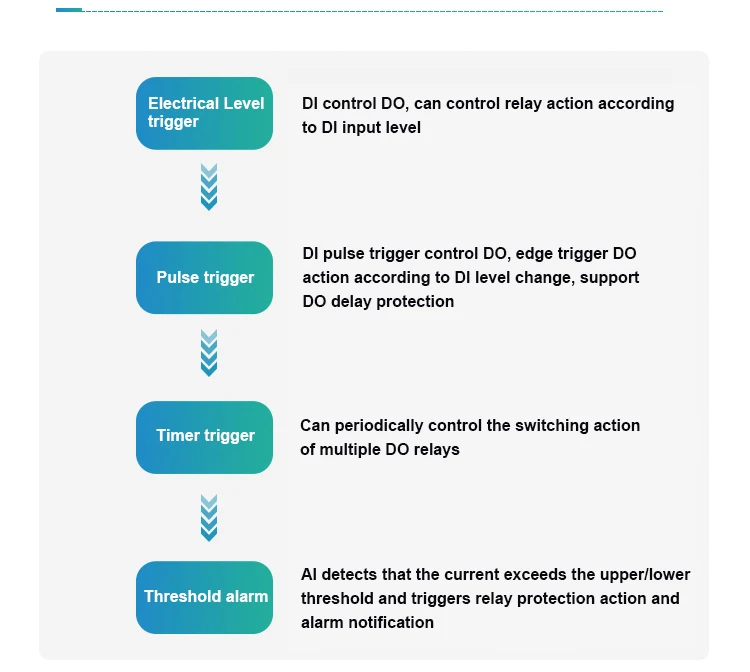

Local logic control for users without server
Support Modbus application and protocol

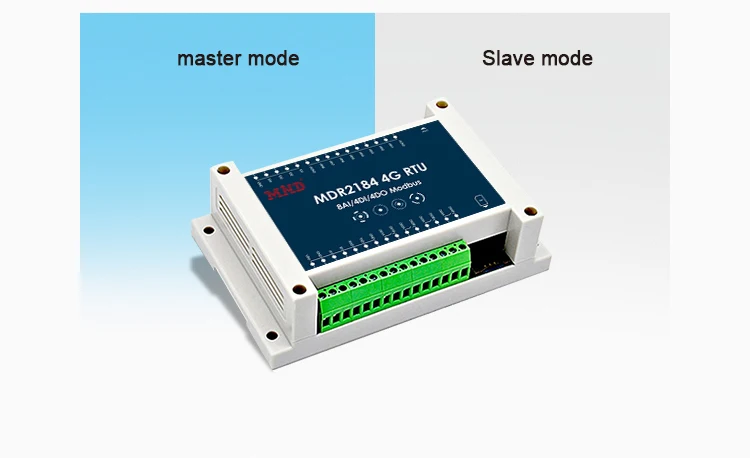

Modbus master and slave two modes
Modbus polling technology, self-determined cycle polling multi-device control
Modbus RTU/TCP network protocol conversion
Packet Script Programming
support Registration packet/Heartbeat packet/Header packet under TCP_Client/UDP_Master protocol.
Heartbeat packet support serial port heartbeat packet or network heartbeat packet;
Registration support IMEI,ICCID,custom registration;
Header packet support custom identifier.
Modbus Gateway
Modbus RTU to Modbus TCP
Modbus polling

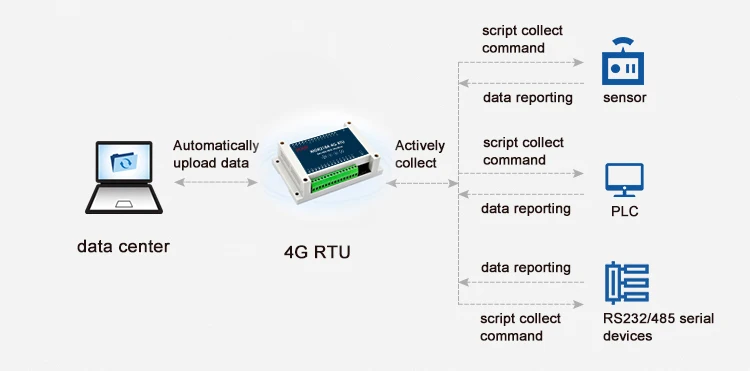

Data collection through preset script commands/data center commands

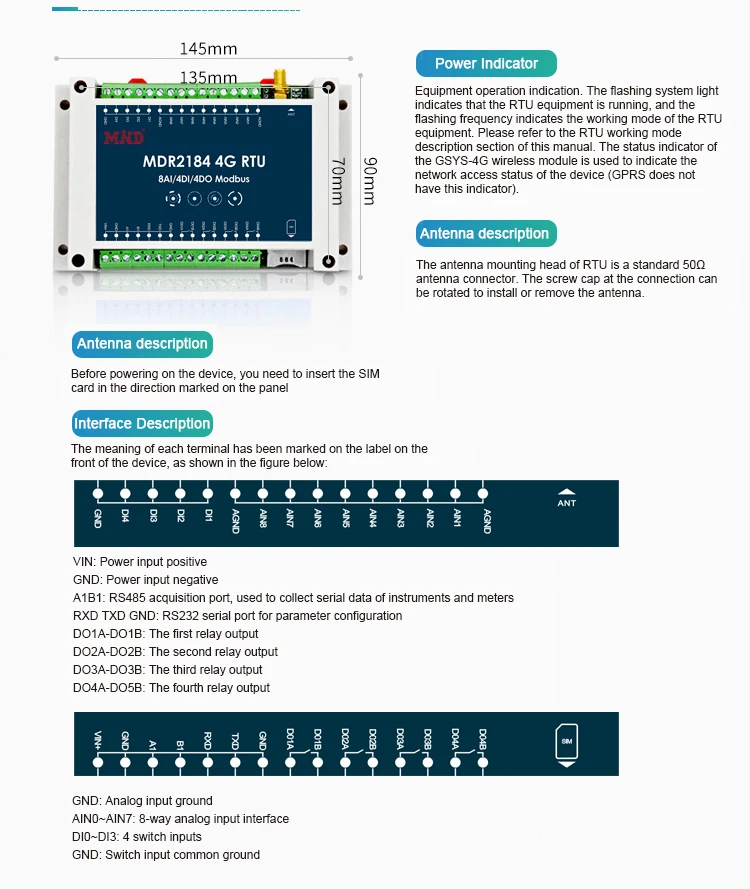

Product details

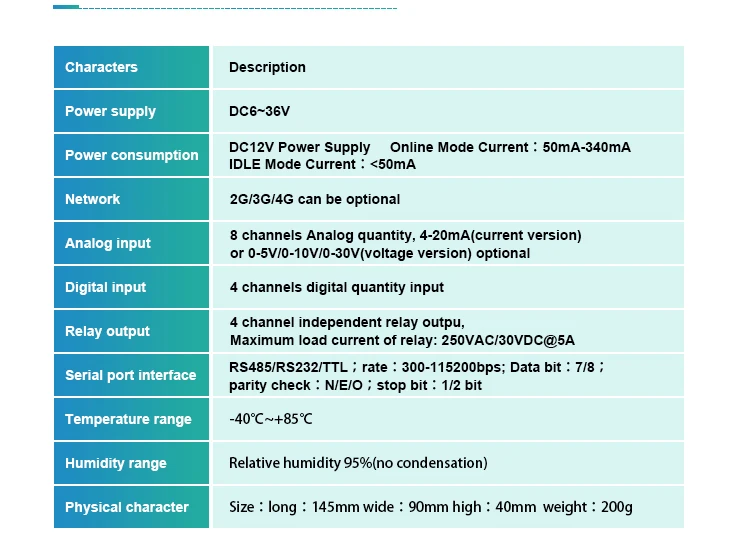

Technical parameter

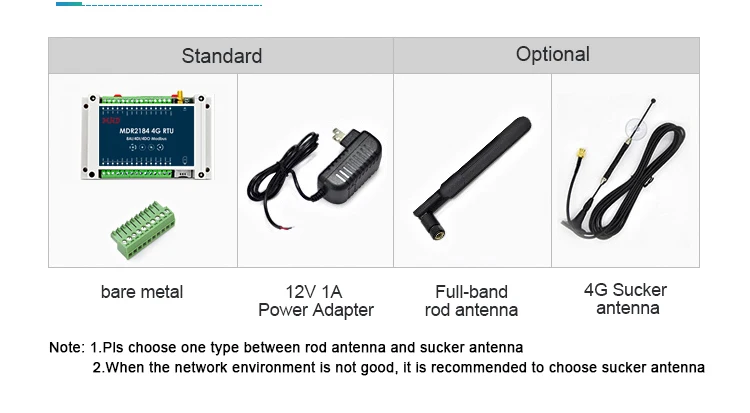

Shipping list
FAQ
