Hardware | ||
RAM | 2GB | |
ROM | 16GB | |
LCD Display | 5”, 1280*720; Optional protection screen glass | |
Dimension | 175 (L) *78 (W) *27 (H)mm | |
Touch Panel | Capacitive panel, multi-point touch, G+G | |
Camera | Rear: 8.0M | |
Battery | DC 3.7V/4000mAh | |
RFID | NFC, RFID, 13.56MHz smart card | |
G-sensor | Gravity acceleration sensor | |
GPS | Support for A-GPS | |
MIC | Built-in microphone | |
Speaker | Built-in stereo speaker 8Ω/1.5W | |
SIM Card | Support 1 SIM card | |
TF | 1x mini SD card up to 32G | |
Earphone | 3.5mm stereo phone jack | |
Operating Temperature Range | -20℃ to + 70℃ | |
Certification | CE, ISO9001, GSM TAC certificated | |
Rugged | IP65 | |
Operating Humidity | 0-95% | |
Barcode | Optional 1D/2D, PDF417 scanner | |
Antistatic Ability | IEC64000-4-2 standard 15KV | |
OTA | Support (Can update firmware & app remotely via OTA function) | |

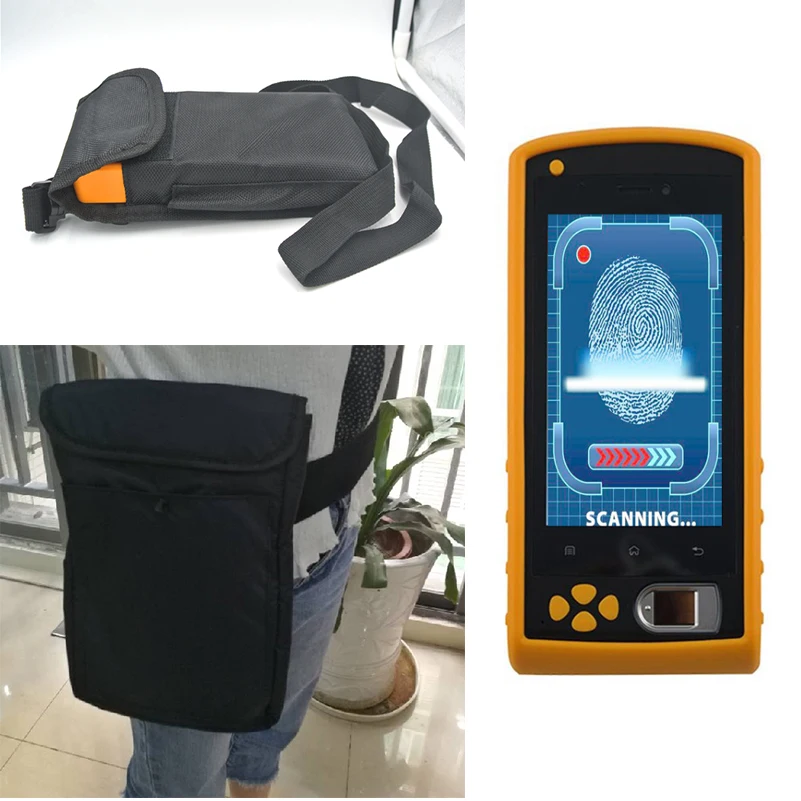

Package Accessories | Device bag, Screw driver, adapter, USB cable | |
Software | ||
OS | Android 7.0 | |
CPU Professor | Quad-core, 1.5G, Android 7, MTK6737V/CT | |
SDK | For free, come with sample package | |
Cloud-based development | Yes, Support | |
Extra Support | Launcher APP for free (Only allow to use the specific app,user cannot access other settings/apps on device) | |
ODM logo | ||
Can optional wall-mounted metal box | ||
Fingerprint Sensor | ||
Image Size | 256*288 pixel | |
Image resolution | 500DPI | |
Gray Scale | 8-bit (256 levels) | |
Imaging Area | 10.4mm*14.4mm | |
Standard | Support ANSI378, ISO19794-2 | |
Image Format | WSQ, JPG, BMP, etc | |
Communication | ||
Data link | 2G: GSM CDMA 850/900/1800 MHz | |
3G: WCDMA 2100/1900/900/8500MHz (Can do customization according to clients country details) | ||
4G: B1 B2 B3 B5 B8 B38 B39 B40 B41 (Can do customization according to clients country details) | ||
WIFI | 802.11 b/g/n | |
USB | Type C with OTG function |
F:Do you offer warranty for the device? |
Q:Yes,we offer one year warranty,also life soan technical support |
F:What is your MOQ |
Q:MOQ is 1pcs |
F:What is your payment term? |
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card |
F:How to get software and SDK? |
Q:Software and SDK is free.Will send download link after you place order. |
