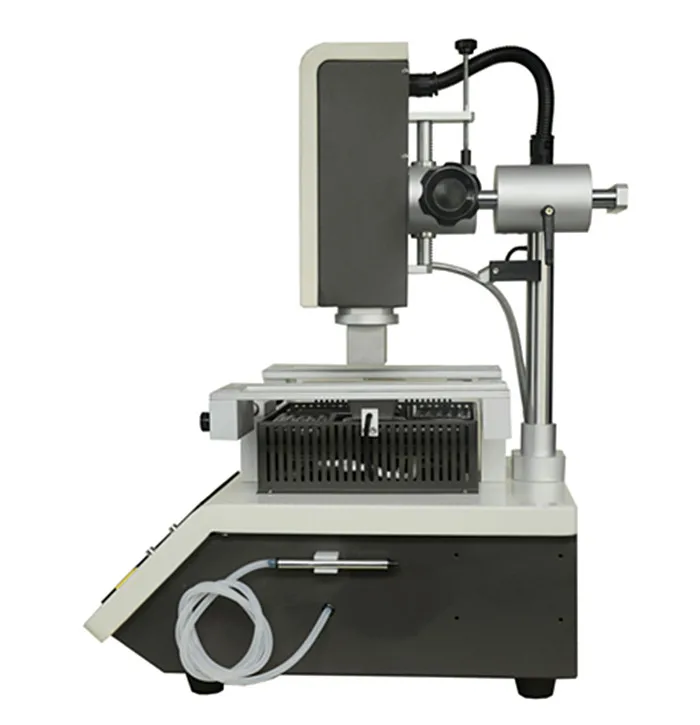

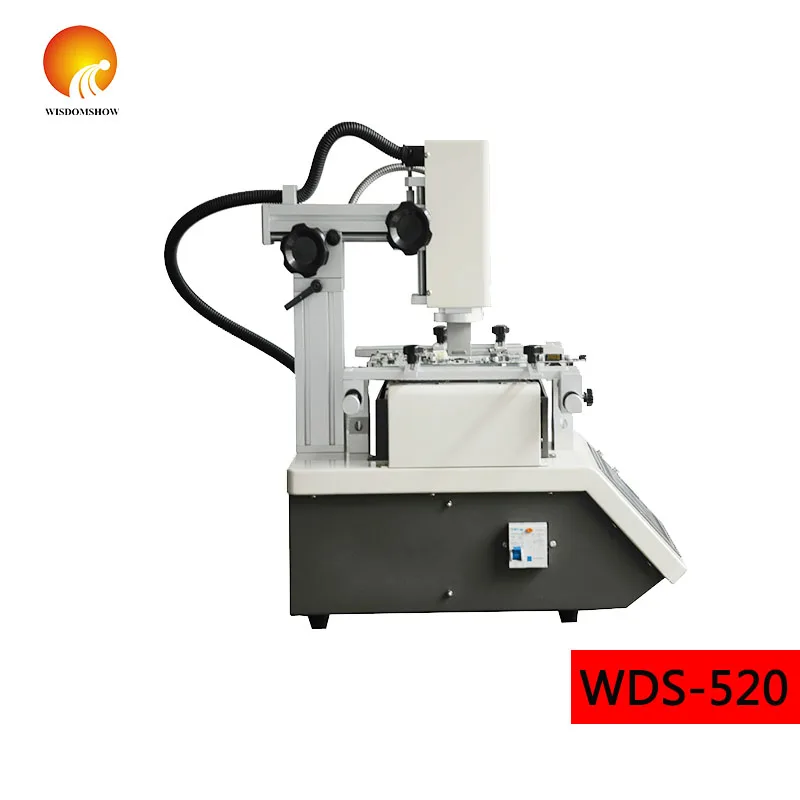

WDS-520 Infrared bga rework machine With Good Price SMD SMT mobile phone soldering and desoldering Rework Station



Total Power	3500W
Upper Heating Power	800W
Lower Heating Power	Second zone:1200W, Third zone:( IR )2700W
Power Supply	AC 220V±10V  50/60HZ
Overall Dimension	395*450*590mm
Locating Mode	V-shape card slot, PCB holder can be adjustable by X and Y axes with universal jigs.laser light to do fast centering and position
Temperature  Controlling	K-type thermocouple closed loop control, independent temperature control,  precision up to ±3 degree
PCB Size	Max 195*260mm,  Min 10*10mm
Thermocouple ports	1 unit
Weight of machine	19 KG







Main features :

1.Perfect support Soldering, Desoldering, Removing and Mounting the BGA Chip

2.Touch screen and PLC controlling to ensure it work stably and reliably.

3.Components mounting accuracy within 0.01mm , Repair success rate 99%

4.Rework BGA, VGA, CCGA, QFN, CSP, LGA, SMD, etc

5.Precise Temperature Control, accuracy within 2℃

6.Three temperature zones to heat up independently.

7.Upper temperature zone can be moved freely, Second zone can be adjusted up and down.    lcd panel repair machine

8. Hot air nozzle can be rotated in 360 degree

9.With CE certification, double over temperature protection function



PID parameters automatic adjustment +  High Sensitive Touch Screen



 Strong & Flexible Support Stem + Vacuum Pen

♦ Standard export wooden package for bga rework station.



♦ Delivery in 2 workdays after payment confirm .



♦ Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea.



♦ Loading Port:  Shenzhen or Hongkong.



Warranty:

♦♦♦  The main body maintains for one year and the spare parts maintains for three months, whole-life   technical support .

♦♦♦  Provide the immediate network online Q/A and the technical advisory work .

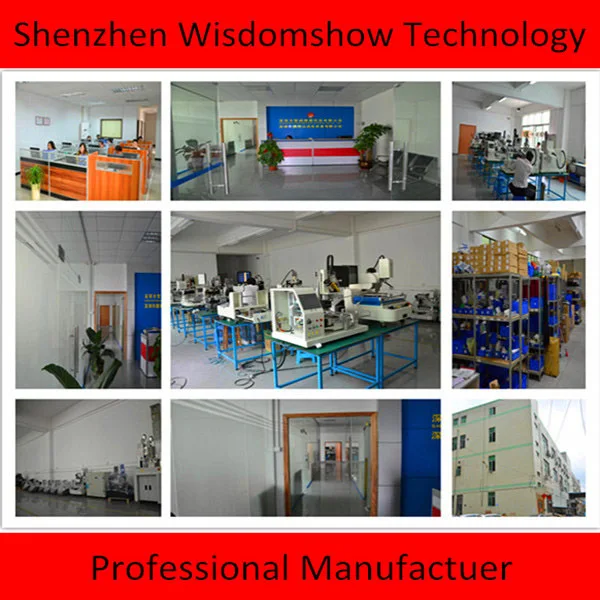

1.Factory introduce                                               2.The exhibition



3.Certificate



Why choose us?
1.Professional factory manufacturing bga rework station,best production capability,best quality control,best service.
2.Approved CE& ISO , Offer most competitive price.
3.100% QC inspection before shipment.
4.Speedy and high quality customer service and after-sale service possible.
5.Deliver goods to customer all over the world with speed and precision.
6. Powerful teams,meet your requirement and provide the life-time service for u.

What we can also supply:

 We are professional BGA rework station manufacturer, commit to provide the one-stop service for customers.

 So that we also supply the motherboard repair equipment(like soldering station, desoldering gun, etc) and BGA Reballing

 tools(like solder ball, flux paste, solder wick, reballing kit, reballing stencils for laptop, ps3,xbox360, mobile, etc)

 1. This is the first time I use this kind of machine, Is it easy to operation?

  There is english manual or guide video that show you hot to use machine .

   If you still have any question,please contact us by e-mail/skype/phone/trademanager  online service.



2. If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.If the parts is less than 0.5kg,we pay it

IF it exceeds 0.5kg, you need to pay the postage.



3. Hou can I buy this machine for you ? ( very easy and flexible)

 A. Consult us about this product on line or by email

 B.Negotiate and confirm the final price ,shipping ,payment methods and other terms.

 C, Send you the proforma invoice and confirm your order.

 D, Make the payment according to the method put on proforma invoice.

 E. We prepard for your order in terms of the proforma invoice after confirming your full  payment. and 100% quality check before shipping.

 F. Send you order by air or by sea,



4. What is the payment way ?

We accept the payment terms: Bank transfer, Wester Union, Moneygram, Paypal, etc.

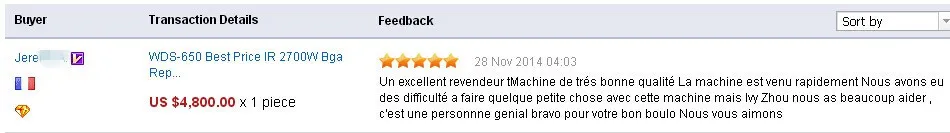

Some of Customers' voice :
