Сельскохозяйственное охлаждение и энергосбережение вентиляционные вентиляторы


Поделиться:

Цена:2 100,00 $ - 2 700,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики









Product Parameters



































































































































Model



HVD-H7200



HVD-B6700



HVD-B6200



HVD-S5200



HVD-S4200



HVD-S3600



HVD-S3000



HVD-2500



Diameter



7200mm ( 24ft )



6700mm (24ft)



6200mm (20ft)



5200mm (17ft)



4200mm (14ft)



3600mm (12ft)



3000mm (10ft)



2500mm (8ft)



Blades Qty



5



5



5



5



5



5



5



5



Weight



115KG



105KG



100KG



78KG



75KG



72KG



70KG



65KG



Power



1.3KW



1.3KW



1.3KW



0.66KW



0.66KW



0.49KW



0.49KW



0.49KW



Max    Speed



55RPM



60RPM



65RPM



70RPM



80RPM



90RPM



100RPM



120RPM



Max air Volume



15197m³/min



12560m³/min



10747m³/min



7065m³/min



5306m³/min



4522m³/min



3140m³/min



2543m³/min



Power Supply



380V/220V



380V/220V



380V/220V



220V



220V



220V



220V



220V



MAX. Current



3.1A/4.5A



1.8A/3A



1.8A/3A



2.6A



2.6A



2.6A



2.6A



2.6A



Noise Level



<39db



<39db



<39db



<39db



<38db



<38db



<38db



<38db



Area Covered



Ø38-44m



Ø35-40m



Ø32-27m



Ø25-30



Ø22-26m



Ø20-24



Ø18-20m



Ø15-18m

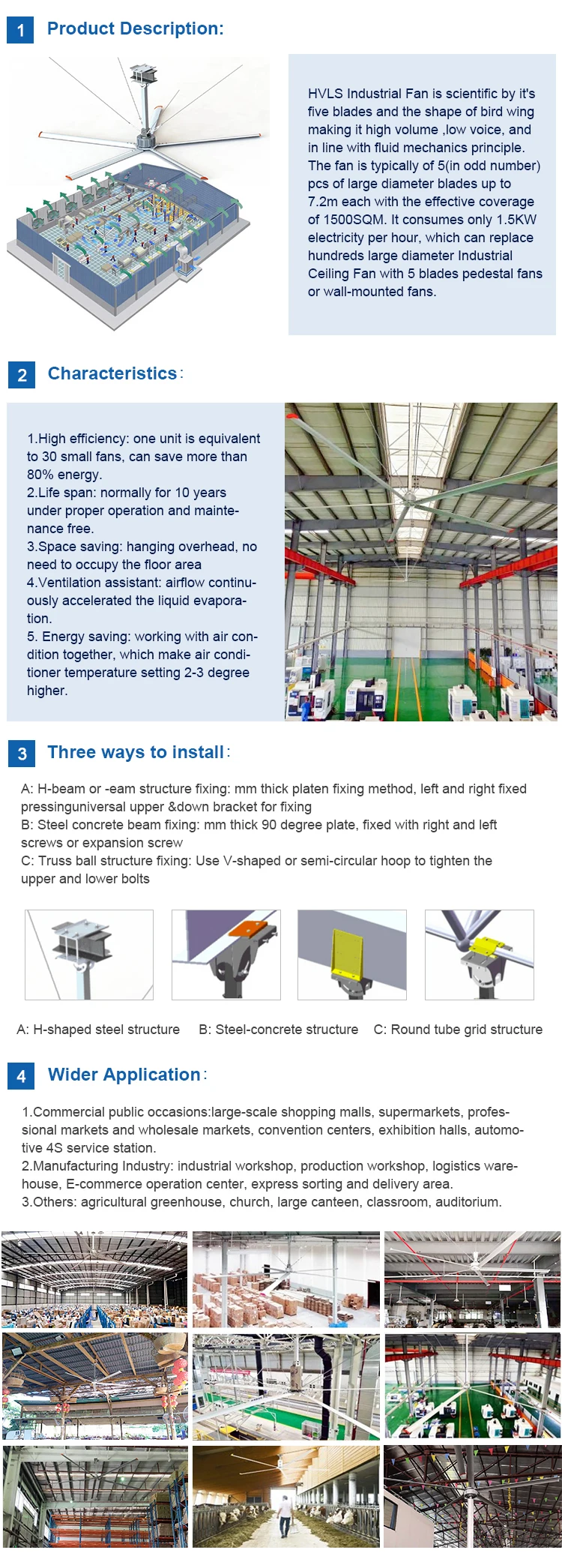

Product Description







Product Components

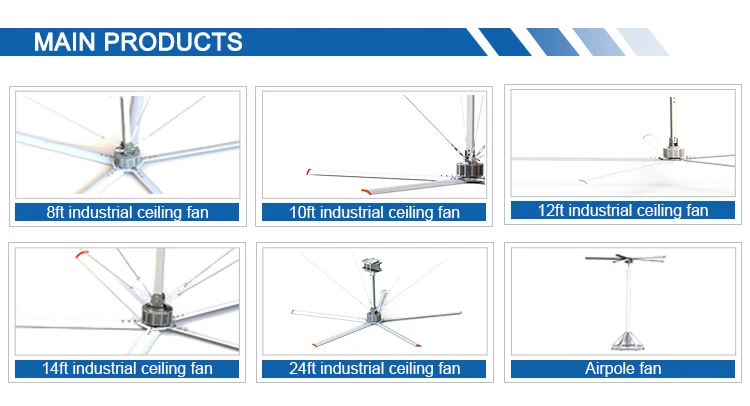

Main Products

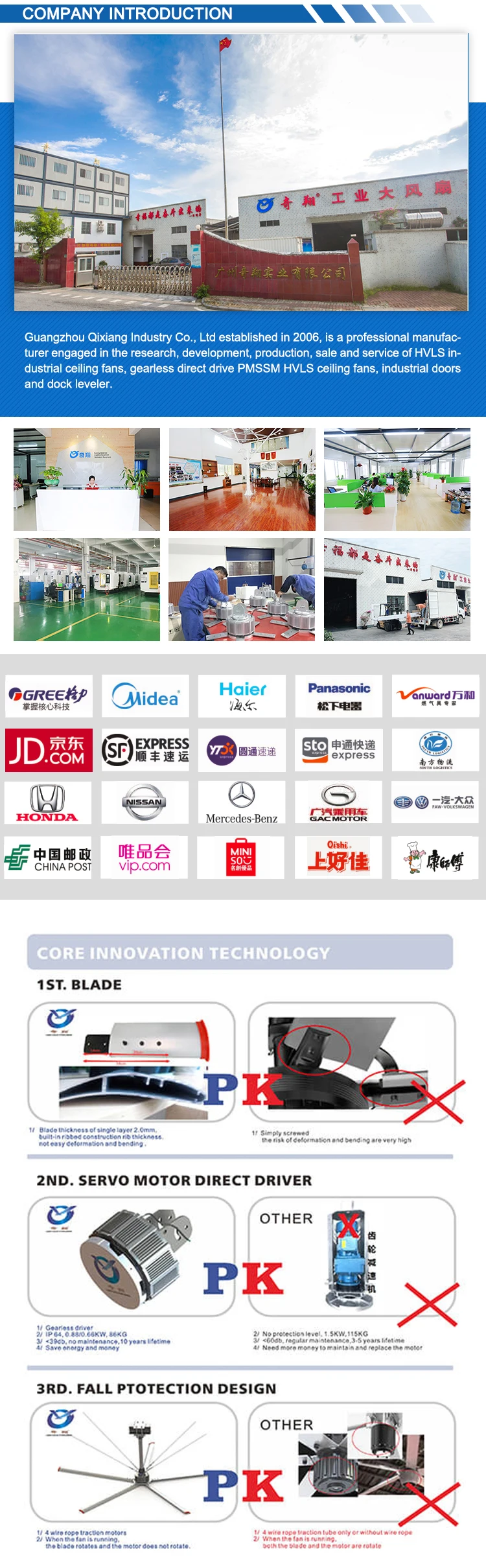

Company Information







Packaging & Shipping







FAQ




Q1: What is the MOQ?


No any requirements, 1 pcs can be accepted.


Q2: Compare with the pictures,I prefer to see the real products,Can you promise your products are the same with the pictures?


All the pictures were taken from real products,so the quality can be guaranteed,You can place sample order first .


Q3: Some of my orders are urgent, I don’t want to wait long time, can you guarantee mass production period .


We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .


Q4: Can all products be customized?


Yes,all of products can be customized according to customers' requirements.


Q5: What kind of motor do you used?


Bauer , Bonfiglili ,Nord.


Q6: How about the motor power?


380v/50 Hz, three phase ,1.5kw power , 2.0Hp ,it depends on specification.


Q7: Are the fans safe,how do you make the fans safer than others?


Yes,We have 8 methods to guarantee safety and stability.
