Product Description
| Technical data | |||||||||||
| Model | Heat rejection (kw) | Dimension | Axial flow fan | Water pump | Weight | ||||||
| L (mm) | W (mm) | H (mm) | Amount | Power (kw) | Airflow (m2/h) | Power (kw) | Flowrate (m2/h) | Shipping(kg) | Opertion (kg) | ||
| HTFN-200 | 200 | 2000 | 1400 | 3300 | 1 | 2.2-8P | 25000 | 0.75-2P | 2 | 1750 | 2790 |
| HTFN-300 | 300 | 2200 | 1450 | 3500 | 1 | 3-8P | 32000 | 1.1-2P | 38 | 2100 | 3360 |
| HTFN-400 | 400 | 2400 | 1700 | 3500 | 1 | 4-8P | 45000 | 1.1-2P | 45 | 2530 | 4130 |
| HTFN-450 | 450 | 2400 | 2000 | 3700 | 1 | 4-8P | 45000 | 1.1-2P | 45 | 2800 | 5000 |
| HTFN-500 | 500 | 2400 | 1850 | 3900 | 1 | 4-8P | 45000 | 1.1-2P | 45 | 3150 | 5250 |
| HTFN-550 | 550 | 2600 | 1850 | 3900 | 1 | 4-8P | 60000 | 1.5-2P | 65 | 3380 | 5680 |
| HTFN-600 | 600 | 2600 | 1950 | 3900 | 1 | 4-8P | 60000 | 1.5-2P | 65 | 3600 | 6050 |
| HTFN-650 | 650 | 2800 | 1950 | 3900 | 1 | 5.5-8P | 71000 | 1.5-2P | 65 | 3850 | 6450 |
| HTFN-700 | 700 | 2800 | 2070 | 3900 | 1 | 5.5-8P | 71000 | 2.2-2P | 80 | 4200 | 6900 |
| HTFN-750 | 750 | 3000 | 2070 | 3900 | 1 | 5.5-8P | 77000 | 2.2-2P | 80 | 4350 | 7150 |
| HTFN-800 | 800 | 3600 | 1850 | 3900 | 1 | 4-8P | 90000 | 2.2-2P | 80 | 4600 | 7600 |
| HTFN-850 | 850 | 3600 | 2000 | 3900 | 2 | 4-8P | 90000 | 2.2-4P | 100 | 4780 | 7980 |
| HTFN-900 | 900 | 3600 | 2100 | 3900 | 2 | 4-8P | 90000 | 2.2-4P | 100 | 4900 | 8500 |
| HTFN-950 | 950 | 3600 | 2150 | 3900 | 2 | 48P | 120000 | 2.2-4P | 100 | 5050 | 8950 |
| HTFN-1000 | 1000 | 3800 | 2150 | 3900 | 2 | 4-8P | 120000 | 2.2-4P | 100 | 5200 | 9420 |
| HTFN-1100 | 1100 | 3800 | 2000 | 4100 | 2 | 4-8P | 120000 | 3-4P | 120 | 5600 | 9930 |
| HTFN-1200 | 1200 | 3800 | 2120 | 4100 | 2 | 4-8P | 120000 | 3-4P | 120 | 6050 | 10550 |
| HTFN-1300 | 1300 | 4000 | 2200 | 4100 | 2 | 5.5-8P | 142000 | 3-4P | 150 | 6380 | 11230 |
| HTFN-1400 | 1400 | 4200 | 2200 | 4100 | 2 | 5.5-8P | 142000 | 3-4P | 150 | 5950 | 11950 |
| HTFN-1500 | 1500 | 5600 | 2150 | 3900 | 3 | 4-8P | 180000 | 4-4P | 180 | 7420 | 13420 |
| HTFN-1600 | 1600 | 5600 | 1950 | 4100 | 3 | 4-8P | 180000 | 4-4P | 180 | 8000 | 14110 |
| HTFN-1700 | 1700 | 5600 | 2050 | 4100 | 3 | 4-8P | 180000 | 4-4P | 180 | 9200 | 15500 |
| HTFN-1800 | 1800 | 5600 | 2150 | 4100 | 3 | 4-8P | 180000 | 4-4P | 180 | 9650 | 16070 |
| HTFN-1900 | 1900 | 6000 | 2100 | 4100 | 3 | 5.5-8P | 213000 | 5.5-4P | 238 | 10150 | 16750 |
| |HTFN-2000 | 2000 | 6000 | 2200 | 4100 | 3 | 5.5-8P | 213000 | 5.5-4P | 238 | 10600 | 17500 |
| HTFN-2100 | 2100 | 7000 | 2050 | 4100 | 3 | 5.5-8P | 213000 | 5.5-4P | 238 | 11200 | 18950 |
Product Features :

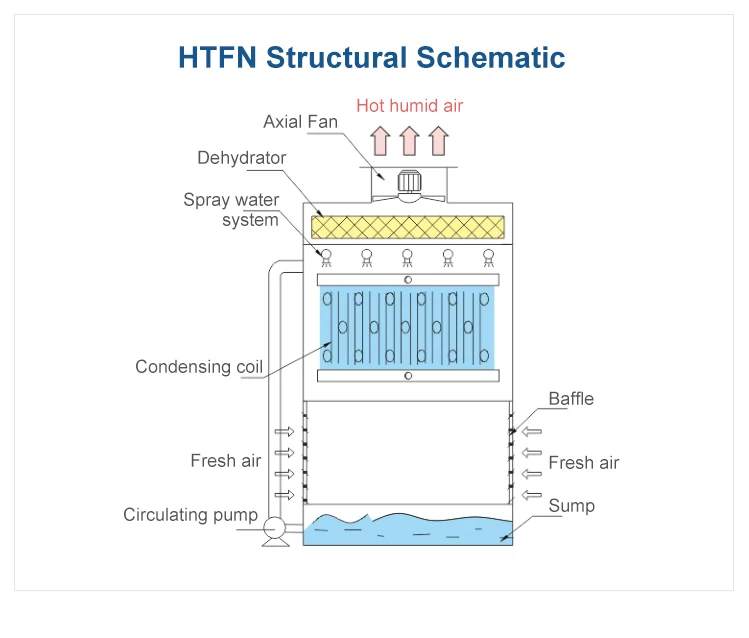

Power saving:The company's evaporative cooling adopts a unique design in structure, which reduces the condensation temperature and pressure of the refrigeration system, increases the refrigeration capacity of the compressor,and reduces the power consumption.
Water saving:The dewatering device used in the company's evaporative cooling has a highly efficient dehydration capacity, and the loss of water evaporative and floating is very small, only about 10% of other water-cooled condensers,which greatly saves water resources
Small footprint and easy installation:The evaporative cold integrates condenser, cooling tower,pool, and water pump. lt can be placed on the roof.The installation pipeline is simple, there are no other water system accessories, the installation materials are less, the construction period is shortened, and the installation cost is reduced.
Save maintenance costs: When the machine works in a good environment, the service life can be increased, the trouble-free operation period of the compressor is prolonged, the system reliability is increased, and the maintenance cost is reduced.

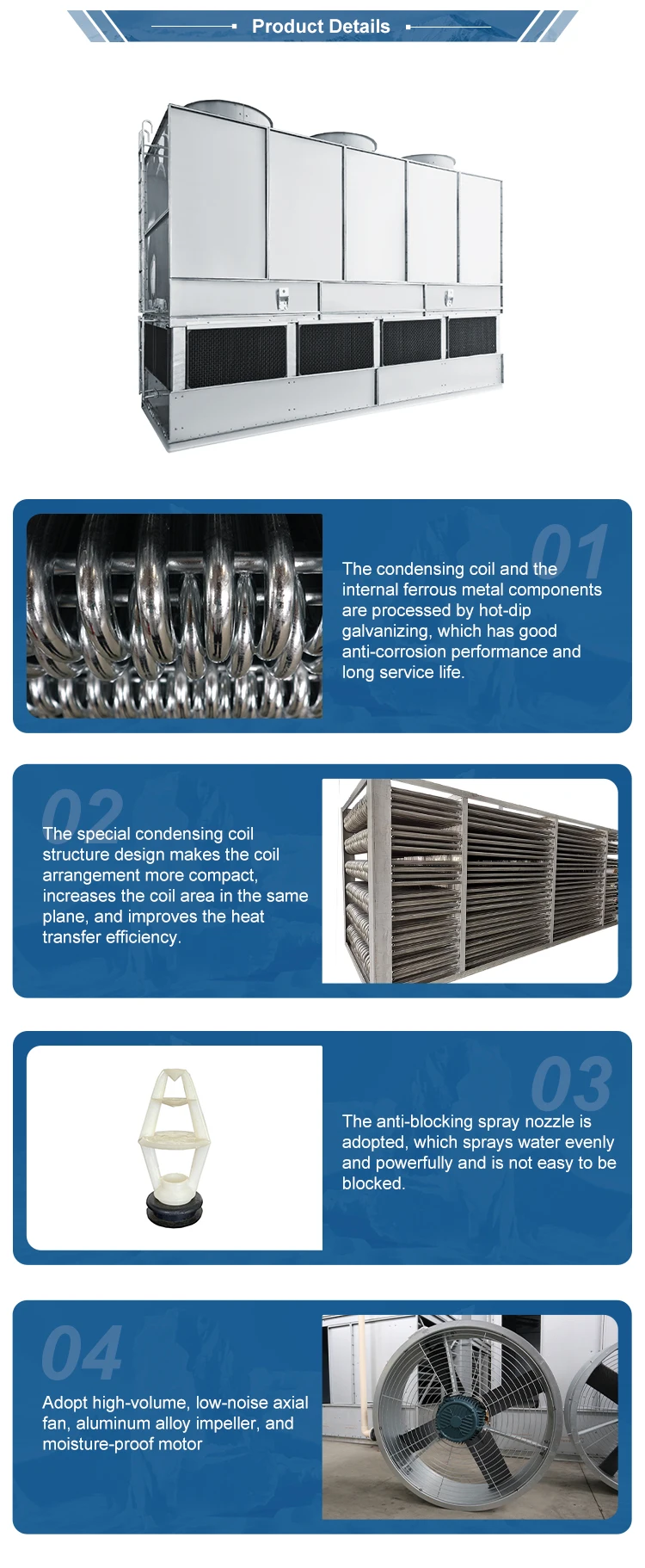

Product Details
Related Products
Company Information
Certifications
Packaging & Shipping
FAQ
1.Q: Are you a factory or trading company?
A:We are a trading company .
2.Q:Purchasing concept
A:With the concept of fairness and friendliness, we customize the products need
for our respected customers, and take the products and services as our pur pose to deliver the products to you safely.
3.Q:What is your Minimum quantity?
A:Minimum Ordering Quantity≥1
4.Q: Delivery time
A: Delivery time is 30 days.
5.Q:Terms of payment
A:50% of the total contract amount by t/t payment in advance,50% of the total contract amount by t/t payment before shipment.
