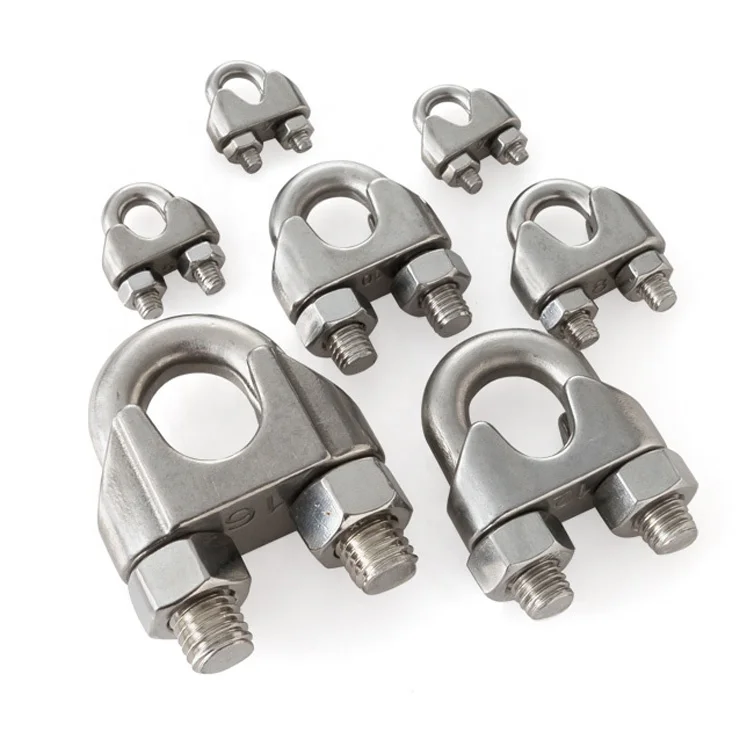

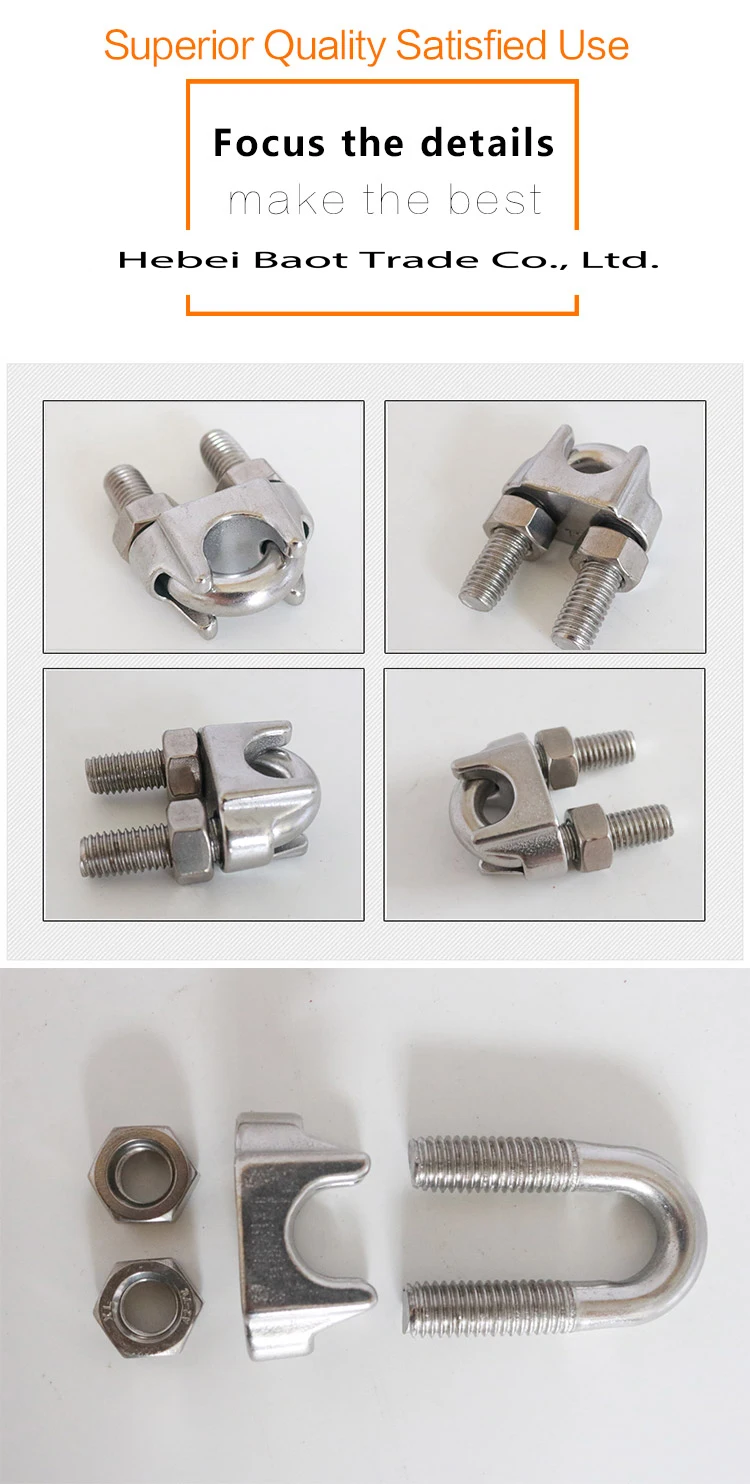

M16 Stainless Steel Cast Adjustable Cable Wire Rope

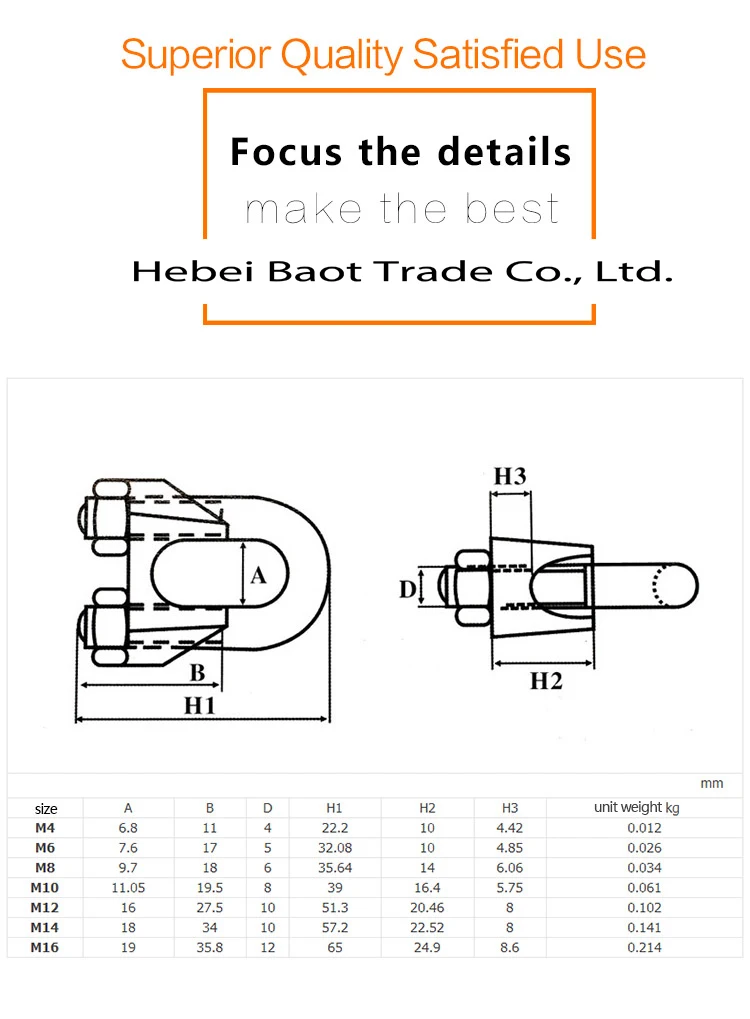

Size

A

mm

B

mm

D

mm

H1

mm

H2

mm

H3

mm

Unit weight kg

M4

6.8

11

4

22.2

10

4.42

0.012

M6

7.6

17

5

32.08

10

4.85

0.026

M8

9.7

18

6

35.64

14

6.06

0.034

M10

11.05

19.5

8

39

16.4

5.75

0.061

M12

16

27.5

10

51.3

20.46

8

0.102

M14

18

34

10

57.2

22.52

8

0.141

M16

19

35.8

12

65

24.9

8.6

0.214
