Заводской высокоскоростной электрический бесщеточный двигатель статор и

Описание и отзывы

Характеристики



Date sheet   (Single phase series Unite:mm)
Type	A	B	C	D	E	F	G	H	I	J	K	Hole(Φ)
EI-28	28	25	8	4	6	17	21
EI-30	30	25	10	5	5	15	20	25
EI-35	35	29.5	9.6	5	7.7	19.5	24.5	5
EI-41	41	33	13	6	8	21	27
EI-42	42	35	14	7	7	21	28	7	35			3.5
EI-48	48	40	16	8	8	24	32	40
EI-50	50	42	14	9	9	25	34
EI-54	54	45	18	9	9	27	36	9
EI-57	57	47.5	19	9.5	9.5	28.5	38	9.5
EI-60	60	50	20	10	10	30	40	40
EI-66	66	55	22	11	11	33	44	44	55
EI-68	68	58	22	11	12	34	46	11	57			5.5
EI-75	75	62.5	25	12.5	12.5	37.5	50	50	62.5			5
EI-76.2	76.2	63.5	25.4	12.7	12.7	38.1	50.8	50.8	63.5			5/5.5
EI-78	78	65	26	13	13	39	52	52	65			5
EI-78	78	67	22	14	14	39	53	14	64			5
EI-84	84	70	28	14	14	42	56	51	70			5
EI-85.8	85.8	71.5	28.6	14.3	14.3	42.9	57.2	14.3
EI-96	96	80	32	16	16	48	64	44	80	64	8	6
EI-105	105	87.5	35	17.5	17.5	52.5	70	17.5	70	87.5	8.75	6
EI-108	108	90	36	18	18	54	72	18
EI-114	114	95	38	19	19	57	76	76	95			7
EI-120	120	100	40	20	20	60	80	80	100			7
EI126	126	105	42	21	21	63	84
EI-132	132	110	44	22	22	66	88	22	110	88	11	7
EI-133.2	133.2	111	44.4	22.2	22.2	66.6	88.8	88.8	111			7
EI-144	144	124	40	26	26	72	98	98	118	98		8
EI-150	150	125	50	25	25	75	100	100	125	100	12.5	8
EI-152.4	152.4	127	50.8	25.4	25.4	76.2	101.6	101.6	127	101.6
EI-162	162	135	54	27	27	81	108	27	135	108		8
EI-168	168	140	56	28	28	84	112	28	140	112		10
EI-180	180	150	60	30	30	90	120	120	150	120		9
EI-182	182	157	56	30	33	91	124	30	157	124		8
EI-192	192	160	64	32	32	96	128	128	160			10
EI-195	195	162.5	65	32.5	32.5	97.5	130	32.5	162.5	130		10
EI-210	210	175	70	35	35	105	140	35	175	140		10
EI-240	240	200	80	40	40	120	160	160	200	160		12
Note:Burr tolerance 0.02MM,Dimensional tolerance±0.01mm

Company overview:

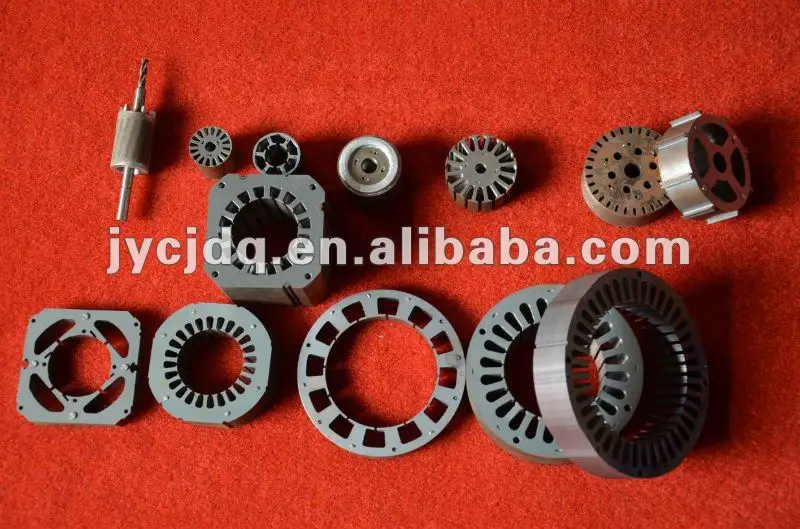

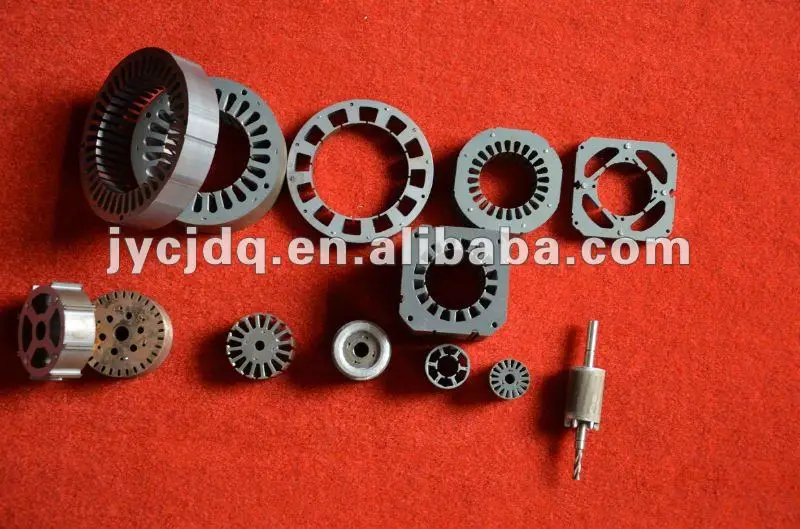

Motor Core features:



1)Specification:DI28-320.

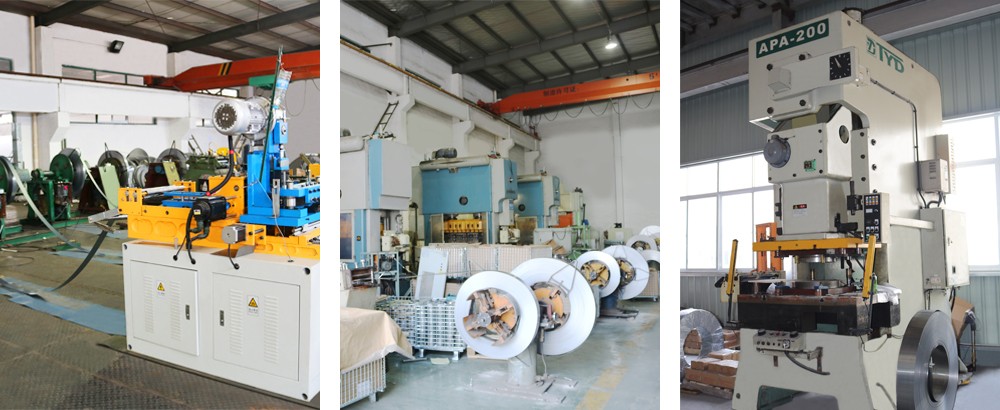

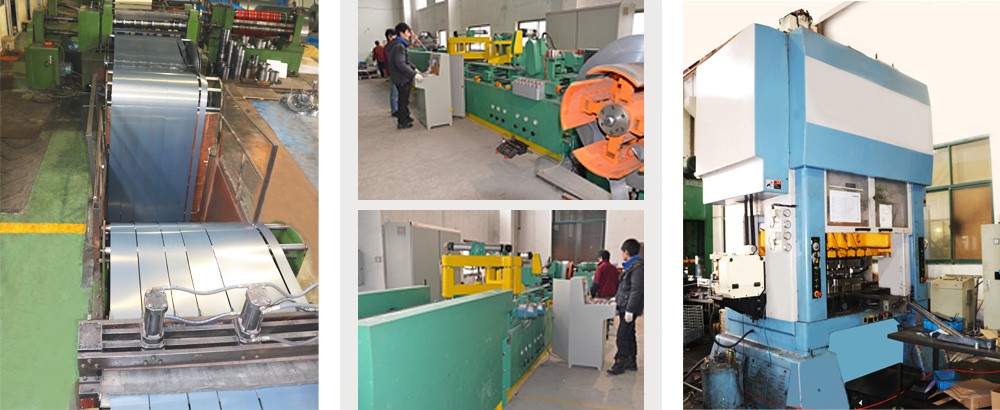

2)Professional Equipment: The Japanese YAMADA 220T precision high speed punching machines(3 sets).

3)Raw materials ( CRNGO or CRGO) as per customers' requirment.

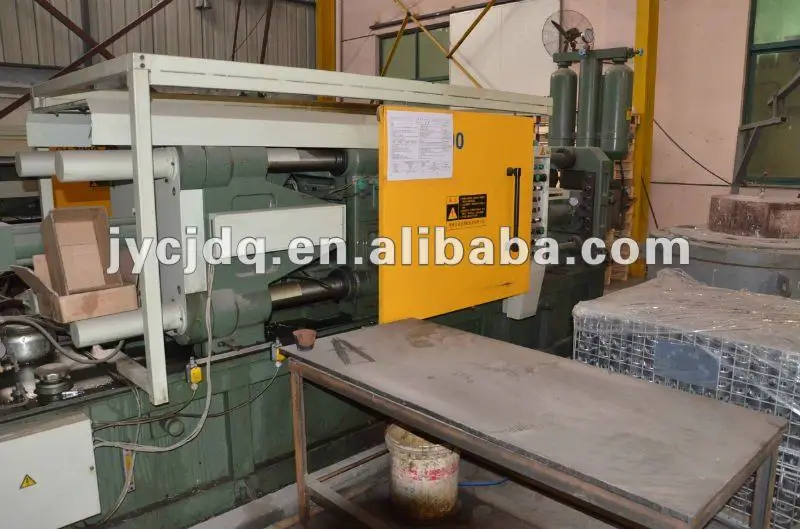

4)We also have the aluminum casting line, can provide the motor aluminum casting.

5)The professional engineers testing can ensure the high quality.

6)All the customized can be accepted.



Welcome all the customers from all over the world to our factory for the factfinding.





Please send us your drawings and requirements:
