Product Overview

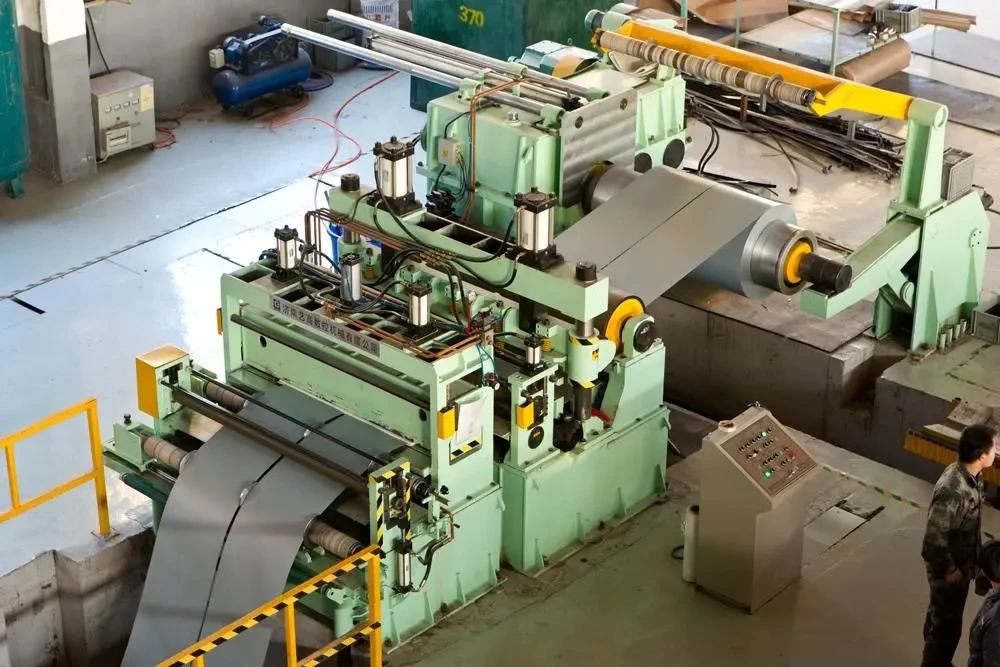

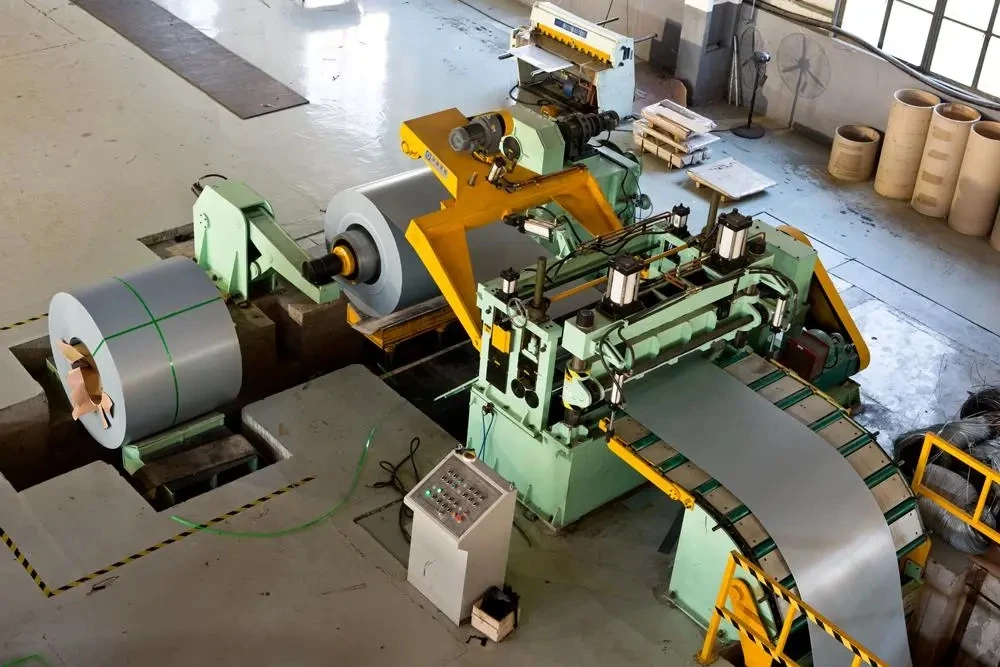

Cold/Hot Rolled Galvanized Steel Slitting Line for Coil Sheet
Our metal sheet slitting line carries out slitting on cold or hot rolling carbon steel, tinplates, stainless steel, and other kinds of metal that have coated surfaces. It is a useful slitting machine, widely used during the processing of home appliances,
automobiles, hardware, steel products and more


FEATURES AT A GLANCE


Precision High Speed Steel Coil Slitting Machine
It is composed of the following:
1. entry coil car,
2. uncoiler,
3. slitter,
4. scrap coiler,
5. tension unit,
6. recoiler, etc.




PRODUCT SPECIFICATIONS


This steel coil slitting line is used for slitting raw material coils into no. of strips, which can slit raw material coils into
specific width. Our company has series of slitting lines, with thickness of 0.1-25mm and width up to 2500mm.

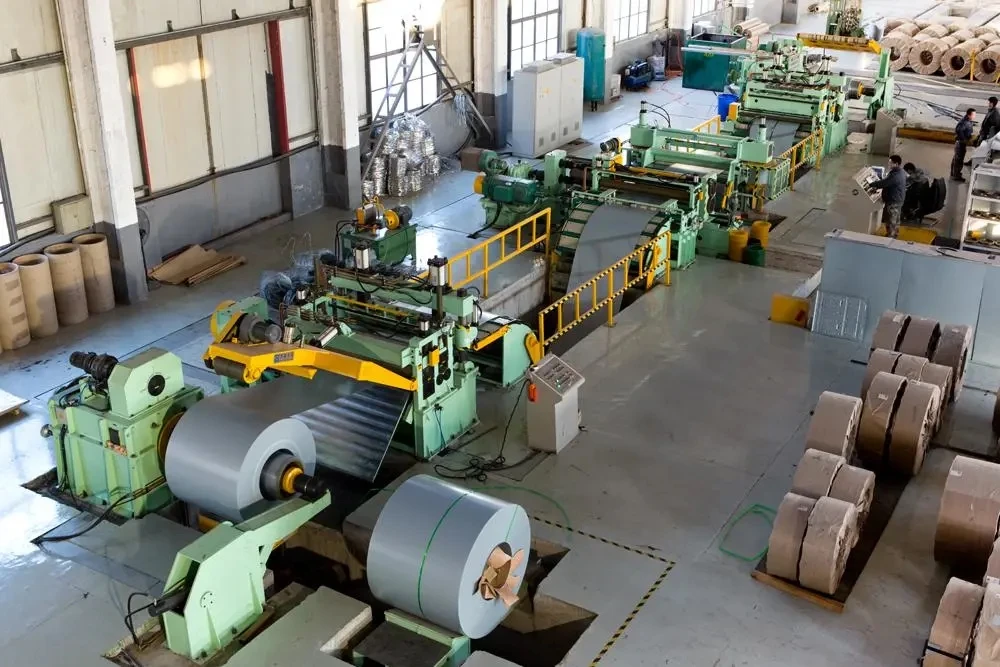

The slitting line normally includes loading trolley, decoiler, guiding device (covers lead head, press head, shovel head), coil
head shear, centering and caibrating device, slitting machine, scrap rewinder, pre-distribution and tensioning machine, recoiler,
and unloading trolley.
The main components are decoiler, slitting machine, scrap rewinder, recoiler and PLC control system.
Features
1. Compared with similar products, this steel coil slitting line features high speed and excellent precision.
2. Its speed can reach 300m/min and the strip precision can be up to 0.02mm.
3. Our steel coil slitting machine has got the relevant requirements of ISO9001:14000 and CE standards.
4. The slitting line has reached the leading domestic level


Series
Material thickness/mm
Material
Speed/mpm
1
0.2-2
400-2000
0-50-150
2
0.3-3
400-2000
0-50-120
3
0.5-4
500-2500
0-50-120
4
0.8-6
500-2500
0-50-100
5
2.0-8
500-2500
0-50-80
6
2.0-10
500-2500
0-30-50
7
3.0-12
800-2500
0-30-50
8
3.0-14
800-2500
0-30-50
9
4.0-16
800-2500
0-30-50
10
5.0-20
800-2500
0-30




FAQ


Operation and Attention
1. Operator number should be 2 to 5 workers, and other people shouldn't stand near it.
2. Around the equipment, there should be yellow caution color to indicate off-limits place on railings.
3. Please do well lubrication for gears and chains.
4. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler
tightly.
5. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
6. Operators shall not stand on the coil when machine running.
7. Do not move coil directly by hand.
8. Stop and check the steel coil slitting machine units immediately when find fault. Only check out and correct, the machine can
restart.
9. Do not remove or change circuit. In case of any problem, please consult professional technicians.
Packaging and Transportation
This steel coil slitting line should adopt sea shipping by container. If there is no special requirement, this machine usually
utilizes nude packaging, with cable wire and wooden block fastening it. All gadgets should be placed in accessory box.
Maintenance and Lubrication
1. Check machine units whether loosen or damaged and check electrical parts, hydraulic parts, and pneumatic parts whether abnormal
after work finished. If so, should adjust or repair immediately.
2. Check the oil pipes are smooth, regular filling oil. (lubricating list)
3. Cut off main power, clean up machine units after work finished.
4. Regularly inspect machine to ensure proper operation.
