Product Description
Indications
Indicated for the management of fractures, fusions, and osteotomies of the distal, middle, and proximal phalanges and metacarpals and other bones of appropriate size for the devices.
Specification
Phalanx Offset Locking Plate | ||
Specification | 6 holes x 22.5 mm 8 holes x 29.5 mm 10 holes x 36.5 mm | |
Plate Width | 8.5 mm | |
Plate Thickness | 1.0 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Straight Phalanx Locking Plate | ||
Specification | 4 holes x 20 mm 5 holes x 25 mm 6 holes x 30 mm 7 holes x 35 mm | |
Plate Width | 5.0 mm | |
Plate Thickness | 1.0 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Curved Phalanx Locking Plate | ||
Specification | 3 holes x 25.4 mm 4 holes x 30.4 mm 5 holes x 35.4 mm | |
Plate Width | 5.0 mm | |
Plate Thickness | 1.0 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
T-Shape Phalanx Locking Plate | ||
Specification | 4 holes x 20 mm 5 holes x 25 mm 6 holes x 30 mm 7 holes x 35 mm | |
Plate Width | 5.0 mm | |
Plate Thickness | 1.0 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Y-Shape Phalanx Locking Plate | ||
Specification | 3 holes x 20 mm 4 holes x 25 mm 5 holes x 30 mm 6 holes x 35 mm | |
Plate Width | 5.0 mm | |
Plate Thickness | 1.0 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
L-Shape Phalanx Locking Plate | ||
Specification | 4 holes x 17.5 mm (Left) 5 holes x 22.5 mm (Left) 6 holes x 27.5 mm (Left) 7 holes x 32.5 mm (Left) 4 holes x 17.5 mm (Right) 5 holes x 22.5 mm (Right) 6 holes x 27.5 mm (Right) 7 holes x 32.5 mm (Right) | |
Plate Width | 5.0 mm | |
Plate Thickness | 1.0 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Straight Metacarpal Locking Plate | ||
Specification | 5 holes x 29.5 mm 6 holes x 35.5 mm 7 holes x 41.5 mm 8 holes x 47.5 mm 9 holes x 53.5 mm 10 holes x 59.5 mm | |
Plate Width | 5.5 mm | |
Plate Thickness | 1.2 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Metacarpal Neck Locking Plate | ||
Specification | 4 holes x 28 mm (Left) 5 holes x 33 mm (Left) 6 holes x 38 mm (Left) 4 holes x 28 mm (Right) 5 holes x 33 mm (Right) 6 holes x 38 mm (Right) | |
Plate Width | 5.5 mm | |
Plate Thickness | 1.2 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Y-Shape Metacarpal Locking Plate | ||
Specification | 4 holes x 33 mm 5 holes x 39 mm 6 holes x 45 mm 7 holes x 51 mm 8 holes x 57 mm | |
Plate Width | 5.5 mm | |
Plate Thickness | 1.2 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
L-Shape Metacarpal Locking Plate | ||
Specification | 5 holes x 29.5 mm (Left) 6 holes x 35.5 mm (Left) 7 holes x 41.5 mm (Left) 5 holes x 29.5 mm (Right) 6 holes x 35.5 mm (Right) 7 holes x 41.5 mm (Right) | |
Plate Width | 5.5 mm | |
Plate Thickness | 1.2 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Rotational Correction Locking Plate | ||
Specification | 6 holes x 32.5 mm | |
Plate Width | 5.5 mm | |
Plate Thickness | 1.2 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Rolando Fracture Hook Locking Plate | ||
Specification | 4 holes x 35 mm | |
Plate Width | 5.5 mm | |
Plate Thickness | 1.2 mm | |
Matching Screw | 2.0 mm Locking Screw 2.0 mm Cortical Screw | |
Company Profile
Established in 2009, Beijing ZhongAnTaiHua Technology Co., Ltd. (ZATH), as a high-tech enterprise, dedicates to the innovation, design, production and sale of orthopaedic implants and instrumentations. ZATH owns over 200 sets of manufacturing facilities and testing devices, including 3D metal printer, 3D biomaterials printer, automatic five-axis CNC processing centers, automatic slitting processing centers, automatic milling composite processing centers, automatic trilinear coordinate measuring machine, all-purpose testing machine, automatic torsion torque tester, automatic imaging device, metalloscopy and hardness tester.
The product portfolio contains 3D-printing customization, joint replacement, spine, trauma, sports medicine, minimally invasive, external fixation, which are all in the sterilization package. This enables ZATH products can satisfy all the needs of orthopedic surgeons and surgeries.
With the business philosophy of “Be the assistant of orthopedic surgeons, partner of distributors and friend of patients”, ZATH will, as always keep market-oriented mind, make its mission to the human being’s health, continuously improve, be innovative and make efforts to build prosperous future jointly.
Our Advantages
1. FULL PRODUCT RANGE
As a comprehensive orthopedic solution provides, ZATH can provide basically all the orthopedic implant products, including trauma, spine, joint, sports medicine and even 3D printing customization, to meet clinical and business demands.

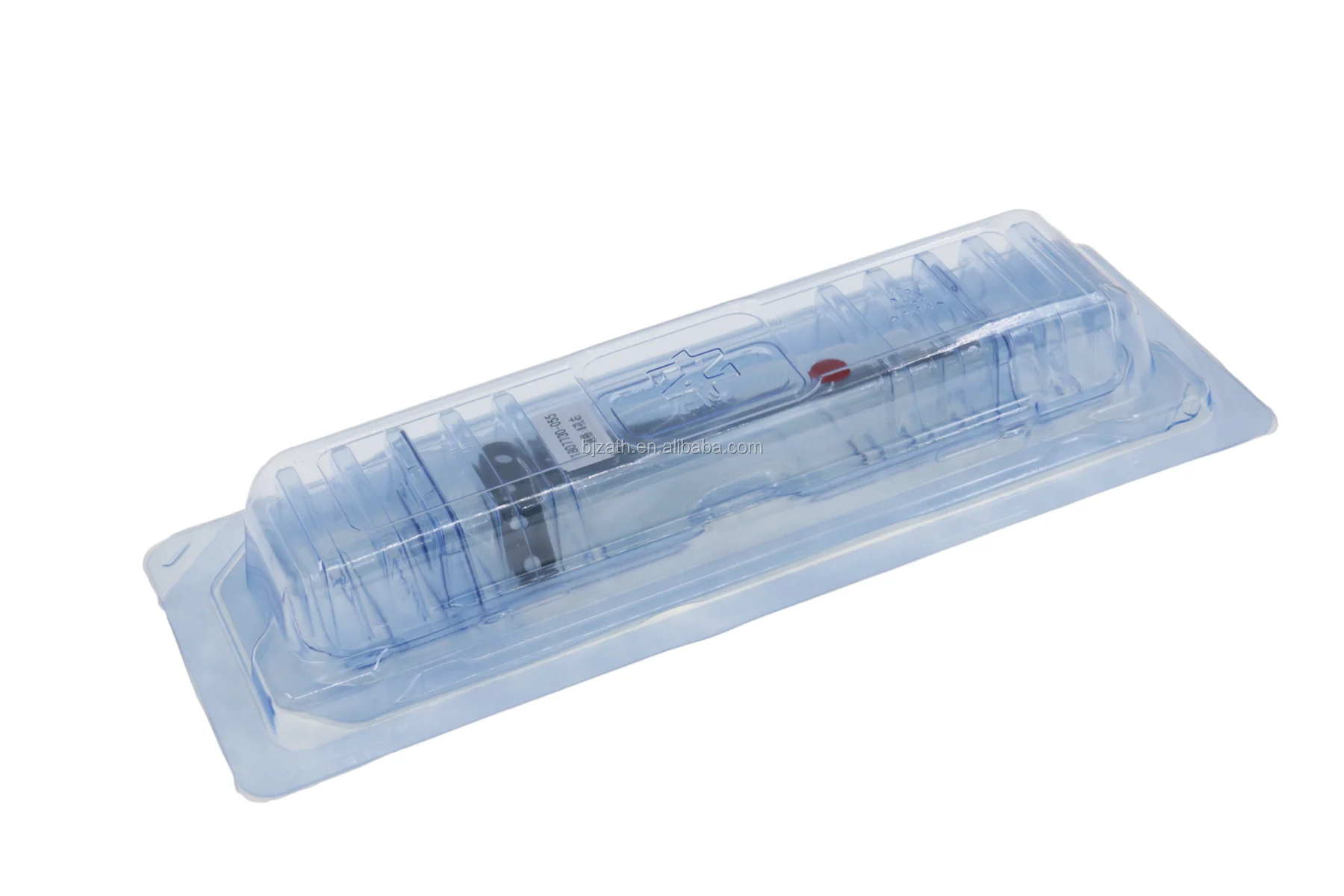

2. ALL STERILE PACKAGE
All of ZATH products are in the sterile package. This can save the preparation time of operations and reduce the infection rate. ZATH is the only one orthopedic company can achieve this globally.
3. PROFESSIONAL TEAM
ZATH has a professional international team in both orthopedic products and market understanding, to help our partner establish and keep their competitiveness on the markets.
4. AMBITIOUS TARGET
ZATH has ambitious target and strategic planning on the international market. This ensures ZATH and its partners can have a long-term, stable and in-depth cooperations.
As a comprehensive orthopedic solution provides, ZATH can provide basically all the orthopedic implant products, including trauma, spine, joint, sports medicine and even 3D printing customization, to meet clinical and business demands.
2. ALL STERILE PACKAGE
All of ZATH products are in the sterile package. This can save the preparation time of operations and reduce the infection rate. ZATH is the only one orthopedic company can achieve this globally.
3. PROFESSIONAL TEAM
ZATH has a professional international team in both orthopedic products and market understanding, to help our partner establish and keep their competitiveness on the markets.
4. AMBITIOUS TARGET
ZATH has ambitious target and strategic planning on the international market. This ensures ZATH and its partners can have a long-term, stable and in-depth cooperations.
Certifications
Exhibition

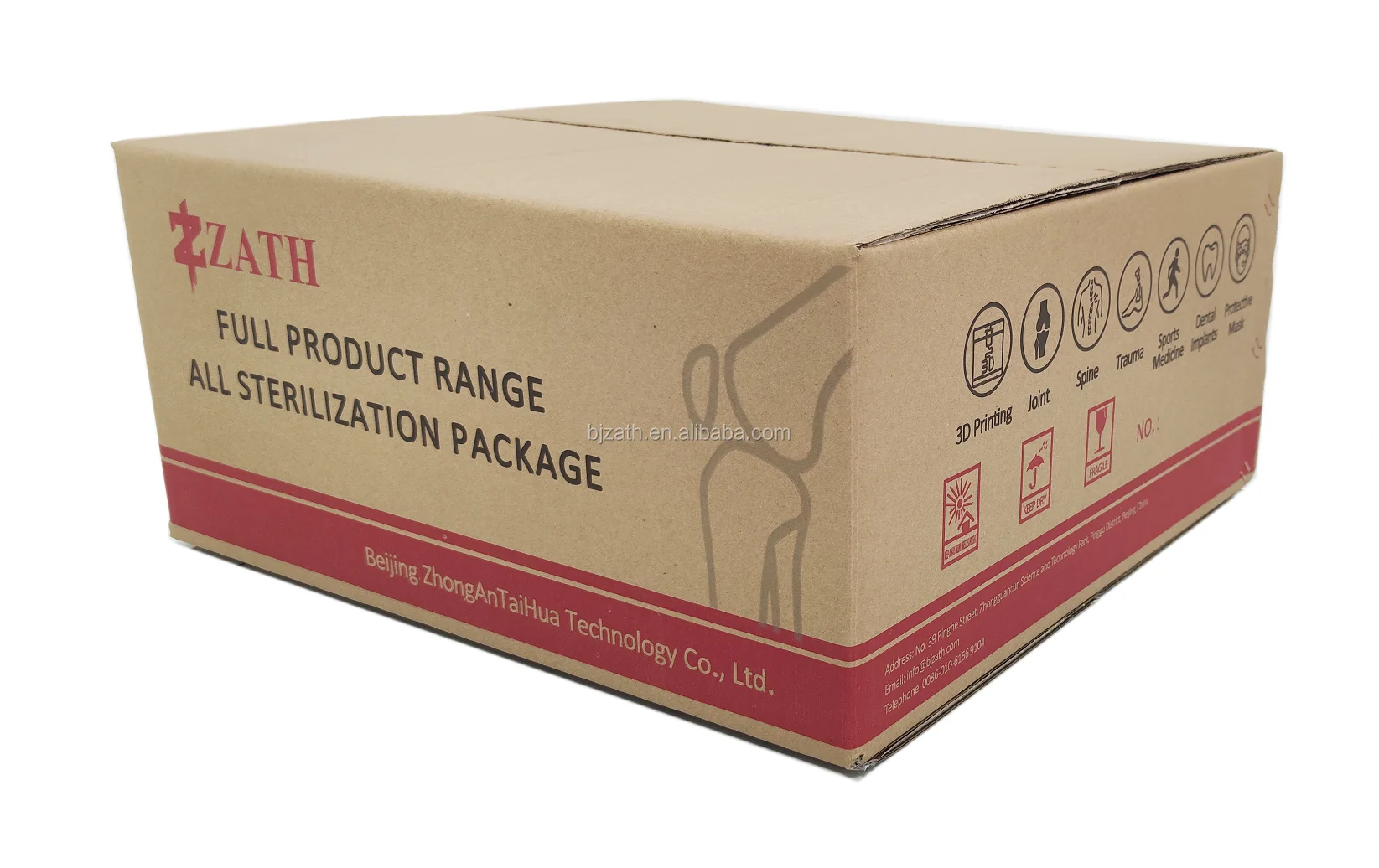

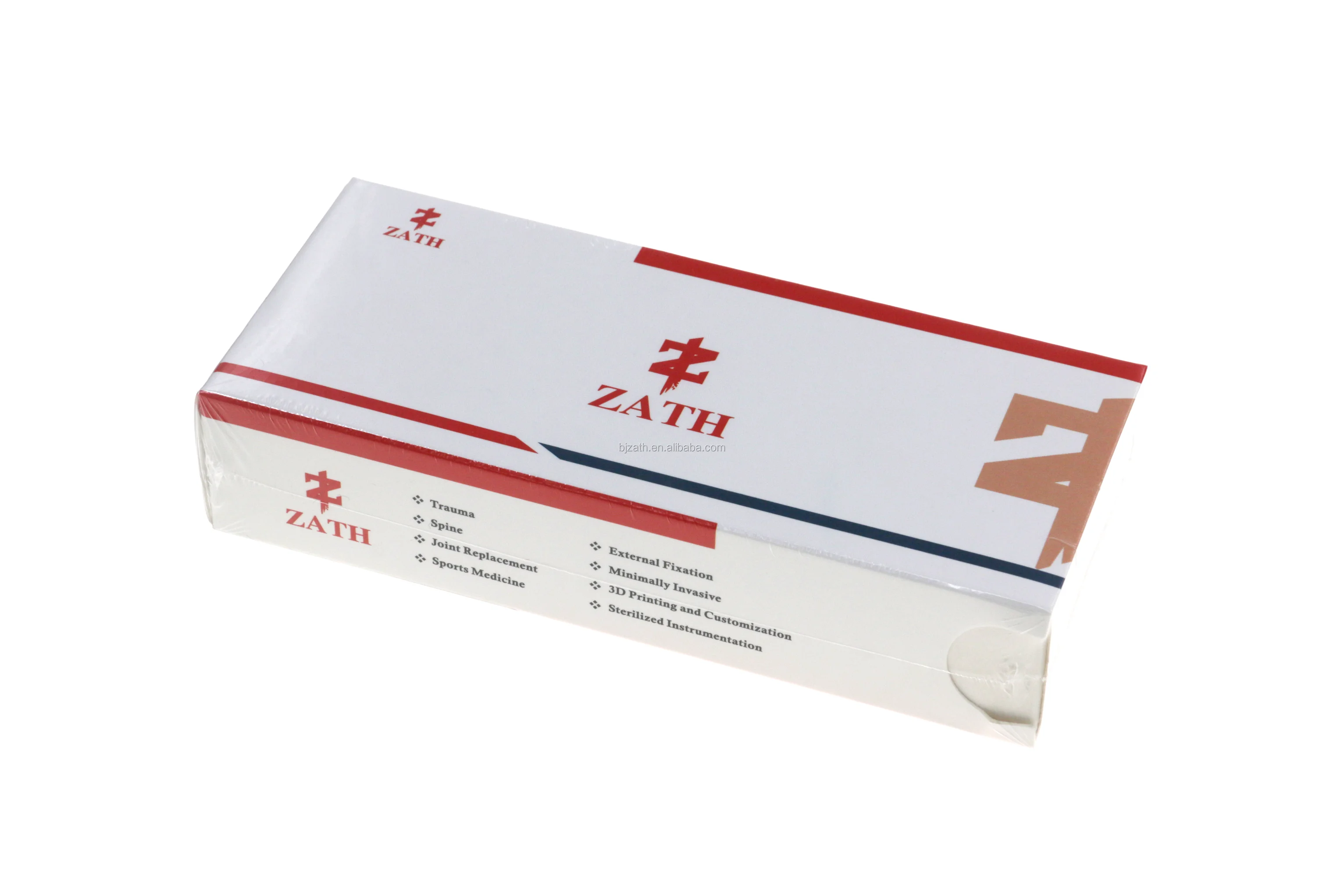

Packing & Delivery
