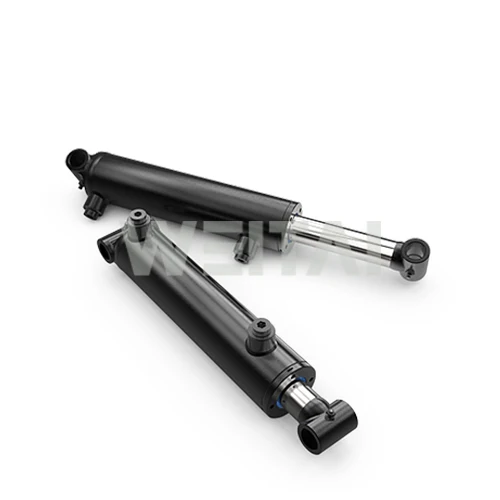

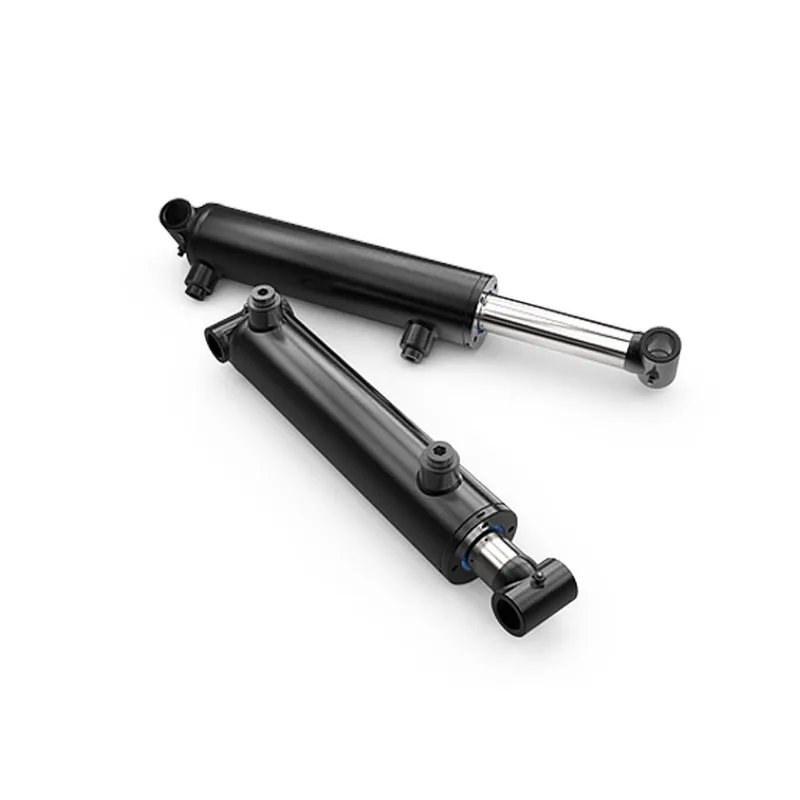

Гидравлический цилиндр сельскохозяйственный гидравлический микро поперечная труба отверстие 1 5
- Категории: Гидроцилиндры >>>
- Поставщик: Qingdao,Weitai,Hydraulic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
BORE &STROKE | DIMENSIONS | PIN SIZE | PORTS | COLUMN LOAD (LBS) | PRESSURE (PSI) | ||
RETRACTED | EXTENDED | ||||||
1.5"X4" | 12" | 16" | 3/4" | 1/4NPT | 5300 | 3000 | |
1.5"X6" | 14" | 20" | 5300 | 3000 | |||
1.5"X8" | 16" | 24" | 5300 | 3000 | |||
1.5"X10" | 18" | 28" | 5300 | 3000 | |||
1.5"X12" | 20" | 32" | 5300 | 3000 | |||
1.5"X14" | 22" | 36" | 5300 | 3000 | |||
1.5"X16" | 24" | 40" | 5300 | 3000 | |||
1.5"X18" | 26" | 44" | 4800 | 2750 | |||
1.5"X20" | 28" | 48" | 4000 | 2300 | |||
1.5"X24" | 32" | 56" | 3000 | 1700 | |||
Hydraulic cyliinder Features
● 3000PSI Rated pressure, 6000PSI testing pressure.
● Imported world famous brands and Chinese top brands sealing system.
● High quality Cold Drawn steel tube, with good rigidity.
● CNC Rolled tube inner surface, with roughness of 0.2~0.4um.
● Superior strength chrome-plated rod, anticorrosion for a long life.
● High grade Ductile Iron bar directly machined Gland and Piston, with high strength.
● Heavy-Duty welded construction, automatic welding for good quality.
● Twin-lip piston seals for maximum efficiency.
● 100% factory tested under at least 1.5 times of the rated pressure.
