Vibration motor:
Product Description

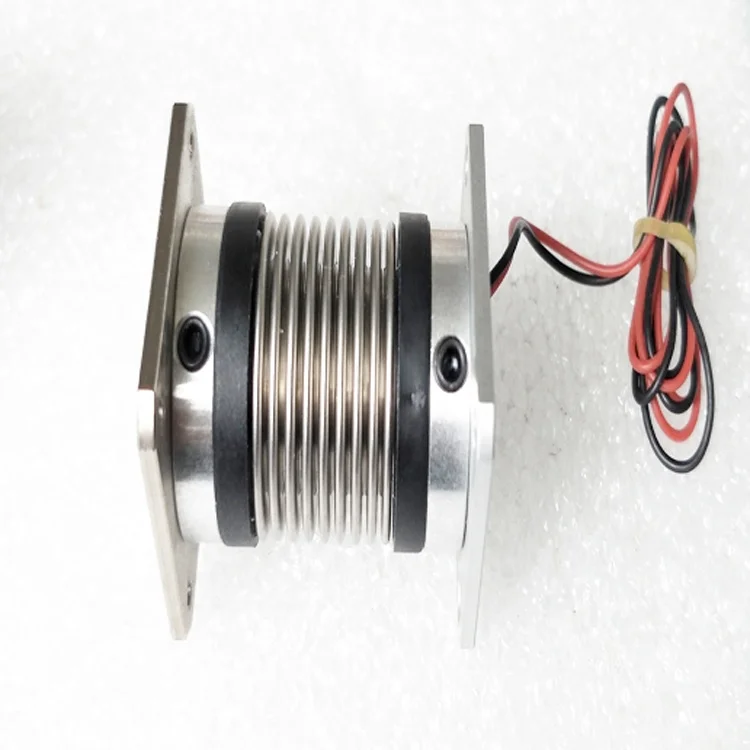

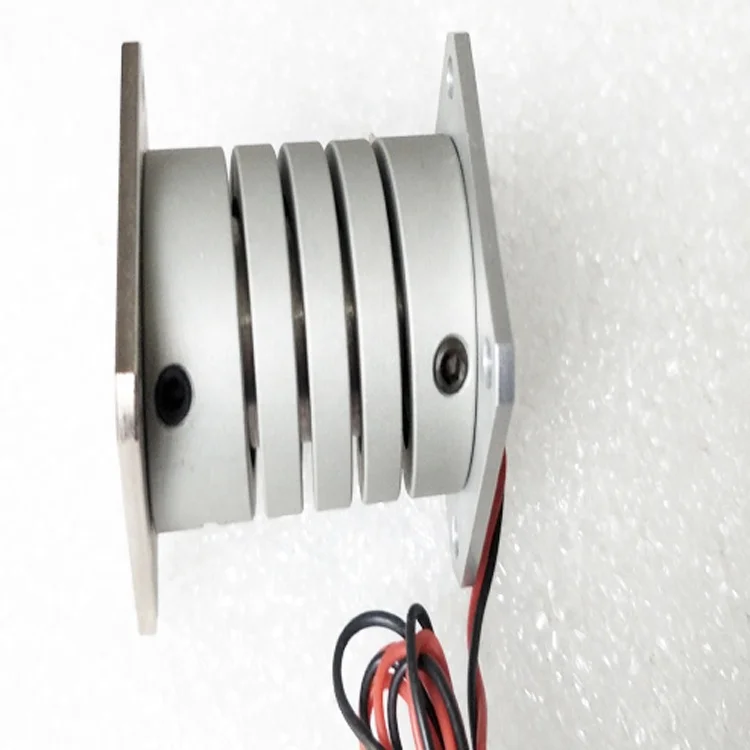

The VCAR series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAR Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.
Product Modle | Peak Force (N) | Continious Force 25℃(N) | Total Stroke (mm) | Max voltage (V) | Back EMF Constant (V/m/S) | Weight of the coil (g) | StatorDiameter (mm) | Enter the length of the coil (mm) |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.9 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 51 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 75 | 58 | 72 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 95 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 45 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 170 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.4 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 130 | 73 | 27.5 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 275 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 740 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 700 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 640 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 770 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.3 | 37.3 | 38 | 29.8 | 1040 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 6305 | 254.9 | 14.5 | 104 | 1390 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 73.5 | 68 | 1050 | 110 | 143.7 |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
Packaging & Shipping
FAQ
voice coil motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
