Product Description


This Machine Composed By Main Machine Head, Tractive Body And Feeding Shelf. Tractive Body Was Moved By Collet In Small Vehicle Nipping The Steel Pole’s Collet. When The Small Vehicle Moved, Driven Steel Pole, From Small Collet To Big Collet, Regularity Moved. The Big Side Of The Steel Pole Was Hold By Feeding Vehicle, Force Automatic Sewing From Head Of Machine To Steerable Wheel. At One Time, The Welding Machine Starts Welding. This Machine Adopt Multiple Wire Submerged Arc Welding, Solder Was Reclaimed Automatic. Welding Line Was Symmetrical And Slinky. It Has Strong Filter, Forming One Time, And Be With High Welding Efficiency. The Speed Of Welding Achieve 2 To 3 Meters Per Minutes, Is About 3 Times Of The Gas Welding .The Cost Of The Welding Is Lower Than Gas Welding. It Is With Speedy Welding,
High Efficiency, And Lowest Price In China Light Poles Industry Now.




Specification


SN
Model

Value

Unit
1
Pole Length

≤6000

MM


2


Max Seam Thickness

8(Dia:200-400MM)

MM



6(Dia:100-400MM)

MM



4(Dia:60-400MM)

MM
3
Host Header Size (L*W*H)

1800*700*2050

MM
4
Worktable Size (L*W*H)

8000*400*480

MM
5
Max Seam Diameter

Φ400

MM
6
Min Seam Diameter

Φ60

MM
7
Welding Current

630

A
8
Walking Device Motor
Model
YCT160-4B

3 KW
9
Oil Pump Motor
Model
Y2100l2-4

3 KW
10
Recovery Motor
Model
Y90l-2

2.2 KW
11
Gear Pump
Model
CBN-E306

25ML/R
12
Max Pressure System

20

MPA
13
System Working Pressure

≤5

MPA


14


Machine Size
L
17000
MM

W
1680
MM
H
1650
MM
15
Weight
4000
KG

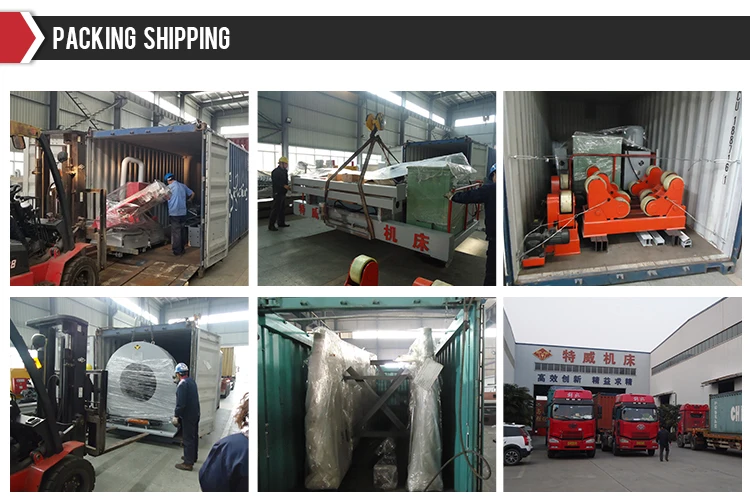

Packing & Delivery
