Product Description
Product Application
Introduction of PDC
PDC is sintered of diamond micro-powder and tungsten carbide substrate under high temperature and pressure. It has great wear resistance like diamond, as well as the high impact resistance like tungsten carbide, what’s made it as the best drill bits' insert. Reinforced PDC has higher dense diamond powder, clawing tungsten carbide substrate made the two layers solid as a whole one.
Application
With high hardness, abrasion resistance and impact resistance, they are widely used for oil/gas drill bits, rock drill and coal mining drill bits, and also can be used for diamond tools for cutting, grinding, polishing.

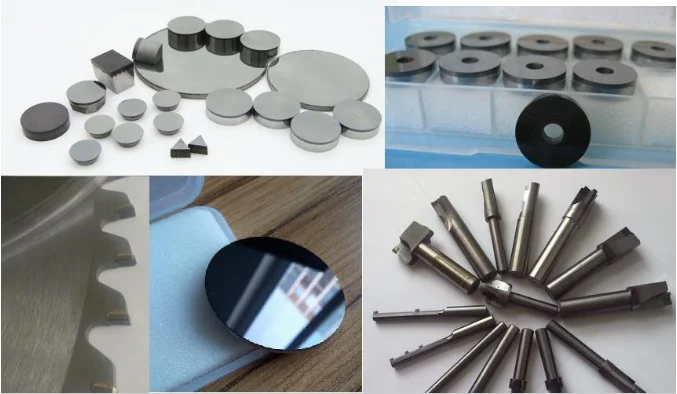

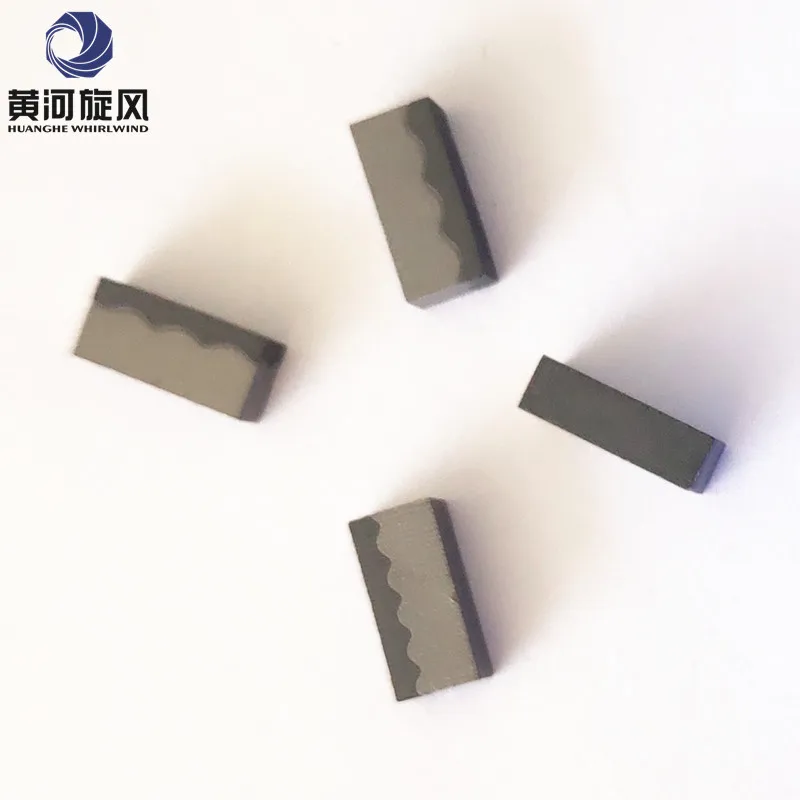

PDC for Cutting Tools
HHXF produce the top quality pcd cutting tool blanks with state of art production facilities. We have large diameter of hydraulic press machine for sintering process, pcd laser cutting equipment, EDM cutting machines, C-scan ultra-sonic scanning equipment for cutting and inspection process etc.
PCD blanks/ plates/pads are widely used for the machining of non-ferrous metals and alloys,such as aluminum, copper, aluminum / gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramic,plastic, rubber etc, where high abrasion resistance and good surface finish are required. The products are available in 2µm,5µm,10 µm, 20µm,25µm,and 2+25µm etc.
Available size: (D*H)
0804, 0806, 0807, 0808, 0811
1004, 1008, 1016,
1117, 1118, 1204, 1217, 1218, 1219
1304, 1306, 1308, 1313, 1315, 1317, 1318, 1320
1418, 1419, 1520
1608, 1613, 1618, 1622, 1625, 1824
1908, 1913, 1916, 1919, 1920, 1925, 1929, 2428
Available size: (D*H)
0804, 0806, 0807, 0808, 0811
1004, 1008, 1016,
1117, 1118, 1204, 1217, 1218, 1219
1304, 1306, 1308, 1313, 1315, 1317, 1318, 1320
1418, 1419, 1520
1608, 1613, 1618, 1622, 1625, 1824
1908, 1913, 1916, 1919, 1920, 1925, 1929, 2428
Size | Diameter (mm) | Total Height(mm) | Diamond Layer | Diamond Chamfer | Carbide Chamfer |
1916 | 19.05±0.05 | 16.0±0.1 | 1.8-2.0 | 0.5× 45º | 0.5× 45º |
1913 | 19.05±0.05 | 13.2.0±0.1 | 1.8-2.0 | 0.5× 45º | 0.5× 45º |
1613 | 16.05±0.05 | 13.2.0±0.1 | 1.8-2.0 | 0.5× 45º | 0.5× 45º |
1610 | 19.05±0.05 | 16.0±0.1 | 1.8-2.0 | 0.5× 45º | 0.5× 45º |
1313 | 13.44±0.05 | 13.2.0±0.1 | 1.8-2.0 | 0.5× 45º | 0.5× 45º |
1308 | 13.44±0.05 | 13.2.0±0.1 | 1.8-2.0 | 0.5× 45º | 0.5× 45º |
About Us

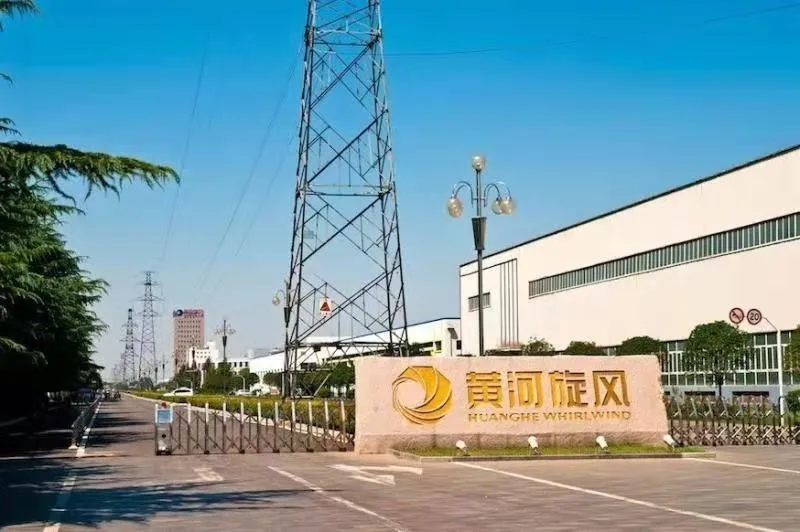

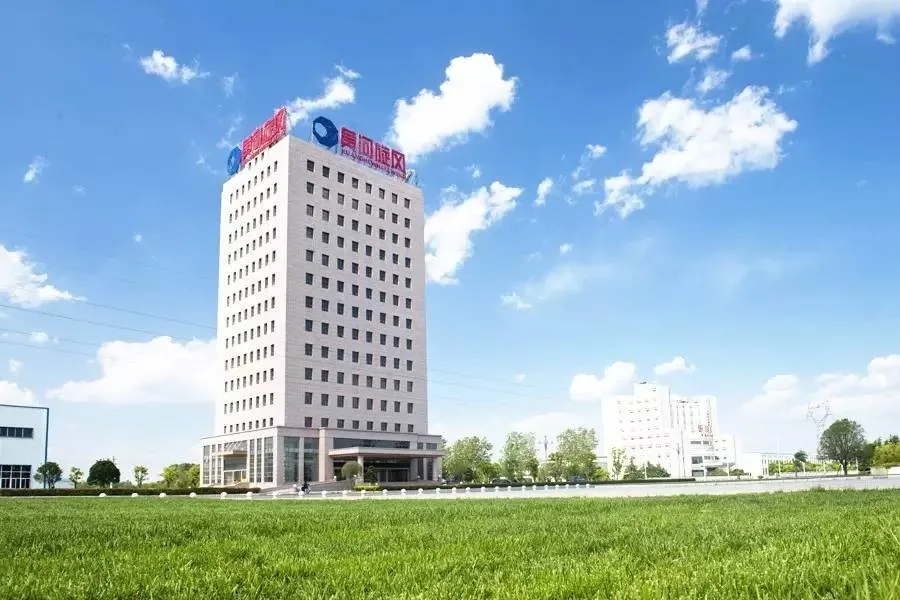

Henan Huanghe Whirlwind Co.,Ltd is the professional superhard materials and tools manufacturer in China, based in Changge city, which is the superhard materials industry center, with more than 40 years of experience in development- research.
we own the high technique for PDC tools welding and our engineers keep long years with drilling field experiences, we know how to choose right PDC cutters to make qualified tools to maximum increasing the performance.
Our Main products: PDC cutter, TSP cutter, PDC tools.
Henan Huanghe Whirlwind Co.,Ltd
Established in 1976, Henan Huanghe Whirlwind Co.,Ltd is a professional high and new technical enterprise specialized in R&D, manufacturing and sales of diamond tools, which provides related technology and services for modern mining drilling industry.
As an ISO 9001:2015 certified company, Henan Huanghe Whirlwind Co.,Ltd mainly research and produce the following range of drilling tools:
1. PDC cutter insert 1304, 1305,1306,1308.1310,1313,1613,1616,1916...etc;
2. PDC non-core bit/PDC core bit diameter 60mm/65mm/75mm/89mm/94mm/113mm/133mm/153mm...etc;
3. PDC anchor bit for roof bolting diameter 27mm/28mm/29mm/30mm/32mm/42mm/43mm...etc;
As an ISO 9001:2015 certified company, Henan Huanghe Whirlwind Co.,Ltd mainly research and produce the following range of drilling tools:
1. PDC cutter insert 1304, 1305,1306,1308.1310,1313,1613,1616,1916...etc;
2. PDC non-core bit/PDC core bit diameter 60mm/65mm/75mm/89mm/94mm/113mm/133mm/153mm...etc;
3. PDC anchor bit for roof bolting diameter 27mm/28mm/29mm/30mm/32mm/42mm/43mm...etc;
4. Diamond core drill bit:impregnated diamond core bit AQ BQ NQ HQ PQ...etc;
5. Tungsten carbide drill bit:twin-wing coal bit, chisel bit, cross bit, button bit...etc.
6. Tungsten carbide conical bullet teeth, drilling picks for contruction and mining;
5. Tungsten carbide drill bit:twin-wing coal bit, chisel bit, cross bit, button bit...etc.
6. Tungsten carbide conical bullet teeth, drilling picks for contruction and mining;
Certifications

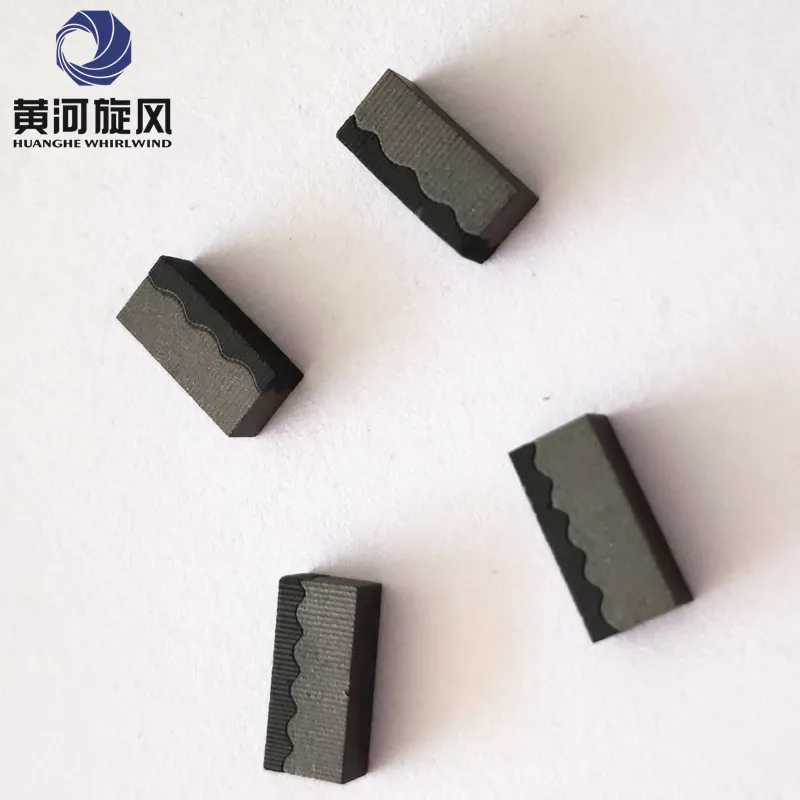

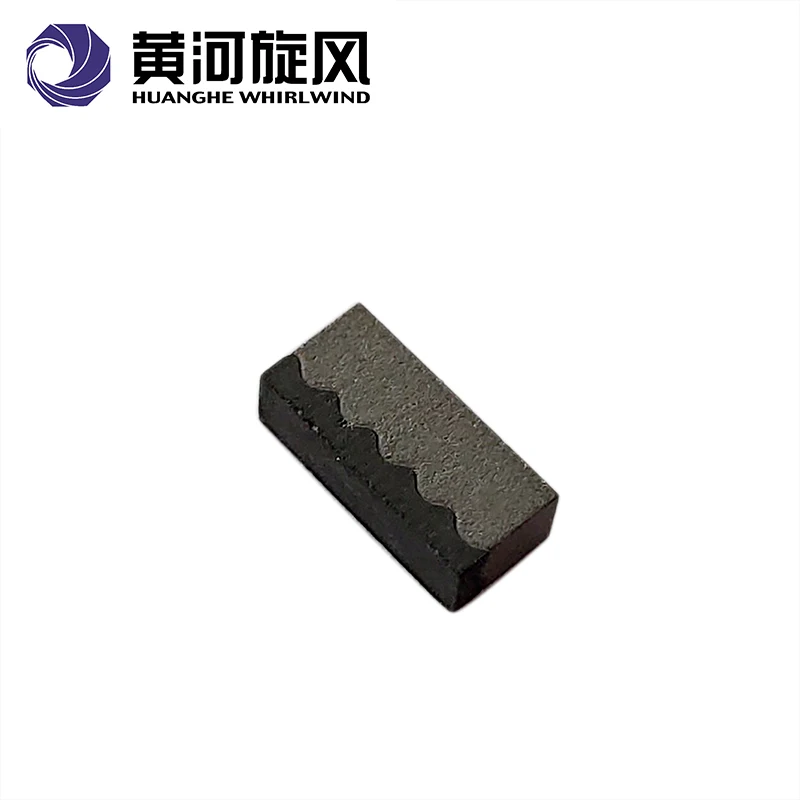

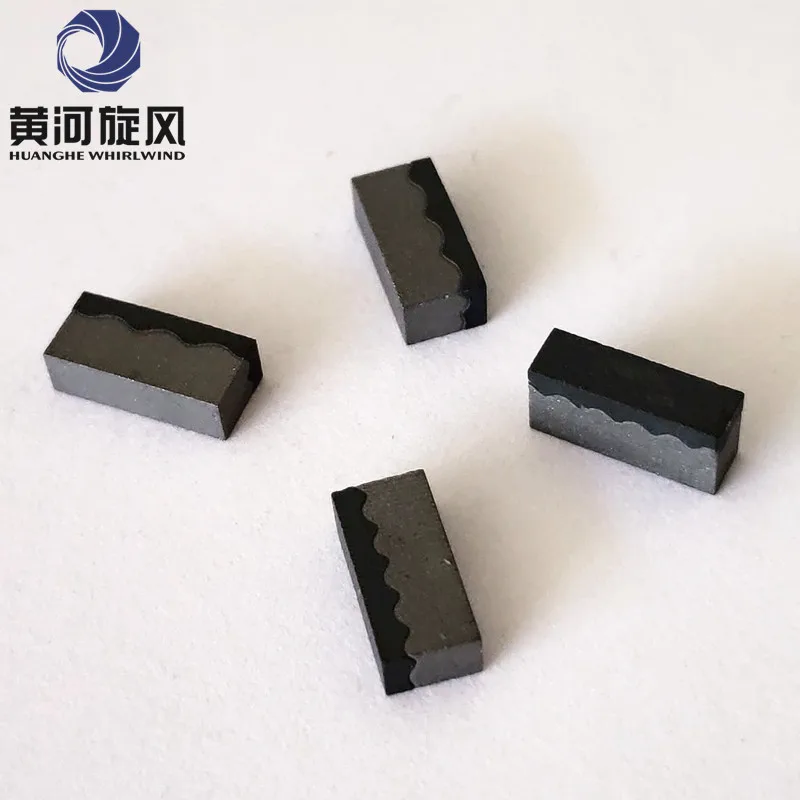

Detailed Images
How PDC cutters are made
Polycrystalline Diamond Compacts PDC cutters are made by sintering micron sized diamond particles onto a tungsten carbide substrate. Sintering is carried out at ultra-high pressure and at temperatures in the range of 1350 – 1500 degrees. All our PDC cutters undergo rigorous 100% inspection that includes advanced micro crack detection analysis and ultrasound check.
Dimensions
1) Laser cutting machining precision:±0.05mm
Main Features
1) With feature of high working efficiency, smooth surface
2) Advanced technics and strict process control
3) Long lifespan and stable performance
4) Competitive price and superior quality
Our Service
Auto-dimension testing machine
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Analysis the problems you might meet during the usage
* Engineers available to service machinery on vedio.
Packing & Delivery
Packaging | ||
Size | 150mm(L) *80mm(W) * 16mm(D) | |
Weight | 0.02kg/pc | |
Packaging Details | The normal package is plastic box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to your require | |
Packaging | ||
Size | 100mm(L) * 80mm (W) * 16mm (D) | |
Weight | 0.02kg/pc | |
Packaging Details | The normal package is plastic box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Exhibitation
FAQ
(1)What type PDC cutters do you produce?
Answer:Coal mining PDC cutters,geological exploring PDC cutters,oil drilling grade PDC cutters.
(2)What sizes PDC cutters are hot selling?
Answer: PDC cutter 1304,1308,1313,1613,1616,1913,1916,1919,1925 and other sizes.
(3)We are interested in your PDC cutters,we have some questions.How can I get your offer?
Answer:Kindly send us E-mail or call us,we will try all best to support you and give you good price.
Answer:Coal mining PDC cutters,geological exploring PDC cutters,oil drilling grade PDC cutters.
(2)What sizes PDC cutters are hot selling?
Answer: PDC cutter 1304,1308,1313,1613,1616,1913,1916,1919,1925 and other sizes.
(3)We are interested in your PDC cutters,we have some questions.How can I get your offer?
Answer:Kindly send us E-mail or call us,we will try all best to support you and give you good price.
