Product Description
Vibratory dryer machine is designed for the work parts drying process and tiny polish the work parts. The machine can be linked with vibratory finishing machine directly to dry the work parts automatically and continuously.Adoption of organic media to dry the work parts without pollution. It will eliminate the water mark trace after drying. Work parts and medias can be separated automatically. Heating temperature can be set.
SPECIFICATIONS FOR VIBRATORY DRYER MACHINE XXHG-D200 | ||||||
Vibratory Drying Machine | Machine Type | XXHG-D200 | SET | |||
Motor | 1.1 | KW | ||||
Motor Speed | 1440 | RPM | ||||
Main parameters | Machine Size | 1260*1290*880 | MM | |||
Process Vessel Volume (L) | 200 | L | ||||
Process Vessel Width & Depth | 280X(280 min-430 max) | MM | ||||
Other information | Lining | Without heat reisistant rubber lining | Special Lining | |||
Heating Power | 4 | KW | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images

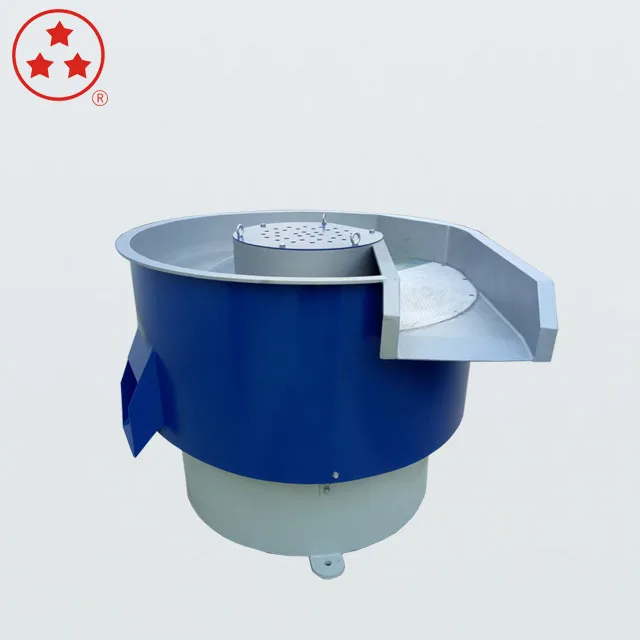

Name: Vibratory dryer
Original: Zhejiang, China
1. The machine is designed with installation of heater underneath the flap area.
1. The machine is designed with installation of heater underneath the flap area.
2. Heating power is max 4KW, can be optionally to choose 2KW heating power or 4KW heating power to suit the drying needs and efficiency.
3.The machine is designed with feeding chute to receive the deburred or polished work parts for vibratory polishing machine.
4. With inverter control the running speed of machine(motor).
5. Normally the work channel of the machine is without lining, but we can also supply the machine work channel with heat resistant rubber lining. But it is an optional choice for customers.

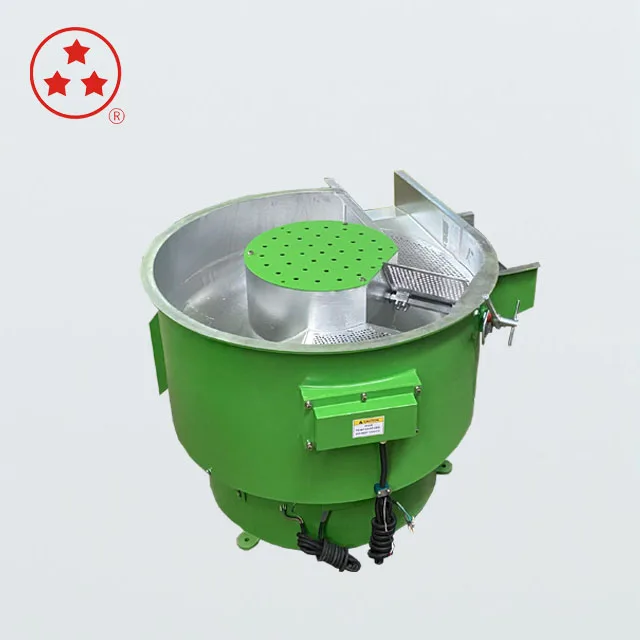

Name: Separate screen
Original: Zhejiang, China
1.The vibratory dryer machine with separate screen, could separate the workparts after dryering process.
2.We can also supply the vibratory dryer work channel lined with high temperature resistant rubber lining.The maximum temperature that Heat resistant rubber lining can withstand is 120 degrees celsius.
2.We can also supply the vibratory dryer work channel lined with high temperature resistant rubber lining.The maximum temperature that Heat resistant rubber lining can withstand is 120 degrees celsius.
work channel lined with high temperature resistant rubber lining.
work channel lined without high temperature resistant rubber lining.

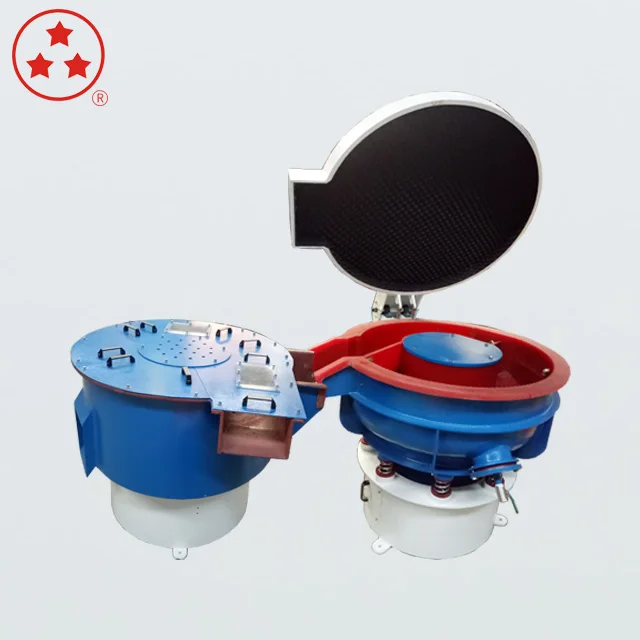

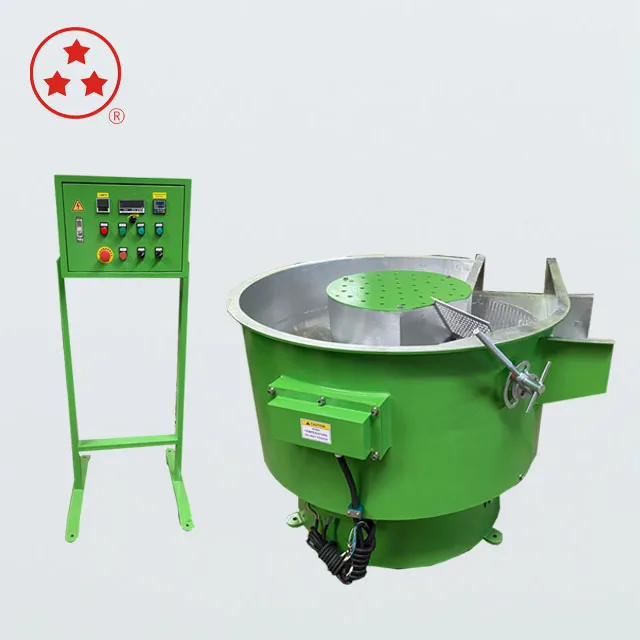

Name: Vibratory Dryer Machine and Vibratory Finishing Machine
Code: XXHG-D200
Brand: Xingxing
Original: Zhejiang, China
1.The machine can be linked with vibratory finishing machine directly to dry the work parts automatically and continuously.
2. CE certified vibratory Drying machine.
3. Capacity 200L, with separator type.
4. Similar outlook style design as international brand.
5. With independent control panel available.
6.The color of the machine can be customized.
7.We also have the type of Capacity 300L and
Capacity 400L for your requirements.
Brand: Xingxing
Original: Zhejiang, China

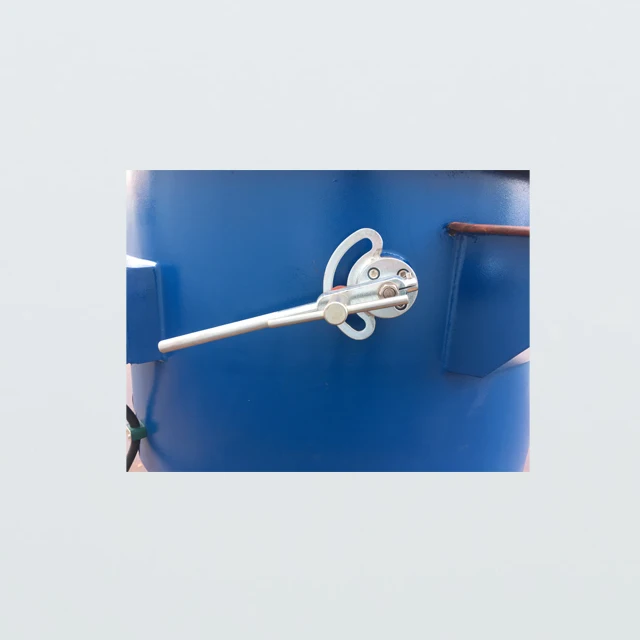

After the workpiece completes the drying process, put down the manual flap, and the workpieces will come out from the separate screen.
Original: Zhejiang, China
After the workpiece completes the drying process, put down the manual flap, and the workpieces will come out from the separate screen.
Name: Basement design for vibratory dryer
Original: Zhejiang, China
1. Designed with easy cable connection and motor bearing greasing holes outlet, easy for maintenance.2. With PU cups to hold the metal springs at the two ends to make the machine start and stop softly, eliminating the metal spring noise.

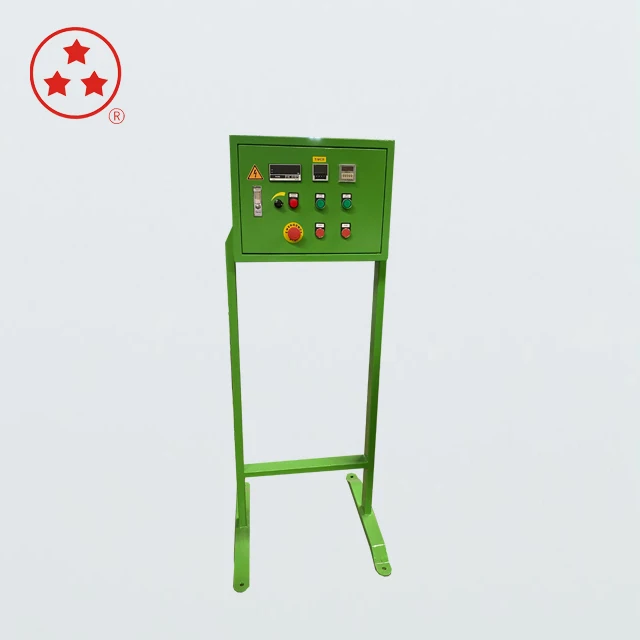

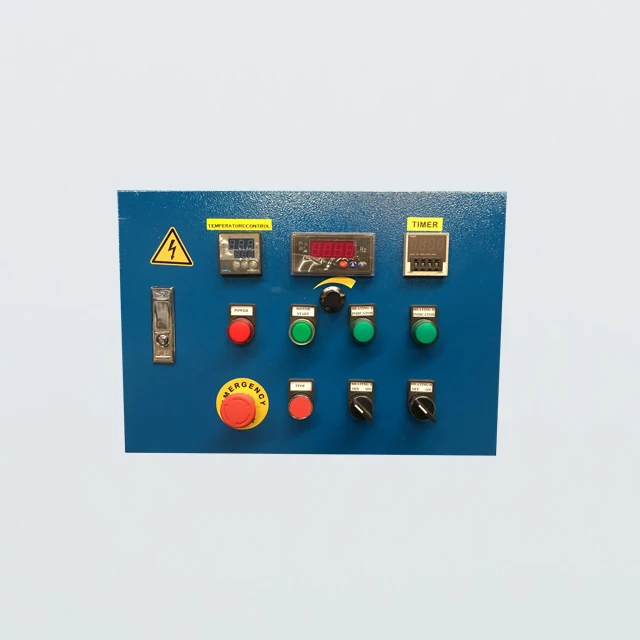

Name: Independent control panel for vibratory dryer
Original: Zhejiang, China
1. With Safe DC24V control voltage
1. With Safe DC24V control voltage
2. WITH Inverter (Taiwan brand) installed inside.
3. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. With heating temperature control setting and running time setting functions.
Related Products
Packing&Shipping
Packing:wooden case
Suitable for sea shipping
Xingxing service
Trail Test Service
Xingxing Abrasive will process samples parts from customers and recommend the proper equipment all at no charge to customers.Just
send us samples with an explanation of your desired finish and we will process them in our lab,then send back samples within 3
working days.You will see the way our machines handle deburring ang polishing process!If you are satisfied with the finishing
effect,we will trial test the samples parts till your confirmation.
send us samples with an explanation of your desired finish and we will process them in our lab,then send back samples within 3
working days.You will see the way our machines handle deburring ang polishing process!If you are satisfied with the finishing
effect,we will trial test the samples parts till your confirmation.
After sale Service.
1. Provide user tracking service to record users' problems at any time and solve them as soon as possible. After the completion of
the order, users will be checked irregularly.
the order, users will be checked irregularly.
2. Regularly introduce new products and new functions and technologies to users.
Certifications
Company Introduction
FAQ:
Q:How is Xingxing brand?
Xingxing Abrasive is the leading manufacturer of mass finishing machinery and consumable medias in China.
- Provincial High-Tech enterprise
- More than 24 years of expertise in this field.
- 21000 square meters of factory area size.
-7250 tons/year of consumable medias production output
-1030 sets/year of mass finishing machinery production output.
Q: How far is it from Shanghai or Hangzhou?
- Close to Shanghai, 2.5-3 hours of ride.
- Close to Hangzhou, 1 hour ride.
Q: What Certifications do you have?
ISO9001, ISO140001,CE, SGS(Rohs) certifications etc.
Q: What is machinery and consumble medias warranty?
- 2 year warranty for standard machinery.
- 1 year warranty for customized equipment.
- Consumble medias warranty as standard international brand media for quality lifetime consideration.
Q: What service we can offer?
- OEM/ODM product Manufacturing service.
- Trial test service, and professional advice for specific workparts surface finishing needs.
- Inquiry replied within 8 hours.
-Aftersales service starts from delivery stage, receiving stage, standard operation guide, problem shooting & fixing, regular maintenance guide, spare parts providing, Machine lifetime maintenance service.
- Sample available for consumable medias.
Q: How you guarantee consumable (tumbling) media quality?
- Mature consumable media formula, highly acknowledged by overseas customers
for more than 15 years.
- From raw material QC check to final products check before delivery.
- Extremely test conditioned for final products of every batch, and file data kept for monitoring. - The test method is similar to Japan and USA standards.
- If quality test result doesn’t meet customer’s standard, we will do the internal rejection and remaking step scheduled as priority.
Q: How you guarantee the mass finishing machinery quality?
-From raw material QC check to final products check before delivery.
-Standard machinery, we do the extremely test conditioned running for 24 hours continuously. - OEM machinery, test method instructed by customers.
- ODM machinery, test method instructed by customers.
Q: What is your international term?
- CIF destination port or location of customer side.
- FOB Shanghai/Ningbo.
- EXW/FCA
Q: What is your Payment method?
- T/T (Bank transfer) payment，as prepayment rate discussed.
- For bulk order, we can accept L/C at sight.
Q: What is your Minimum order amount?
- MOQ for machinery is 1 set.
- MOQ for consumble media is 500kg as one wooden pallet.
Q: What is your way of packaging?
-Fumigation wooden pallets for medias, 1000kg per pallet, 25kg/plastic bag.
- Fumigation wooden case for mass finishing machinery.
Q: How long is your production time?
- Generally, it will take 5-40 days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
- 5 working days for stock available machine and medias.
-25-30 days for machinery.
- 25 days for customized medias.
- 30-40 days for ODM machine or customized machinery, not including the automatic surface finishing system.
Q: What is the nearest Port? Shipping methods?
- Sea port: Shanghai, Ningbo.
- Railway departure station: Suzhou, Shanghai, Yiwu.
- Airport departure station: Shanghai.
- Express: Fedex, or other international courier service available.
