Product Description
Feature
1. The high-power COB crimping UV LED package module patented by LAMPLIC has a maximum intensity of 18W/cm2.
2. The UV LED module is driven by crimping, no solding and no plug-ins, which is convenient for quick replacement when expired.

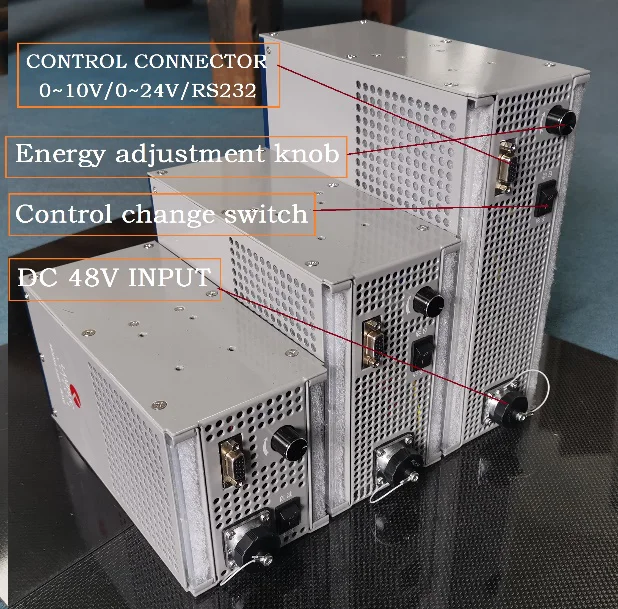

3. Wavelengths include 265nm / 280nm / 310nm / 365nm / 385nm / 395nm / 405nm ntegrated half hole lens, 60 degree light angle, more usable energy Integrate multiple control methods 0~10V / 0~24V / RS232 / ON~OFF.
4. The air-cooled belt can quickly disassemble the filter, easy to clean and maintain Standard DC48V input, adapt to more working conditions.
5. Modular design, multiple groups can be seamlessly spliced.
6. The energy output can be adjusted manually, or it can be adjusted automatically following the speed.
7. Reserve RS485 excuse to facilitate PLC control.
8. Built-in temperature sensor, over temperature alarm
2. The UV LED module is driven by crimping, no solding and no plug-ins, which is convenient for quick replacement when expired.
3. Wavelengths include 265nm / 280nm / 310nm / 365nm / 385nm / 395nm / 405nm ntegrated half hole lens, 60 degree light angle, more usable energy Integrate multiple control methods 0~10V / 0~24V / RS232 / ON~OFF.
4. The air-cooled belt can quickly disassemble the filter, easy to clean and maintain Standard DC48V input, adapt to more working conditions.
5. Modular design, multiple groups can be seamlessly spliced.
6. The energy output can be adjusted manually, or it can be adjusted automatically following the speed.
7. Reserve RS485 excuse to facilitate PLC control.
8. Built-in temperature sensor, over temperature alarm
MODEL | LBD8008 | LBD16008 | LBD24008 | ||||||||||
Power | 200W | 400W | 600W | ||||||||||
light window | 80*8 mm | 160*8 mm | 240*8 mm | ||||||||||
Wavelength | 265nm/280nm/310nm/365nm/385nm/395nm/405nm | ||||||||||||
Intensity | 265nm | 280nm | 310nm | 365nm | 385nm | 395nm | 405nm | ||||||
100mW | 100mW | 120mW | 8W | 12W | 14W | 14W | |||||||
Control | ON/OFF / RT232 / 0~10V / 0~24V / | ||||||||||||
Size | 113*98*213 mm | 163*98*213 mm | 243*98*213 mm | ||||||||||
Cooling | Fan Cooling | ||||||||||||
Weight | 2.45 kg | 3.35 kg | 4.80 kg | ||||||||||
Guarantee | 2 Years or 15000 hours | ||||||||||||

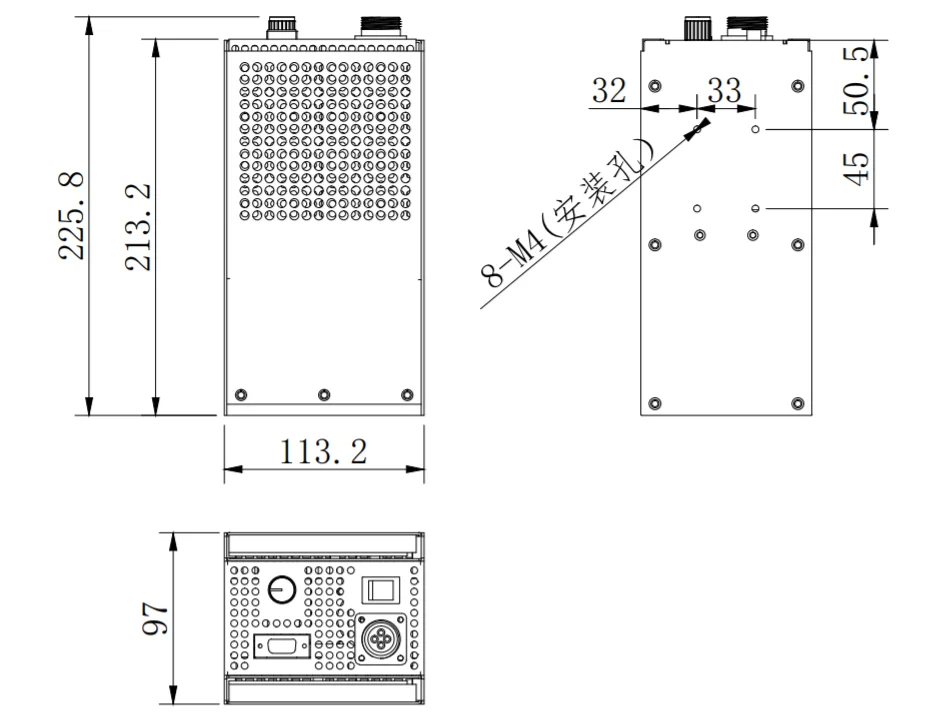

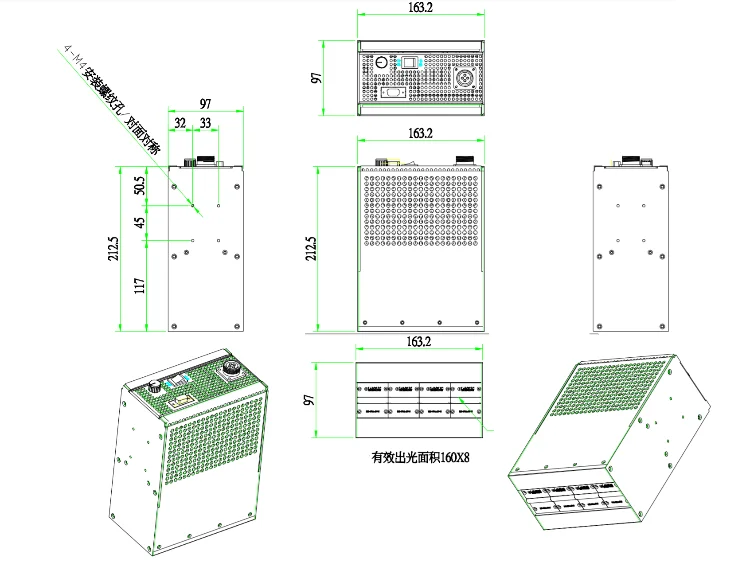

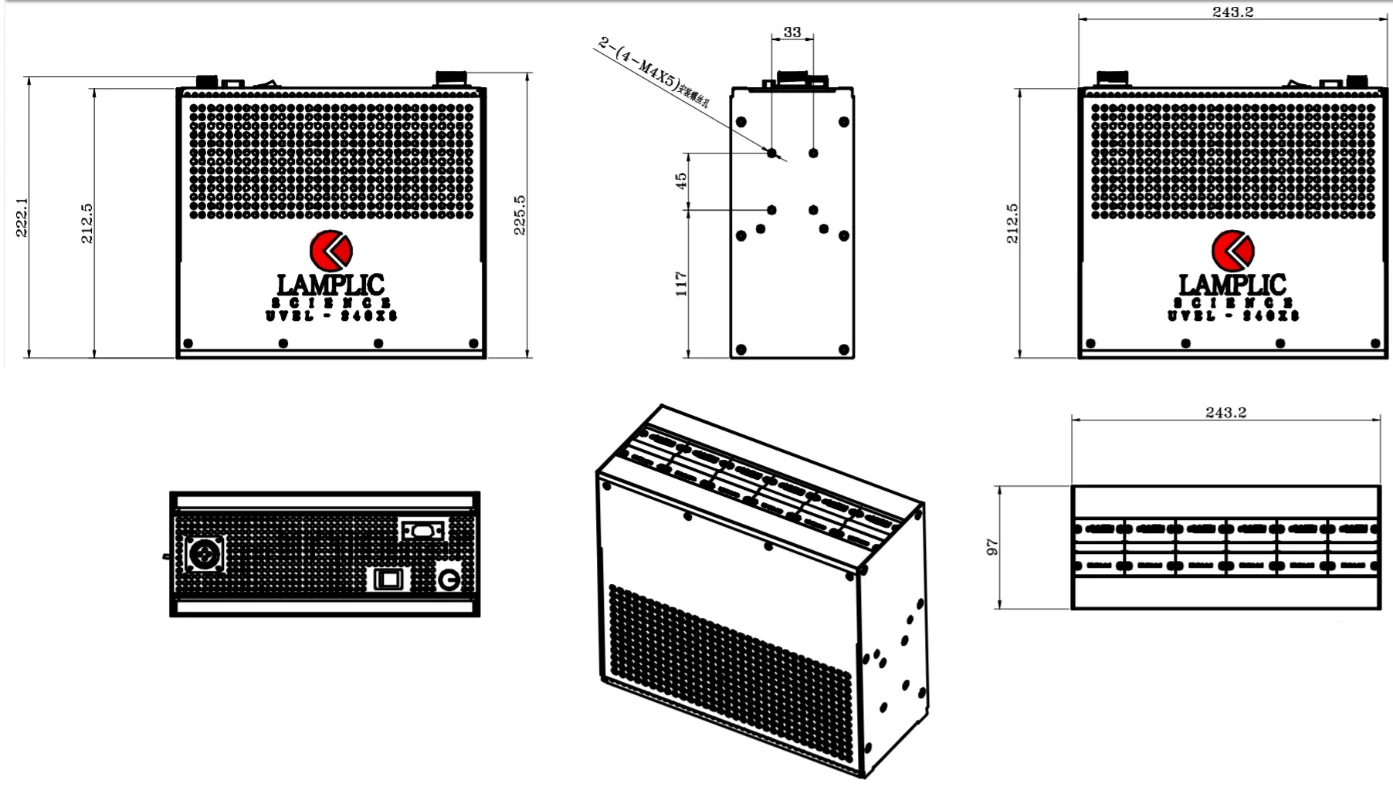

Design drawings
Application
FOR DIGITAL PRINTER
FOR NARROW WEB PRINTER
FOR WOOD HARDCOATING
FOR TOUCH PANEL ADHESIVE
