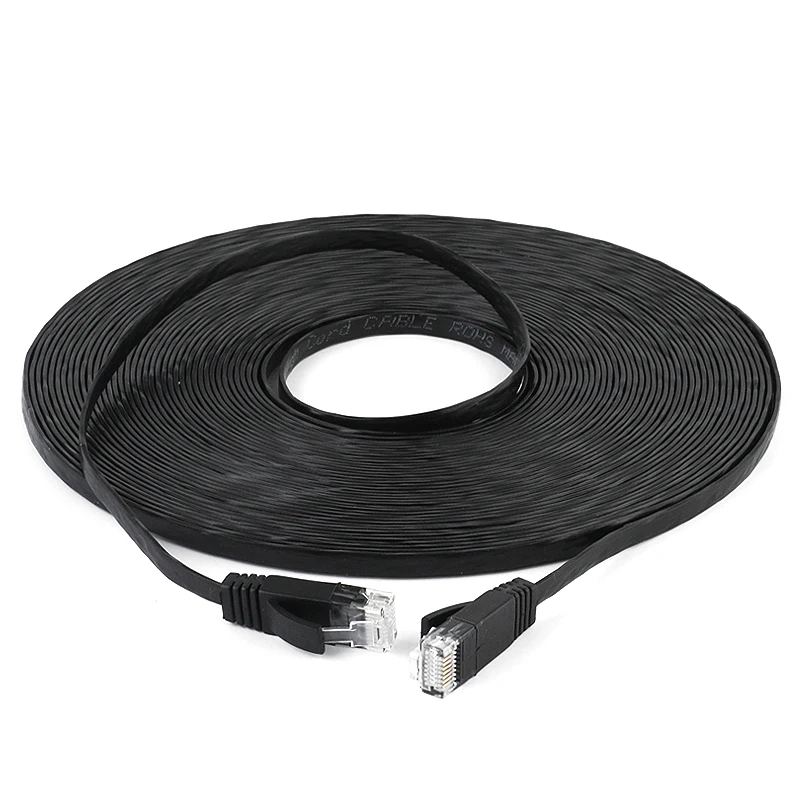

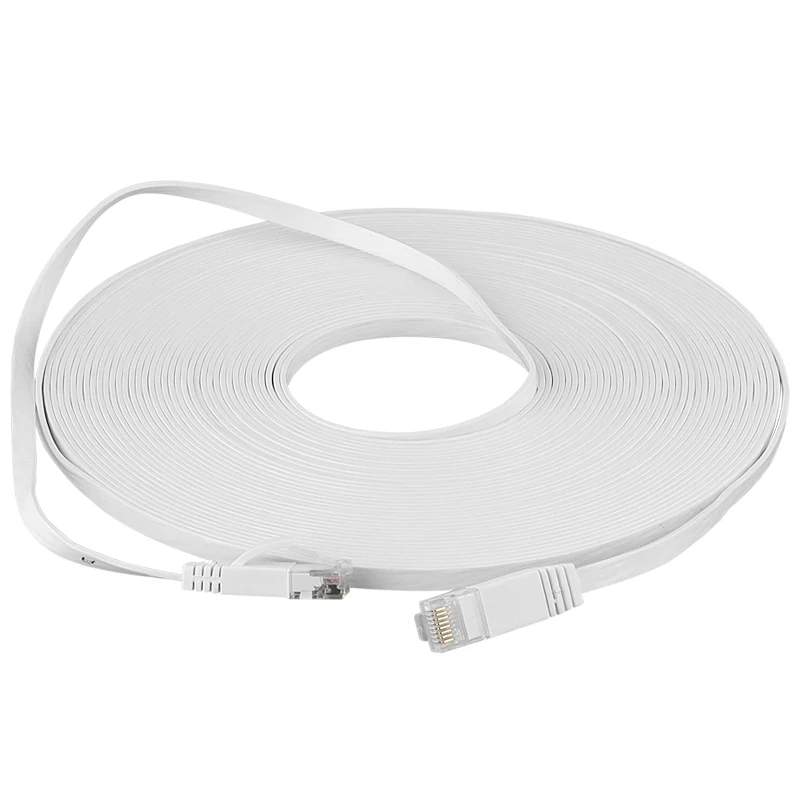

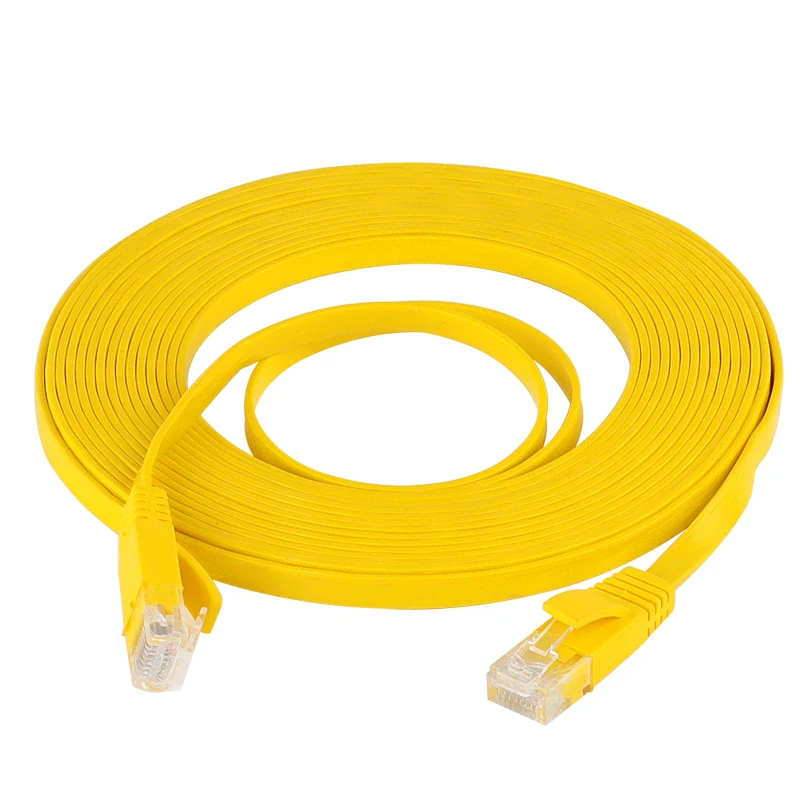

Шэньчжэнь идеальная компания Заводская поставка лучшее качество плоский патч-корд Cat6 RJ

Описание и отзывы

Характеристики

2020 1m 2m 3m 5m 10m 15m 20m Factory supply Best quality Cat5e/Cat6 rj45 ethernet patch cord cable



P.F.T factory are professional manufacturer in producing Cat5e/Cat6 UTP/FTP/SFTP/STP network cable,Power cable,Coaxial cable,Telephone cable etc.

Welcome to visit our factory !

Product Parameters

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1		2.03	74.3	570	67.8	72.3	64.8
4	20.0	3.78	65.3	552	55.7	63.3	52.8
8	23.0	5.32	60.8	546.73	49.7	58.8	46.7
10	24.5	5.95	59.3	545.38	47.8	57.3	44.8
16	25.0	7.55	56.2	543	43.8	54.2	40.7
20	25.0	8.47	54.8	542.05	41.8	52.8	38.8
25	24.3	9.51	53.3	541.2	39.8	51.3	36.8
31.25	23.6	10.67	51.9	540.44	37.9	49.9	34.9
62.5	21.5	15.38	47.7	538.55	31.8	45.4	28.8
100	20.1	19.8	44.3	537.6	27.8	42.3	24.8
200	18.0	28.98	39.8	536.54	21.8	37.8	18.8
250	17.3	32.85	38.3	536.27	19.8	36.3	16.8
