Product Description
Product name | Cold Roller Steel Ball Bearing Synchronous Extension Side-Mount Table Slide |
Place of Origin | Guangdong, China |
Brand Name | WALITON |
Model Number | WLT-T47003 |

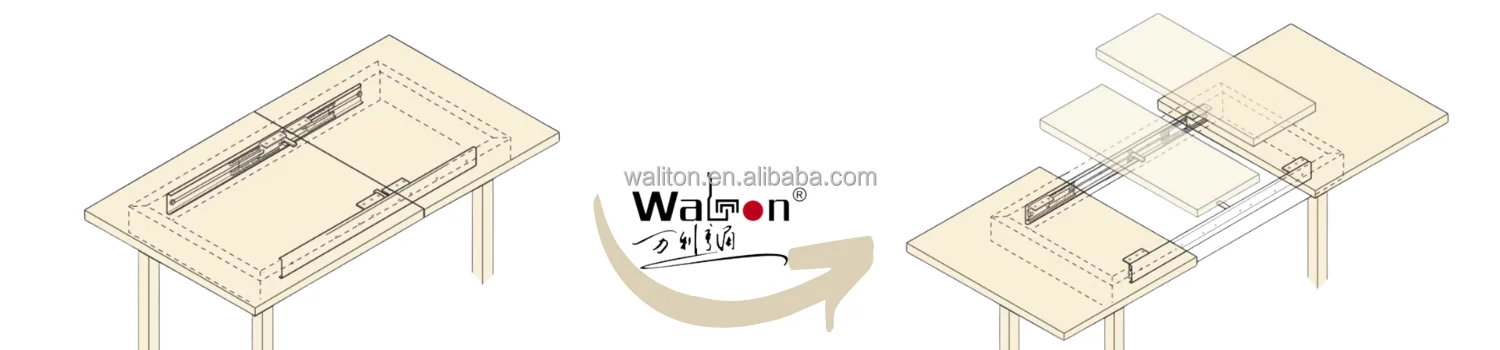

Usage | Extendable Table ,Expandable furniture, Space saving table |
Type | Ball bearing type, Bearing Rail |
Finish | Zinc or Black Electric Dipping |
Material | 2.0mm Cold-Rolled Steel |
Size | close 700mm open to 900mm (L-Shape bracket at 200mm length) |
Thickness | 2.0/2.0/2.0 mm |
Load rating | 80KG(175LBS) |
Unit | Pair |
MOQ | 100prs |
Packing | PP bag + carton |

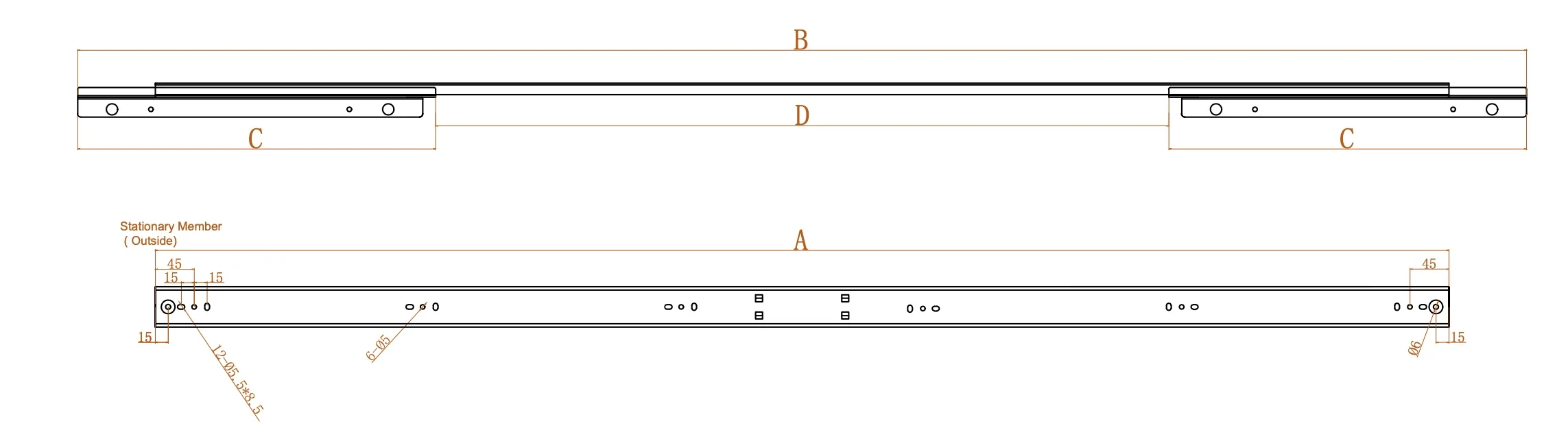

Item No. | Dimension (mm) | Folded length(mm)-"A" | Extended length (mm)- "B" | Mounting Metal size (mm) - "C" | Maximum insert size(mm)- "D" | KGS / pair | Pairs / carton | Carton Size (cm) |
WLT-T47-1100-430ST | 35*1100 | 1,100.0 | 1,870.0 | 430X20 | 875.0 | 3.09 | 8 | 112*21*9 |
WLT-T47-1200-405ST | 47*1200 | 1,200.0 | 1,684.0 | 405X20 | 850.0 | 4.54 | 6 | 122*25*12 |
WLT-T47-1250-370ST | 47*1250 | 1,250.0 | 1,840.0 | 370x20 | 1,060.0 | 4.71 | 6 | 127*25*12 |
WLT-T47-1400-415ST | 47*1400 | 1,400.0 | 1,680.0 | 415X20 | 850.0 | 5.31 | 6 | 142*25*12 |
WLT-T47-1500-415ST | 47*1500 | 1,500.0 | 1,680.0 | 415X20 | 850.0 | 5.69 | 6 | 142*25*12 |
Packing ＆ Shipping
The Side-Mount Table Slides Production Packaging
As usually, one sets drawer slide will be packed in a PE bag, 10 PE bags packed in a Carton.
