Прямые продажи от производителя выпрямитель для труб из нержавеющей стали металлическая труба лесов машина удаления окраски
- Категории: Metal Straightening Machinery >>>
- Поставщик: Zhengzhou,Mona,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Introduction of pipe straightening derusting painting machine:
The steel tube straightening machine is used for restoring the bending and distorted tubes, after restoring, the tube will be no indentation and diameter reducing. The machine is the ideal equipment for building construction companies and steel tube rental enterprise , scafflod construction unit.
The steel tube straightening machine is consist of straightening system , removing rust machine, and painting box. It can be used for only straightening, also for straightening and rust removing and painting at the same time. Mechnical rollers straightening ,stable and durable .
The steel tube straightening machine is consist of straightening system , removing rust machine, and painting box. It can be used for only straightening, also for straightening and rust removing and painting at the same time. Mechnical rollers straightening ,stable and durable .
Main Features
Features of steel tube straightening machine:
1. Adopts mechnical driving, reasobale structure, easy operation.
2. Multip function, with functions of straightening, rust removing, and painting.
Can meet various needs, time saving, labour saving and high efficicency.
3. the mechnical speed can be control, the steel tube diamter range is 48-50mm.
stable running, low noise and easy move.
4. the machine can straighten 6 meters per minute. Straightening, derusting and brushing paint will be done at the same time.
2. Multip function, with functions of straightening, rust removing, and painting.
Can meet various needs, time saving, labour saving and high efficicency.
3. the mechnical speed can be control, the steel tube diamter range is 48-50mm.
stable running, low noise and easy move.
4. the machine can straighten 6 meters per minute. Straightening, derusting and brushing paint will be done at the same time.

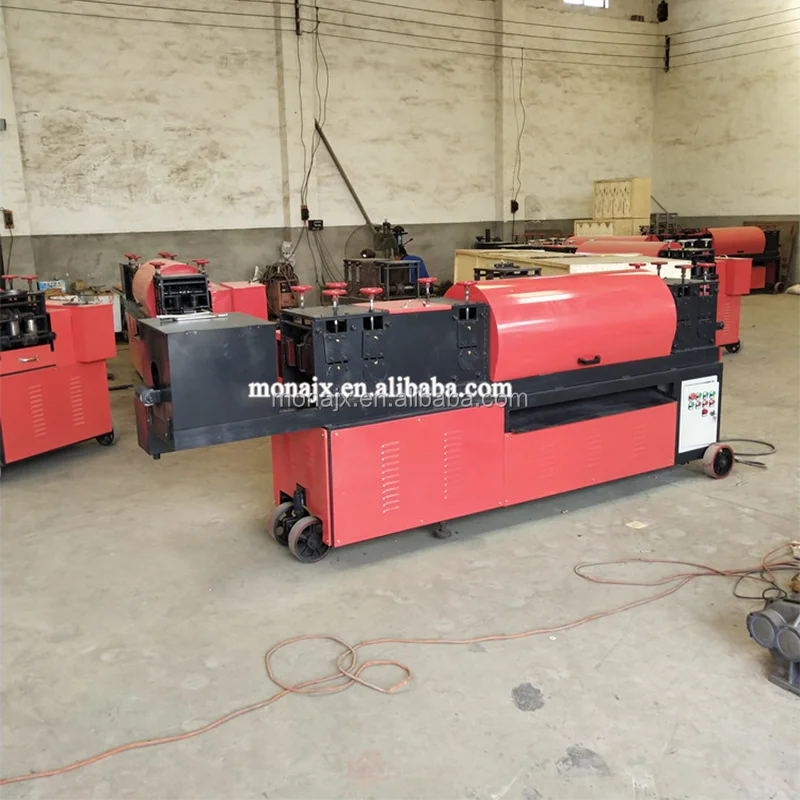

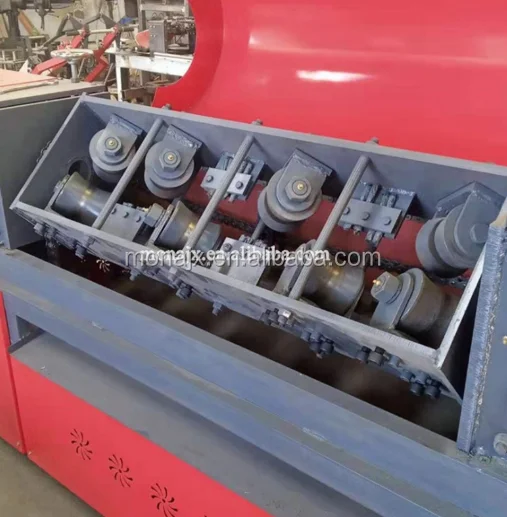

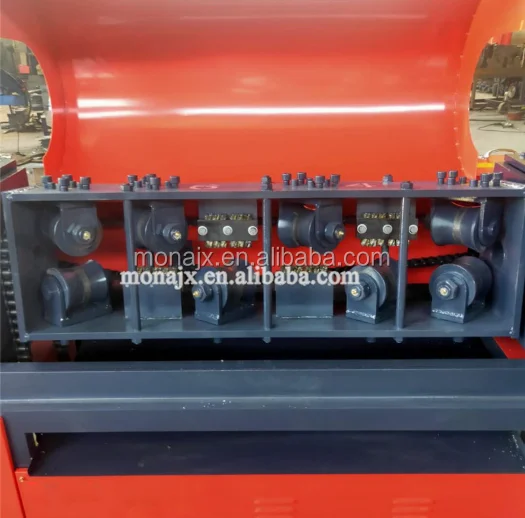

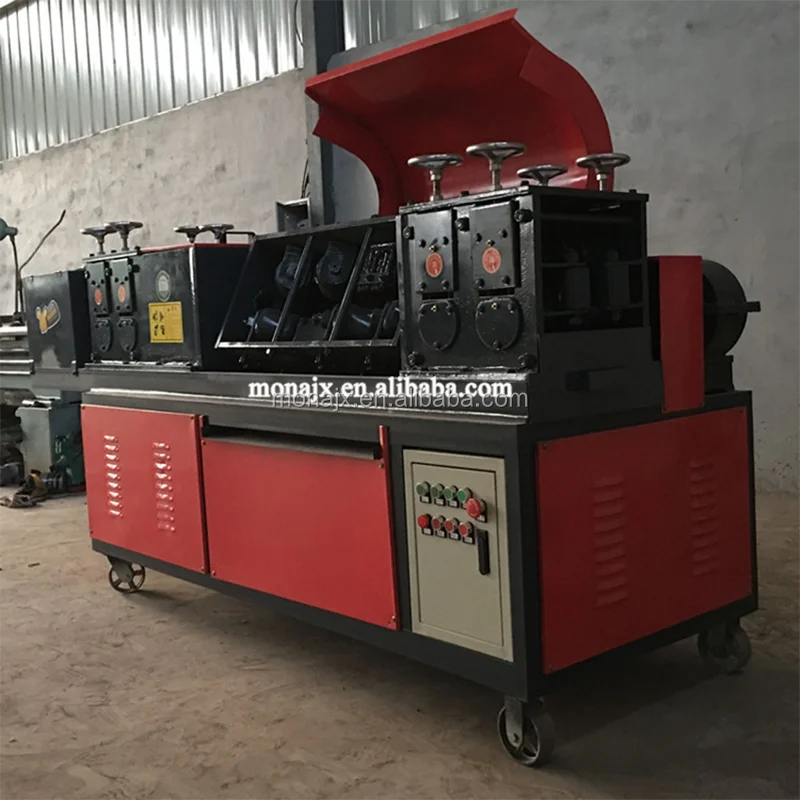

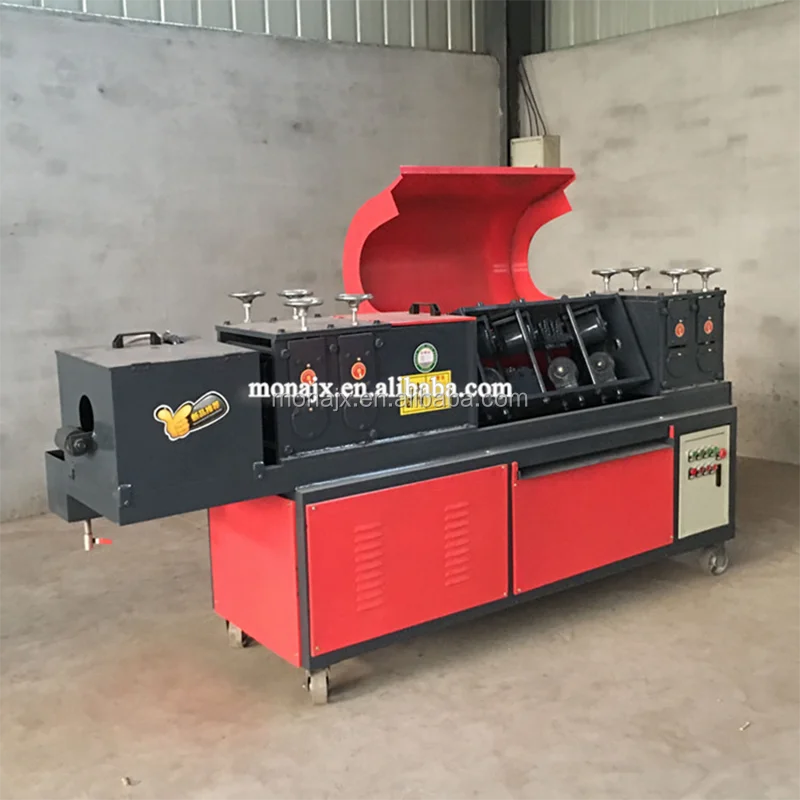

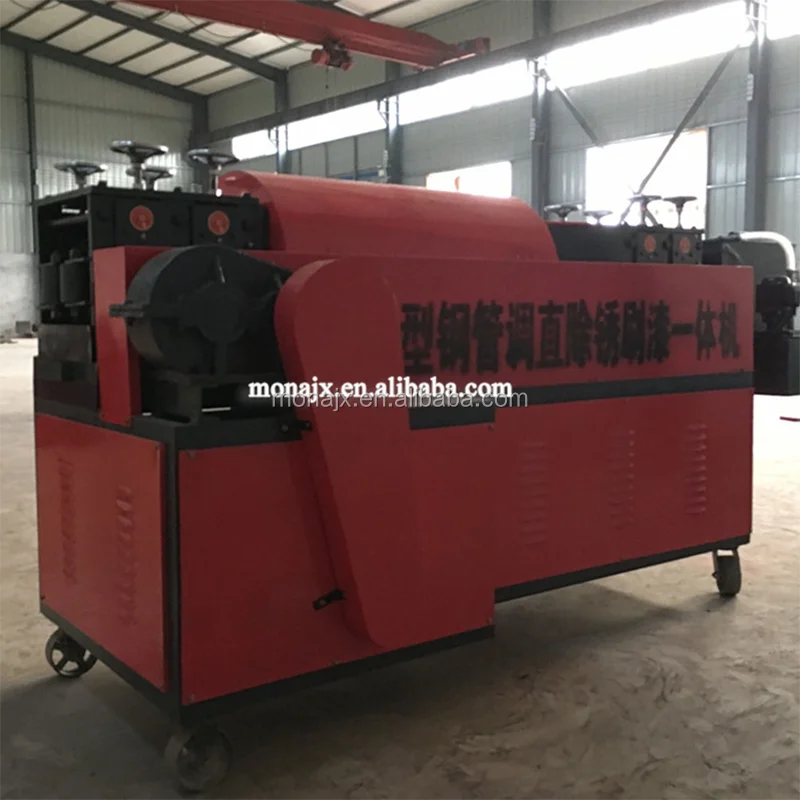

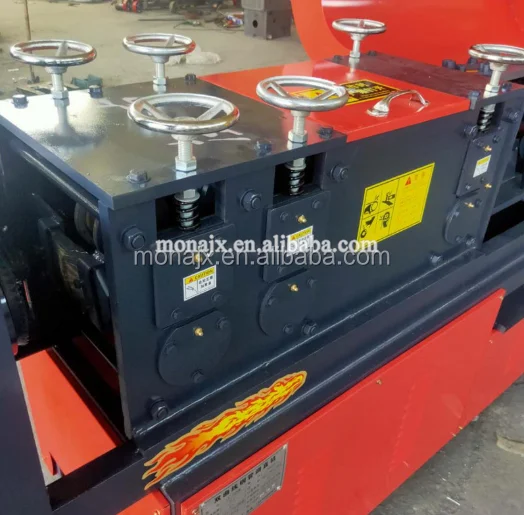

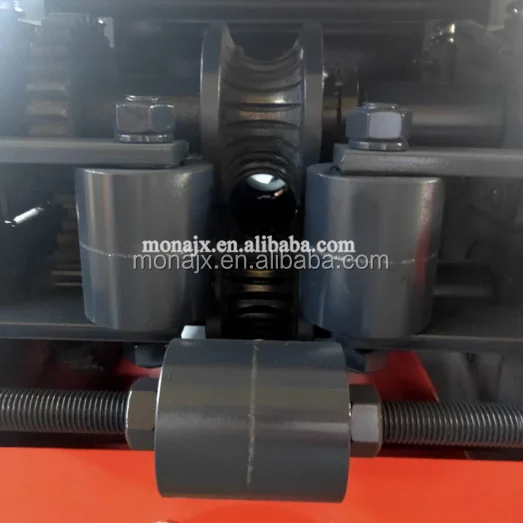

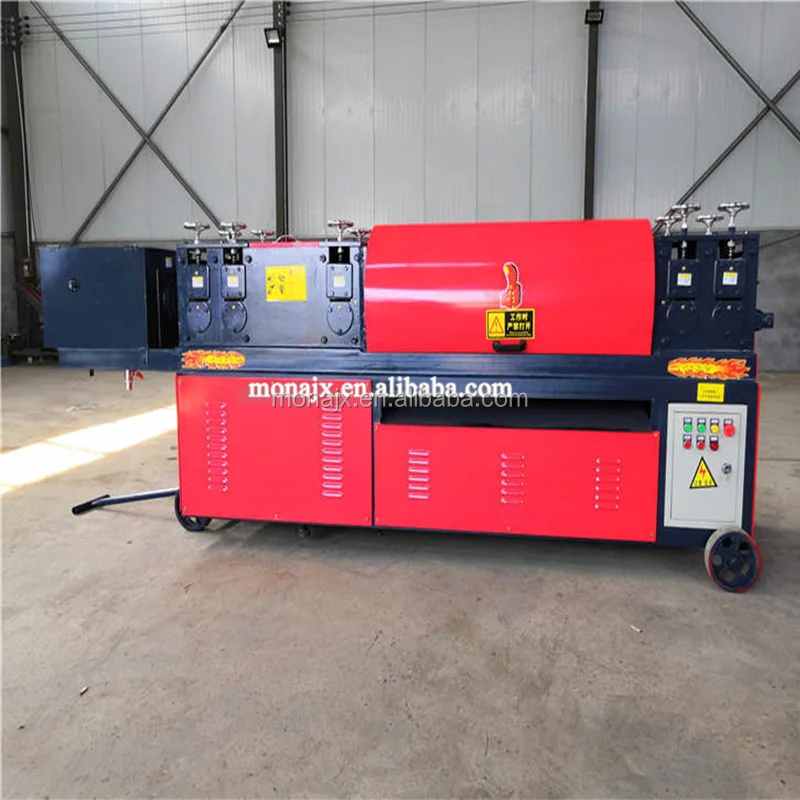

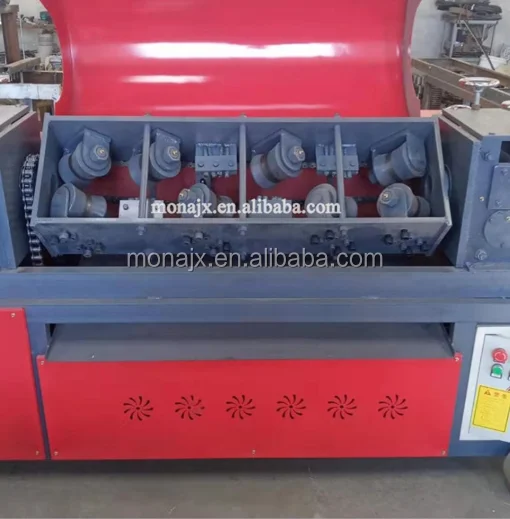

Details Images
Main Parameter
Model | MN-48A ( eight rollers) | MN-48B ( six rollers) | MN-48C |
Straightening diameter range | 45-51mm | 45-51mm | 45-51mm |
Motor Power (KW) | 3kw+3kw+3kw | 3kw+3kw+3kw | 4kw+4kw+4kw |
voltage | 380v | 380v | 380v |
Working speed | 12m/min | 12m/min | 18m/min |
Weight | 950kg | 900kg | 1050kg |
Size L*W*H | 2600x800x1200mm | 2750x800x1200mm | 2900x800x1100mm |
Straightening angle | 60 degrees | 60 degrees | 60 degrees |
Function | Remove rust, dirty, straighten, paint. | Remove rust, dirty, straighten, paint. | Remove rust, dirty, straighten, paint. |

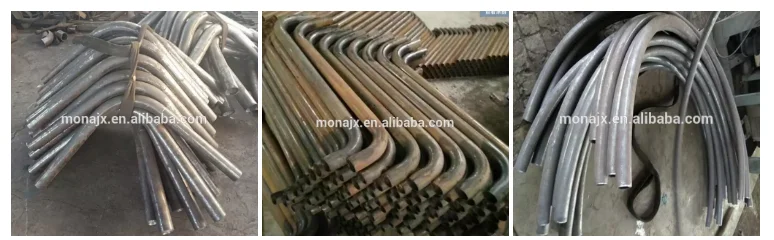

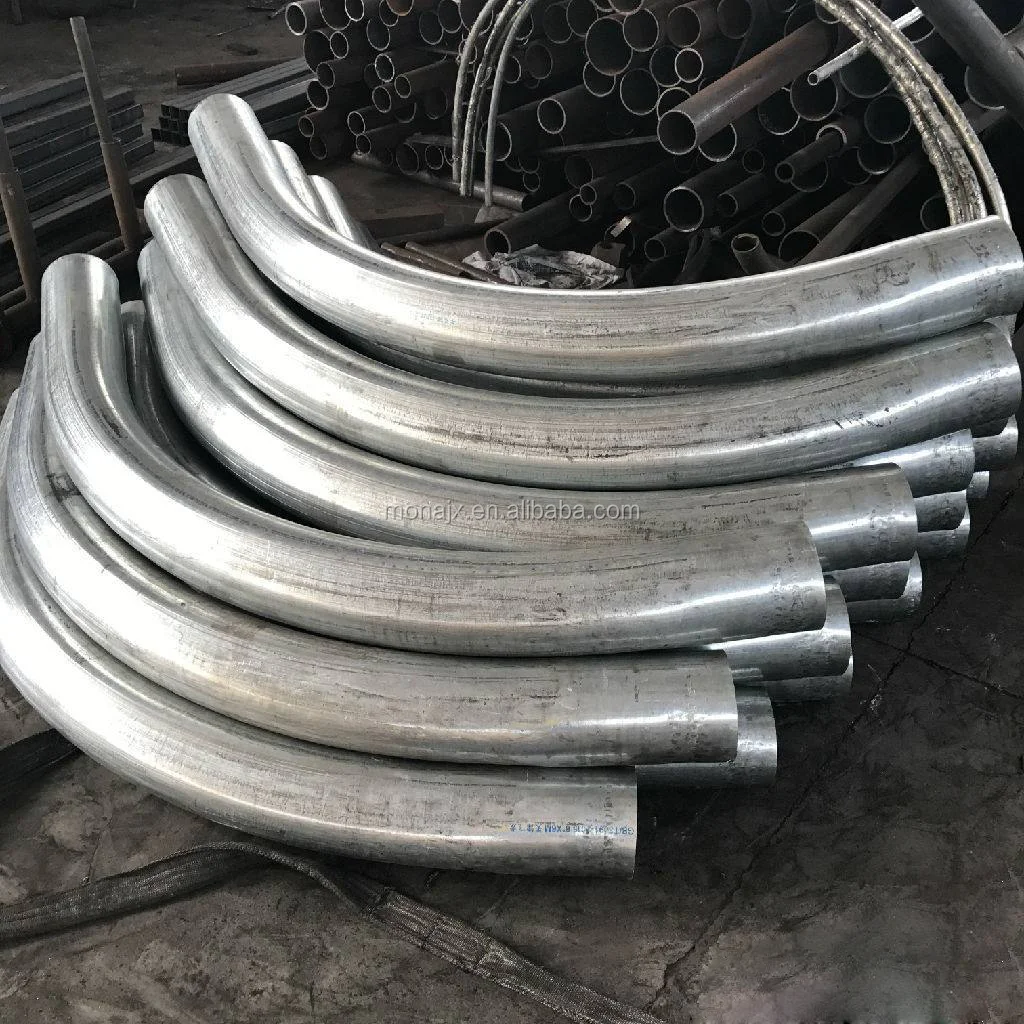

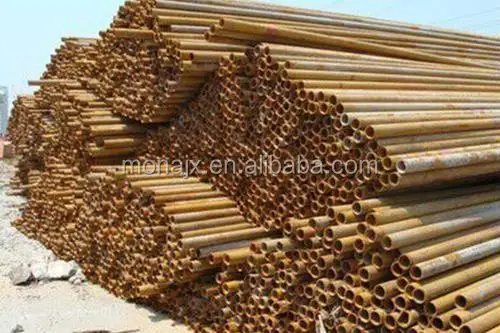

Raw material

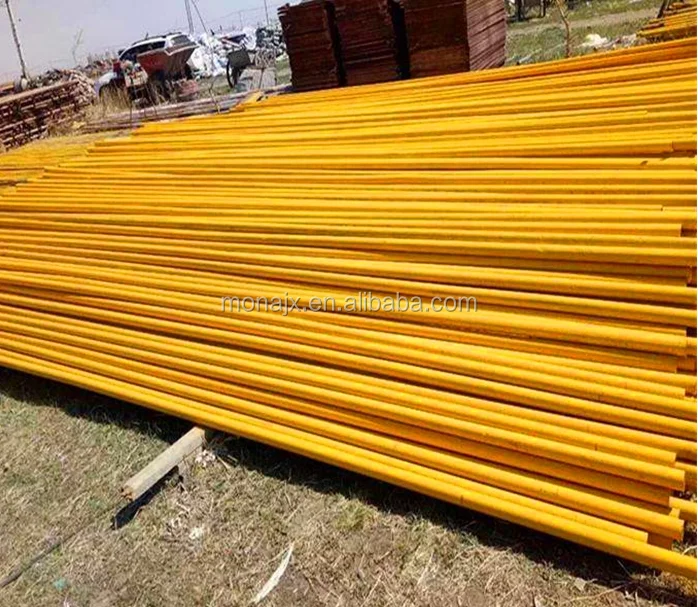

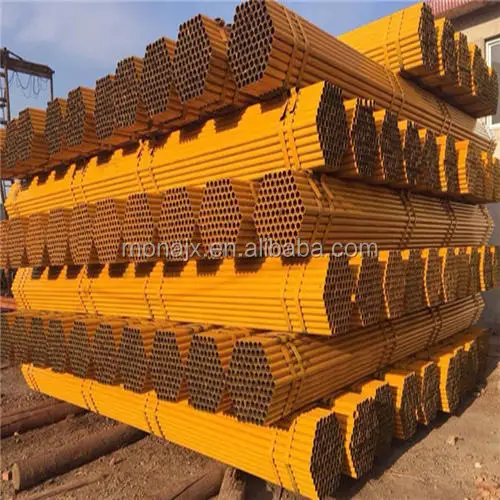

Final production
