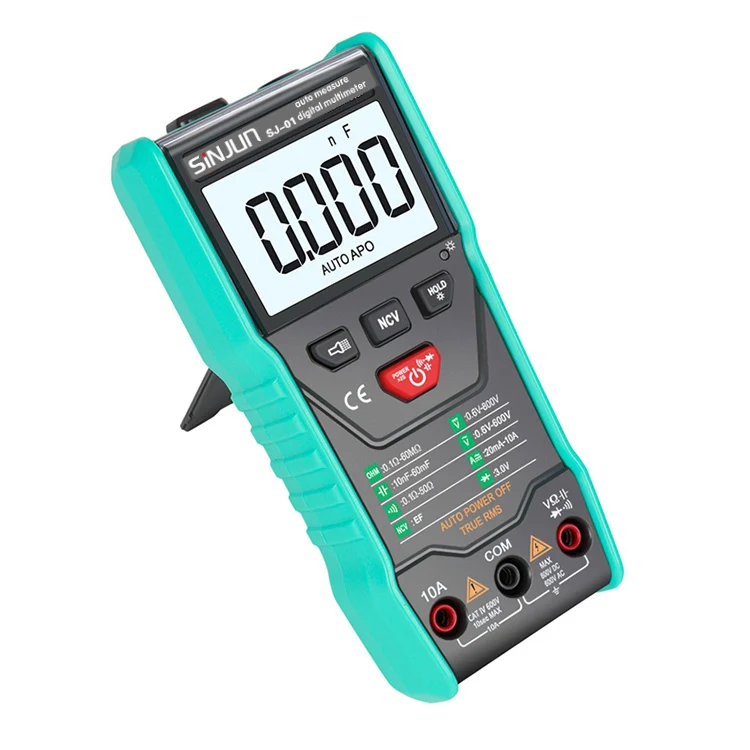

108D automatic Recognition Smart Digital Multimeter


Products Description


Product Introduction
1. Display：liquid crystal display (LCD)；
2. Maximum display：5999 (3 5/6) bit automatic polarity display;
3. Measurement method： double integral A/D conversion;
4. Sampling rate： about 3 times per second;
5. Overrange display：The highest position shows “OL”;
6. Low voltage display：symbol appears；
7. Working environment：(0～40)℃，relative humidity＜80%；
8. Power：AAA 2* 1.5V battery;

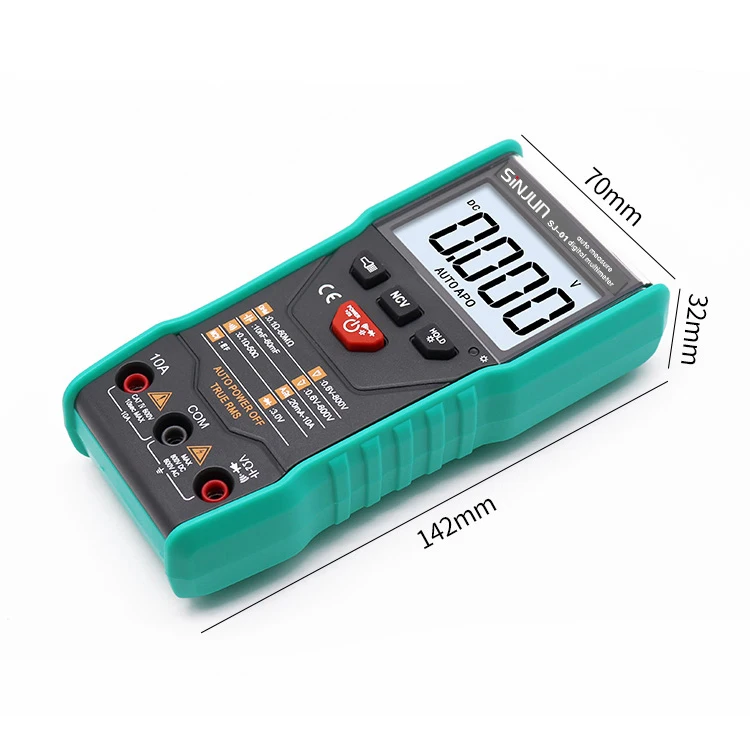

9. Volume (size)： 176×67×33mm (L×W×H)；
10. Weight：about300g（including 1.5V battery）；

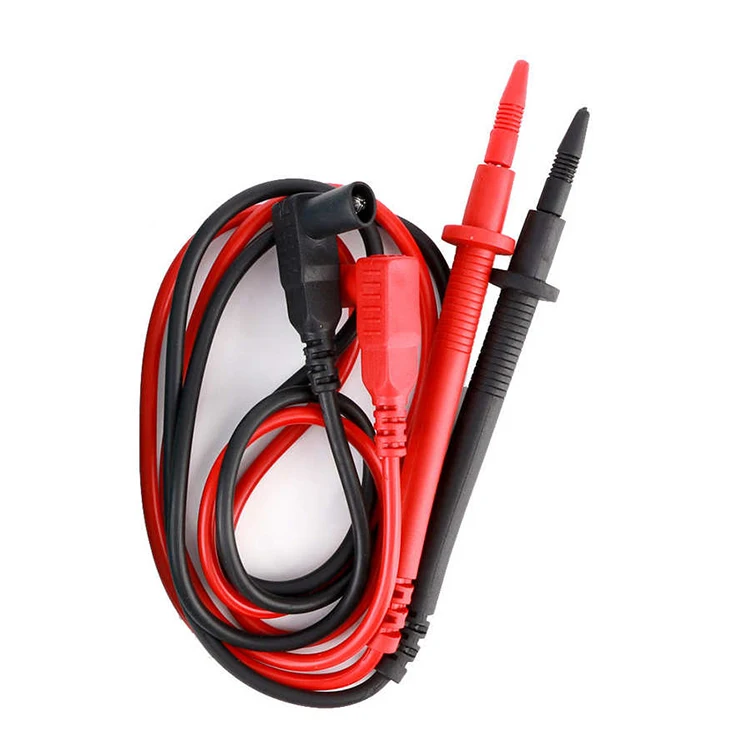

11. Attachment：a manual, a certificate, a box, a pair of pen, two AAA1.5V battery.


 Function
DC voltage DCV
YES
AC voltage ACV
YES
DC current DCA
YES
AC current ACA
YES
Resistor / Diode / On-Off Test / Capacitor
YES
Frequency F
NO
Square wave output
NO
NCV
YES
Zero line / FireWire test
NO
Full unit symbol
YES
Backlight manual/Auto off
YES
True RMS measurement
YES
Temperature（℃/℉）
NO
Flashlight lighting
YES


DC voltage / AC voltage automatic scanning test (DCV / ACV)
 Range
Accuracy/6000counts
Resolution
DC/AC6V

DC/AC600V
0.001V
DC/AC60V
0.01V
DC/AC600V
0.1V
DC1000V/AC750V
±（0.8%+10）
1V


Resistance（Ω）
Range
 Accuracy/ 6000counts
Resolution
600Ω
±（0.8%+5）
0.1Ω
6kΩ


±（0.8%+3）
1Ω
60kΩ
10Ω
600kΩ
100Ω
6MΩ
1kΩ
60MΩ
±（2.5%+3）
10kΩ


Fast turn-off test / diode / capacitor
Range
Display value
Test Conditions


 “----”
Diode forward voltage drop
Forward DC current is about 1mA, open circuit voltage is about 3V
The buzzer buzzes for a long time, and the test resistance is less than(50±20)Ω
Open circuit voltage is about 0.4V, press "power" for two-speed function switching


Capacitance(C)
Range
Accuracy/6000counts
Resolution
10nF





±（3.5%+20）
10pF
100nF
100pF
1uF
1nF
10uF
10nF
100uF
100nF
1mF
1uF
10mF
10uF
60mF
±（5%+3）
100uF


AC and DC current (DC/ACV A)
Range
Accuraacy/6000counts
Resolution
6A

±（2%+30）
0.001A
10A
0.01A
