LZZG Sand Washer Is The Best Machine In China !
The First Brand Of Sand Washer In China —— LZZG !
Product Overview

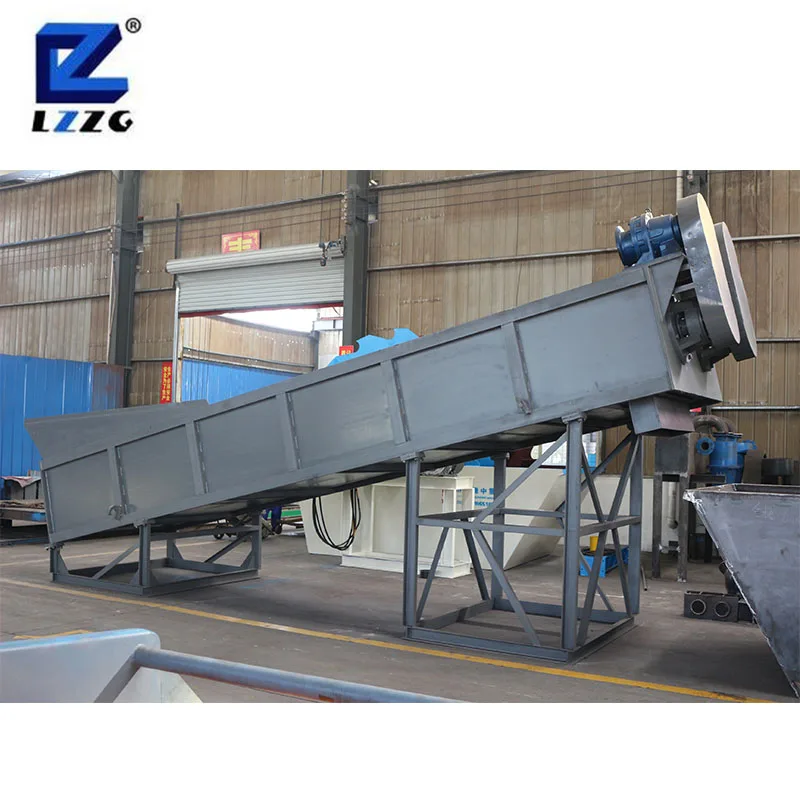

LZZG Screw Type Sand and Gravel Washer is widely used to remove dust from sand and hence improve the sand quality. The sand washer, gravel washer designed by LZZG is highly acclaimed for its minimum sand loss during washing, high efficiency and simple structure.
Working Principle
The Screw sand washer machine adopts inclination of 15°, under the water tank, three weir plates form the sediment pool, the screw head is immersed in this tank, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment tank.
The screw sand washer is a kind of sand washing machine, appliance by water fit with the sand maker. The sand washer can wash out micro amount of stone powder and impurities from the mixed sand made by the sand maker to improve the quality of the sand.
Through the generator and redactor drives the impeller to rotate in circles continuously in the water tank,the sand washers are impelled to make the sand stones and slag particles mixed, inverted and washed in the tank and discharged after dewatering of the materials in the impeller.
Details Images
Features & Benefits
1. Large processing capacity, because the screw sand washing machine sand washing principle is not to use a bucket to “catch”, so its processing capacity has been greatly improved.
2. The higher energy utilization rate reduces the energy loss caused by the wheel bucket in the process of lifting, so that the energy can be better utilized.
3. High cleanliness. More time and times for the sand to be cleaned compared to wheel type sand washer.
2. The higher energy utilization rate reduces the energy loss caused by the wheel bucket in the process of lifting, so that the energy can be better utilized.
3. High cleanliness. More time and times for the sand to be cleaned compared to wheel type sand washer.
Technical Parameters
Modle | Feed Size (mm) | Capacity (t/h) | Spiral Diameter (mm) | Spiral Shaft | Tank Length (mm) | Power (Kw) | Weighe (kg) | Overall Size (mm) |
LX0760 | ≤10 | 20-40 | 760 | 1 | 6000 | 11 | 3640 | 5700*1420*1900 |
LX0920 | ≤10 | 30-60 | 920 | 1 | 8000 | 15 | 4270 | 8710*1630*2080 |
LX1120 | ≤10 | 40-80 | 1120 | 1 | 8000 | 18.5 | 5560 | 9230*1840*2130 |
LX1500 | ≤10 | 50-100 | 1500 | 1 | 8000 | 22 | 7260 | 9620*2230*2480 |
2LX0920 | ≤10 | 60-120 | 920*2 | 2 | 8000 | 15*2 | 7580 | 8710*2600*2080 |
2LX1120 | ≤10 | 80-160 | 1120*2 | 2 | 8000 | 18.5*2 | 10200 | 9230*3050*2130 |
2LX1500 | ≤10 | 120-250 | 1500*2 | 2 | 8000 | 22*2 | 14600 | 9620*3730*2480 |
Packing & Delivery
Successful Project
Project in Korea
Project in Sri Lanka
Project in Vietnam
Company Profile
Luoyang Longzhong Heavy Machinery Co., Ltd is a high technology enterprise in Luoyang city, which is professionally engaged in mine crushing machinery and industrial grinding mill researching and development and manufacturing corporate enterprise. The company is located in beautiful Luoyang, in the middle of China, which covers more than 50000 square meters with modern and professional technical team, equipped with advanced CAD computer aided design system and computer simulation test system. All of these good facilities keep our products in high quality.
Certifications
Exhibition
Our Team
Our Service
Pre-sale Service
1. Choice of model.
2. Designing and manufacturing product according to
customer's special requirement.
3. Company will arrange engineer to customer's site,designing site and discussing project.
After-sale Service
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
2. Training operator on site
