ПВХ Нитриловый резиновый шланг для жидкого
- Категории: >>>
- Поставщик: Linyi,Saijun,Pipe,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

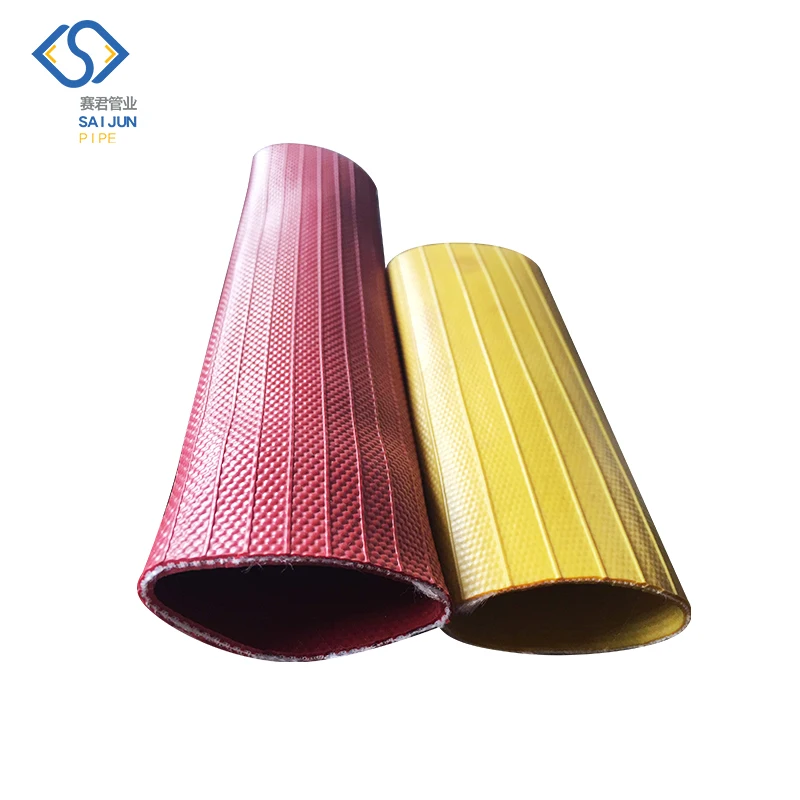

pvc nitrile rubber hose for liquid manure
Construction:
Circular polyester weave extruded internally and externally with NBR-PVC.
Hose shall be made from 100% high tenacity synthetic yarn circular woven
and completely, protected and locked-in by tough highly resistant
synthetic nitrile rubber, forming a single homogenous construction without
the use of glues or adhesives of any type.
Outer coat : Synthetic Rubber
Middle : Polyester fiber woven jacket
Inner coat:Synthetic Rubber
Color:Red,Black,Yellow
Property: Highly Resistant To Abrasion,Waterproof,Quick Drying, Sea Water Corrosion Resistance
Service : From -20˚C to +80˚C
Application:Air compression,Fire fighting,Mining,Water transmission
Circular polyester weave extruded internally and externally with NBR-PVC.
Hose shall be made from 100% high tenacity synthetic yarn circular woven
and completely, protected and locked-in by tough highly resistant
synthetic nitrile rubber, forming a single homogenous construction without
the use of glues or adhesives of any type.
Outer coat : Synthetic Rubber
Middle : Polyester fiber woven jacket
Inner coat:Synthetic Rubber
Color:Red,Black,Yellow
Property: Highly Resistant To Abrasion,Waterproof,Quick Drying, Sea Water Corrosion Resistance
Service : From -20˚C to +80˚C
Application:Air compression,Fire fighting,Mining,Water transmission
Inner Diameter | Wall Thickness | Working Pressure | Burst Pressure | Weight | ||
Inch | mm | mm | bar | bar | Kg/M | |
3/4 | 19 | 2 | 20 | 60 | 0.192 | |
1 | 25.4 | 2 | 20 | 60 | 0.233 | |
1 1/2 | 38.1 | 2.1 | 20 | 60 | 0.400 | |
2 | 50.8 | 2.2 | 20 | 60 | 0.500 | |
2 1/2 | 63.5 | 2.2 | 17 | 51 | 0.600 | |
3 | 76.2 | 2.3 | 17 | 51 | 0.740 | |
4 | 102 | 2.4 | 15 | 45 | 0.98 | |
4.5 | 110 | 2.5 | 15 | 45 | 1.300 | |
5 | 127 | 2.6 | 13 | 39 | 1.62 | |
6 | 152 | 2.8 | 13 | 39 | 1.900 | |
8 | 203 | 2.8 | 10 | 30 | 2.46 | |
China National Petroleum Corporation (CNPC) cooperative customer
Our customer of China national petroleum corporation (CNPC) carries out oil and gas exploration in Ningxia Hui Autonomous Region on Nov. 10, 2019, using air pipes produced by Linyi Saijun Pipe Co., LTD. Our staff also participated in the installation of theair pipe and the guidance of the work.
High pressure nbr layflat hose is circular polyester weave extruded internally and externally with NBR-PVC.
Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highlyresistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.
Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highlyresistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.
The advantage of this kind of pipe is highly resistant to abrasion,waterproof, quick drying, sea water corrosion resistance,widely used in air compression,Fire fighting,Mining,Water transmission.

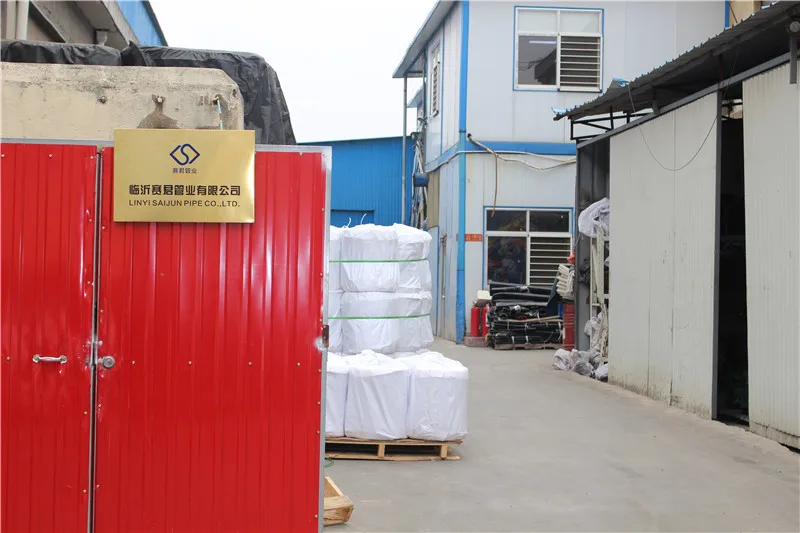

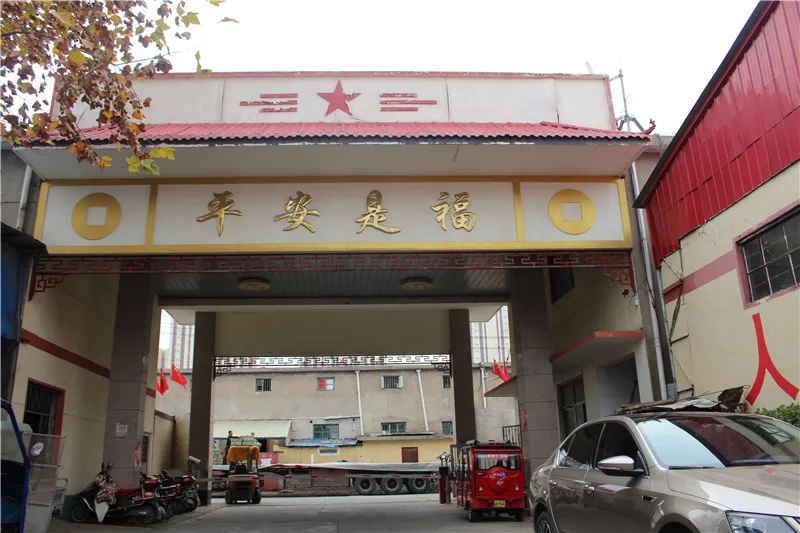

OUR FACTROY
Linyi Saijun Pipe Industry Co., Ltd is a professional manufacturer of Lay flat hoses from 1998 years, that are rapidly replacing unconventional rigid pipes in numerous applications around the world.
Product
Saijun have a wide range of lay flat hoses for using in a number of areas, such as offshore fluid transfer, irrigation, agriculture, construction, military, fuel and chemical transfer, marine and fire-fighting, mining, and industrial water supply operations etc. Mainly,
Thermoplastic Polyurethane (TPU) layflat hoses
Nitrile Rubber Layflat hoses
PVC Layflat hoses
Fittings and Couplings
Quality
Our hoses and fittings are submitted to a strict quality control, which made based on ISO and Chinese Military QMS requirement. All Saijun products are built using high quality raw materials, each step is exhaustively monitored throughout manufacturing process. We have got certificates for Petroleum and Chemical, Mining.
Customization
We can adapt to produce hoses that meets the specific requirements of special customers.
Factory:
Huasen Industry Zone, Linxi 9th Road, Linyi City, Shandong Province.
Official Website:
www.lysjsdc.com
lysjsdc.1688.com
Phone/whatsapp: +86 15550929189 Lily Ren
Product
Saijun have a wide range of lay flat hoses for using in a number of areas, such as offshore fluid transfer, irrigation, agriculture, construction, military, fuel and chemical transfer, marine and fire-fighting, mining, and industrial water supply operations etc. Mainly,
Thermoplastic Polyurethane (TPU) layflat hoses
Nitrile Rubber Layflat hoses
PVC Layflat hoses
Fittings and Couplings
Quality
Our hoses and fittings are submitted to a strict quality control, which made based on ISO and Chinese Military QMS requirement. All Saijun products are built using high quality raw materials, each step is exhaustively monitored throughout manufacturing process. We have got certificates for Petroleum and Chemical, Mining.
Customization
We can adapt to produce hoses that meets the specific requirements of special customers.
Factory:
Huasen Industry Zone, Linxi 9th Road, Linyi City, Shandong Province.
Official Website:
www.lysjsdc.com
lysjsdc.1688.com
Phone/whatsapp: +86 15550929189 Lily Ren
E-mail:kikili@lysjsdc.com
