WDS520 BGA Rework Repair Station Replace Desktop Chip Mainboard Soldering Desoldering Equipment



product Description


Specifications of WDS- 520









































 Power3800W
Uppper heating power800W
Bottom heating power1200W
IR preheating power1800W
UsageBGA rework, Motherboard repair
BGA chip sizeMin 1*1mm, Max 60*60mm
PCB sizeMin 10*10mm, Max 300*280mm
Temperature controlling(high precision K-sensor) (Closed Loop),independent temp.controller,the precision can reach ±2℃
Weight20KG

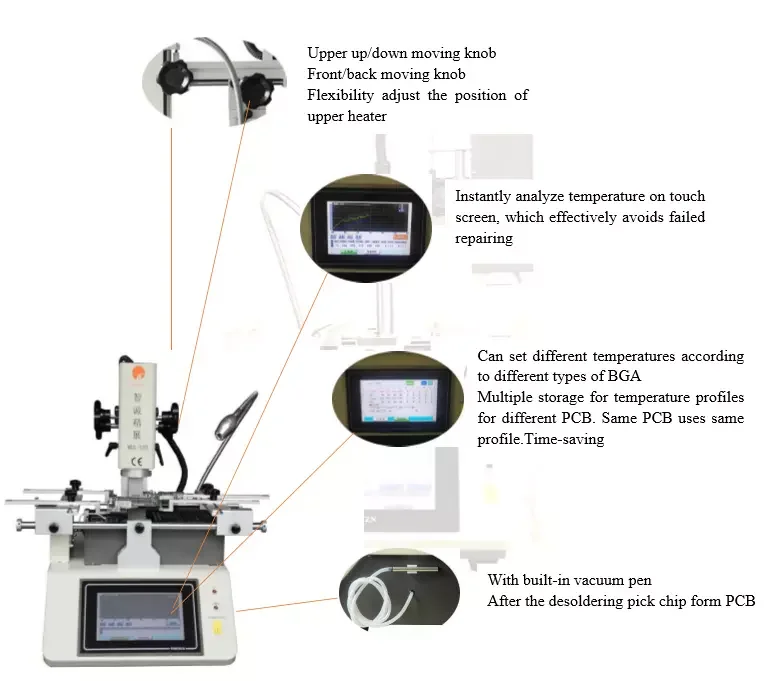

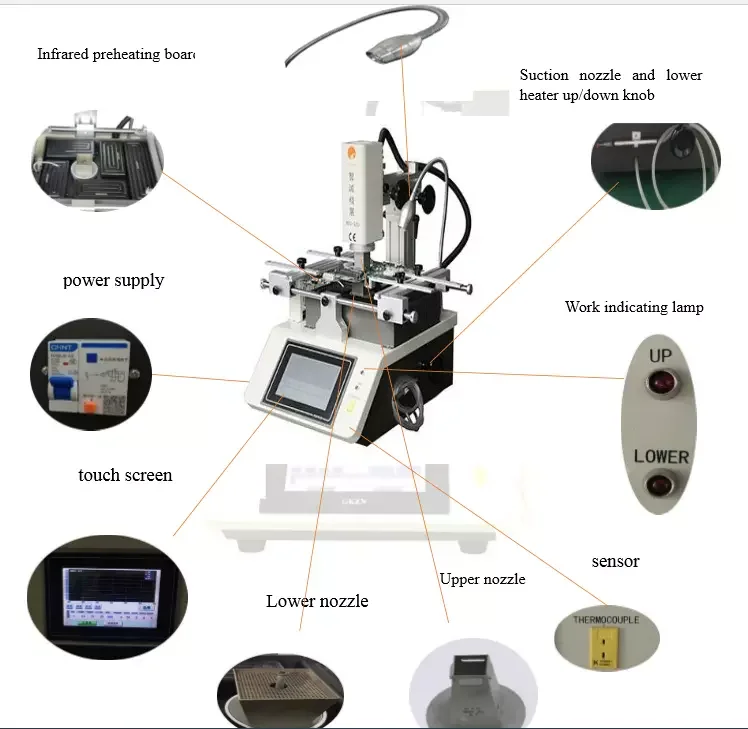

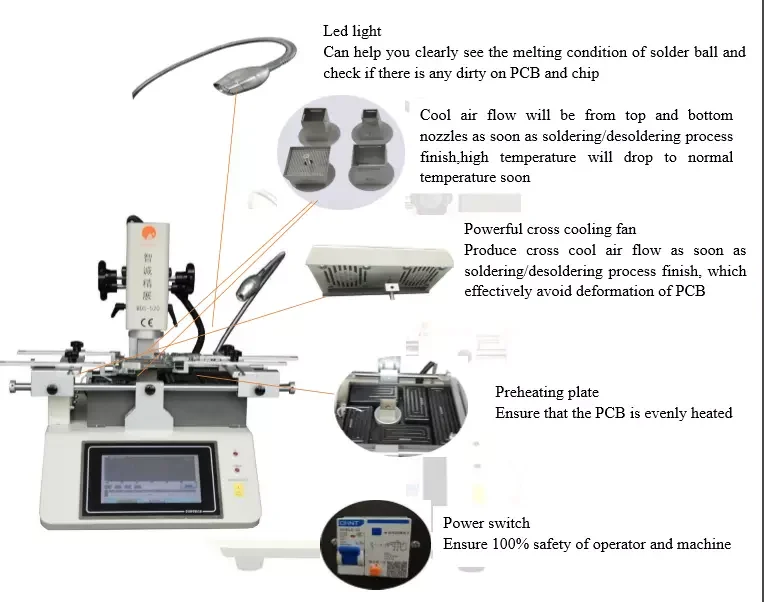

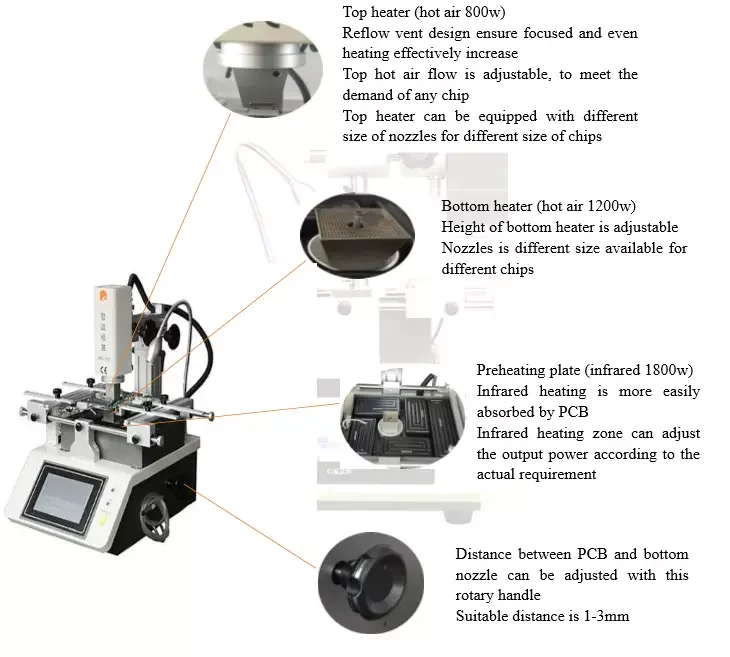

Detailed images


580 1.png580 2.png580 3.png580 4.png





Product description


1.Repair Success Rate:More Than 99%.
2.Using The Industrial Touch Screen.
3.Independent 3 Heating Zones, Hot Air Heating / Infrared Preheat. ( accuracy ± 3℃).
4.With CE Certification, double over temperature protection function
5.Can solder, desolder, mount, pick and replace chip.
6.Hot air nozzle can be rotated in 360 degree
7.Eight segments rising temperature/constant time/ temperature rising slope, it can save hundreds of groups temperature curve.
8.It adopting high accuracy K-type thermocouple close-loop control.
9.The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.
10.Rework BGA, VGA, CCGA, QFN, CSP, LGA, SMD, etc.





Accessory


Accessories of BGA machine







Workshop


We are Committed to producing a perfect machine!







Machine operation


Machine Operation


Specific Repair steps:


1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing  or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) Replace a new BGA chip - we called Soldering





Moreover:


Free training will be provided!
1.We will provide you English instruction book and Demo Video to see how to use.
2.About the temperature setting ,please refer to the setting of the temperature parameters manualhere and to see how to set temperature.
3.if you still have any question, please contact us by E-mail/phone call/Alibaba online service.


12





Packaging & Shipping





Packaging & Shipping


1. Individual standard export wooden box for WDS repair machine.


2. Delivery in 2 workdays after payment received.


3. Shipped by sea, by air or by express such as DHL, UPS, TNT, EMS etc.


4. Loading port: Shengzhen or Hongkong.








Our Services





Our service and advantages


work1





1.Your inquiry will be replied in 12 hours.
2.Original Manufacture to customers, with competitive price.
3.We provide one year warranty, free training and whole life technology support.
4.We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.





5.Well-trained and Professional after-sales service team to support you.
6.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.
7.Payment terms ,like T/T, Westerunion, PayPal is choosed by customers.





Pre-Sales Service:
* All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line.All products passed CE & ISO certification.
After-Sales Service:
* Offer free spare parts and service within 12 months of warranty,and all the other relative cost should be on the buyer's account.
* Provide Demo operation video for training.If you have time,welcome to our company,will arrange engineers to show you the operation,you can also test the machine by yourself.





If you need technical support for our products or any other problem,please contact Yuki by
Mobile:(+86) 13593880250
WhatsApp/We Chat:+86-13593880250


We will try to answer you with 12 hours











FAQ





FAQ


1.It is the first time i use this machine, is it easy to operate?
A: There is an English manual and guide video that show you how to use the bga machine, and the machine provides two languages(Chinese and English), you can choose English. If you still have any questions, please contact us by E-mail/Skype/phone/video call/Alibaba online service.


2. What if the machine have problems, what can i do?
A:We will send free parts to you if the machine is still in warranty period(1 year).
3.How about the package? Is it safe during the delieve?
A:All BGA rework machines ARE well packed by standard strong wooden carton with foam inside.
4. How can I buy this machine from you?
a. Consult us about this product on line or by e-mail.
b. Negotiate and confirm the final price , shipping , payment methods and other terms.
c. Send you the proforma invoice and confirm your order.
d. Make the payment according to the method put on proforma invoice.
e. We prepare for your order in terms of the proforma invoice after confirming your full payment.
5. What is the payment way ?
We accept the payment terms: Bank transfer, Wester Union, Moneygram, Paypal, Alibaba Pay,Aliexpress Pay,Credit Card etc..


Now you can order freely!!!
We undestand buyers might be worried about ordering products from China.
Now our company have joined Alibaba Trade Assurance . By placing order through Alibaba, if the suppiler doesn't meet your contract requirements for on-time shipment or Pre-shipment product quality, Alibaba.com may refund the payment as stated in your contract.








Company Information





why choose us?
1.We are the Manufacturer= own factory+ machine design+Sheet metal produced by ourself+spray the powder+ strong assemble the machine team + packaging+free training.
2.More than 11 years experiences in PCB BGA chips rework station, Over 20 R&D engineers.
3. Has been the biggest factory in the BGA rework field in China.
4.HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor.


5.Over 100000 Global User.
6.Speedy and high quality customer service and whole-life after-sale service.
7.Deliver goods to customer all over the world with speed and precision.
