Горизонтальный Универсальный цилиндрический шлифовальный станок для продажи
- Категории: Внутренние шлифовальные станки >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

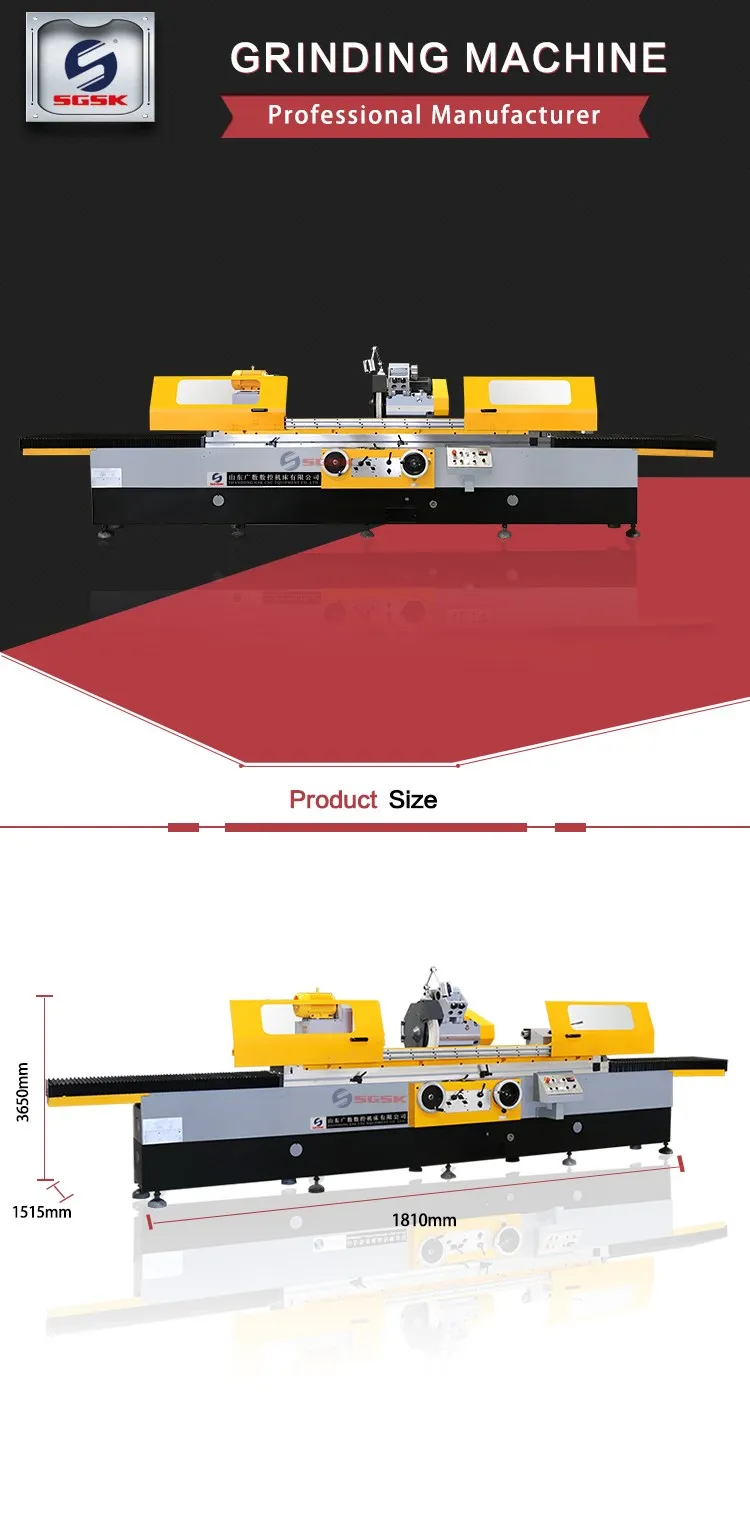

Horizontal Universal cylindrical grinder for sale M1432B cylindrical grinder
Products Description

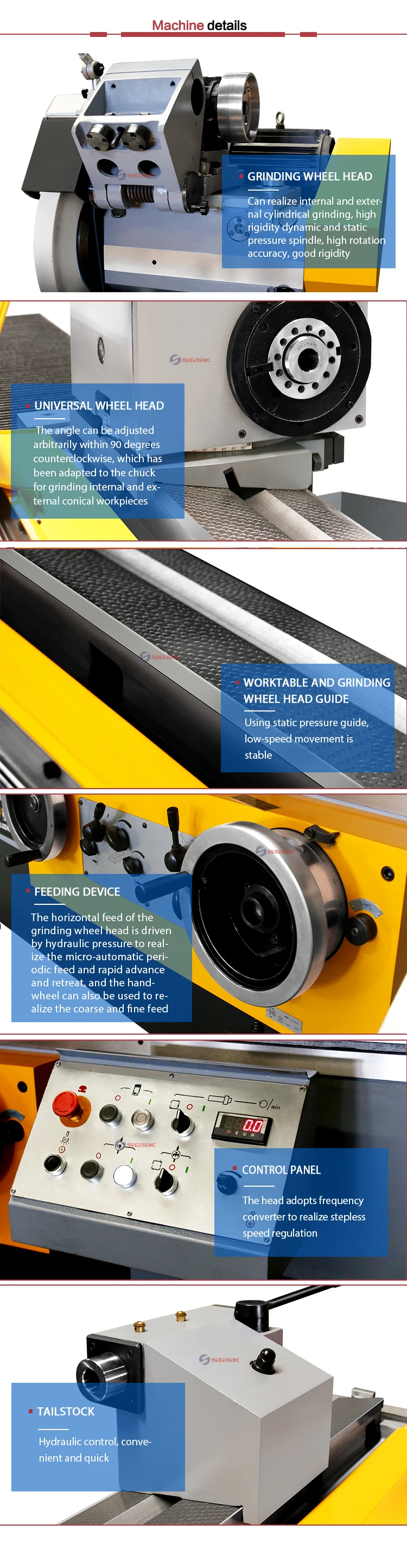

Details Display
Specification:
Specifications | Units | M1432B |
Distance between centers | mm | 1000、 1500、 2000、 3000 |
Center height | mm | 180 |
Dia. Ground(O.D) | mm | 8-320 |
Dia. Ground(LD) | mm | 30-100 |
Max. length ground(O.D) | mm | 1000、 1500、 2000、 3000 |
Max. length ground(LD) | mm | 125 |
Max. weight of work piece | kg | 150 |
Swiveling angle | ° | +90° |
Center taper | MT | 4 |
Spindle speed | r/min | 50HZ:25〜220 Stepless |
Swiveling angle | r/min | 1670 |
Wheelhead rapid travel | mm | 50 |
Max. travel | mm | 246 |
Swiveling angle | ° | -30° |
Hand feed per rev | mm/rev | rough：2 precision：0.5 |
Hand feed per gra | mm/gra | rough：0.01 precision：0.0025 |
Wheel size (ODxWxID) | mm | 400 * 50 * 203(1000、1500)、500*50*203(2000、3000) |
Peripheral velocity | m/s | 35 |
Spindle speed | r/min | 10000/15000 |
Wheel size (OD*W*ID) | mm | Max.：50*25*13 Min.：17*20*6 |
Hand feed per rev | mm/rev | 6 |
Cockwise | ° | 3° |
Anticlockwise ° | ° | 7° (1000) 6° (1500) 5° (2000) 3° (3000) |
Longitudinal speed range of table | m/min | 0.1-4 |
Center taper | MT | 4 |
Quill travel | mm | 30 |
Wheelhead motor power | kw | 5.5 (1000、1500) 7.5 (2000、3000) |
Internal grinding | kw | 1.1 |
Workhead motor power | kw | 1.5 |
Machine weight | kg | 5300 (1000) 6100(1500) 7900 (2000) 9900(3000) |
Overall dimension(L * W * H) | mm | 3260*2000*2050 (1000) |
4260*2000*2050 (1500) | ||
5400*2000*2050 (2000) | ||
7390*2000*2050 (3000) |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
