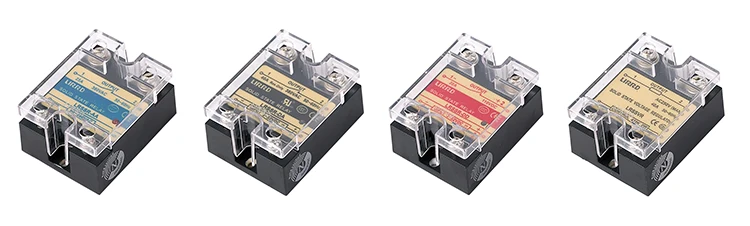

Одобренное UL промышленное твердотельное реле постоянного тока в переменный ток 40 А 380
Одобренное UL промышленное твердотельное реле постоянного тока в переменный ток 40 А 380

Одобренное UL промышленное твердотельное реле постоянного тока в переменный ток 40 А 380


Поделиться:

Цена:4,38 $ - 5,15 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Application










Specifications


.jpg










































































































ClassificationAC Solid State SeriesDC Solid State SeriesLRSSVR
ModelLRSSR-AALRSSR-DALRSSR-DDLRSSRVR
Load Voltage(V)28~285, 36~53028~285, 36~530, 48~66050, 100, 300, 40050, 600700, 800, 90040~250, 80~380
Load Current(A)5, 10, 20, 30, 40,
 50, 60, 80, 100		5, 10, 20, 30, 40, 50, 60, 80, 1005, 10, 20,
 30, 40		5, 10, 205, 10, 20,
30, 40
Dielectric Strength(Vac)2500
Insulation Resistance(MΩ)100
Control Voltage(Vdc)90-2653-323-32
Control Current(mA)≤103-355-20
On Voltage Drop(V)≤10≤1.5≤2.5
Off Leakage Current(mA)≤4≤2≤1
Frequency Range(Hz)47~63
on-off Time(ms)≤10≤0.8
Action State IndicationLED
Ambient Temperature-30℃~+75℃
Mounting MethodBolt Fixation
Same ReferenceSSR, G3NA-420B, LSAP3810A, LSAP2210ASSR, JGX-1572F, JGX-1554F, JGX-1598F, JG53FA, JGX-54FA
DirectionsLoad Current Resistance above DC 5A Must Be Set Radiator




Approved Standards

























AgencyStandardFile No.
CEEN 60947-1: 2004T2M20511-0737
ULANSI/UL 508E256962
CCC(CQC)GB 14048.5-20082011010303498303

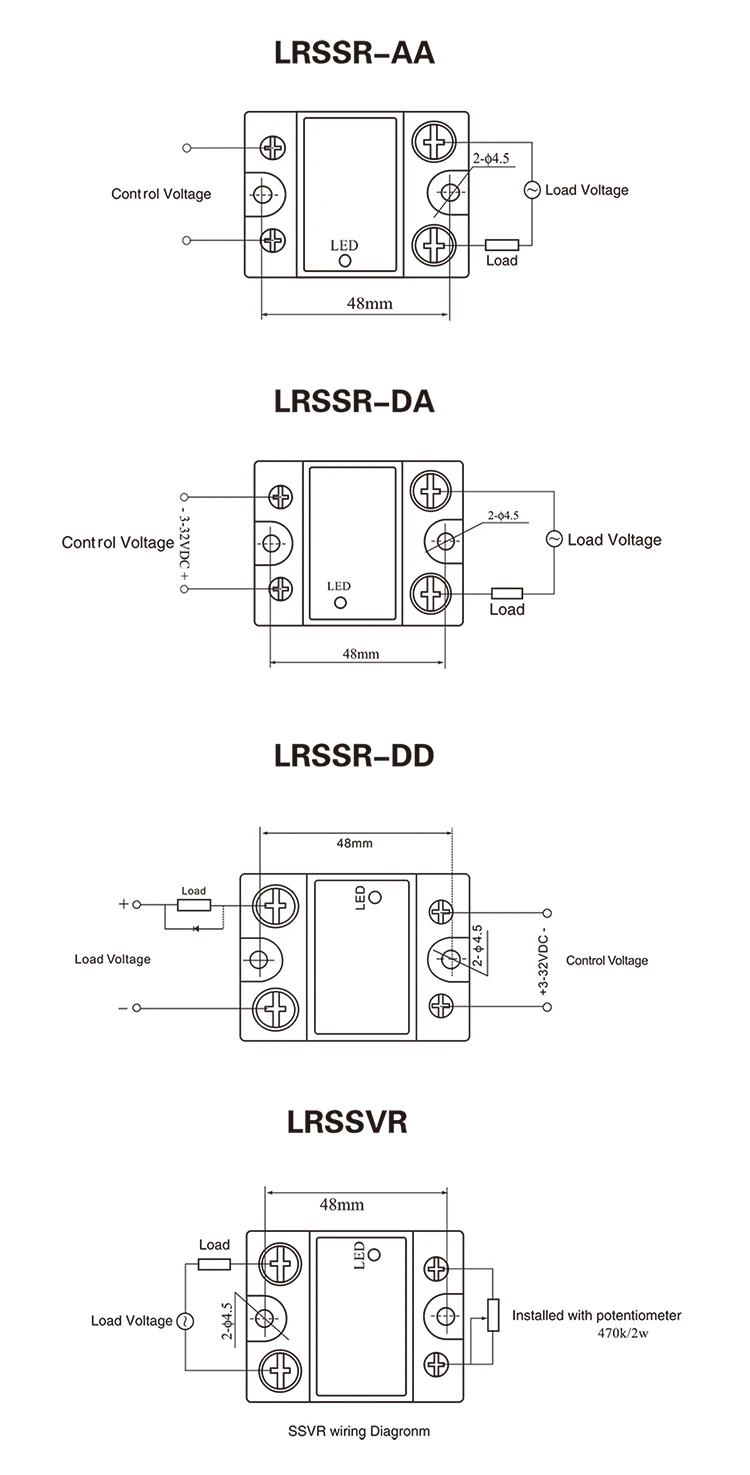

Connection Diagram

 ssr Connection Diagram.jpg

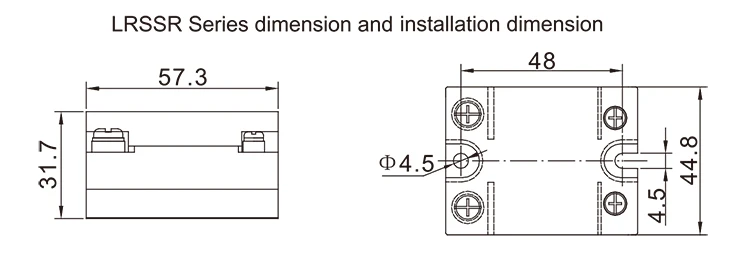

Dimension

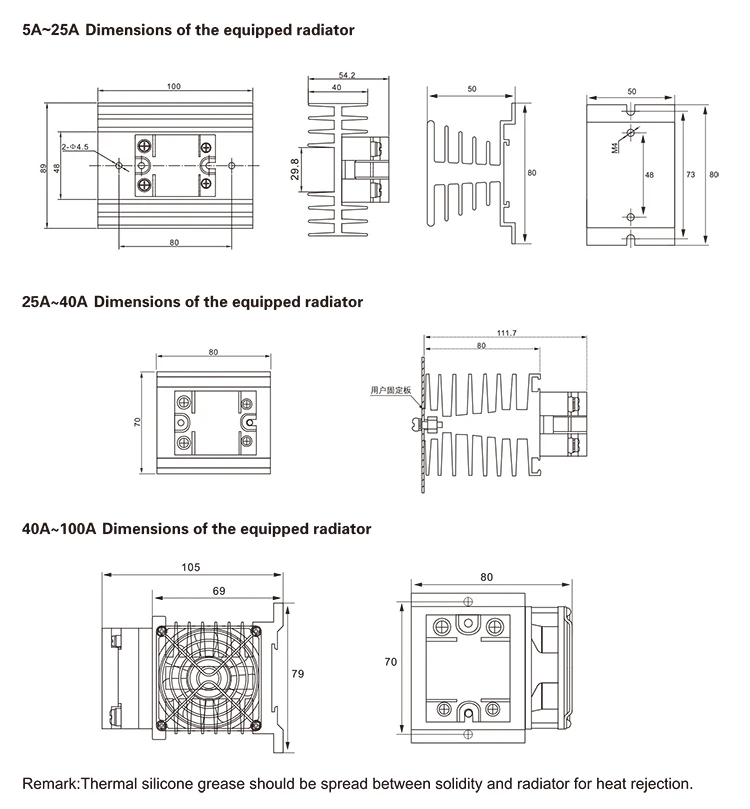

Equipped Radiator

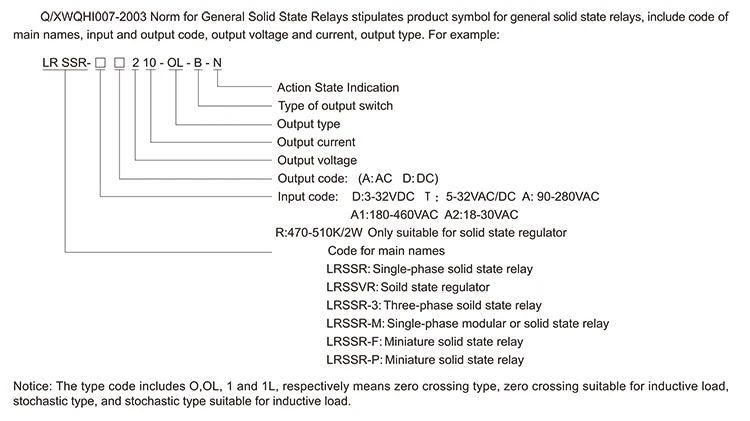

Symbol Of Power Relay




Company







Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.





Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.





We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.





As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
