CSD450 режущая головка для резака всасывающие экскаваторы запчасти продажи аксессуары дноуглубления

Описание и отзывы

Характеристики

China Cheap Price 1600cbm/h Diesel Engine Cutter Suction Sand Dredger

Length overall (ladder raised)	25m
Breadth	4.7m
Depth	1.26m
Design draught	0.8m
Maximum standard dredging depth	12m

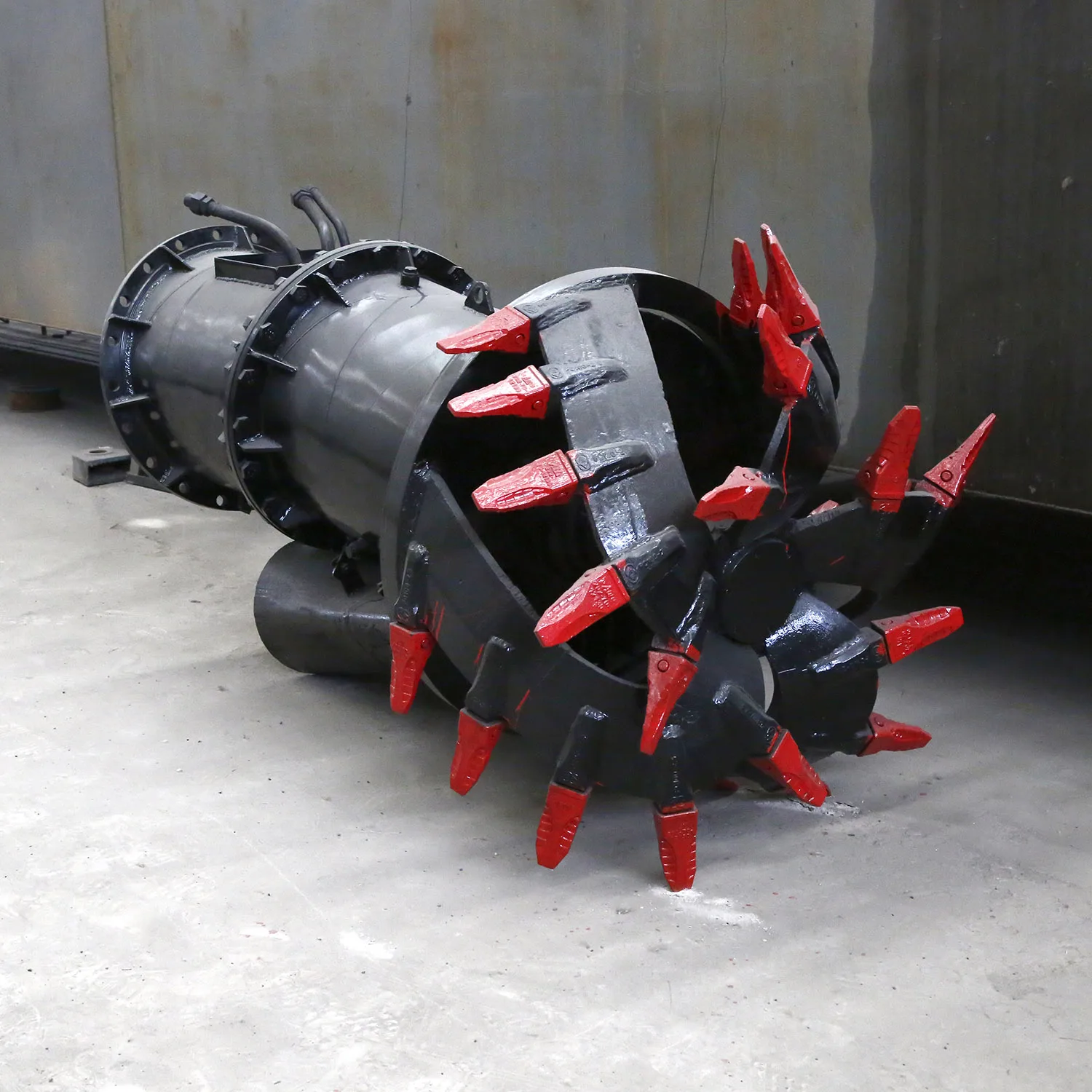

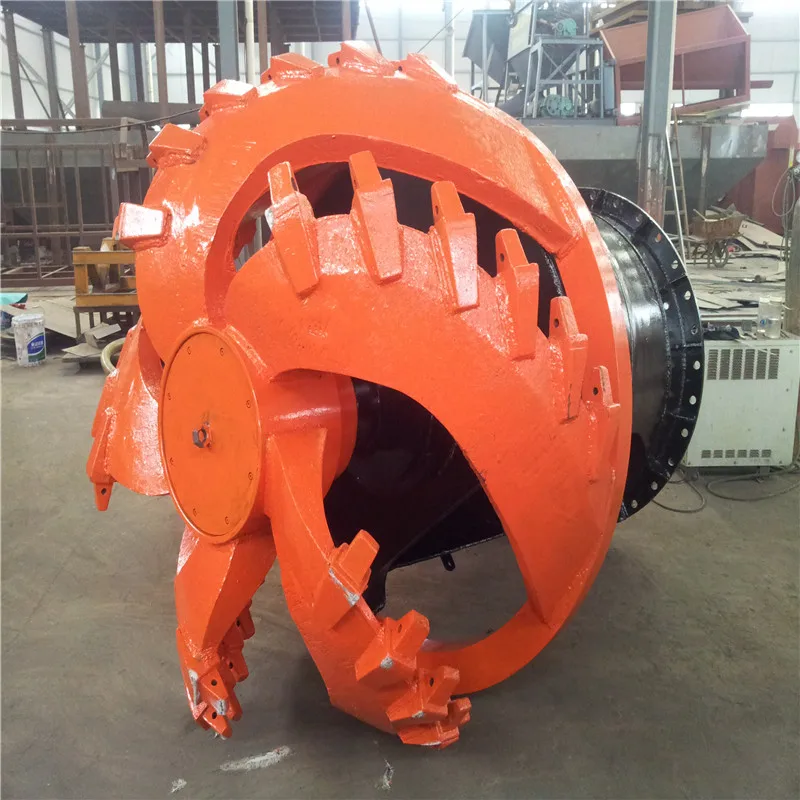

About  Cutter Head of Dredger  Parameter



Cutter head Basic Parameter
Model	Inner dia.mm	Blade	Speed(r/min)	Max.shaft power(KW)	Suction pipe dia.(mm)	Working capacity(m3/h)	Matchde pump water flow(m3/h)
KDJD-65	650	5	0-34	15	150	80	360-450
KDJD-83	830	5	0-34	35	250-300	150	750-800
KDJD-96	955	5	0-35	62	350-400	350	1200-1400
KDJD-110	1100	5	0-30	80	400	400	1500-2000
KDJD-133	1330	5	0-30	101	400-450	650	2000-2500
KDJD-155	1550	5	0-30	130	500-550	900	3000-3500
KDJD-175A	1750	5	0-32	251	660-650	1200	4000-4500
KDJD-175A	1830	5	0-30	375	660-650	1600	5000-6000







 The parameter is just for your reference,we can design as your requirement.









1.When we purchase a dredge , will we receive operator training from you?
We provides training on each dredge when it is delivered and commissioned. Additionally, customers will receive classroom
training, as well as dredge simulator training.

2.What depth can your dredges reach?
Our standard cutter suction dredge's digging depths range from our smallest at 20′ (6 m) up to 58′ (18 m). For special
applications, digging depths can be increased substantially.

3.Would a dredge with a larger engine consume more fuel?
Not necessarily. Fuel consumption depends primarily on the parameters of the dredging operation, such as the material density,
pumping distance, and terminal elevation.
