Четырехколесный гидравлический самосвал с грузоподъемностью 20 тонн для горнодобывающей
- Категории: Самосвалы >>>
- Поставщик: Shandong,Beijun,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Beijun Underground Mining dump truck is with more powerful equipped with famous engines, large torque reserve, powerful driving.force.The utility model has the advantages ofreasonable power emission upgrade, reasonable gear distribution,strong ideal working.speed required for various underground operations and transportation operations, higher operation efficiency, better fuel economy,and more advanced technology.Safe and reliable, strong reliability, the strengthening type front sealing drive axle has strong.
reliability.Full hydraulic steering system, easy to operate and flexible.Reinforced semi axle bushing, durable type stronger.
We Beijun Group Located in Shandong Jining, have more than 1000000 square meters working space, and more than 1000 workers. "
reliability.Full hydraulic steering system, easy to operate and flexible.Reinforced semi axle bushing, durable type stronger.
We Beijun Group Located in Shandong Jining, have more than 1000000 square meters working space, and more than 1000 workers. "
Product Paramenters
Specificaton of 20 Tons Underground Dump Truck | ||
Model | UQ-20 | |
Engine Model | YUCHAI Engine with Turbocharge | |
Engine Power | 290HP | |
Total Dimension | 6200*2400*2450mm | |
Transmission Model | FASITE 9JS118 | |
Transmission Gear | 8 Forward Gear, 1Back Gear,Rear High Speed Controller | |
Drive Mode | 4x2 | |
Front Axle Model | Styer Axle | |
Rear Axle Model | Styer Axle | |
Tire Model | 1000-20 Radial steel tire, Rear Double Tyre One Side, | |
Size of the Bucket:Length×width×height | 4500mm*2400mm*1000mm | |
Thickness of Bucket Steel Plate | bottom 10mm side 8mm | |
Type of Bucket | U- Type | |
Unloading Type | Hydraulic Double Top Dump | |
Steering Type | Hydraulic power steering | |
Braking Type | Air Brake | |
Cabin | Canopy | |
Driving Position | Left Hand Drive | |
Cooling sytem | Standard Water Cooling System | |
Loading Capacity | 20 Tons | |
applicable

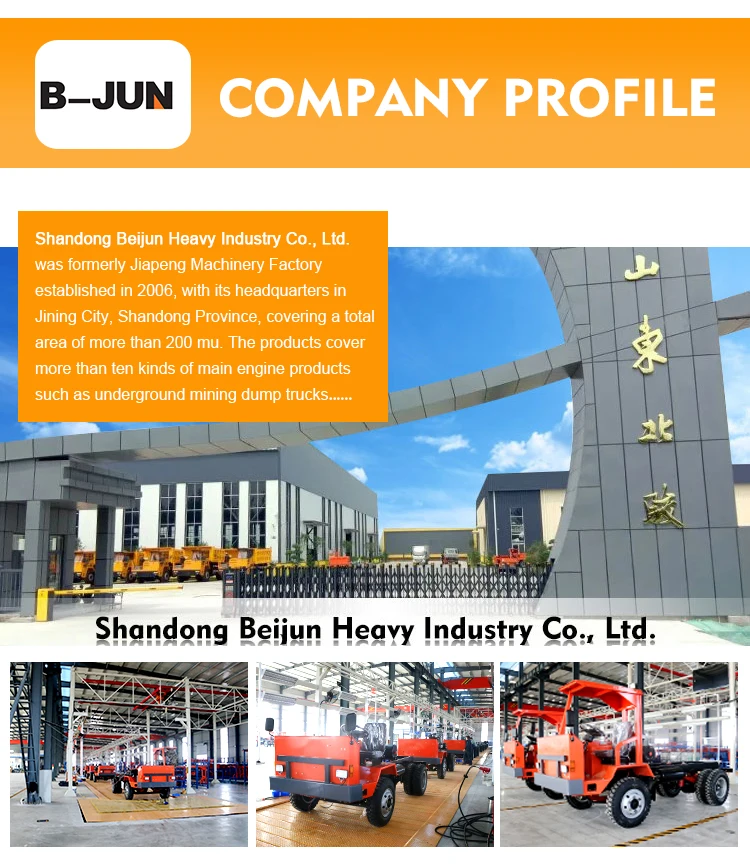

Company Profile
Our Advantages
Certifications
FAQ

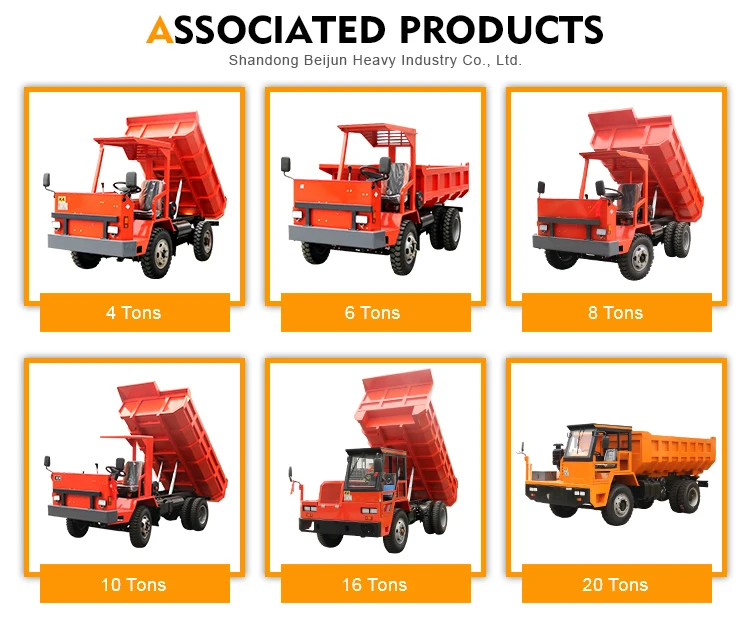

Recommend Products
