Shмаш дизельный генератор с двигателем cummins 50 Гц 100 кВт 125 ква цена на резервную генераторную систему тихий
- Категории: Diesel Generators >>>
- Поставщик: Shanghai,Raise,Power,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Diesel generator Details | ||
Model | RZ-100GF | |
Power | 100KW/125KVA | |
Frequency | 50HZ | |
Voltage | 380/220v(voltage can be customized) | |
Optional Type | Open | |
Size of Open type | 2200*800*1200mm | |
Weight of Open type | 1300kg | |
With Diesel Engine | ||
Brand&model | Cummins 6BTA5.9-G2 | |
Prime Power | 100kw | |
Standby Power | 110KW | |
Bore*Stroke | 102*120mm | |
Cylinders | 6 in L arrangement | |
Displacement | 5.9L | |
Speed Governor | Electric | |
With Alternator | ||
Optional Brands | Stamford/AEM | |
Exciter type | Single bearing,brushless,Self-excited | |
Power factor | 0.8 | |
Voltage adjust range | ≥5% | |
Insulation Grade | H | |
Protection Grade | IP23 | |
With Controller | ||
Optional brands | Deepsea/ComAp/Smartgen | |

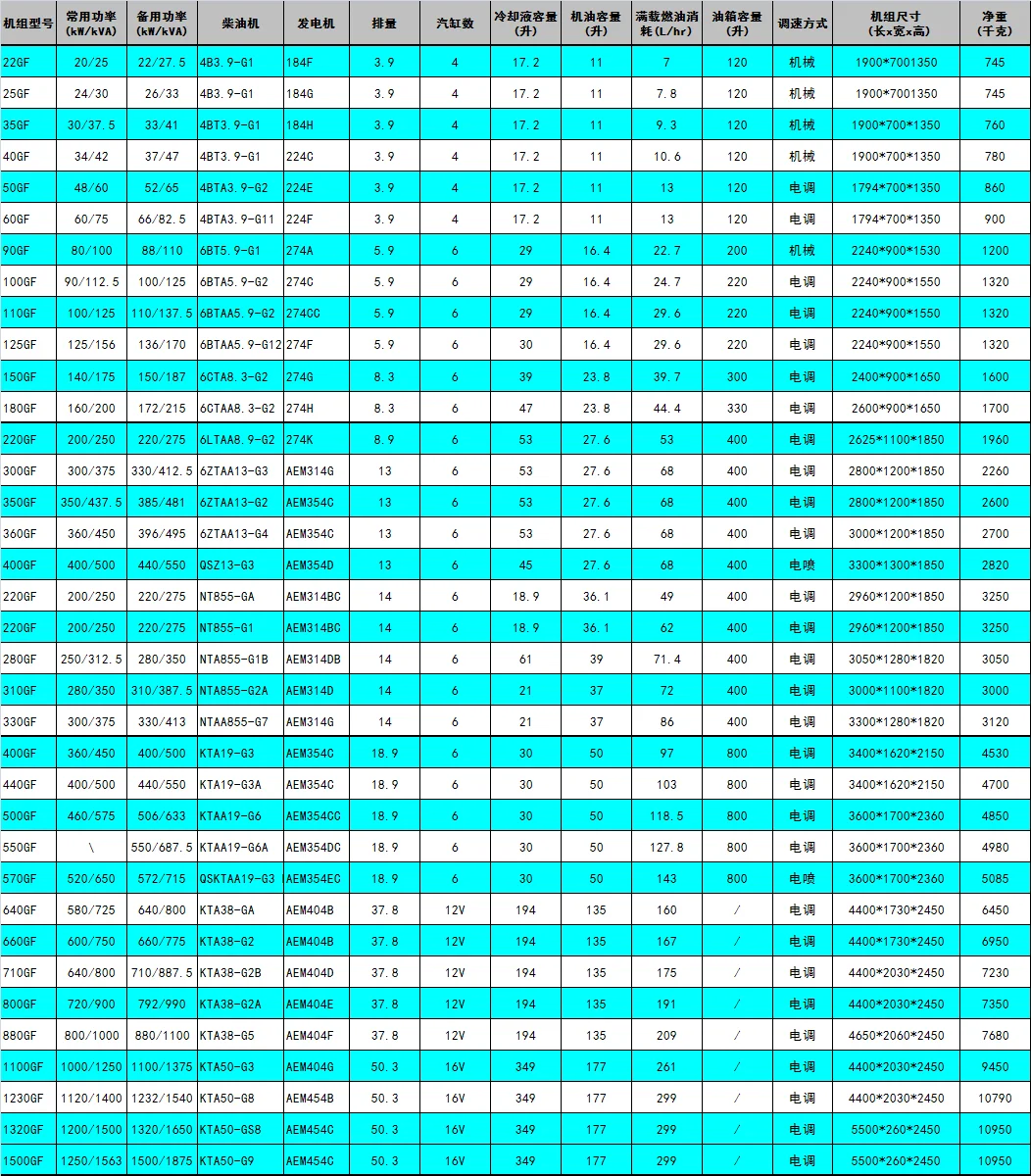

Genset Main Technical Data:
Genset Model | RZ-16GF TO RZ-3000GF | ||||
Prime Power/Standby power | 16KW to 3000KW / 16KVA to 3000KVA | ||||
Frequency/Speed | 50hz/1500 rpm | 60hz/1800rpm | |||
Voltage | 220v-600v | 110v-480v | |||
Phase | Three phase | Single phase | |||
Fuel type | Diesel | Gas | |||
Manufacturer | Shanghai Raise Power Machine Co.,Ltd | ||||
Engine Data:
Engine Brand | International Brand | Cummins, Perkins,DEUTZ | |||
China Mainland Brand | SDEC,Yuchai,Weichai,Googol,Huafa | ||||
Model | 16kw to 3000kw/16KVA to 3000KVA | ||||
Frequency | 50hz/1500 rpm 60hz.1800rpm | ||||
Speed governor | Mechanical/Electric/ECM | Electric | |||
Alternator Data:
Famous brand | Stamford ,Marathon | ||||
China Brand | ERM,SHENCHI | ||||
Power Range | 16kW to 3000kW/16KVA to 3000KVA | ||||
Insulation class | H | ||||
Phase/Wire | 3 phase/ 4 wire 1 phase/ 2 wire | ||||
Production Process
Overview
Customer inspection factory, factory in Shanghai Fengxian District, Pudong Airport over 1 hour.
Office
The office talks with the sales manager.
Sample room
Product configuration can be selected according to the products in the sample room.
Assembly workshop
Look at productivity.
Communication
Communicate with our engineers to perfect custom products.
Choose
Select your machine model, power brand and configuration requirements.
Production
Produce products as required.
Inspection
Come to our factory for inspection, or video inspection.
Delivery
Pack and arrange logistics transportation.
Why Choose Us
This kind of engine manufactuer is well-konwn with excellent quality and competitive price in the world. Their products meet local or international stadards.and this kind of diesel engine solutions are by more than 1000 leading manufacturers in industrial,construction, agriculturer, materials handing, and electrical power generation markets.
certification
Exhibition attended
Packing & shipping
FAQ
We are an OEM factory with independent intellectual property rights, producing and developing small internal combustion engine.
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package: Plastic film (free of charge) or wooden case (add USD200 for wooden)
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 7-25 days after we get the down payment.
A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date.During the
guarantee period. such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide.
you can contact your country's after-sale or contact us for repairment. when replacing spare parts, please kindly take some
pictures to describe the problems. we will solve it a.s.a.p.
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 7-25 days after we get the down payment.
A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date.During the
guarantee period. such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide.
you can contact your country's after-sale or contact us for repairment. when replacing spare parts, please kindly take some
pictures to describe the problems. we will solve it a.s.a.p.
Q2: Any advantages about your company?
Answers: SHRAISE Brand Diesel Generators with following advantages:
----MOQ is 1 set and we could finis more than 100sets/month
---- Middle-high Positioning;
---- 7-25days Lead-time;
---- Got the ISO and CE certificate; OEM Certifications
--- High quality with the best price can help you get more benefit and beat your competitors;
---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.
----MOQ is 1 set and we could finis more than 100sets/month
---- Middle-high Positioning;
---- 7-25days Lead-time;
---- Got the ISO and CE certificate; OEM Certifications
--- High quality with the best price can help you get more benefit and beat your competitors;
---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.
Q3: Any advantage of Digital Control Panel?
1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
