Восстанавливать chenfeng CF-738MA с автоматическим цементирования затяжная машина для передней части

Описание и отзывы

Характеристики

Recondition chenfeng CF-738MA 9 pincer with auto cementing toe lasting machine for shoe making

Brand: Chenfeng

model: CF-738MA

condition: rebuilt, excellent working

9pincer, with auto cementing.

PLC system







*This machine is used for the lasting operation of the upper’s forepart, and equipped with the applicator, the rod cement of polyester or polyamide is designed for using, which ensures higher flexibility.

*Fully hydraulic operated system.

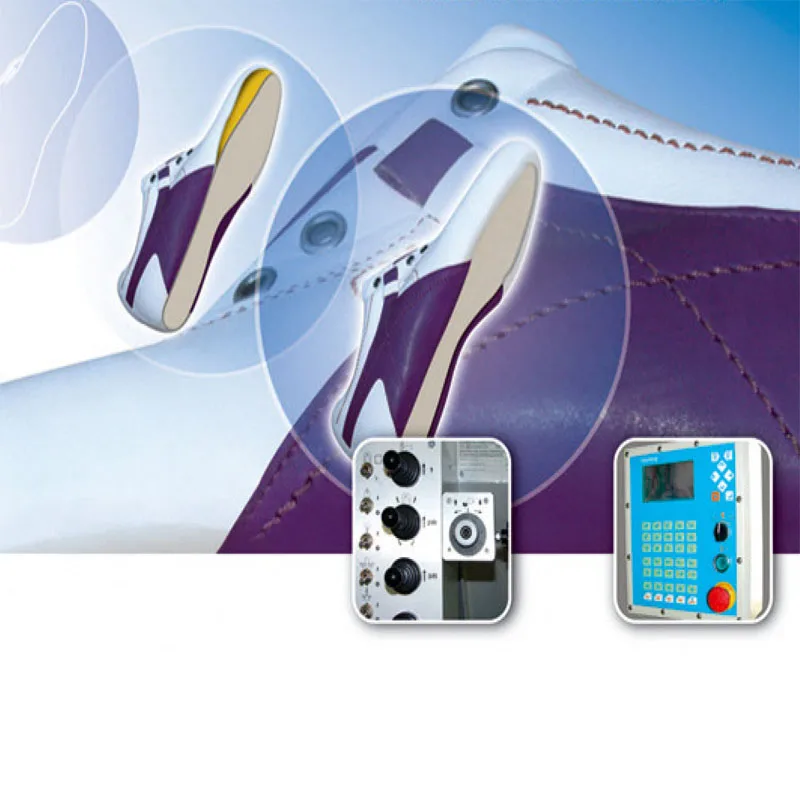

*The PLC system is equipped with the monitor to indicate the graphical symbols.

*Error diagnostic readable on monitor.

*9 fine adjustable and quick-exchangeable pincers are mounted on a double tracking pincer plate.

*The first pincer can be adjusted with the 15 degrees swing angle left or right, it is suitable for the pincer arrangement of the special toe shape shoes.

*Auto rotate the last pincers of left & right to perfect the inside waist lasting.

*Each set of pincers (left and right) can be set with automatic pulling or manual operated, preventing the upper made of different materials is only pulled on one side.

*The upward stroke of the last support can be adjusted from the knob outside the machine.

*There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support.

*The width of the applicator can be adjusted quickly to reach the perfect glue point of the insole according to the variable shoe size.

*The position of the applicator can be adjusted quickly forward or backward and be extended to 16mm from the knob front of the machine.

* The toe pusher mechanism is designed with adjustable two step pressure, during the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set for the best operation.

*The forward movement of the wiper can be adjusted with stepless speed control.

*The standard equipment.: CF-738MA auxiliary wiper mechanism, auxiliary side pusher mechanism and toe projector mechanism.





Technical data:

Model	CF-738MA
Pincers	9
Pump Motor	1.5KW
Max. Power Consumption	3.7KW
Oil pressure	50kg/cm2
Productivity	180 pairs/hour
Oil filling	100 liters
N.W.	1098KGS
Dimension	1000(L), 1700(W), 1900(H) mm
Packing size	1830(L), 1000(W), 2230(H) mm
