Product Overview

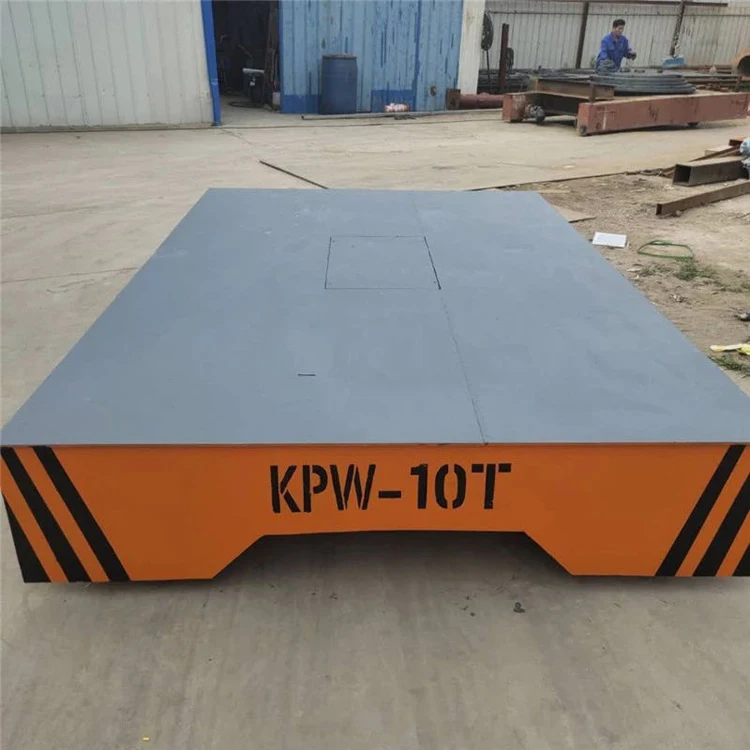

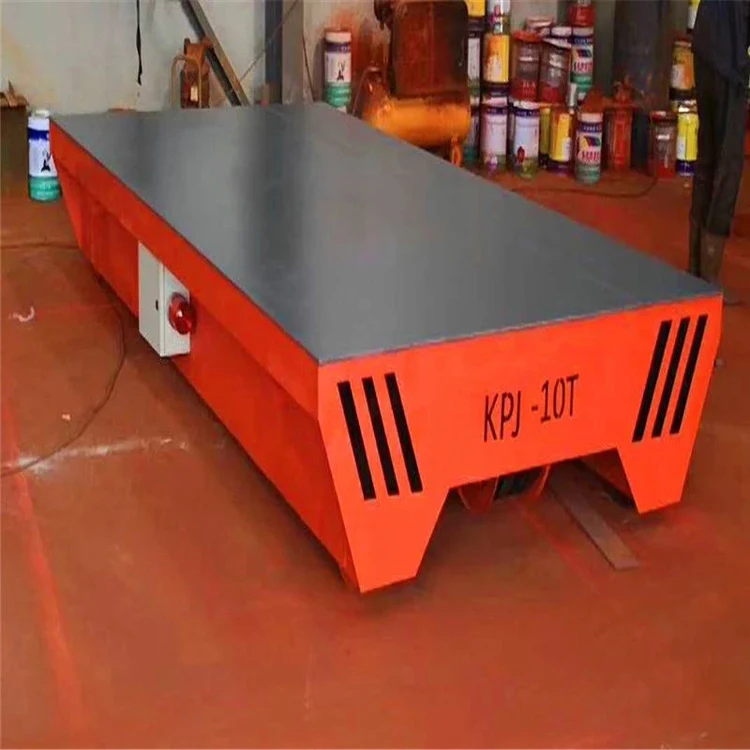

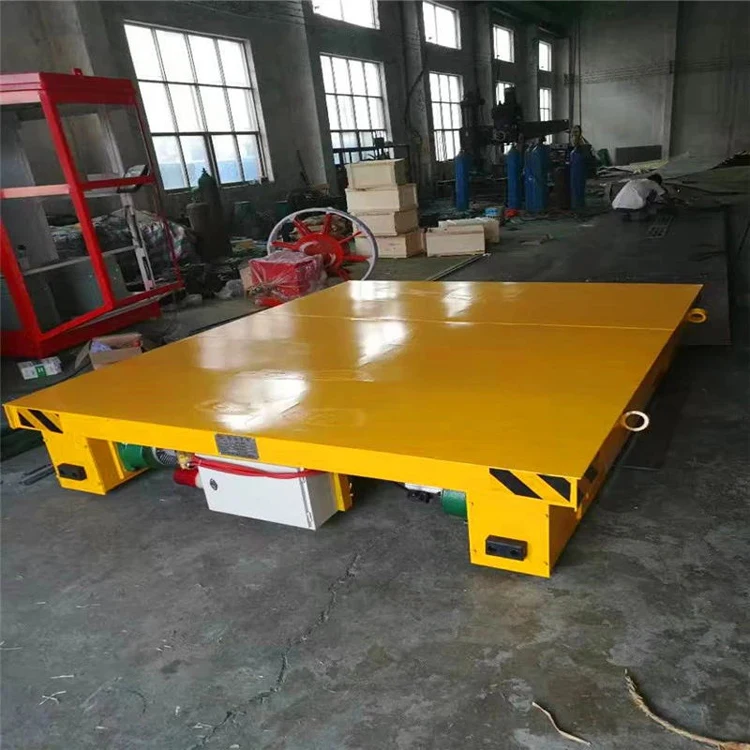

Electric flat multi-purpose transfer trackless car turning platform
These trackless battery power transfer car have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer cart are very useful to bring the heavy loads where overhead cranes cannot arrive.


* The transfer car is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
* The trackless transfer cart is very flexible since it can move freely around the plant as indoor as outdoor.
* It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
* Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.Electric flat multi-purpose transfer trackless car turning platform
* Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.Electric flat multi-purpose transfer trackless car turning platform




PRODUCT SPECIFICATIONS


Modle
BWP-2T
BWP-10T
BWP-30T
BWP-50T
BWP-80T
BWP-100T
Table Size (m)
2.0*1.5*0.45
2.3*2.0*0.55
3.5*2.2*0.7
5.5*2.6*0.8
6.5*2.8*0.95
6.6*3.0*1.2
Power
Maintenance Free Battery
Wheel Base
1080mm
1650mm
1650mm
2000mm
1950mm
2000mm
Wheel Dia.
250mm
350mm
450mm
600mm
600mm
600mm
Running Speed
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
Motor Power
2*1.2kw
2*2.2kw
2*5.5kw
2*7.5kw
30kw
40kw
Battery Capacity
250Ah
250Ah
450Ah
500Ah
800Ah
1000Ah
Battery Volatge
24v
48v
48v
48v
72v
72v
Max Wheel Load
14.4Kn
42.6Kn
110.4Kn
174Kn
185Kn
190Kn
Reference weight
2.3t
4.2t
6.8t
8t
14.6t
26.8t


PRODUCT CONFIGURATION




SALES AND SERVICE NETWORK




Company Profile

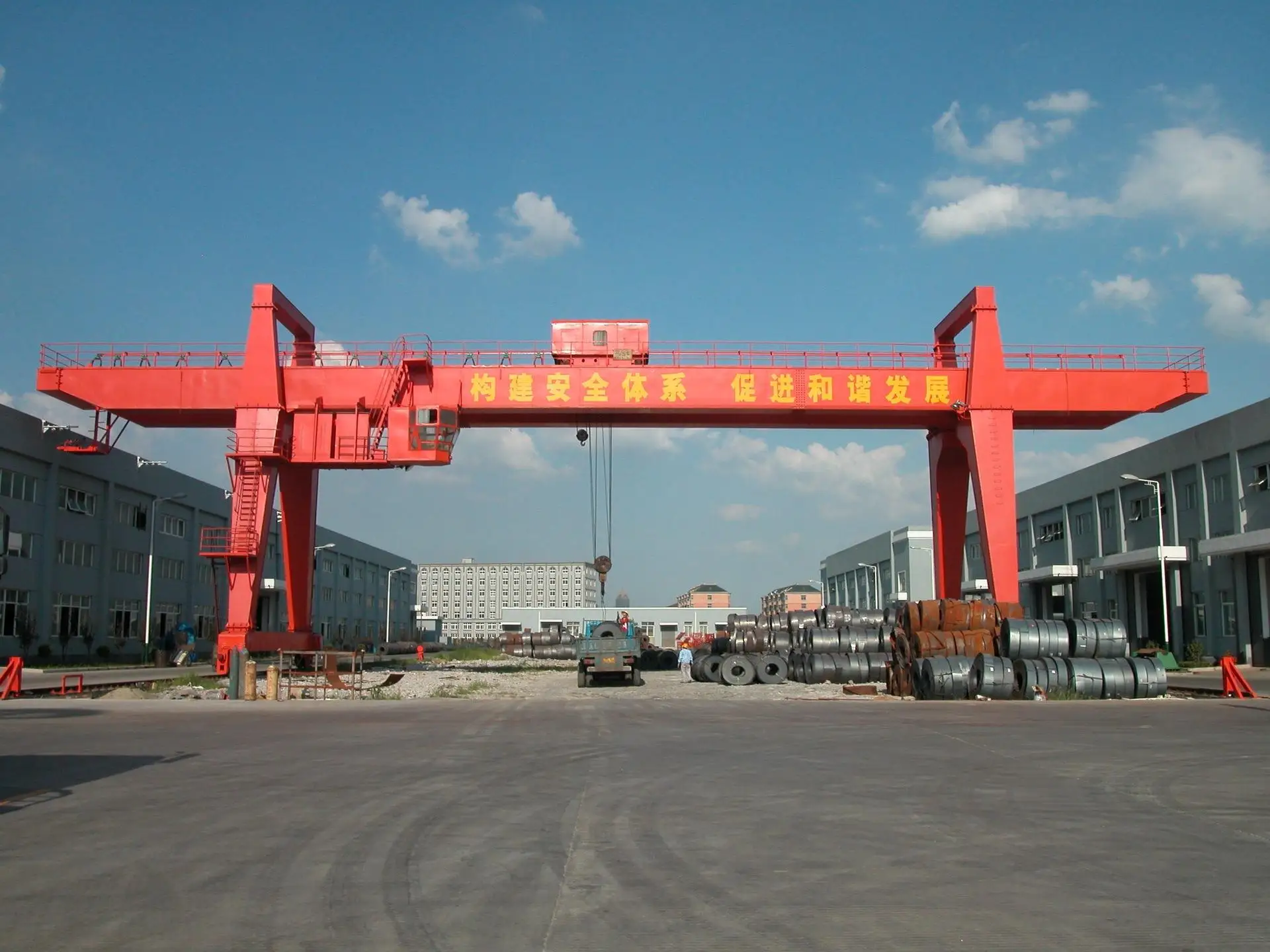

Successful Project








SIMILAR PRODUCTS




FAQ


Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
