   Two rolls rubber mill mixing machine /spring roll sheet making machinerubber sheet making machine

Features:



1.The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of  hollowed roll is machined. The hollowed roll surface can  be smooth or grooved. The grooved roll has full grooved  surface, partial grooved surface and so on.

2.The roll is supported by roller bearing so it has low noise and long service life.

3.The roll bearing adopts grease lubricating and oil lubricating.

4.The pressure transducer system is available for  directly displaying the working pressure and control the  feed. When over pressure, it will automatically stops  and save or print the pressure value.

5.The product is complied with nation-established safety standard (this standard is identical with Europe  standard.)



Technical information:





Type	Xk-160	Xk-250	Xk-300	Xk-400	Xk-450	Xk-560	Xk-660
Working diameter of rolls(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.95	14.1	15.1	18.65	24.26	27.72	28.6
Friction ratio	1:1.35	1:1.17	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip(mm)	4.5	8	8	10	15	15	15
Capacity per.batch(kg)	1-2	8-15	15-20	18-35	25-50	35-50	165
Motor power (kw)	5.5	18.5	22	37	55	90	245
Overall dimension(mm	1380*860 *1320	3400*1500 *1800	3580*1550 *1695	4350*1850 *1785	5200*2380 *1840	5845*2284 *1978	7465*3662 *2080

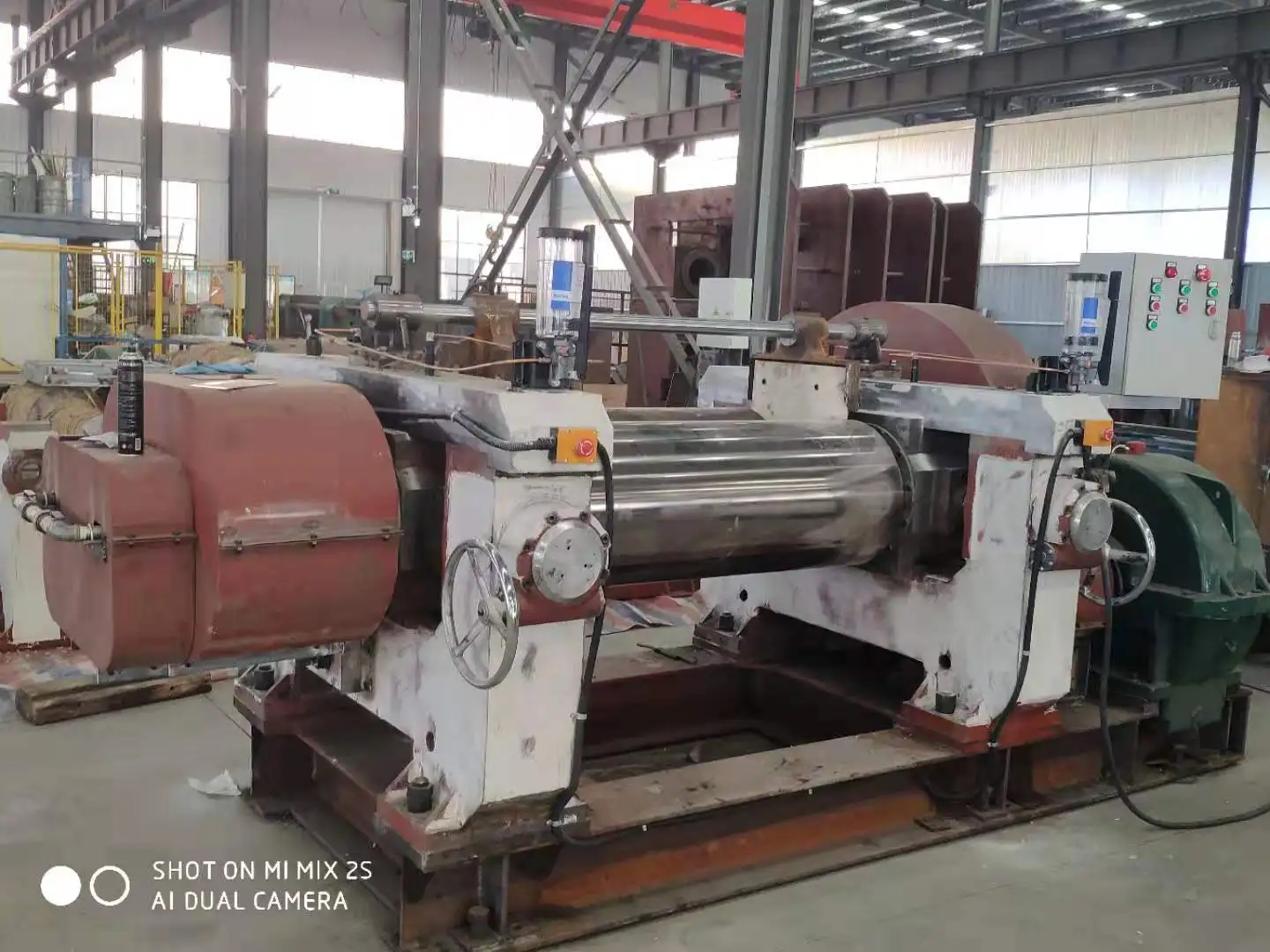

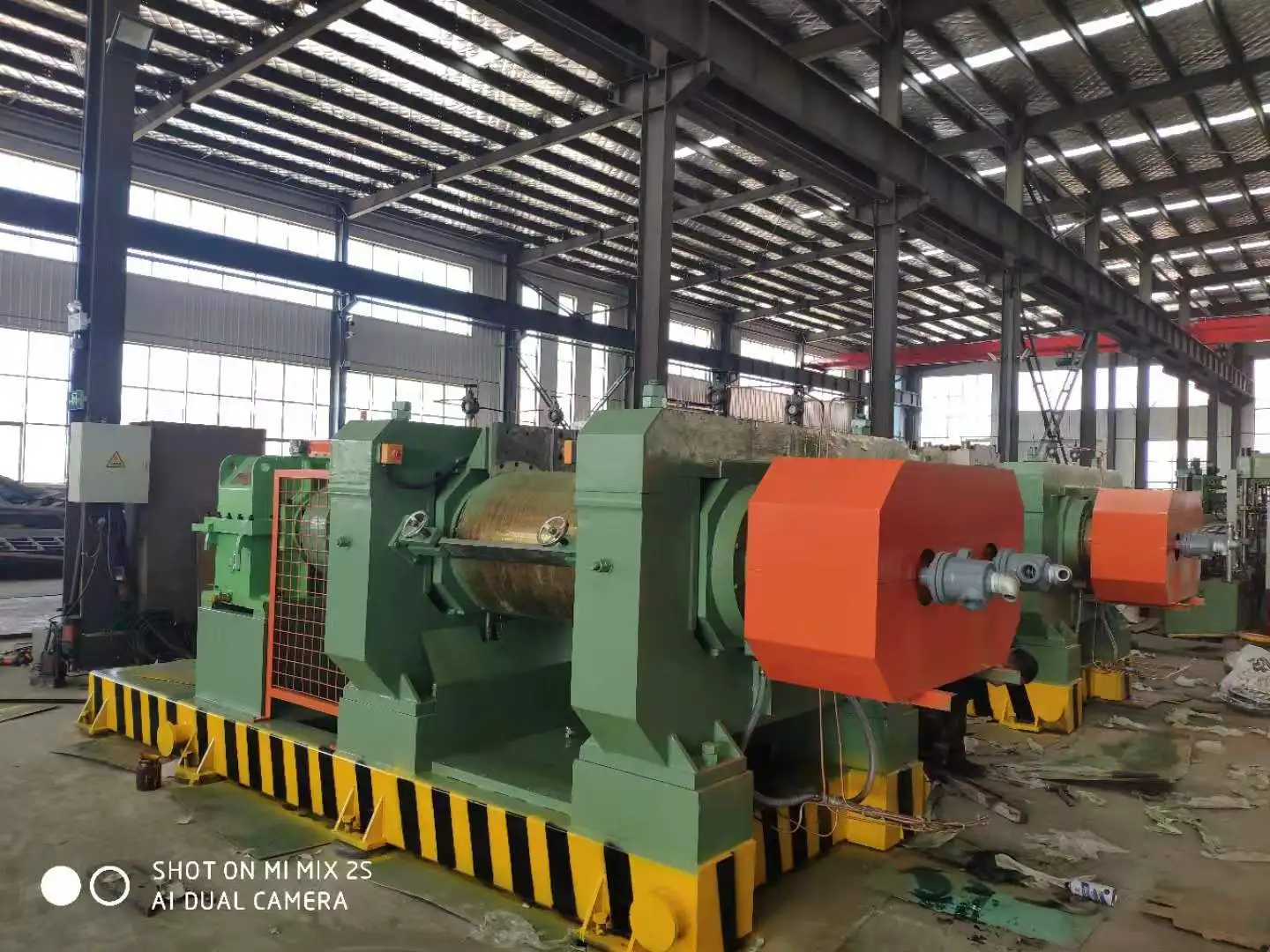

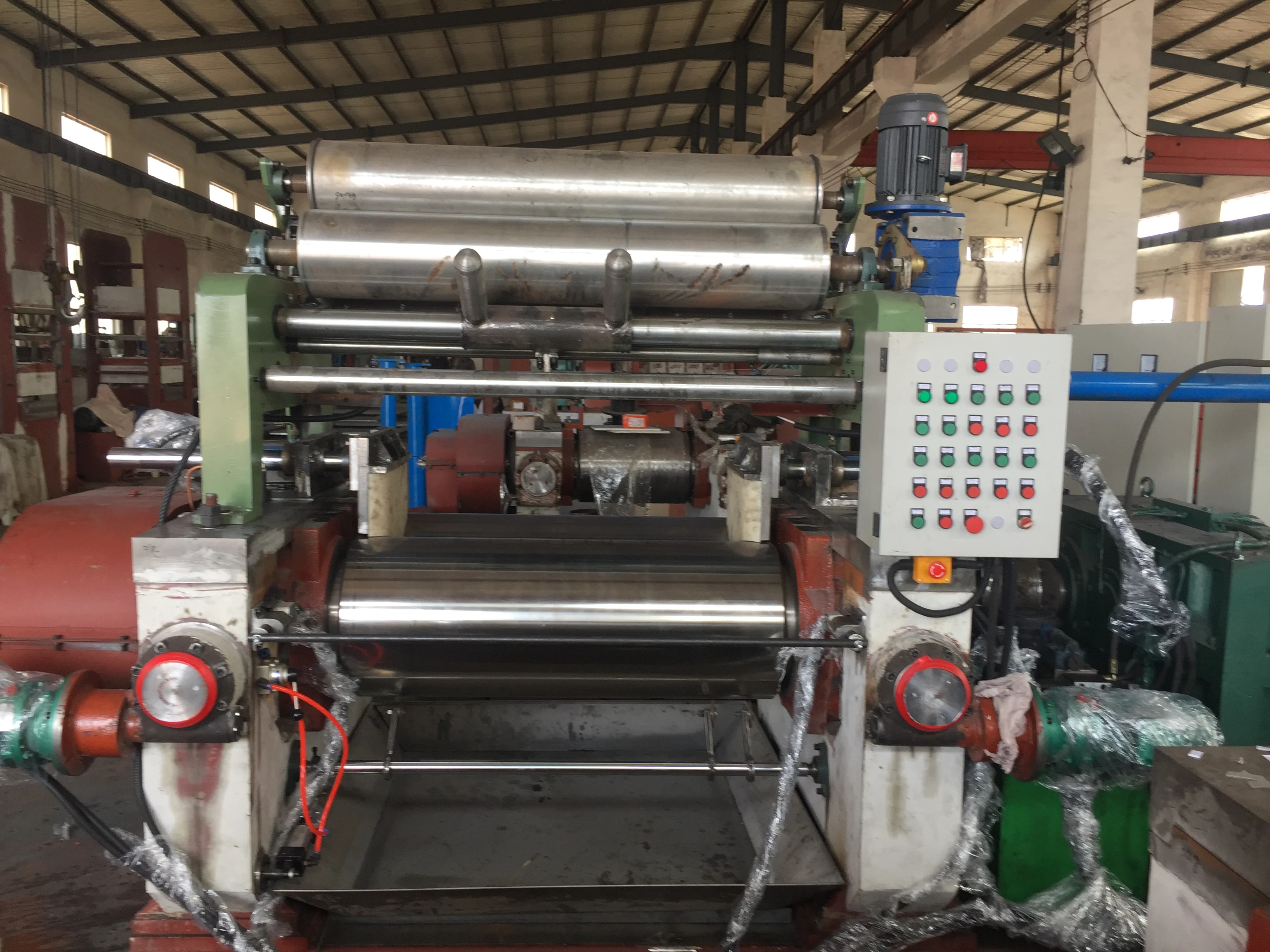

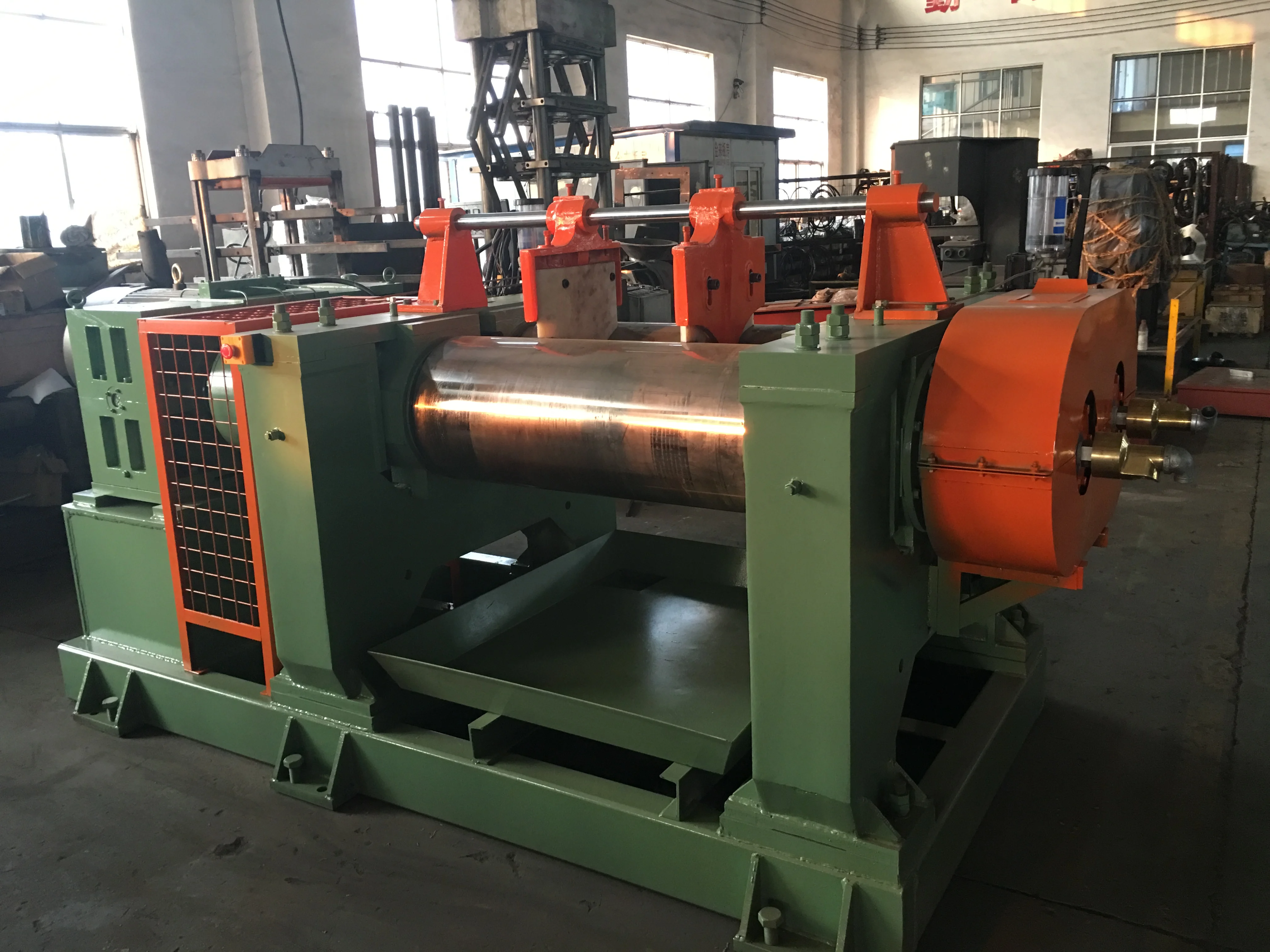

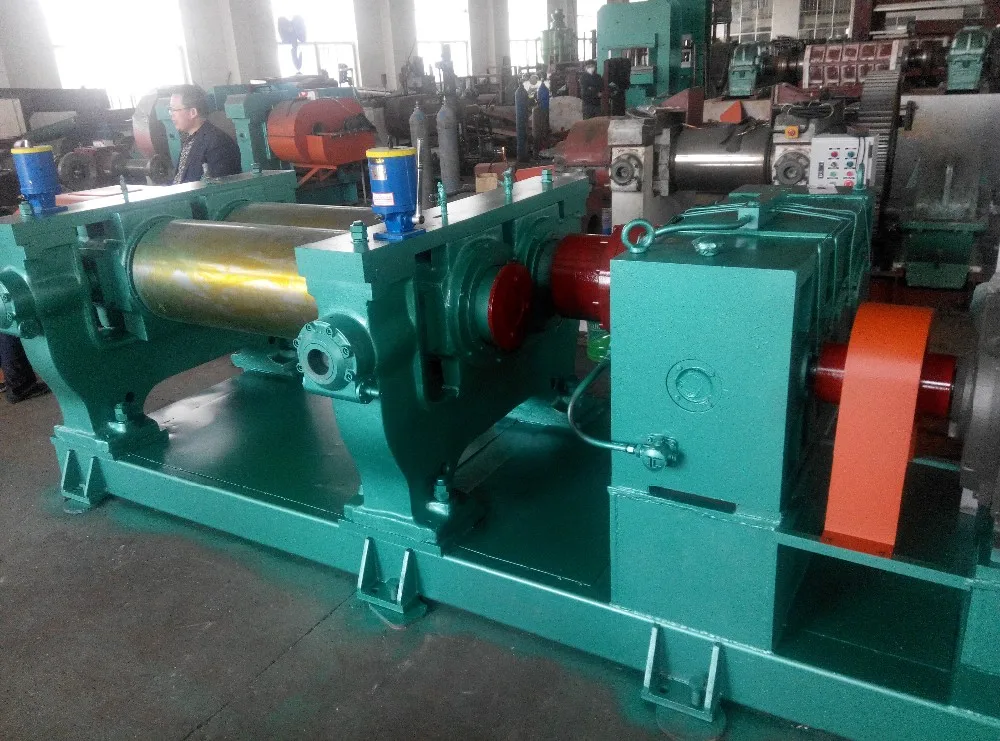

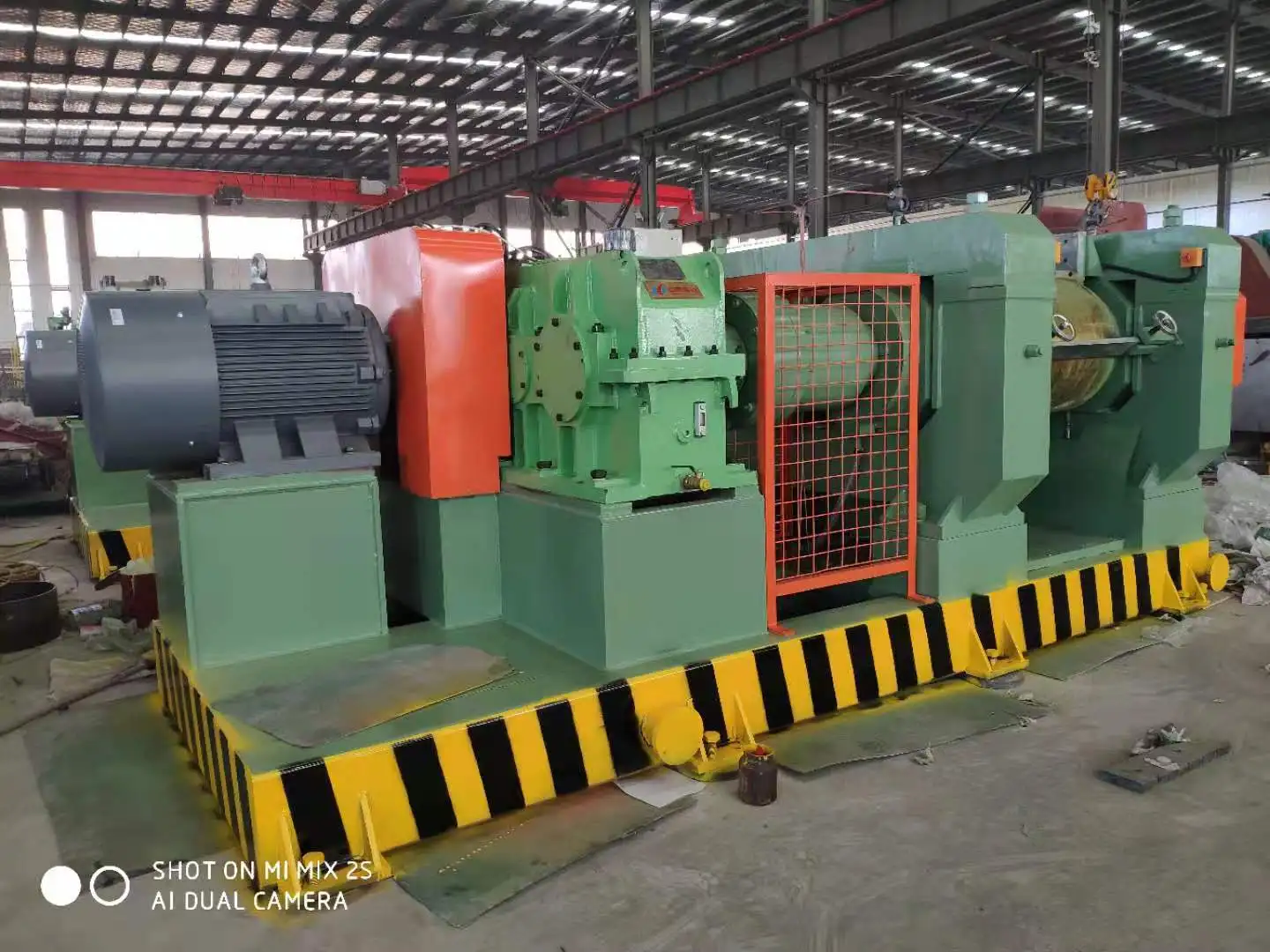

  Pictures of machine

















 1)Gap Adjustment Mode:
 Manual or Electrical (by motor)
2)Lubricating method:
 Manual or Auto;Grease or Thin oil

3)Emergency stop device:
 Pull Rod and Emergency button

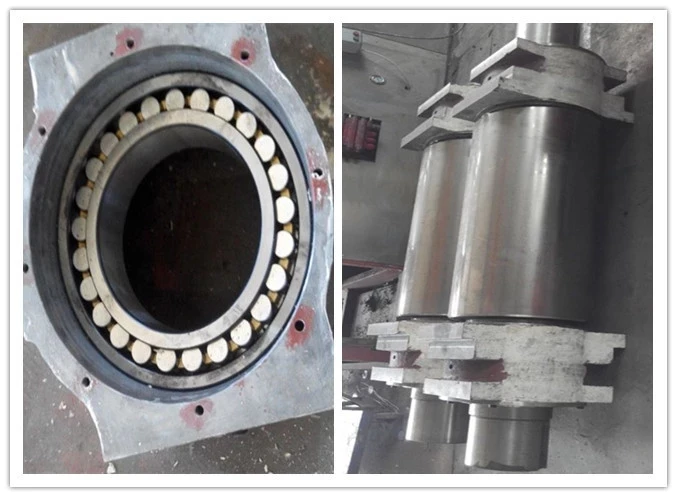

4)Roller bearings:

Nylon Bushing or Copper Sleeve or Spherical Roller Bearing





product certification:









about us:

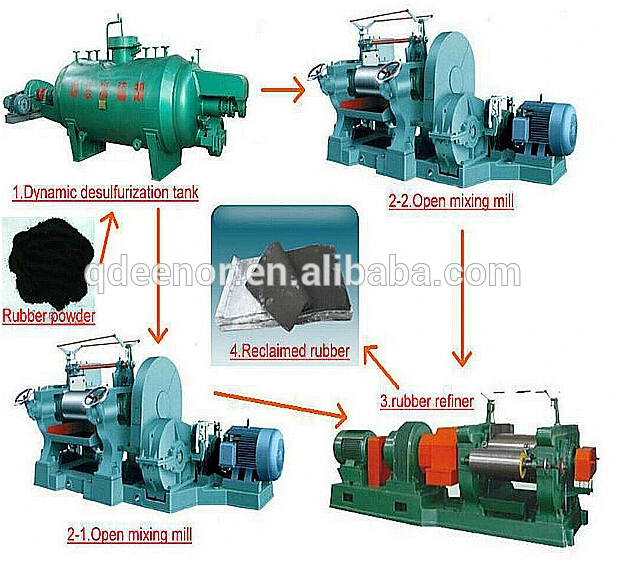

Qingdao eenor trading co ltd is a corporation with independent legal person qualification of marketing company with the right of import and export founded in 2004 with many years of production experience rubber machinery main produce are tire recycling machine plate vulcanizing press open refining machine cutter tire vulcanizing press tire rubber cutting machine rubber plastic tile vulcanizing machine cutter tire vulcanizing press tire rubber cutting machine rubber plastic tile vulcanizing press machine extrusion machine filtering machine equipment ordinary conveyor line waste tire reclaimed rubber powder production line the company also may according to the customer’s need to design and manufacture various non –standard rubber machinery equipment.
