Products Description

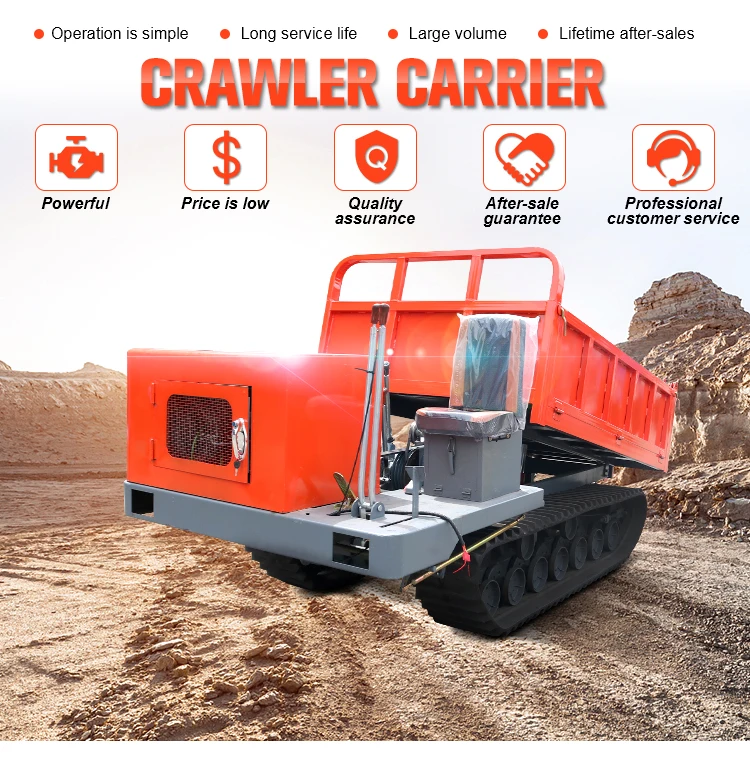

Introduction to BJC-50 crawler transport vehicle
Crawler trucks are machines that provide transportation under complex road conditions and
are suitable for places where wheeled vehicles cannot or are not suitable for traffic. The crawler conveyor replaces the wheeled walking with crawlers, which reduces the damage to the ground. At the same time, the crawler walking device reduces the pressure per unit area of the machine and the ground. It is suitable for mine roadways, mountain forests, fields, swamps, sand, grasslands, and snow. And the working conditions of the soft soil or environmental evils. The track conveyor has a larger approach angle and departure angle. Under the same tire size, it can handle deeper mud pits and pools, and complex stone roads. The crawler transporter has the size of vehicles adapted to cross the polar regions, and can easily pass through the narrow roads, mountains and other special road conditions.
are suitable for places where wheeled vehicles cannot or are not suitable for traffic. The crawler conveyor replaces the wheeled walking with crawlers, which reduces the damage to the ground. At the same time, the crawler walking device reduces the pressure per unit area of the machine and the ground. It is suitable for mine roadways, mountain forests, fields, swamps, sand, grasslands, and snow. And the working conditions of the soft soil or environmental evils. The track conveyor has a larger approach angle and departure angle. Under the same tire size, it can handle deeper mud pits and pools, and complex stone roads. The crawler transporter has the size of vehicles adapted to cross the polar regions, and can easily pass through the narrow roads, mountains and other special road conditions.

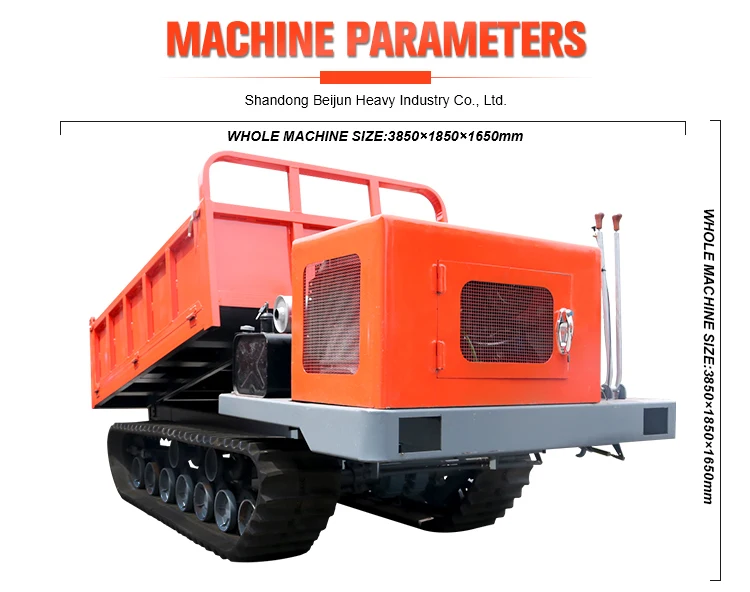

Product Paramenters
Type number | BJC-50 Vehicle |
Length*width*height( mm ) | 4200*1600*1600 |
Cabin size (mm) | 2600*1600*550 |
Box steel plate thickness( mm ) | Bottom 4 sides 3 |
Chassis width (m) | 1.6 |
Engine model | Chang Chai 490 |
Engine power | 34KW 47HP |
Crawler specifications | 400*90*62 |

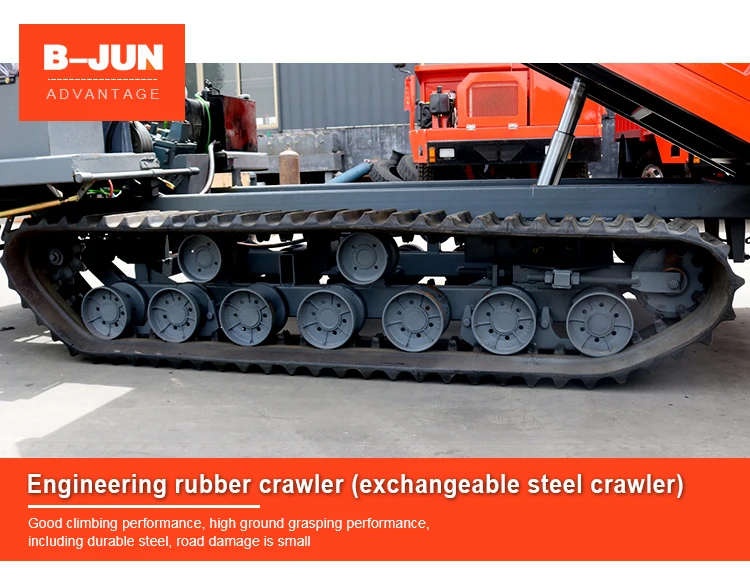

Crawler system | Engineering rubber track |
Number of unilateral tugs | 7 groups |
Tug diameter | 200 Offset tug 206 Bearing |
Hydraulic cylinder model | 115*900 Single top dumper |
Gearbox model | Strength 28 |
Start method | Electric Kai |
Rated load (T) | 5 |
Vehicle weight (kg) | 2350 |
Gear | High/low（3+1） |
Lifting height | 1500mm |
Driving speed (km/h) | 0-15 |

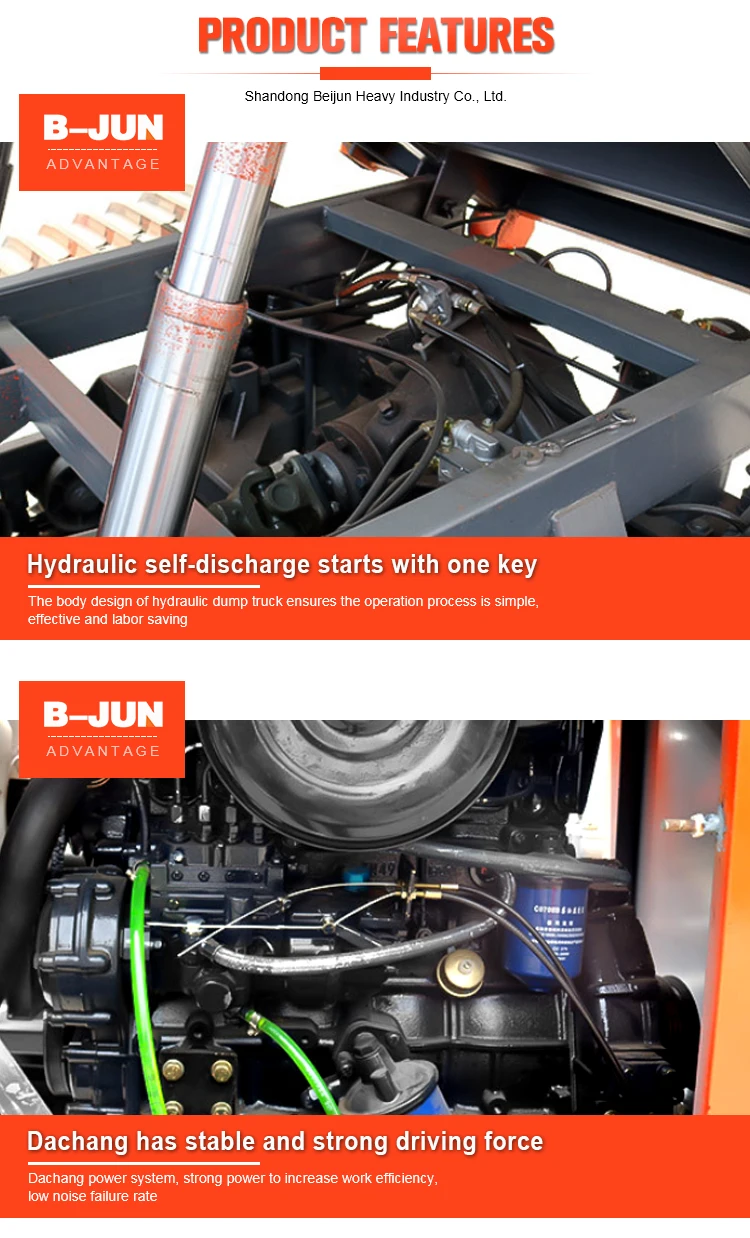

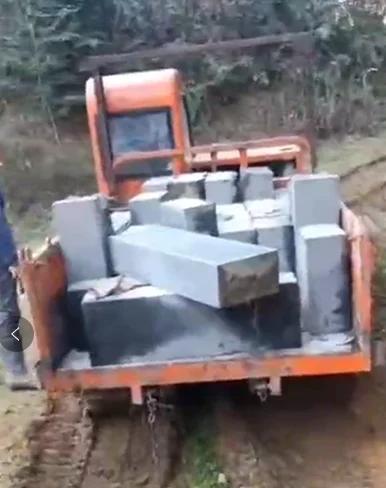

Details Images

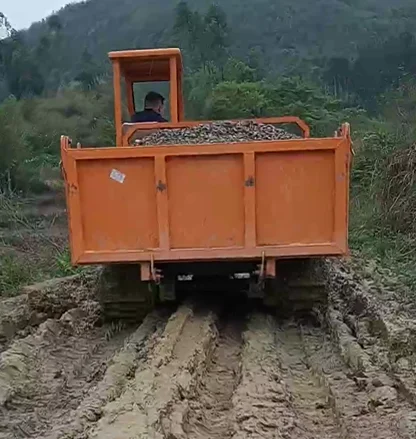

Apply to the environment

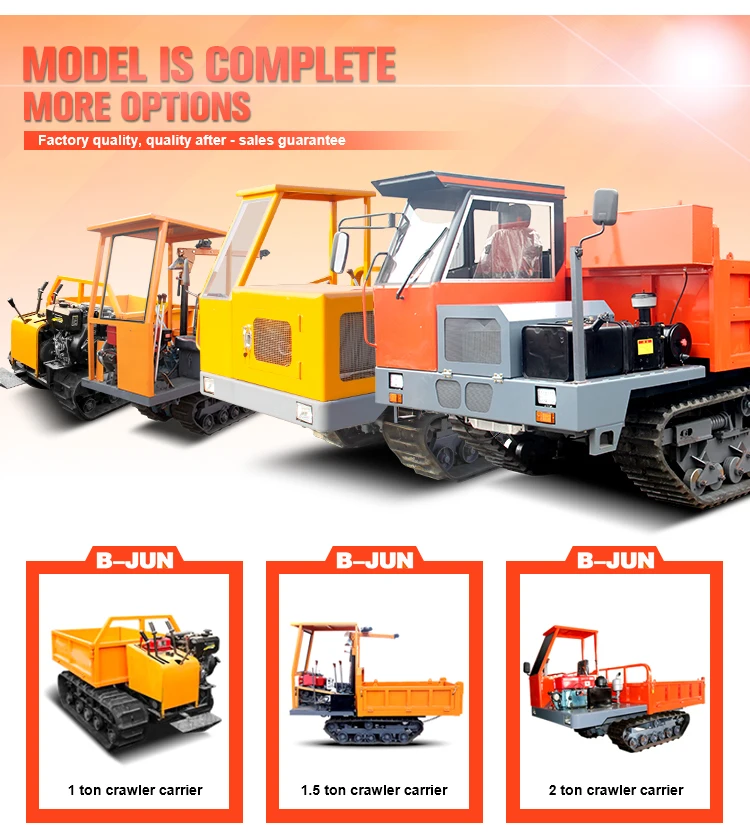

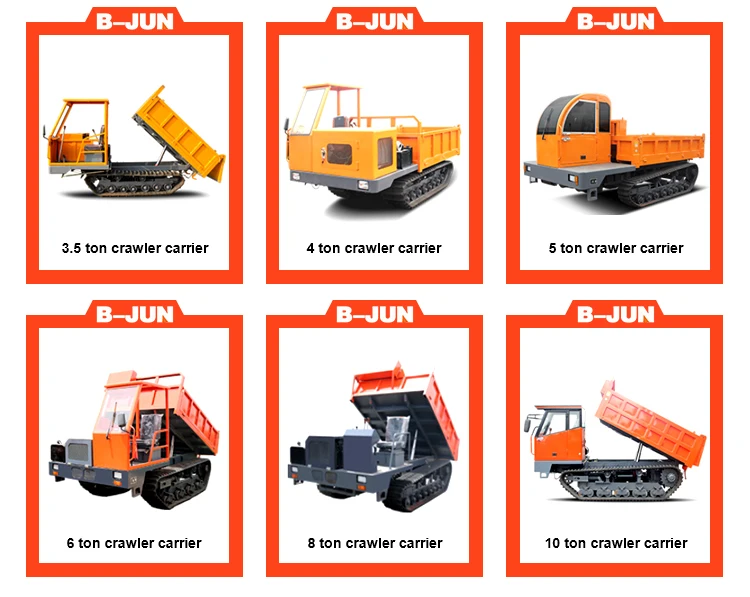

Other series
Certifications

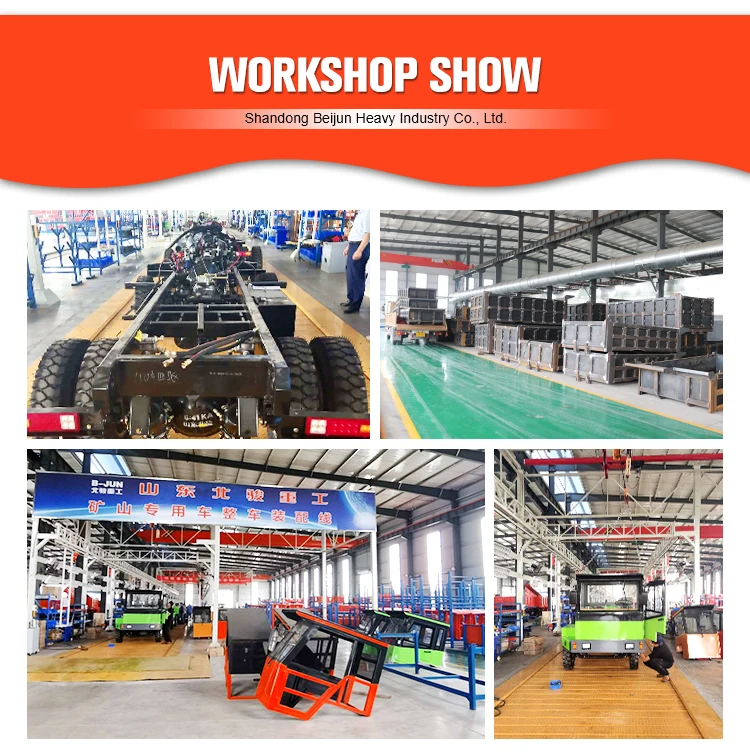

Company Profile
FAQ
