Гигиенический клапан-бабочка с защитой от утечки ручной или пневматический тип коррозионная
- Категории: Дроссельные клапаны >>>
- Поставщик: Linch,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

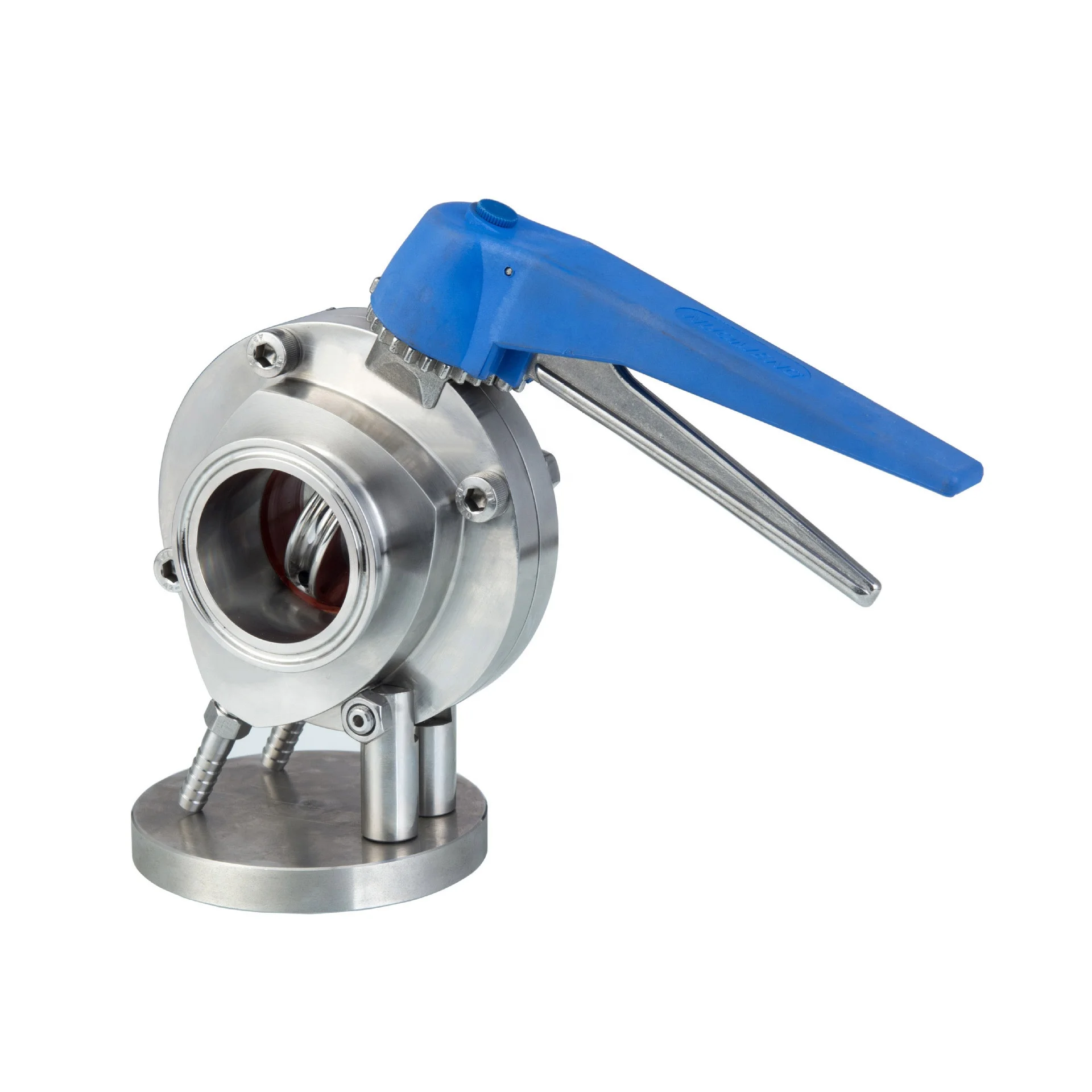

Leakage Proof Sanitary Butterfly Valve Manual Or Pneumatic Type , Corrosion Resistance
Features & Advantages:
* Special design with self-draining end configuration
* Precise surveillance on medium flow
* Can detect flow leakage and discharge leaked fluid constantly
* Disc plate design for an excellent sealing effect
* High quality sealing material for corrosion resistance and against temperature variation
* Manual or pneumatic operation mode available
* Optional choice among clamp, weld, thread or flange connection ends
* Precise surveillance on medium flow
* Can detect flow leakage and discharge leaked fluid constantly
* Disc plate design for an excellent sealing effect
* High quality sealing material for corrosion resistance and against temperature variation
* Manual or pneumatic operation mode available
* Optional choice among clamp, weld, thread or flange connection ends
Design Highlights:
This valve has special self-draining channel end. It can monitor the medium flow 7 /24 anytime. In case of any leakage, it will automatically drain the leak fluid or gas immediately through the draining channel.
Specifications
Product Name: | Sanitary Leakage-proof Butterfly Valve |
Vavle Boday Material: | 304 or 316L |
Sealing Material: | EPDM / HNBR |
Size: | DN25 ~ DN125 / 1"-4" |
Pressure Range: | Vacuum to 10 ba |
Custom-made service: | We produce all kinds of customized sanitary valves |
Applications: | Beverage industry, Pharmaceutical industry, Comestics industry, Water industry, etc. |
Applications:

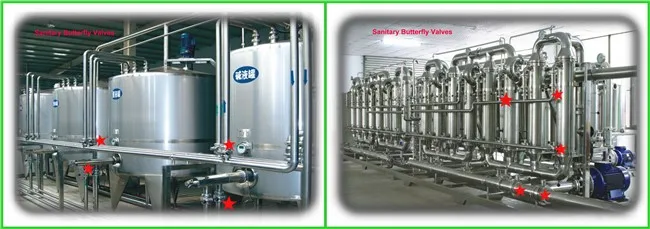

Hygienic design allows this kind of sanitary leakage proof butterfly valve to be widely used in pipelines of food, beverage, wine, dairy, water, pharmaceutical and biotechnology industries, and so on.
