Оптическое стекло прямоугольный треугольный призма для наблюдения 45 градусов
Оптическое стекло прямоугольный треугольный призма для наблюдения 45 градусов

Оптическое стекло прямоугольный треугольный призма для наблюдения 45 градусов


Поделиться:

Цена:0,65 $ - 11,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

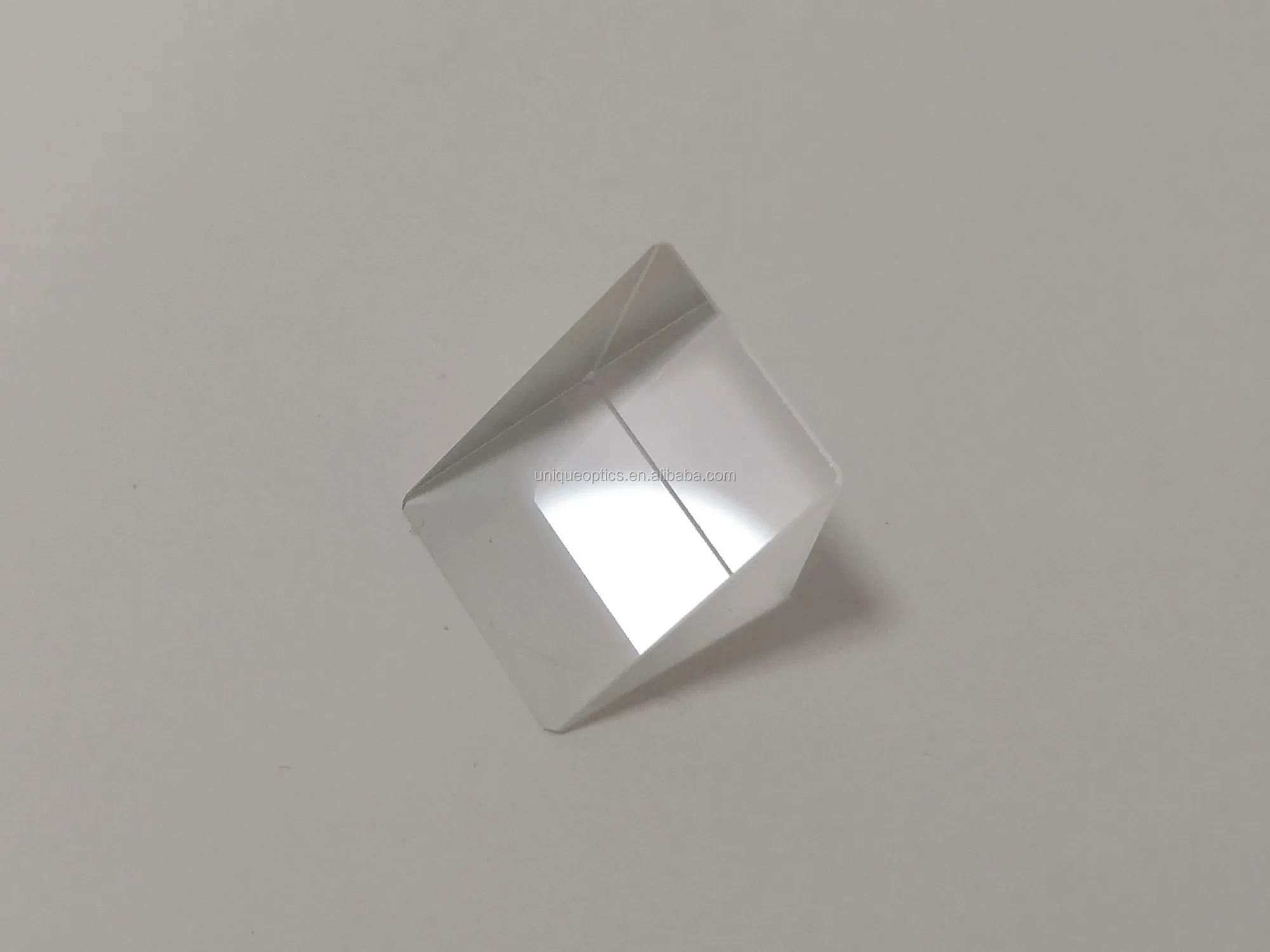

Right angle prism
Right angle prism is generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in
combination for image/beam displacement. UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.

Dalian Unique Optics Co., Ltd. offers a wide range of optical prisms in a variety of designs, substrates, or coating options, including Right Angle, Amici Roof, Penta,Wedge, Anamorphic, Equilateral, Dove prisms, Corner Cube Retroreflectors and Light Pipe.

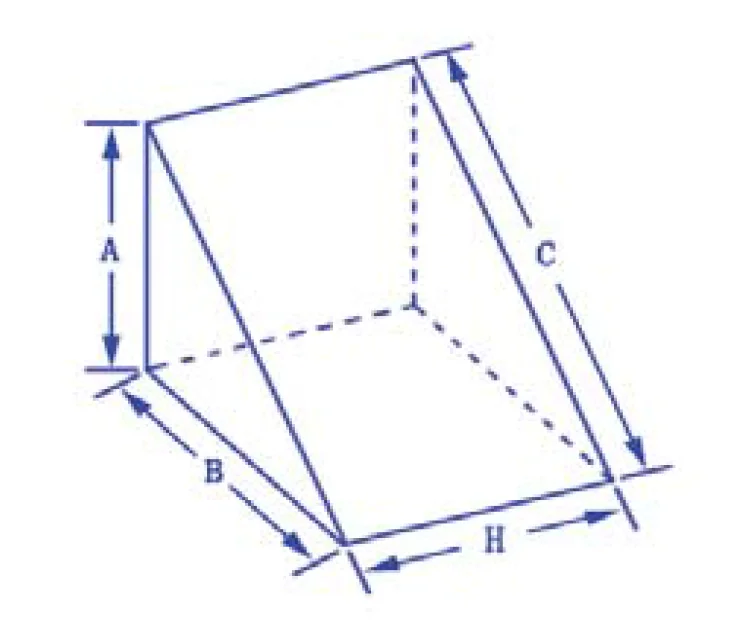

Specification


Material：
BK7, Fused silica Caf2, ZnSe, optical glass
Surface Quality：
60-40、40-20、20-10
Surface FLatness:
1/8 lambda、1/4 lambda、1/2 lambda
Dimension Size Tolerance:
±0.1mm
Angle Tolerance
±30"
Coating
AR coating, reflective coating as demands


Factory




Manufacturing Equipment




Contact Us


E-mail: manager@uneoptics.com

Skype: shirley@uneoptics.com

Website:www.uneoptics.com



Recommend Products


Other optical products
Dalian Unique Optics Co., Ltd. is a professional manufacturer of optical products, integrating development and production together. We are specialized in manufacturing all types of optical products, main products optical lens, cylindrical lens, prism, optical window optical filter, optical mirror, diffraction grating,rod, etc. Unique optics has optical design team to provide optical system design and special industry lens custom service.


Packing & Delivery


Unique Optics concerns details of the package , cleaning, anti-static , shock treatment .To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.





We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
