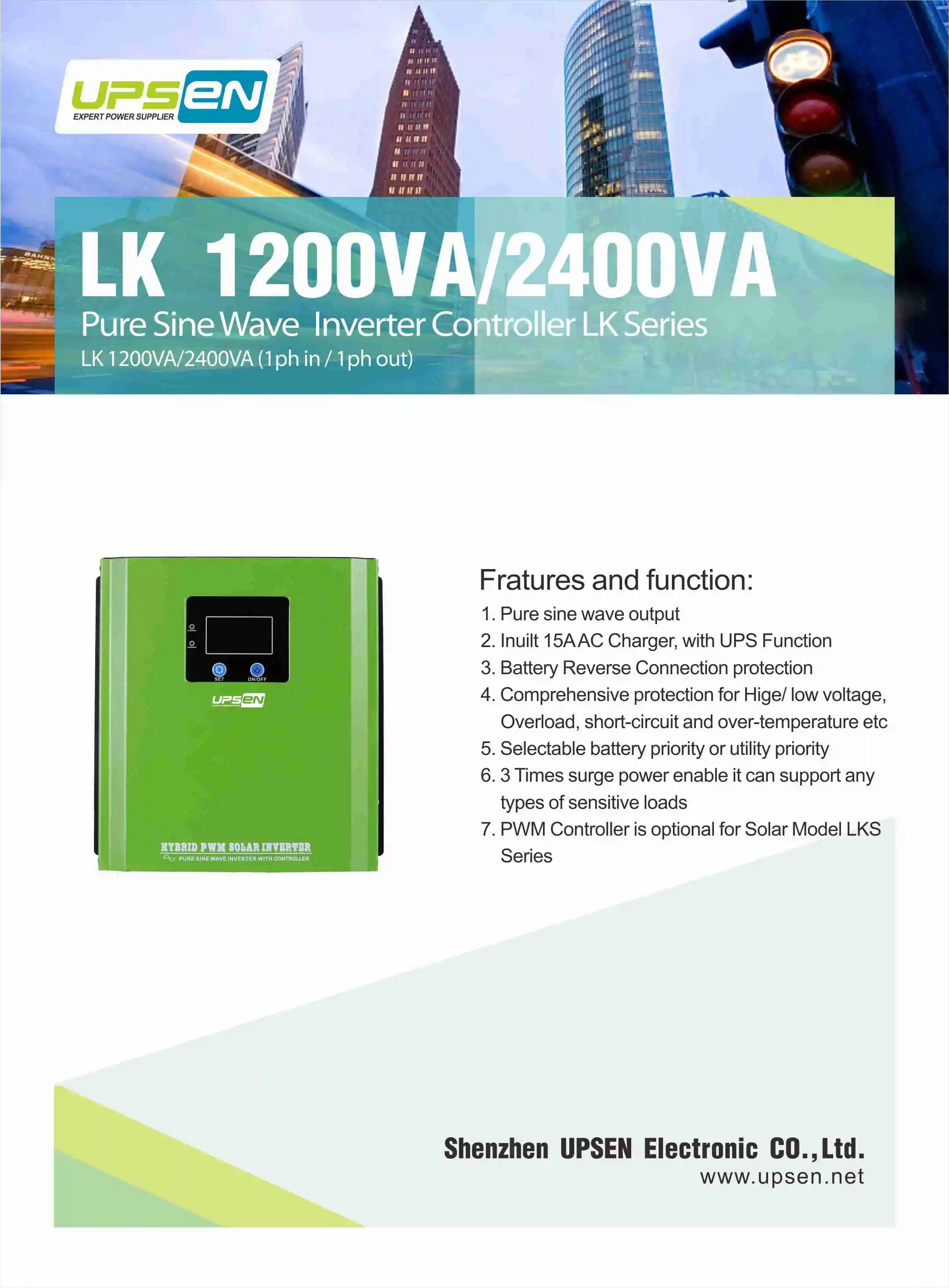

power inverter with 300W-1200W Pure sine and UPS/AC chager function

Fratures and function:

• Pure sine wave output


• AC charging current 15A


• Hige-low voltage protection


• Against overload, short-circuit protection


• Battery reverse connection, over voltage


• Under-voltage and over-temperature protection


• Selectable battery priority or utility priority


• Have UPS function and AC charger function.


• LK Series Inverter 300W-1200W-Shenzhen UPSEN Electronic CO., Ltd.































  Technical Specification











































































































































  Model	300W	500W	700W	800W	1000W	1200W
  Rated Power	300W	500W	700W	800W	1000W	1200W
  Peak Power	600W	1000W	1400W	1600W	2000W	2400W
  AC Input Voltage Range	70V-135VAC (110VAC / 120VAC) 140V-275VAC (220VAC / 230VAC)
  Input Frequency Range	45-65Hz
  Battery Voltage	12VDC / 24VDC
  DC Voltage	12VDC:10.5-15VDC / 24VDC:21-30VDC
  Battery Under Voltage Alarm	10.5VDC / 21VDC
  Battery Under Voltage Protection	10VDC / 20VDC
  Battery Voer Voltage Protection	17V ±0.5V / 34V±0.5V
  Voltage Over Voltage Alarm	15V-16VDC / 30V-32VDC
  Overload Protection	Rated Power of 110% or More
  Temperature Protection	≥85℃ Alarm, ≥90℃ off the Machine
  Inverter Output Voltage	110VAC / 120VAC / 220VAC / 230VAC ±2%
  Inverter Output Frequency	50 / 60Hz ±10%
  Inverter Output Waveform	Pure Sine Wave
  AC Output Voltage Range	output 110VAC / 120VAC / 220VAC / 230VAC ±10%
  Output Frequency Range	Automatic Tracking
  Conversion Time	≤5ms
  cooling method	Intelligent Fan Control, ≤42℃ Fan Slow Working, ≥45℃ Fan High Working
  AC Charging Current	15A
  Working Mode Selection	Free to Choose(SET) 01: AC priority / city power priority: when city power is available, the inverter will work AC output, city power will supply power to appliances. the city power charges power to battery. when city power failed, will use battery power to take the appliances. 02: Energy saving mode load power ≤10% off the machine, ≥11% -100% turn on 03: Battery priority  when it have has battery power, battery supply power to the appliances. When battery voltage ≤10.5V, inverter will automation use city power to take the appliances, When battery voltage reach 13V inverter will use battery power.
  External Size(mm) D*W*H	300*290*150mm
  Packing Size(mm) D*W*H	350*350*405(2pcs)
  Net Weight(kg)	5	6	6.5	7.5	8.5	9.5
  Cross Weight(kg)	12	14	15	17	19	21
  *Specifications change without further notice
