Большой радиус действия 2 4 ГГц Nrf52832 bluetooth wifi шлюз
- Категории: Bluetooth Modules >>>
- Поставщик: Shenzhen,Meeblue,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Meeblue Profile
Meeblue is a creative technology design and development company based in Shenzhen China. Having developed a variety of smart
bluetooth solutions across different industries, we are devoted to IOT solutions and indoor navigation flied.
We are focused on R&D and manufacture mobile Internet technology products, including hardware production, firmware building, software development and electronics engineering.
Product Details
BLE and WIFI gateway for data collection and uploading
W1 is a BLE to WiFi gateway and bridge.The gateway reads iBeacon, Eddystone data, or other data from sensors through ble, and it
communicates using WiFi through TCP/HTTP sockets to upload the collected readings and/or receive instructions from a central cloud based server.
Support: Bluetooth＆WIFI
Work Flow
Product Specifications
Values | Remarks | |
Chipset | Nordic52832 QFAA | |
Size | 58mm*90mm*18.5mm (not including antenna ) | |
Frequency band | 2.400 – 2.484 GHz | |
Input | 5V, 500mA, mini-USB | Low power consumption, 70mA typical working current |
Ble | 130M range in open space | |
Wifi | 2.4GHz frequency band | Connect to Cloud server or local server；130M range in open space |
Support
Tool app | CheckBlue |
SDK or Demo | ios and Android |
Update | OTA |

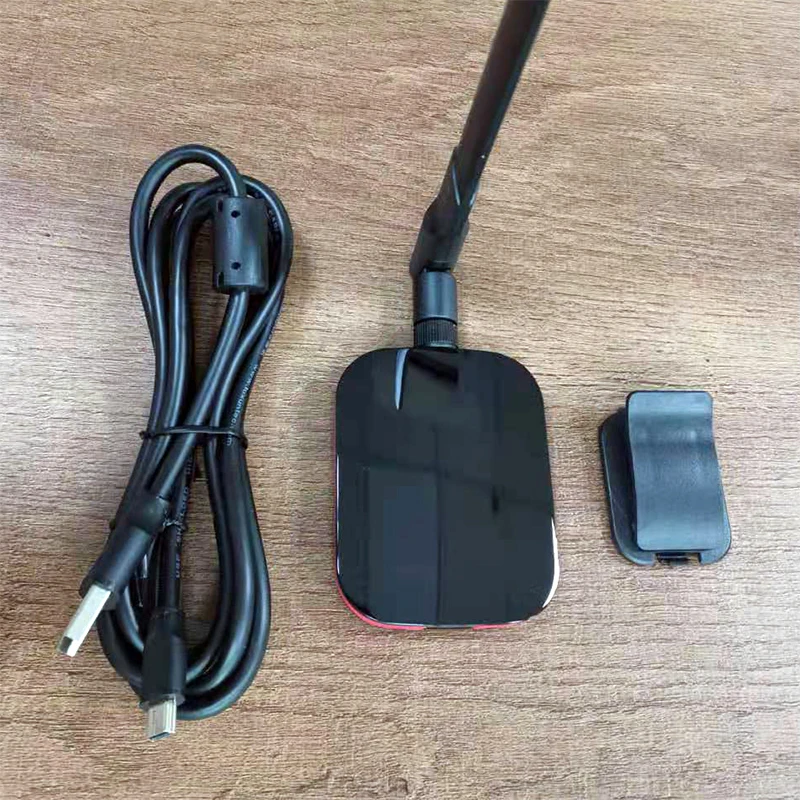

Product Images
