Машина для фрезерования зубчатой передачи Y38-1
- Категории: Зуборезные станки >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

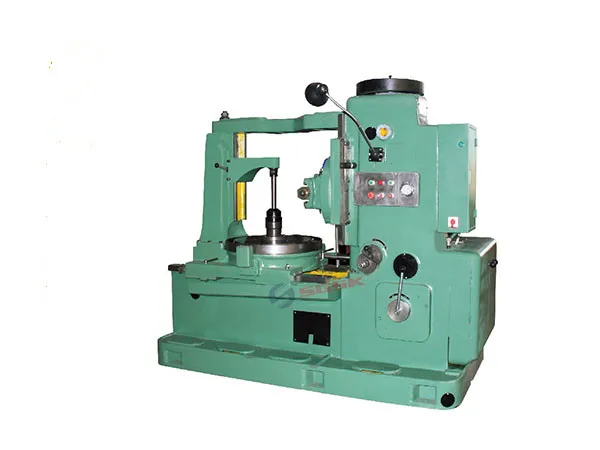

Gear Hobbing Machine Y38-1 gear hobbing shaper machine
Products Description
}Performance and features of this machine
Y38-1 gear hobbing machine series ordinary gear hobbing machine is suitable for milling cylindrical gears, helical gears and turbine pairs.
This machine tool has reasonable structure, compact layout, convenient operation and maintenance, and can perform one or several passes according to the size and accuracy of the workpiece during processing. At the end of cutting, the machine tool can automatically stop the tool post and the slide plate can move quickly.
Product main technical specification:
Y38-1 gear hobbing machine series ordinary gear hobbing machine is suitable for milling cylindrical gears, helical gears and turbine pairs.
This machine tool has reasonable structure, compact layout, convenient operation and maintenance, and can perform one or several passes according to the size and accuracy of the workpiece during processing. At the end of cutting, the machine tool can automatically stop the tool post and the slide plate can move quickly.
Product main technical specification:
Model | Y38-1 |
Precision | JB179-83.7 |
Maximum processing modulus | Steel m6 |
Casting m8 | |
Maximum diameter of processed cylindrical spur gear | With back column 450mm |
Without back column 800mm | |
Minimum diameter of cylindrical spur gear to be machined | To 0 |
Maximum diameter of cylindrical helical gear | 500mm when the spiral angle is 30 ° |
190mm when the spiral angle is 60° | |
Maximum milling tooth thickness (when milling spur gears) | 250mm |
Speed range of hob spindle | 47.5-192r/min |
Speed steps of hob spindle | 7 steps |
Total motor capacity | 4.125kw |
Main motor capacity | 4kw |
Dimension | 2290x1100x1910mm |
Weight | 3500kg |
