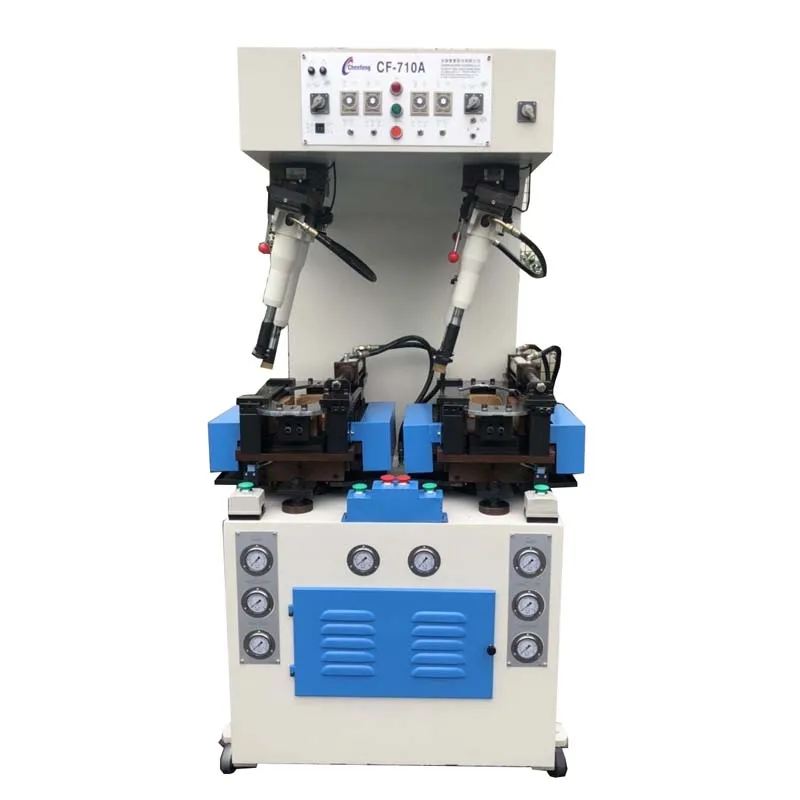

Chenfeng гидравлическая машина для прессования кожаной

There is a prepared oil-tank to supplement oil when cylinder rising which makes the rising faster and saves the operation time to increae benefit.

When the mechanism of front-rear pressing reccedes, a special circuit device is adopted to control the receding stroke, and the proper receding distance is accordingly for locating different sizes of shoes.

Independent pressure adjustment. Adjustment handle in the front of machine.

Automatic balancing rods and swing attaching mechanism
Pressure level adopts special design of bias swing, high-and-low adjustment and self-poise of oil linking, which makes shoes convenient in fetching, smooth on surface, free from damage and high in efficiency and good in quality. And it's convenient to put and take out of the last as well.

Side attaching mechanism
The side attaching adopts whole hydraulic control. There are 8-22 pce of rubber foaming pressing objects to make a tight pressing according to the shape of shoes. Each foaming pressing object is controlled by an individual cylinder which pressure reaches to 250-300kgs. Two set of these foaming pressing objects each in the front and the rear for options to ensure the best performance of side attaching.

This machine is available to press shoes with lasts between 130mm and 400mm in length which including the press mold, below 150mm in width, below 200mm in height and walled outsoles below 80-65mm in height, such as jogging shoes, walled sports shoes and casual shoes.

There are different types of toe pressing objects for options to meet different toe constructions of cup-sole jogging shoes and tennis shoes and different sizes from kids to adult.

Model

CF-710A

Pcs of Lateral Latexes

8

Height of Lateral Latexes

80 mm

Adjustment of Constrction

2 sections

Pump Motor

2.2 KW

Oil Pressure

50 kg/cm2

Productivity

250 pairs/hour

N.W.

1140 kgs

G.W.

Dimension(LxWxH)

1090x1000x1960 mm

Packing size(LxWxH)

1150x1220x2030 mm
