OEM/ ODM PCB Electrical Circuit Diagram, Electronic Circuit Design, PCB PCBA Factory
Product Description
PCBTechnical Parameters
| No. | Item | Specification |
| 1 | PCB Layers | 1 to 24 layers |
| 2 | PCB Max working panel area | 457 x 610 mm |
| 3 | Min trace width | 0.10mm |
| 4 | Min spacing | 0.10mm |
| 5 | Min hole diameter | 0.20mm |
| 6 | Min Copper thickness in hole | 0.020mm |
| 7 | PTH size tolerance | ±0.05mm |
| 8 | NPTH size tolerance | ±0.025mm |
| 9 | Hole position tolerance | ±0.05mm |
| 10 | Dimension tolerance | ±0.1mm |
| 11 | Min solder mask dam | 0.08mm |
| 12 | Insulation resistance | 1E+12Ω (normal condition) |
| 13 | Max Board twist and wrap | ≤0.7% |
| 14 | High Vlotage endurance | 1.3KV/mm |
| 15 | Copper foil peel off endurance | 1.4N/mm |
| 16 | Hardness of resist ink | ≥6H |
| 17 | Flame resistance | 94V-0 |
| 18 | Impedance control | ±5% |
| 19 | Certificate | ISO 9001:2000;ISO 14001;ISO/TS16949:2002 , E203640 |
PCB Product Application Area

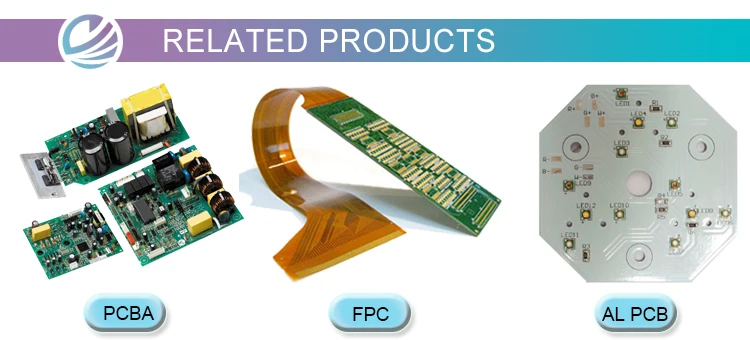

Circuit Board Electronic manufacturer Related Products

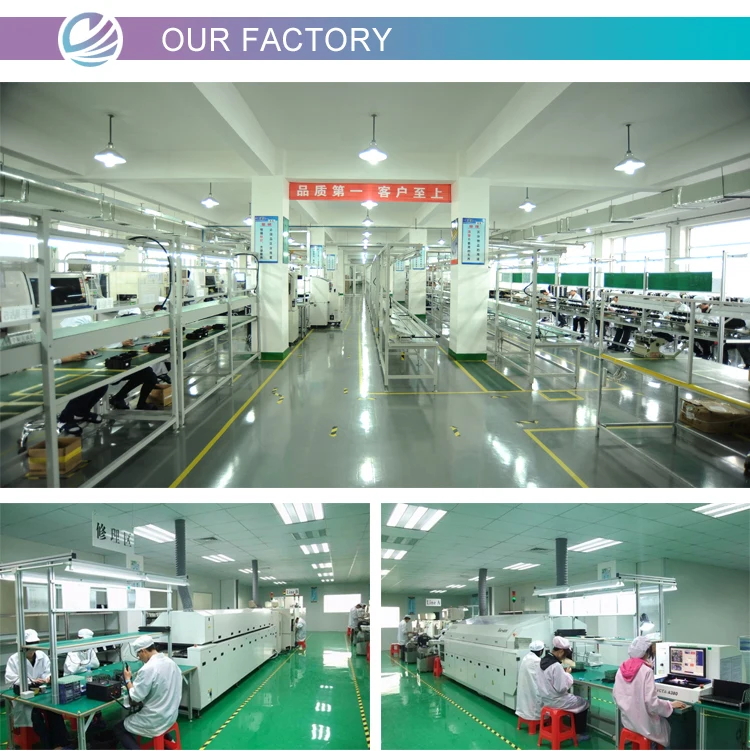

Our Factory
Our production capacity
| Technical Sepcification | What we do | What others do |
| Number of Layer | 1-32 layers(include Rigid-Flex PCB) | 1,2,4 or 6,upto 18 layer |
| Order Quantity | 60k square meter/month | 1 to 50,000 |
| Board Cutting | Shear,V-score,Tab-routed | Shear,V-score,Tab-routed |
| Board Thickness | Rigid 0.2-4.0mm, Flex 0.01-0.25mm | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight | 0.2oz-10oz | 1.0, 1.5, 2.0 oz |
| Min Trace/Gap | 2mil/0.05mm | 0.10mm, or 4mils |
| Max Board Dimensions | 1000mm*600mm | 20 inch*20inch or 500mm*500mm |
| Min Drill Hole Diameter | 0.1mm | 0.01'',0.25mm, or 10mils |
| Board Thichkness Tolerance | 5-10% | ±10% |
| Copper Weight Tolerance | ± 0.15 oz | ± 0.25 oz |
| Silk Screen Min Line Width | 2mil/0.05mm | 0.006'' or 0.15mm |
| Surface Finish | HASL,Nickle,Immersion Gold, Immersion Tin, Immersion Silver,OSP, gold plating(1-80u), tin plating, Rosin etc | HASL,Nickle,Immersion Gold, Immersion Tin,Immersion Silver, OSP,etc |
Company Information
Dalian JY has rich experience in multilayer PCB and single or double sided PCB assembly. Backed by our advanced techniques and experienced production staff, JY makes sure that all the layers in the multilayer PCB are perfect insulated between each other and every conductor pattern functions well. The R&D team in JY does a wonderful job and we can provide PCB products to our customers according to their design or requirements. All our products, including PCB, are passed the certification of TS, RoHS
Dalian JY can also manufacture and supply Aluminum PCB, Flexible PCB, fast PCB and the PCB/PCBA design and copy service to our customers.
Our Equipment
Our company has introduced many advanced equipment to proceed leading and strict quality control procedures. This makes sure the excellent design can turn into real products.
OEM SERVICE
JY can manufacture PCB, PCBA and other related products,according to your demands, and we can accept small orders.
PURCHASING SERVICE
With years of experience in PCB manufacturing, wen can provide sourcing sercive to our customers.
DESIGN ABILITY
We possess the ability to develop new products according to the information offered by our clients.
BUSINESS COOPERATION
JY has cooperated with many customers with good reputation.
we have established stable cooperative relationship with them.

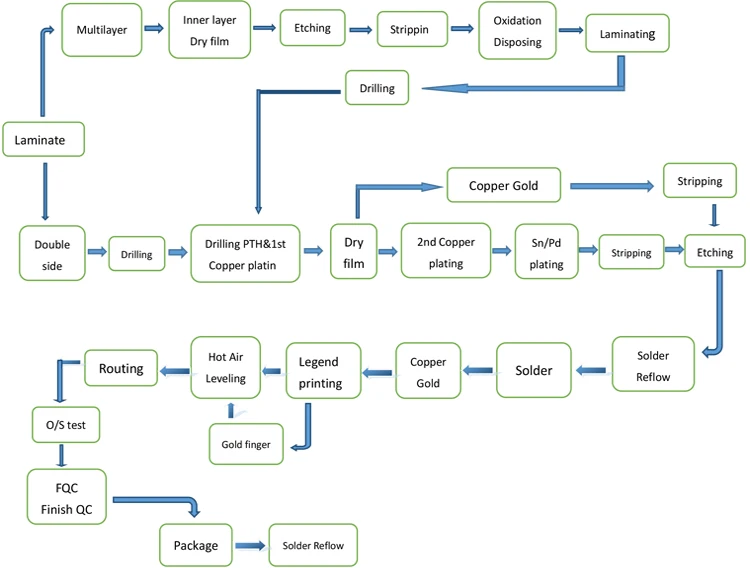

Production flow chart
Exibition
JY has established collaborative relationship with many customers worldwide. Now we are looking forward to cooperate with global customers. You can contact us for more detailed information.
Chinese goods Exhibition of Mumbai India, we met many clients from india, Sri Lanka, Pakistan and other countries. Thanks for their trust and we already built long term business ship. We will do our best along the time for our partners.
Packaging & Shipping
Packaging:
Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Refular Cartons Specification.
| No. | Dimension(L*W*H) |
| small size | 33cm*28.5cm*18.5cm |
| medium size | 44.5cm*30cm*15cm |
| big size | 51.5cm*32.5cm*17.5cm |
Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.
Our Common Packaging Process.
FAQ
Q: What does JY need for a customized PCB order?
A: When you place a PCB order, the customers need to provide Gerber or pcb file.If you do not have the file in the correct format,
Q: What is your quotation policy?
A: For the PCB order in large quantity, JY will send you the quotation based on the MOQ of the products concerned, and the price will be reasonable with good quality.
Q: What does JY need for other services?
A: For PCB clone service, the customer needs to send us the printed circuit board concerned,and also the sharp photos of its front side and the back side.
Q: How about the service JY offered to the customers?
A: If you have any questions about our products or company, do not hesitate to send us your inquiry toour customer service representatives, Your satisfaction is our pursuits.
