Портативный ультразвуковой промышленный увлажнитель воздуха 3 л/ч контроль влажности туманообразователь

Описание и отзывы

Характеристики







Ultrasonic Humidifiers List

Model

RYJS-03D

RYJS-06D

RYJS-09D

RYJS-12D

RYJS-15D

RYJS-18D

RYJS-21D

RYJS-24D

RYJS-30D

RYJS-36D

RYJS-42D

RYJS-48D

Capacity

3L/H

6L/H

9L/H

12L/H

15L/H

18L/H

21L/H

24L/H

30L/H

36L/H

42L/H

48L/H

Fog particles

≤10μm

Airflow rate

180m3/h

260m3/h

280m3/h

280m3/h

280m3/h

400m3/h

420m3/h

480m3/h

600m3/h

720m3/h

840m3/h

960m3/h

Voltage

220V/50Hz

380V/50Hz

Power

300W

600W

900W

1200W

1500W

1800W

2200W

2500W

3100W

3700W

4300W

4800W

Steam Vent

110mm*1pc

110mm*1pc

110mm* 2pcs

110mm* 2pcs

110mm* 3pcs

110mm* 3pcs

160mm* 2pcs

160mm* 2pcs

160mm* 2pcs

160mm* 3pcs

160mm* 3pcs

160mm* 3pcs

Size

540*460*495mm

640*420*500mm

640*640*500mm

890*600*680mm

950*840*680mm

Package size

700*460*740mm

750*540*750mm

770*770*750mm

980*700*790mm

970*780*790mm

G.W.(Plywood case)

40kg

45kg

50kg

56kg

70kg

77kg

100kg

105kg

115kg

125kg

150kg

165kg

Control way

Microcomputer controling

Package

Wooden case

Warranty time

1 year

Payment term

30% deposite, balance before delivery

Lead time

1-15days

Specifications:



Model	DH-03J
Capacity	3L/HR
Voltage	220V/50Hz
Power	300W
Steam Vent	110mm*1pc
Size	540*460*495mm
Weight	40Kg
Control way	Microcomputer controling
Package	Carton
Warranty time	1 year
Payment term	30% deposite, balance before delivery
Lead time	15days



Features:

1.Intelligent and accurate humidity controlling, adopting standard integrated mist module, stable and easy maintenance;
2.Diameter of fog output is only1-10um. Maximum RH reaches 99%;
3.Portable, durable, easy to use and maintenance, etc

4.Patented mist maker

5.Time delay fans,avoiding mist back flow into electric box

6.Digital humidity controller can be randomly set from 1%RH to 99%RH

7.Both”Auto” and”Manual” working mode

8.Stainless steel housing

9.Leakage protection



Working Principle :



Ultrasonic humidifiers use a piezo-electric transducer to create a high frequency mechanical oscillation in a body of water. The water tries to follow  the high frequency oscillation but cannot because of its comparative weight and mass inertia. Thus, a momentary vacuum is created on the negative oscillation, causing the water to cavitate into vapor. The transducer follows this with a positive oscillation that creates high pressure compression waves on the water's surface, releasing tiny vapor molecules of water into the air. This is an extremely fine mist, about one micron in diameter, that is quickly absorbed into the air flow. Since the mist is created by oscillation, not heat, the water temperature need not be raised. Ultrasonic humidifiers, therefore, can create instantaneous humidity, and don't have to wait for a heating element to boil the water. This precise on/off humidity control is the hallmark of ultrasonic humidifiers.

In addition, unlike wet pad humidifiers, ultrasonic units can be of comparatively small size, and still produce significant amounts of vapor. When the sensors which pick up ultrasonic humidifier has decreased below a certain level of humidity of the air ultrasonic humidifier comes into operation. When, however, capture a high degree of moisture the cool mist humidifier is turned off. In this way is very simple to maintain a high degree

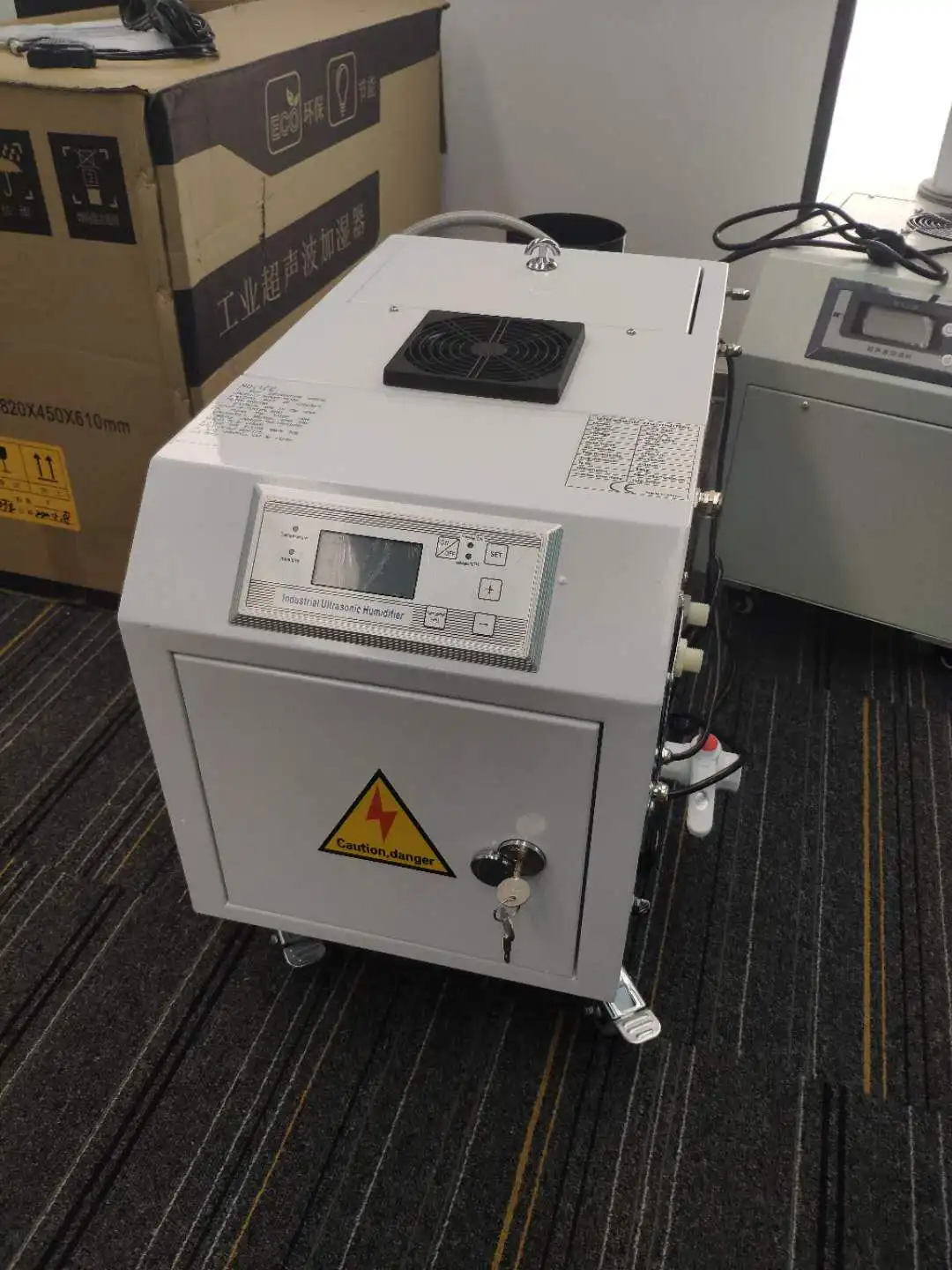

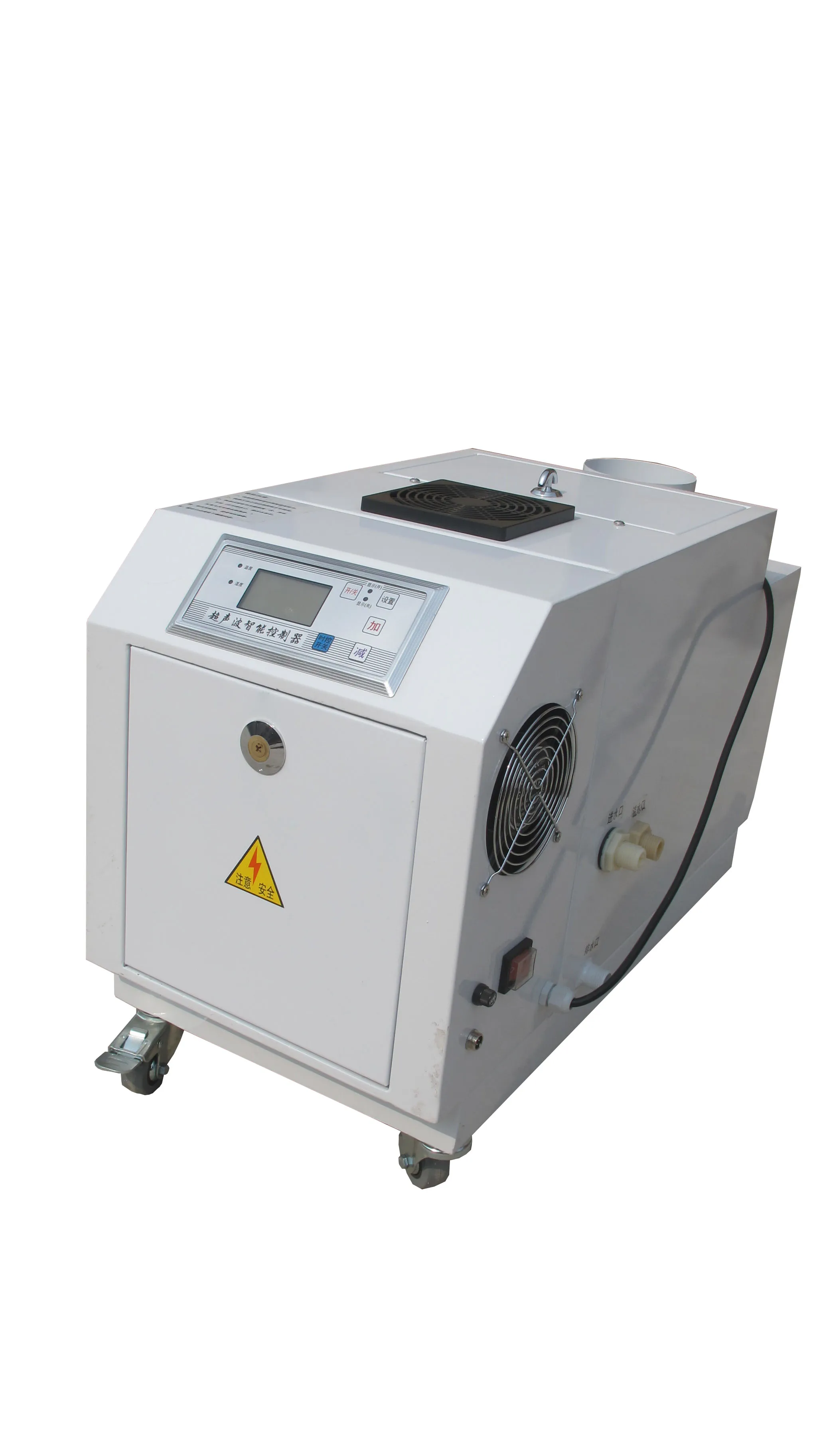

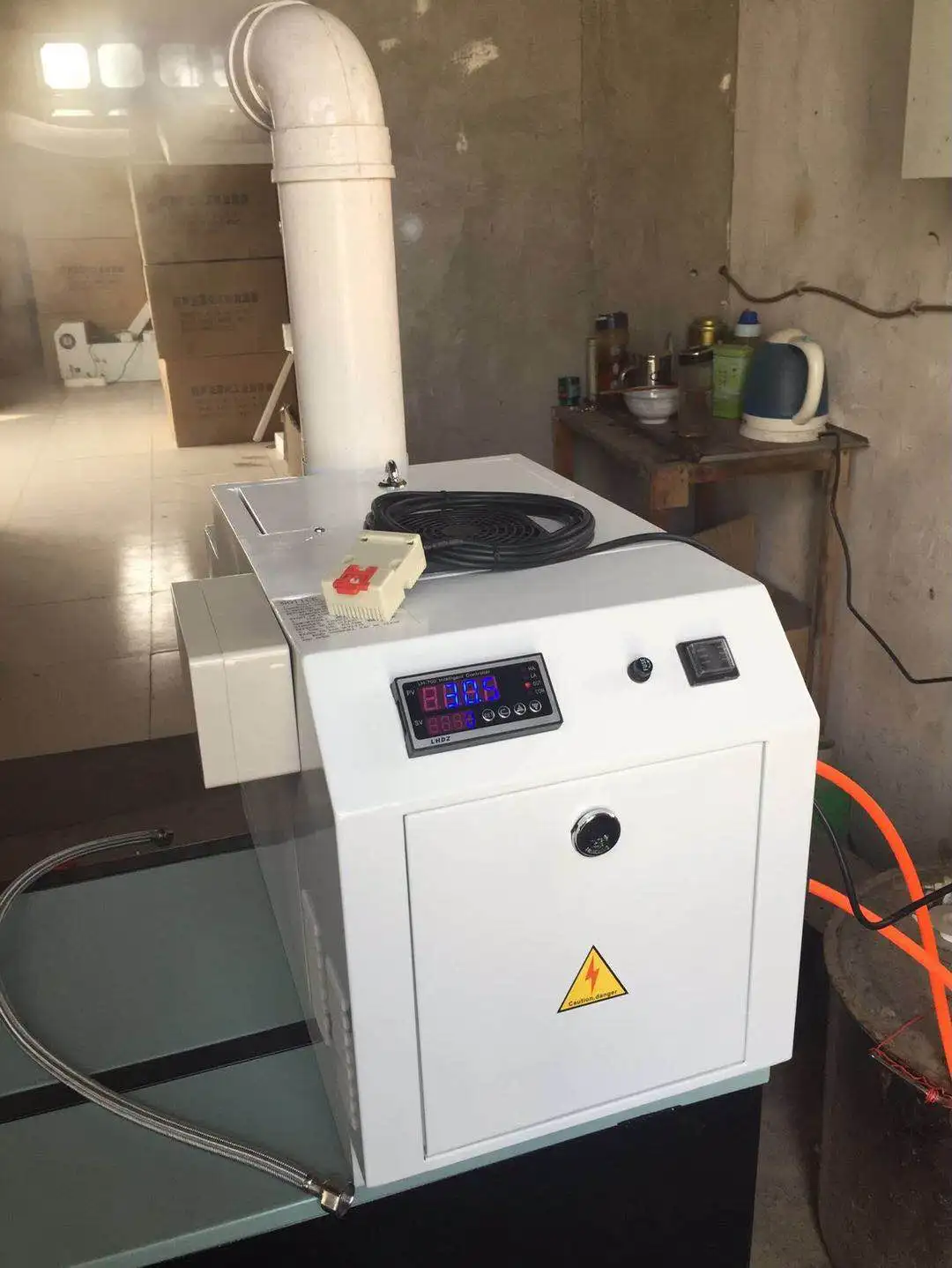

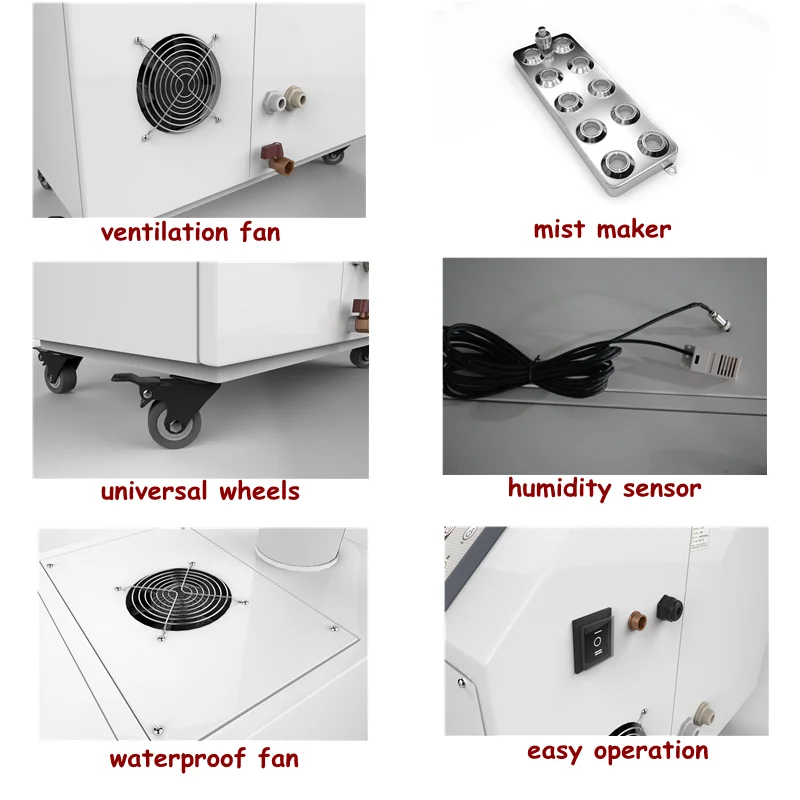

 Detail images:

















Warranty:



1.The product has one-year free warranty from the date of purchase.

2.The warranty shall not apply: (i) to any Product subjected to  accident, misuse, neglect, alteration, Acts of God, improper handling,  improper transport, improper use, improper testing or  unauthorized repair or (ii) to cosmetic problems or defects  which result from normal wear and tear under ordinary use, and  do not affect the performance or use of the Product.All warranties  are void if the product is opened, altered, and/or damaged.

3. CUSTOMER MUST PRESENT THE SALES INVOICE OR  RECEIPT FOR FREE WARRANTY SERVICES
