Vehicle specifications: | |
Brand | Qi Lin |

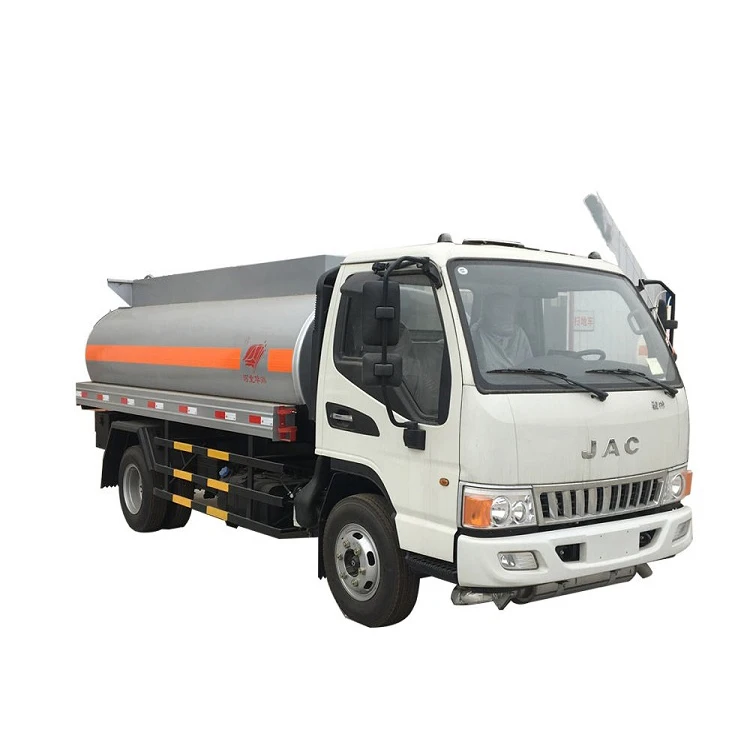

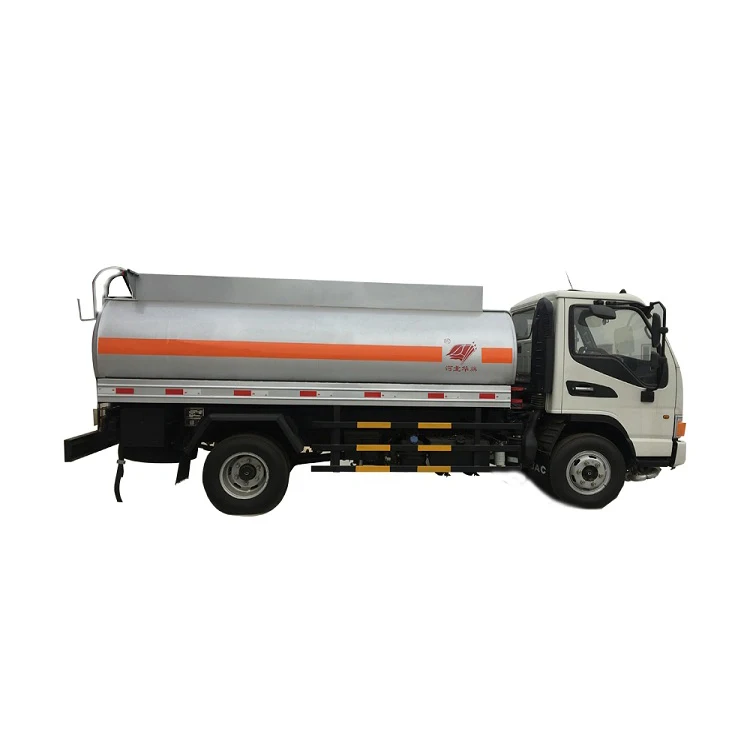

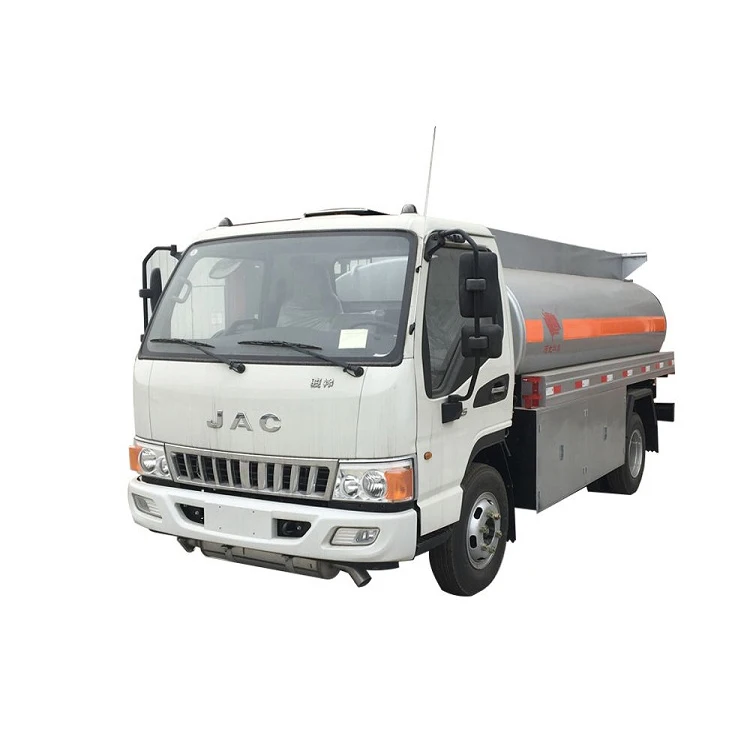

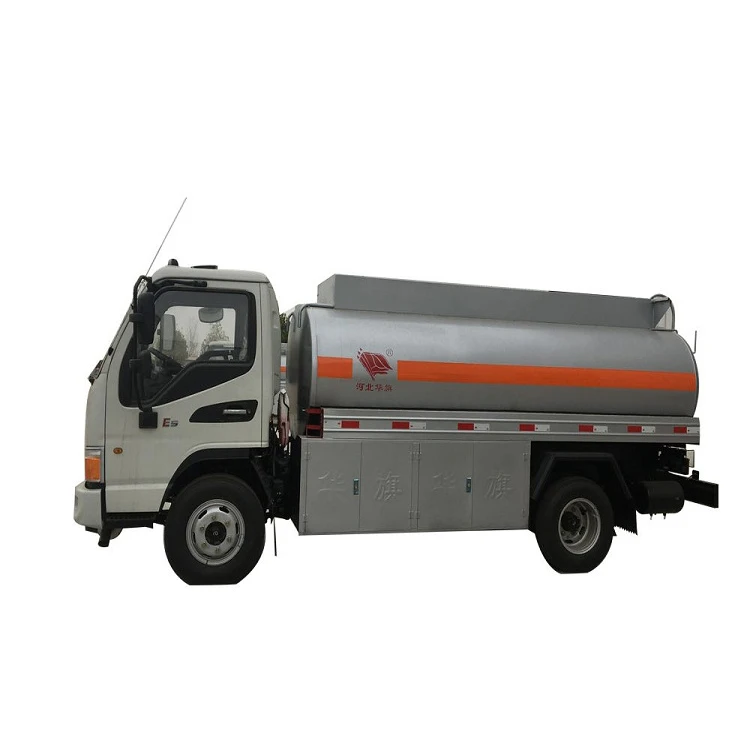

Name | Refuel tank truck |
Model | QLG5071GJY |
Overall dimension | 5995MM*1990MM*2430MM |
Overall gross weight | 3120kg |
Curb weight | 3700kg |
Tank specifications: | |
Tank volume | 5.1CBM |

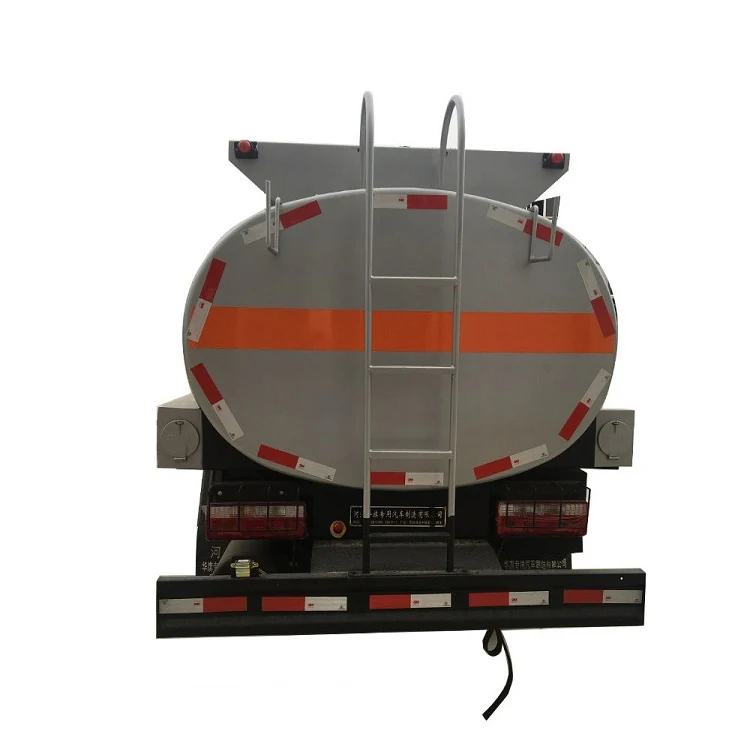

Tank Shape | Oval |
Compartment | Single |
Tank material | Q235b carbon steel |
Tank dimension | 3940MM*1700MM*1140MM |
Tank thickness | 4mm/4mm/4mm |
Discharge valve | 2.5 inch |
Manhole | 1pc standard |
Refueling machine | 1 unit,10m reel |
Painting | With shot blasting and 4 layers painting,color is optional. |
Chassis specifications: | |
Chassis brand | DONGFENG DFA1070SJ20D5 |
Drive type | Left/right hand drive optional |
Chassis dimension | 5895mmX1950mmX2190mm |
Drive wheel | 4X2 |
Max payload | 3500kg |
Transmission | 5 speed forward levers,1 reverse lever. |
Tire | 7.00R16 14PR/6pcs |

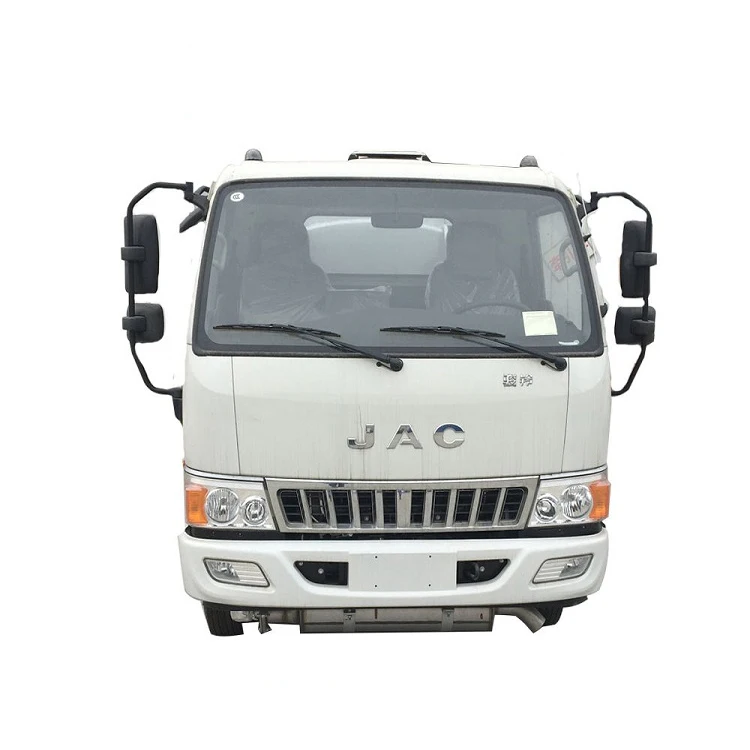

Cab | 3 passengers , without air-conditioner |
Front/Rear tread | 1586mm/1530mm |
Front/Rear suspension | 1115mm/1580mm |
Wheelbase | 3300mm |
Approach/Departure angle | 27°/22° |
Leaf spring number | 6/6+5,8/9+5 |
Engine | Model: ZD30D13-4N |
Emission | Euro 5 |
Horse power | 128hp |
Braking system | With ABS system(36BG13-30010) |
Max speed | 80km/h |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Remark: | |
The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
