Новый высокотехнологичный тороидальный магнитный Нанокристаллический Железный сердечник 175/200*25
- Категории: Magnetic Materials >>>
- Поставщик: Anhui,Develop,Amorphous,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Parameters
Saturated magnetic induction Bs(T) | 1.25 |
Initial permeability | 4-10×10 4 |
Maximum permeability | 60×10 4 |
Curie temperature℃ | 570 |
Density(g/cm3) | 7.3 |
Space factor (%) | 70-75 |
strip thickness(mm) | 0.025-0.042 |
Characteristic
1,Made by Fe-base Nanocrystalline Ribbon
2,Moderate saturation magnetic induction
3,High permeability
4,Low Loss
5,Good temperature stability
1,Made by Fe-base Nanocrystalline Ribbon
2,Moderate saturation magnetic induction
3,High permeability
4,Low Loss
5,Good temperature stability

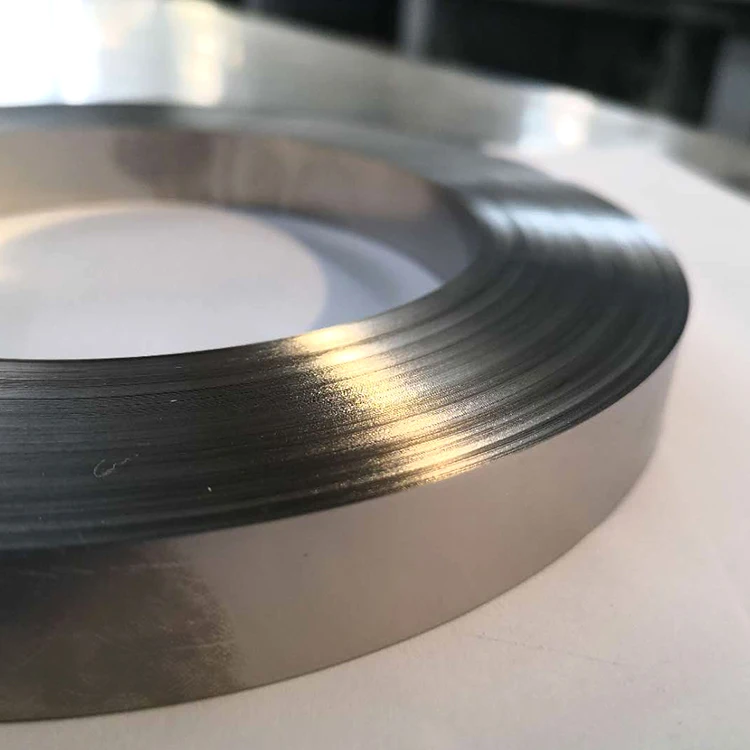

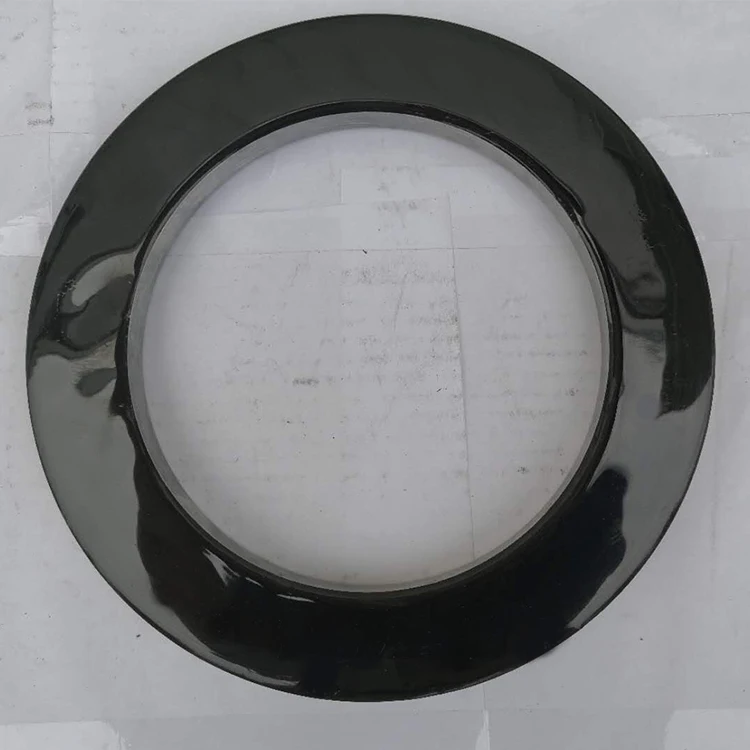

Product Display
Application
Our products are used in various types of transformers and circuit breakers. They are also used in computers, automatic control, measurement, communication and other industries.Power current transformer is a special transormer for measuring current of power transmission and distribution lines. The measurement precision differs from soft magnetic materials it uses. The higher precision (less measurement error) is, and the higher core permeability requires. When cold rolling silicon steel sheet cannot reach the requirement of little transformation ratio and low ampere turns, it has to use soft magnetic material with high permeability, such as perm alloy and amorphous alloy. Amorphous alloy has the similar initial permeability as perm alloy, higher maximum permeability, good temperature stability, and 70%-75% lamination coefficient. In the same size and performances, amorphous core’s weight is only two thirds of perm alloy core, and price is more competitive. In recent years, the demand of high-precision transformer (such as grades 0.2, 0.2S and 0.5S) has rapidly increased. Therefore, domestic demand of amorphous alloy measurement current transformer core rapidly increases.
Our products are used in various types of transformers and circuit breakers. They are also used in computers, automatic control, measurement, communication and other industries.Power current transformer is a special transormer for measuring current of power transmission and distribution lines. The measurement precision differs from soft magnetic materials it uses. The higher precision (less measurement error) is, and the higher core permeability requires. When cold rolling silicon steel sheet cannot reach the requirement of little transformation ratio and low ampere turns, it has to use soft magnetic material with high permeability, such as perm alloy and amorphous alloy. Amorphous alloy has the similar initial permeability as perm alloy, higher maximum permeability, good temperature stability, and 70%-75% lamination coefficient. In the same size and performances, amorphous core’s weight is only two thirds of perm alloy core, and price is more competitive. In recent years, the demand of high-precision transformer (such as grades 0.2, 0.2S and 0.5S) has rapidly increased. Therefore, domestic demand of amorphous alloy measurement current transformer core rapidly increases.
Related Products
Company Information
Anhui Develop Amorphous Equipment Co., Ltd., founded in 1995,is one of the earliest domestic manufacturers of nanocrystalline iron core in China. Our products are used in various types of transformers and circuit breakers. They are also used in computers, automatic control, measurement, communication and other industries.
In the first two years after the establishment of the company, we have been trying to trial production, production, trial sales, but we have not achieved any results.It was not until the winter of 1997 that two experts from the 14th research institute of the ministry of national electronics industry purchased the nanocrystalline crystal iron core of our company.These two experts are our company's first customers.They sent us a quality feedback letter in February 1998, informing us that the iron core was used in the national important machine parts and achieved satisfactory results.
In 1999, our company undertook the national science and technology research project of the Ministry of Science and Technology. The project number was 99-D048. The project name was Development and production of amorphous inductive material devices by partial crystallization method,and we got rewards and loan support.After more than 20 years of hard work, our nanocrystalline iron core has grown from small to large, from a few grams, a few tens of grams to more than 400 kilograms; from small to many specifications, from several types, dozens of types to tens of thousands.Our iron core related accessories have also achieved self-production in the company's assembly line, with a complete professional production chain and complete supporting facilities.
The nanocrystalline iron core is the core device of the downstream industrial chain,Our iron core has also been used in many large domestic hydropower stations and nuclear power projects.Such as: China's first 750KV transmission line running CW45-800 disconnector, Three Gorges Hydropower Project, Baihetan Hydropower Station, Chashma Nuclear Power Station, Fangjiashan Nuclear Power Station, Gezhouba 550KV converter station, the first independently developed NB5 DC circuit breaker, the world's first 550KV circuit breaker LW15A-550 that passed the C2 test is operated in Shanghai Fengxian converter station, etc.
The company has been rated as "A-level tax credit unit" by Anhui State Taxation Bureau and Anhui Province Local Taxation Bureau; rated as "Contract-honoring and Credit-keeping Enterprise" by Anhui Industry and Commerce Bureau; won the "Science and Technology Progress Award" by Hefei Science and Technology Bureau ; Obtained many honors such as "Hefei Famous Brand", "Anhui High-tech Enterprise", "Anhui Famous Brand", ISO9001 quality system certification, international SGS certification and so on.
Newly developed nanocrystalline broadband and nanocrystalline shear band production lines for wireless charging of mobile phones in 2019.
Talent is the foundation of the enterprise, quality determines the life of the enterprise.We are committed to promoting the application of amorphous materials and climbing the technological peak of the industry. We look forward to working with you to create brilliant!
In the first two years after the establishment of the company, we have been trying to trial production, production, trial sales, but we have not achieved any results.It was not until the winter of 1997 that two experts from the 14th research institute of the ministry of national electronics industry purchased the nanocrystalline crystal iron core of our company.These two experts are our company's first customers.They sent us a quality feedback letter in February 1998, informing us that the iron core was used in the national important machine parts and achieved satisfactory results.
In 1999, our company undertook the national science and technology research project of the Ministry of Science and Technology. The project number was 99-D048. The project name was Development and production of amorphous inductive material devices by partial crystallization method,and we got rewards and loan support.After more than 20 years of hard work, our nanocrystalline iron core has grown from small to large, from a few grams, a few tens of grams to more than 400 kilograms; from small to many specifications, from several types, dozens of types to tens of thousands.Our iron core related accessories have also achieved self-production in the company's assembly line, with a complete professional production chain and complete supporting facilities.
The nanocrystalline iron core is the core device of the downstream industrial chain,Our iron core has also been used in many large domestic hydropower stations and nuclear power projects.Such as: China's first 750KV transmission line running CW45-800 disconnector, Three Gorges Hydropower Project, Baihetan Hydropower Station, Chashma Nuclear Power Station, Fangjiashan Nuclear Power Station, Gezhouba 550KV converter station, the first independently developed NB5 DC circuit breaker, the world's first 550KV circuit breaker LW15A-550 that passed the C2 test is operated in Shanghai Fengxian converter station, etc.
The company has been rated as "A-level tax credit unit" by Anhui State Taxation Bureau and Anhui Province Local Taxation Bureau; rated as "Contract-honoring and Credit-keeping Enterprise" by Anhui Industry and Commerce Bureau; won the "Science and Technology Progress Award" by Hefei Science and Technology Bureau ; Obtained many honors such as "Hefei Famous Brand", "Anhui High-tech Enterprise", "Anhui Famous Brand", ISO9001 quality system certification, international SGS certification and so on.
Newly developed nanocrystalline broadband and nanocrystalline shear band production lines for wireless charging of mobile phones in 2019.
Talent is the foundation of the enterprise, quality determines the life of the enterprise.We are committed to promoting the application of amorphous materials and climbing the technological peak of the industry. We look forward to working with you to create brilliant!
Our Advantages
1.Our company from the raw material processing to finished products are completed independently.
2.At present, the company produces 9000 kinds of Ultra-microcrystalline iron core.
3.The minimum size of the iron core specifications produced by the company is from 3.2mmm to the maximum size of 1300mm. We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements.
4.Our company has stronger technical strength and ability to research and develop new products than other competitors in the same industry.
5.Our company can design the corresponding iron core if the customer put forward technical requirements such as mutual inductor.
6.Our company is the only enterprise in China to produce ultra-microcrystalline iron core for 25 years.
7.Our company currently has 4 production lines of ton level. 8.Our company has its own brand.
Certifications

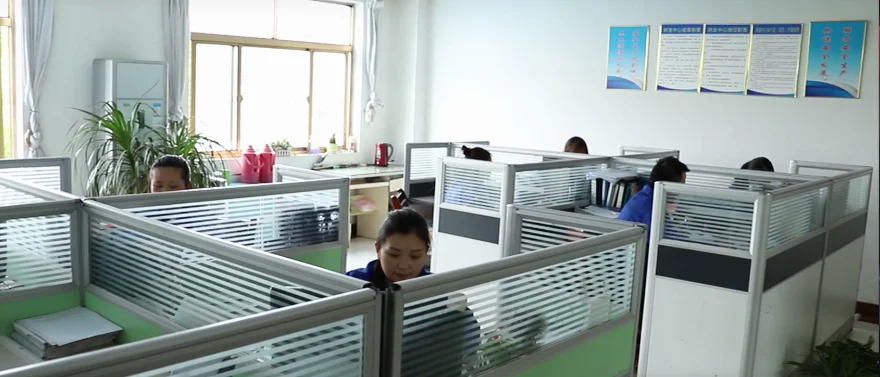

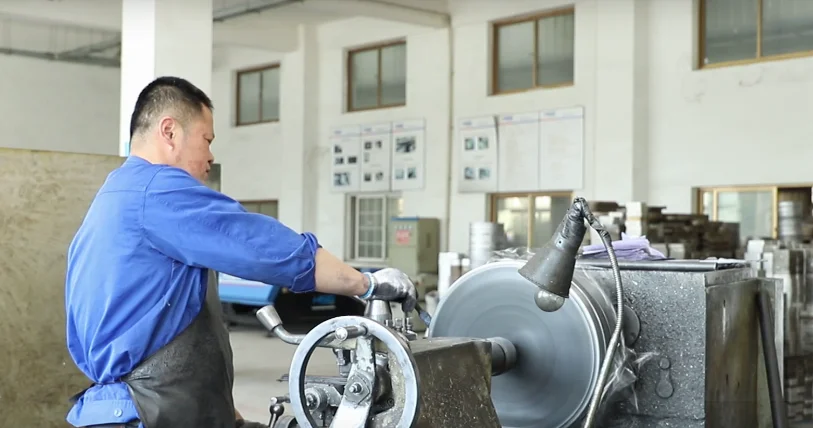

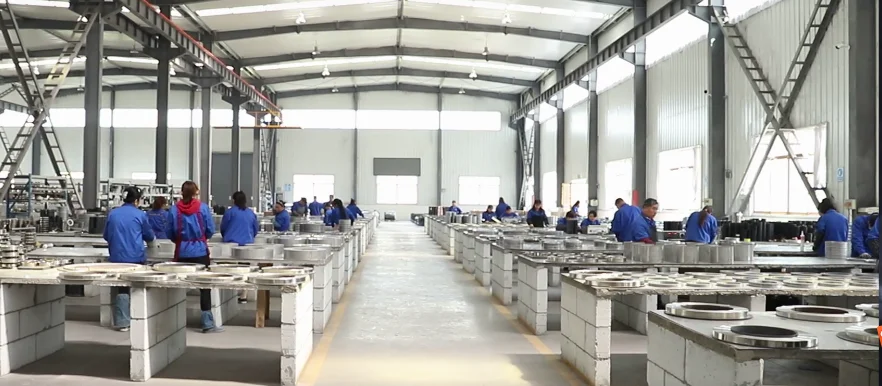

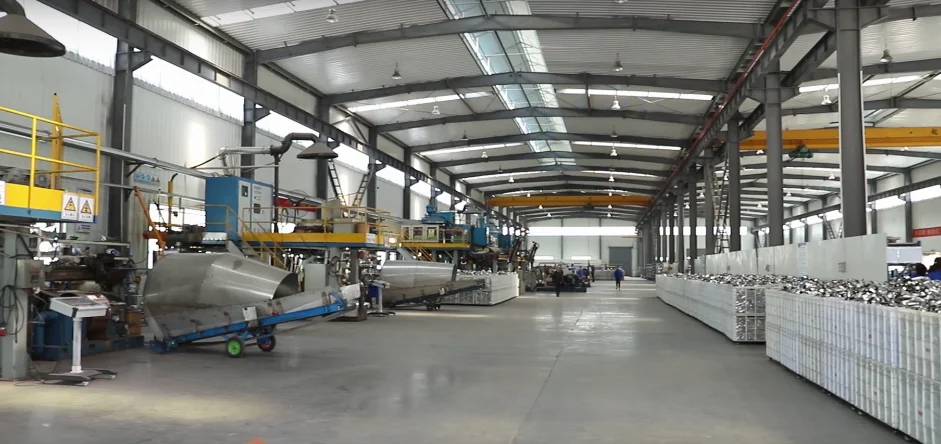

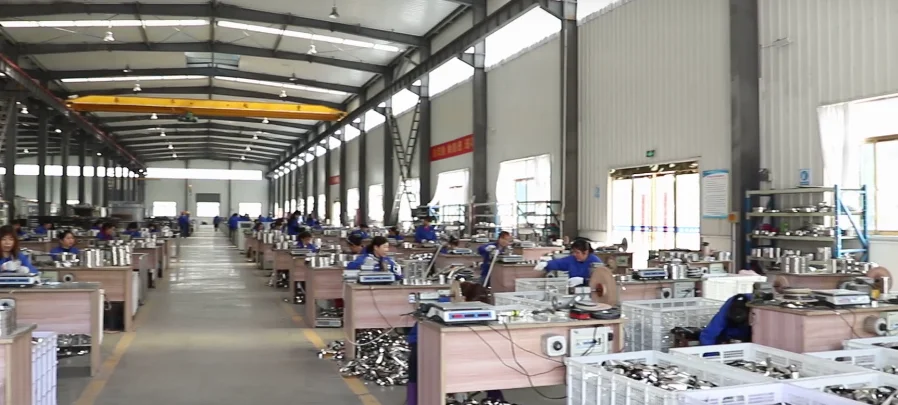

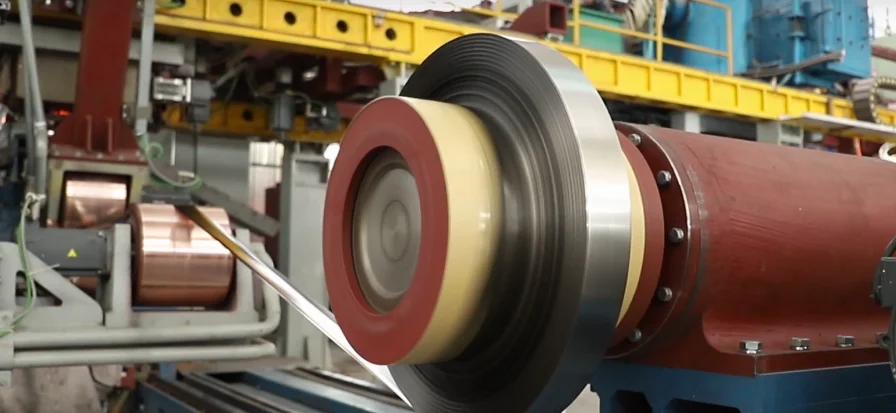

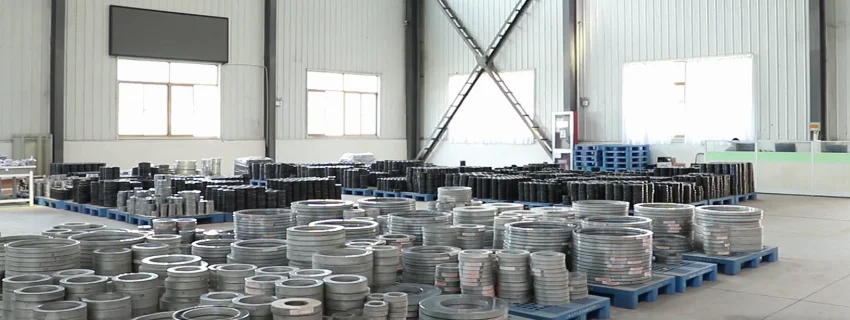

Workshop Pictures
FAQ
Why choose us?
1.Our company from the raw material processing to finished products are completed independently.
2.At present, the company produces 9000 kinds of Ultra-microcrystalline iron core.
3.The minimum size of the iron core specifications produced by the company is from 3.2mmm to the maximum size of 1300mm.
2.At present, the company produces 9000 kinds of Ultra-microcrystalline iron core.
3.The minimum size of the iron core specifications produced by the company is from 3.2mmm to the maximum size of 1300mm.
We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements.
4.Our company has stronger technical strength and ability to research and develop new products than other competitors in the same industry.
5.Our company can design the corresponding iron core if the customer put forward technical requirements such as mutual inductor.
6.Our company is the only enterprise in China to produce ultra-microcrystalline iron core for 25 years.
7.Our company currently has 4 production lines of ton level.
8.Our company has its own brand.
4.Our company has stronger technical strength and ability to research and develop new products than other competitors in the same industry.
5.Our company can design the corresponding iron core if the customer put forward technical requirements such as mutual inductor.
6.Our company is the only enterprise in China to produce ultra-microcrystalline iron core for 25 years.
7.Our company currently has 4 production lines of ton level.
8.Our company has its own brand.
