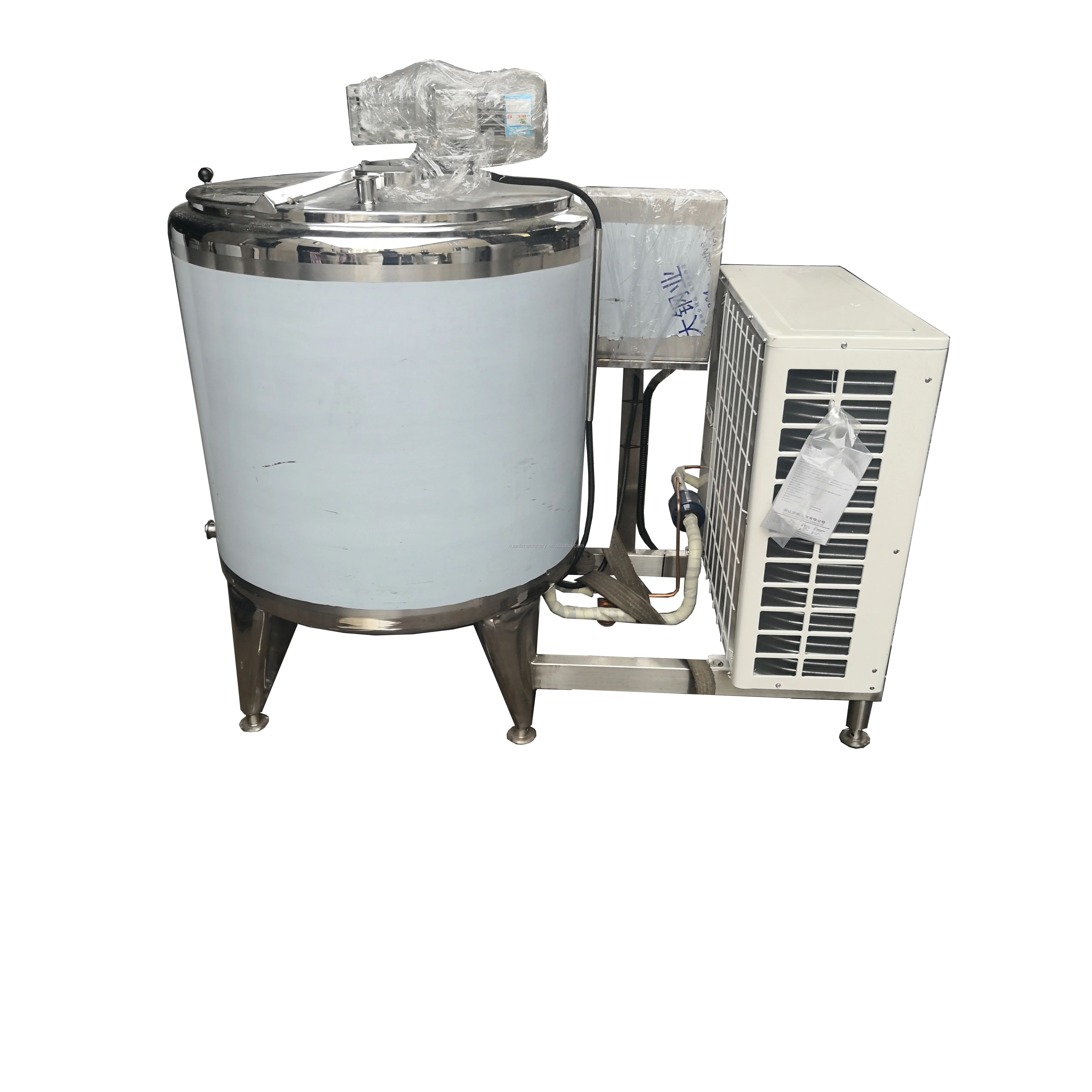

Резервуар для охлаждения свежего молока из нержавеющей стали sus304/316L 500
- Категории: Смеситель >>>
- Поставщик: Ruian,Xuanli,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Factory price Stainless steel tank dairy machine cooler refrigeration milk cooling tank
Features:
* Capacity: 200L - 12000L(Customized)
* Material: Stainless steel 304/316
* Type: Horizontal Tank/Vertical Tank
* Inside shell thickness: 3.0 mm or more
* Jacket thickness: 1.5mm or more
* Outer shell thickness: 1.5mm
* Heat preservation material: Polyurethane foam ( PU ) the insulation/PU thickness is 50mm
* Refrigeration unit brand: MANEUROP Compressor
* Refrigerants is R22 ( environment friendly )
* Automatic control box
* Accessories:
(1): CIP clean ball
(2): Inlet/Outlet
(3): Sanitation Manhole
(4): Respirator

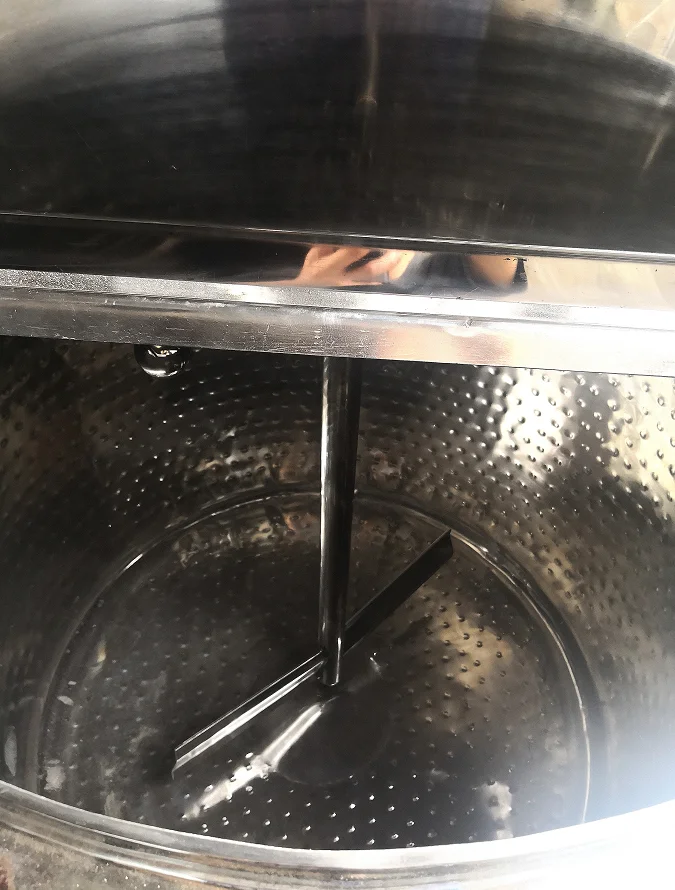

(5): Mixer device
(6): Others
Product Overview
Mainly used in preserving and storing fresh milk. It fully adopts the international advanced technology with the imported European Maneurop (non-fluorine) and safety protection syetem.It is the ideal cooling and storing equipment for pasture, milk station, milk factory, food and beverage industry factories.
Features:
* Capacity: 200L - 12000L(Customized)
* Material: Stainless steel 304/316
* Type: Horizontal Tank/Vertical Tank
* Inside shell thickness: 3.0 mm or more
* Jacket thickness: 1.5mm or more
* Outer shell thickness: 1.5mm
* Heat preservation material: Polyurethane foam ( PU ) the insulation/PU thickness is 50mm
* Refrigeration unit brand: MANEUROP Compressor
* Refrigerants is R22 ( environment friendly )
* Automatic control box
* Accessories:
(1): CIP clean ball
(2): Inlet/Outlet
(3): Sanitation Manhole
(4): Respirator
(5): Mixer device
(6): Others
Technical Parameter
Model | Volume (L) | Refrigerating performance | Heat Reserve Performance | Blending Speed | Power (KW) | Power Supply |
RL-500 | 500 | 4500W | ≤1°C/14H | 43 r/min | 3 | 220V |
RL-800 | 800 | 8000W | ≤1°C/14H | 43 r/min | 4 | 220V |
RL-1000 | 1000 | 12000W | ≤1°C/14H | 43 r/min | 4.8 | 3*380V |
RL-2000 | 2000 | 15000W | ≤1°C/14H | 43 r/min | 5.55 | 3*380V |
RL-3000 | 3000 | 15000W | ≤1°C/14H | 43 r/min | 5.55 | 3*380V |
RL-6000 | 6000 | 15000*2W | ≤1°C/14H | 43 r/min | 12 | 3*380V |
RL-8000 | 8000 | 15000*2W | ≤1°C/14H | 43 r/min | 12 | 3*380V |
RL-10000 | 10000 | 21700*2W | ≤1°C/14H | 43 r/min | 12.8 | 3*380V |
Customerized Design
Volume of the tanks can be very flexiable. We can make it from 50L to 500000L
The Tank can also be customerized, you can have it single layer or jacket, with electric heater or with out, with support feet or without. Anti-explosion type or not.
You can let me know your needs, i will let our technician make drawing accordingly.

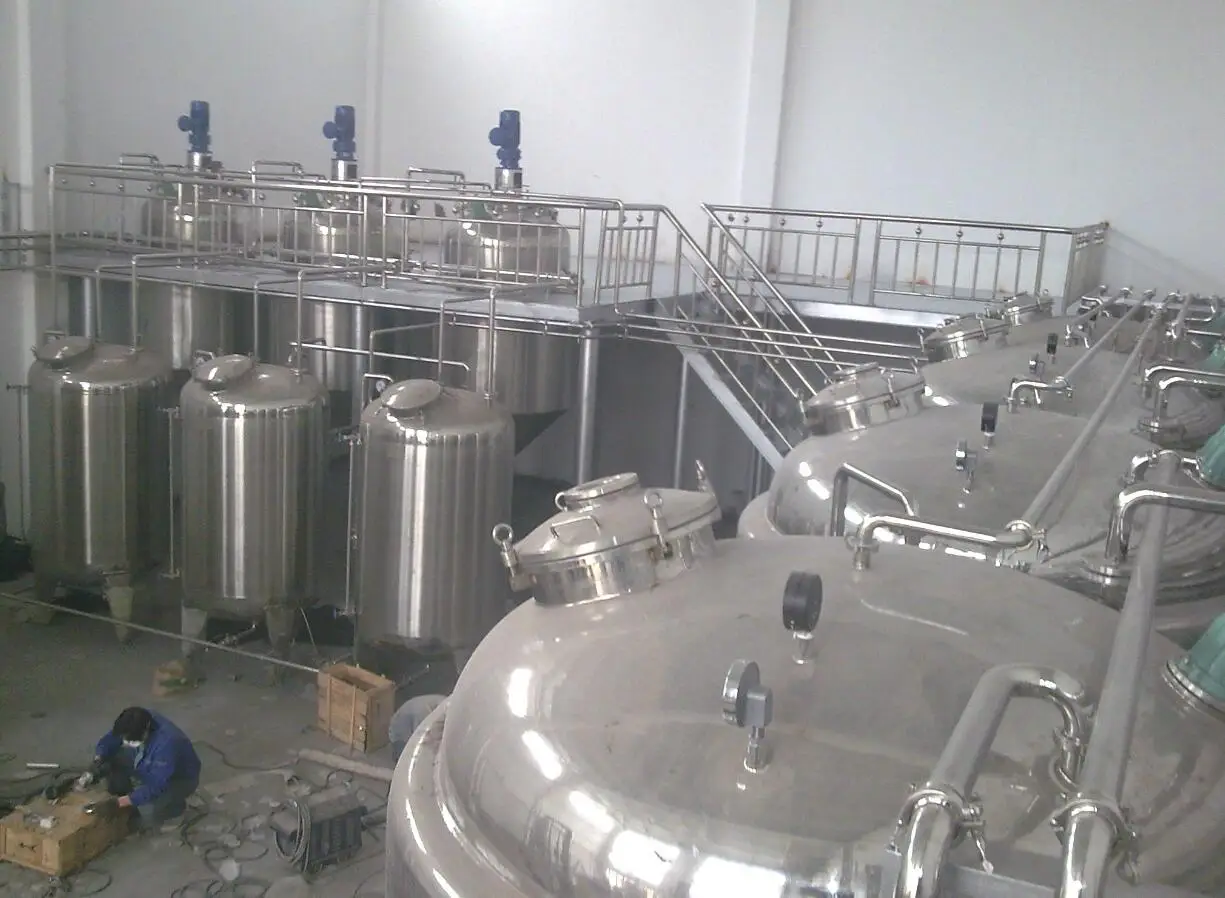

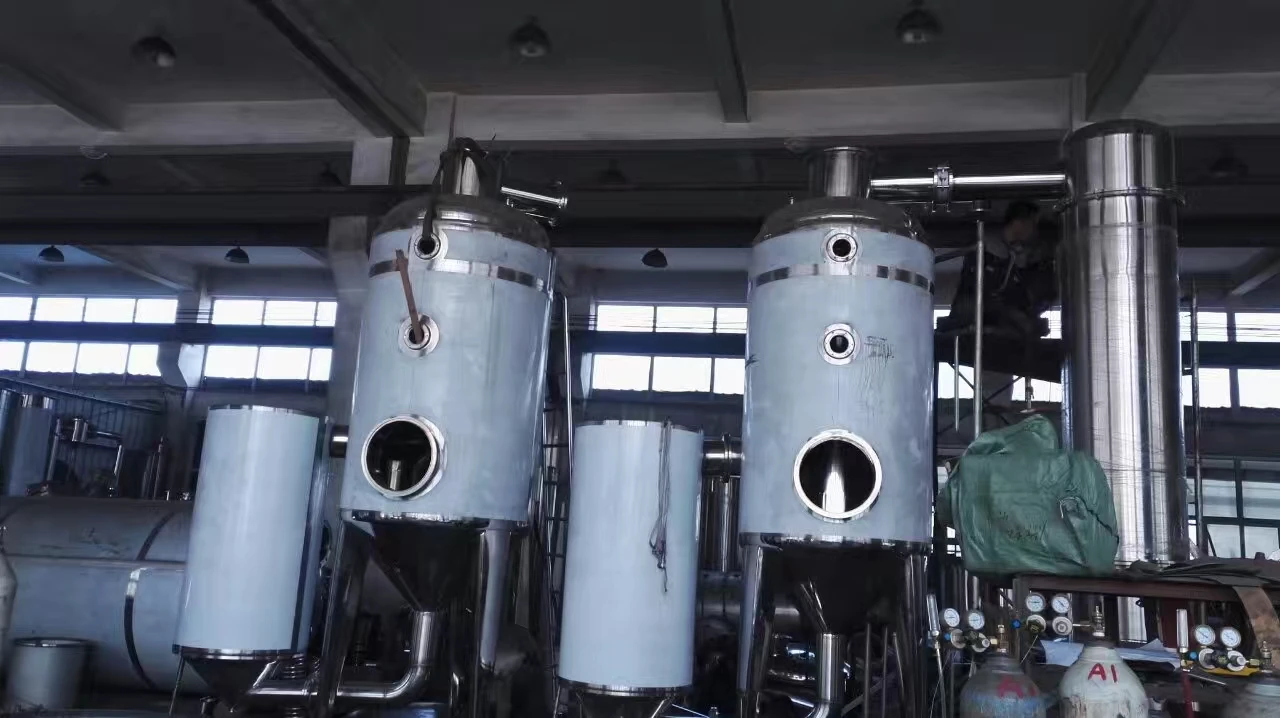

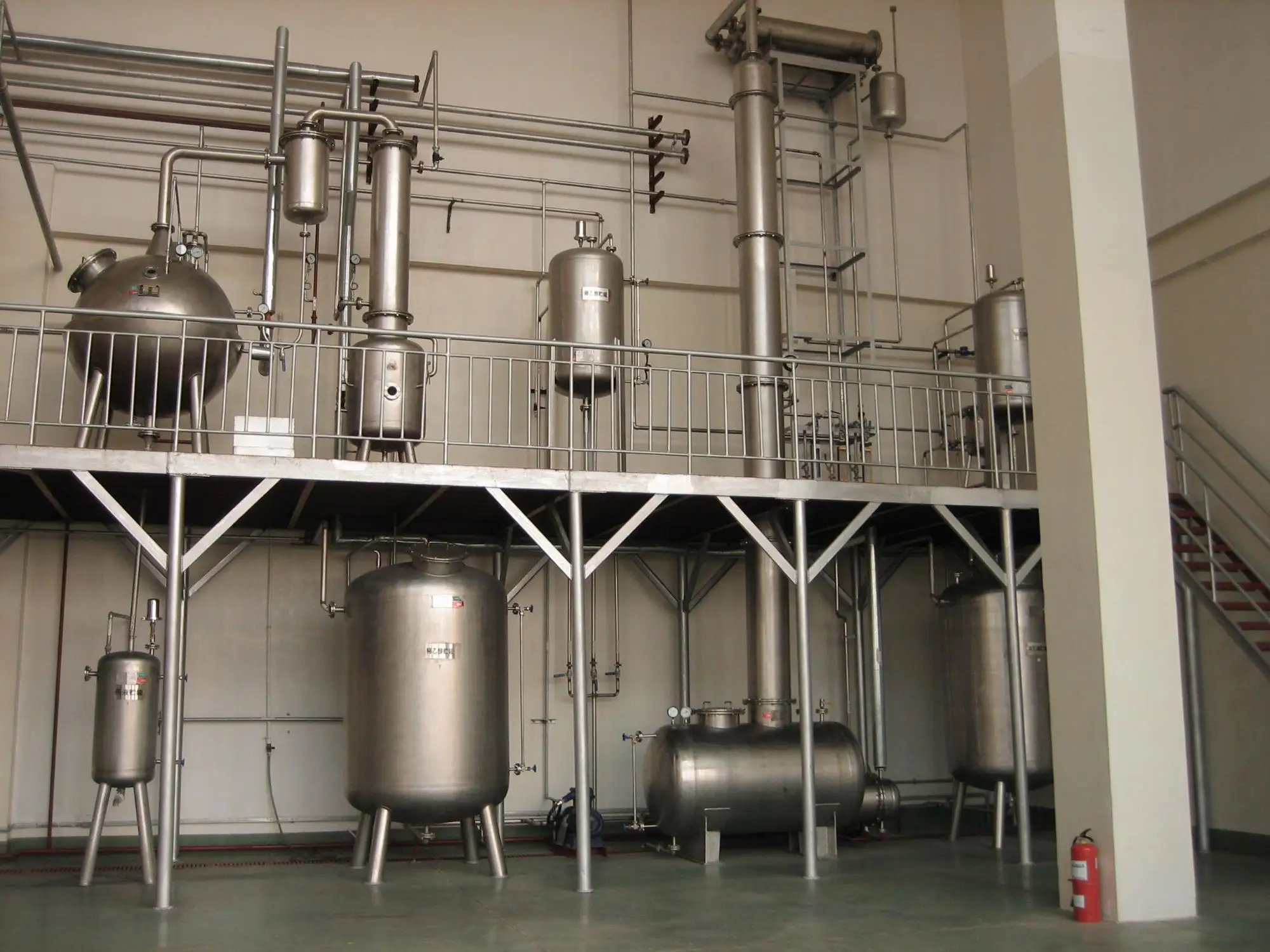

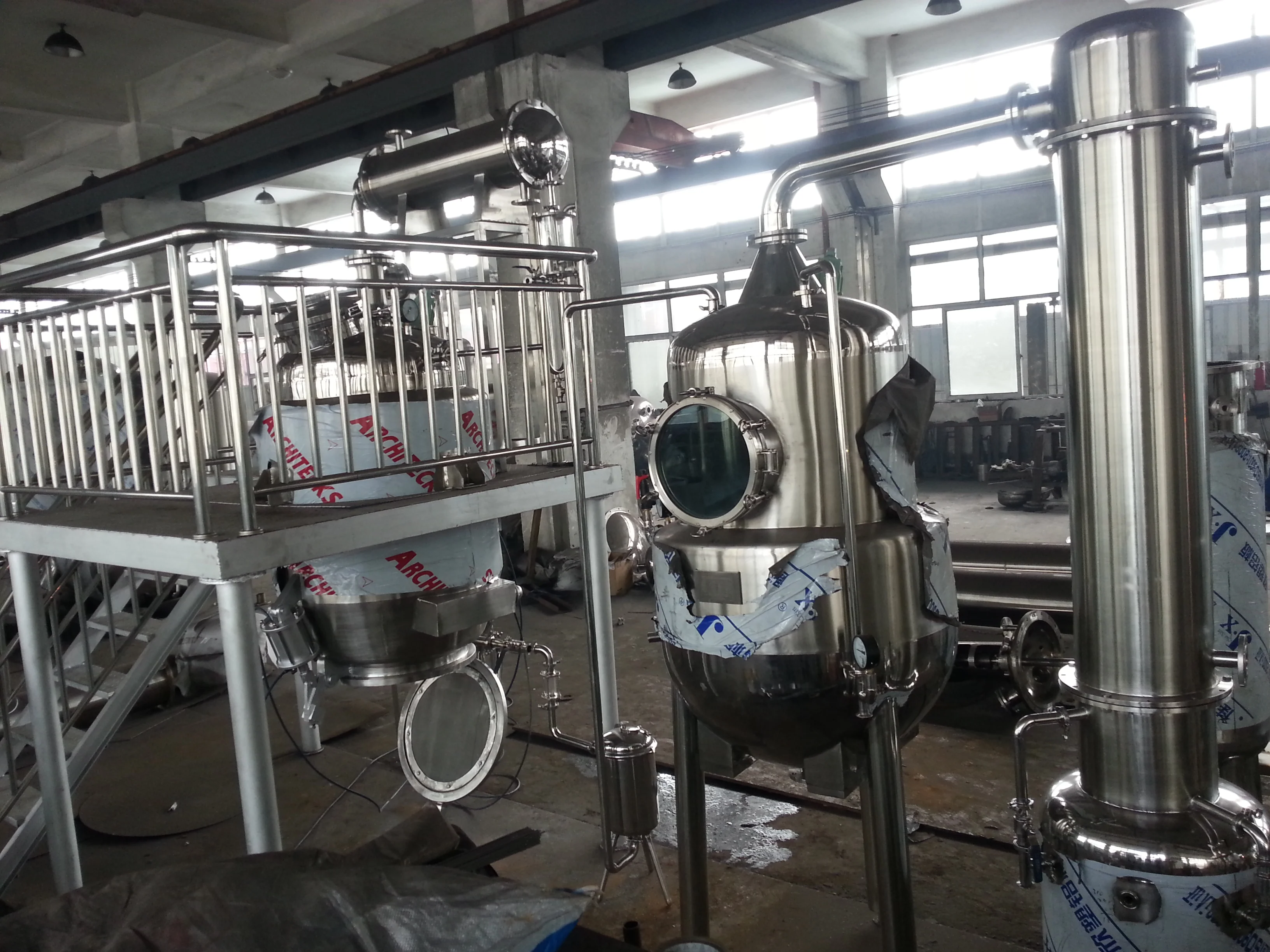

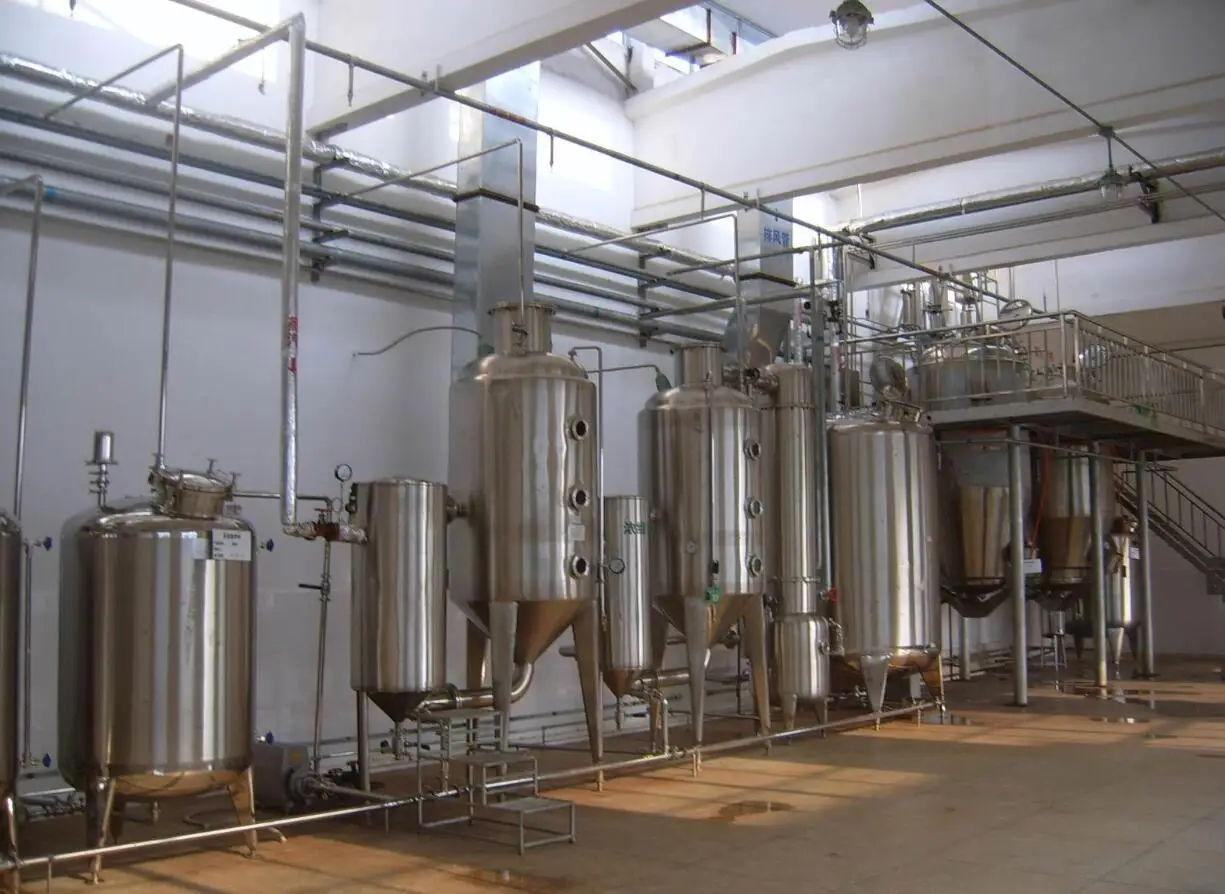

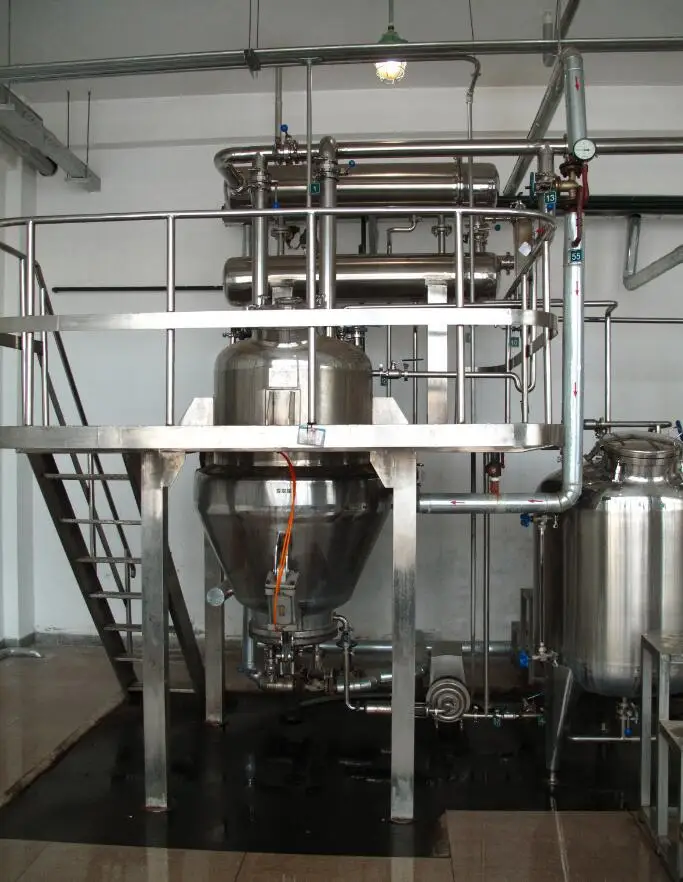

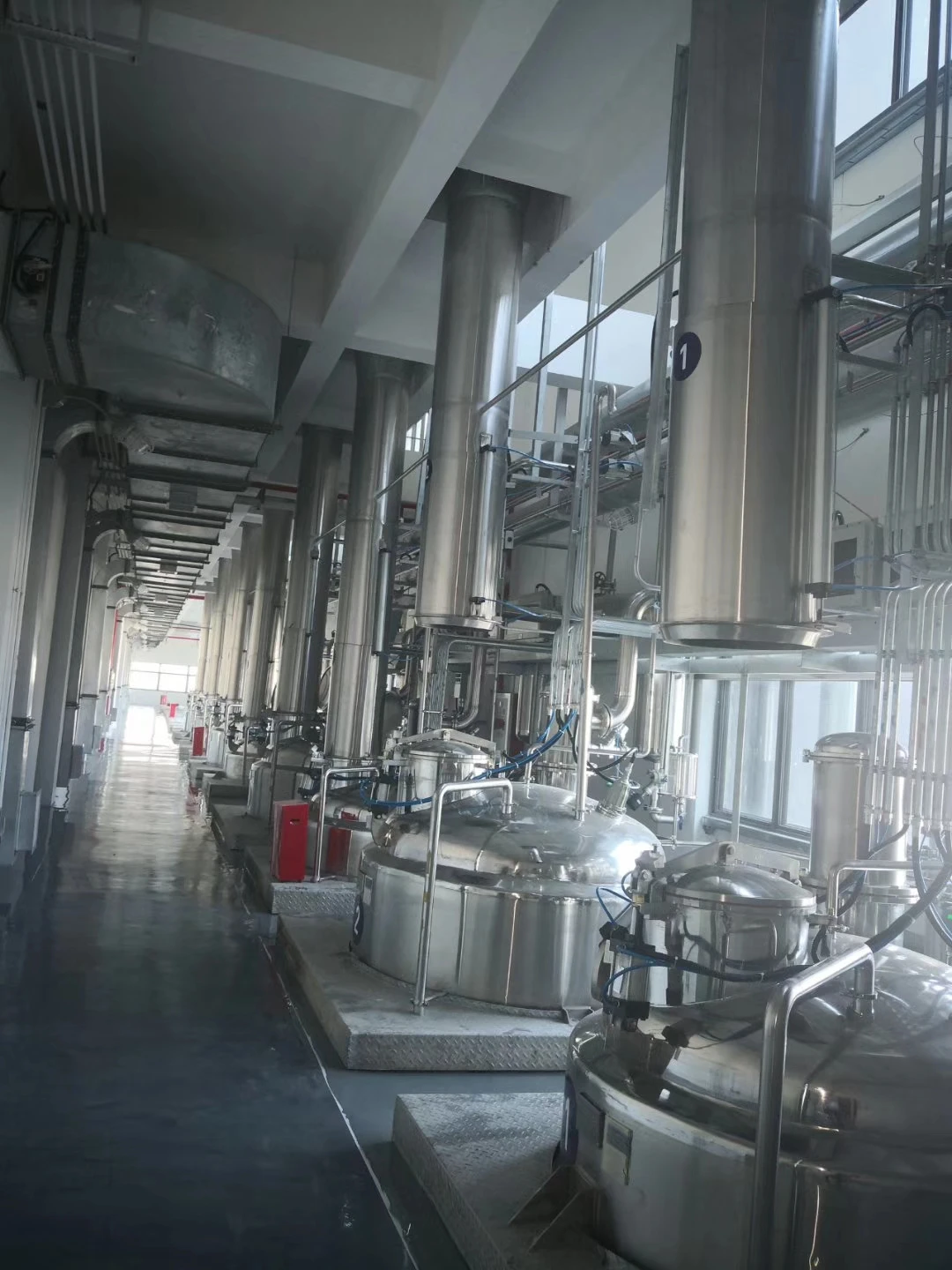

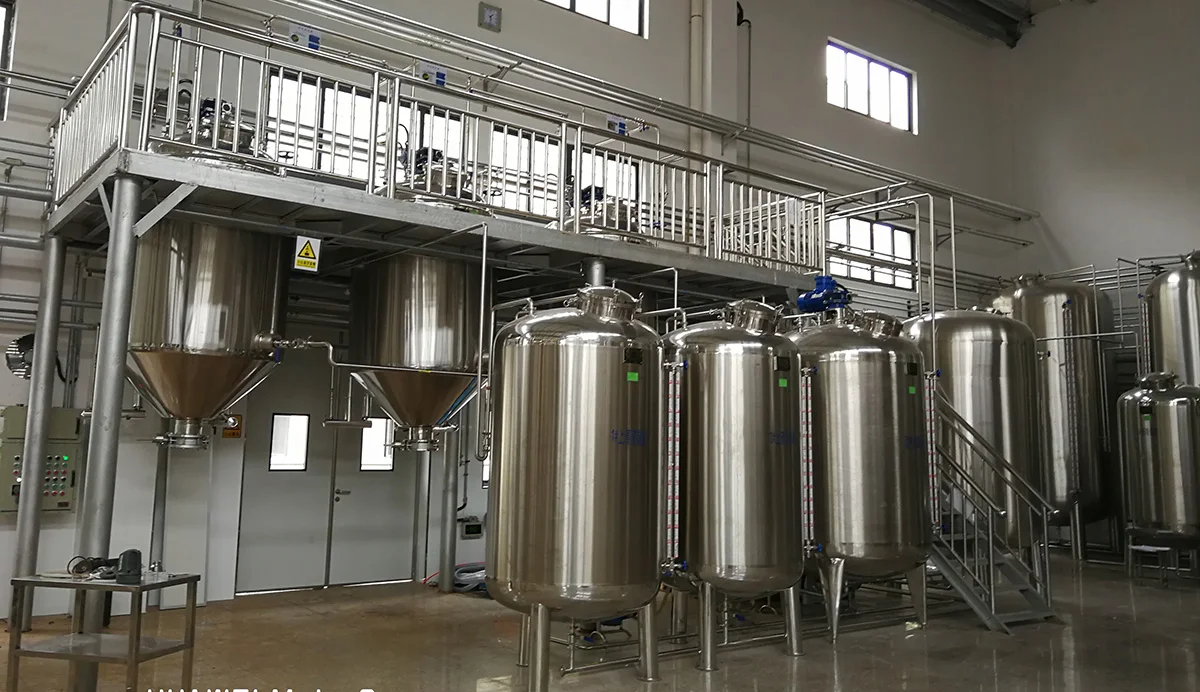

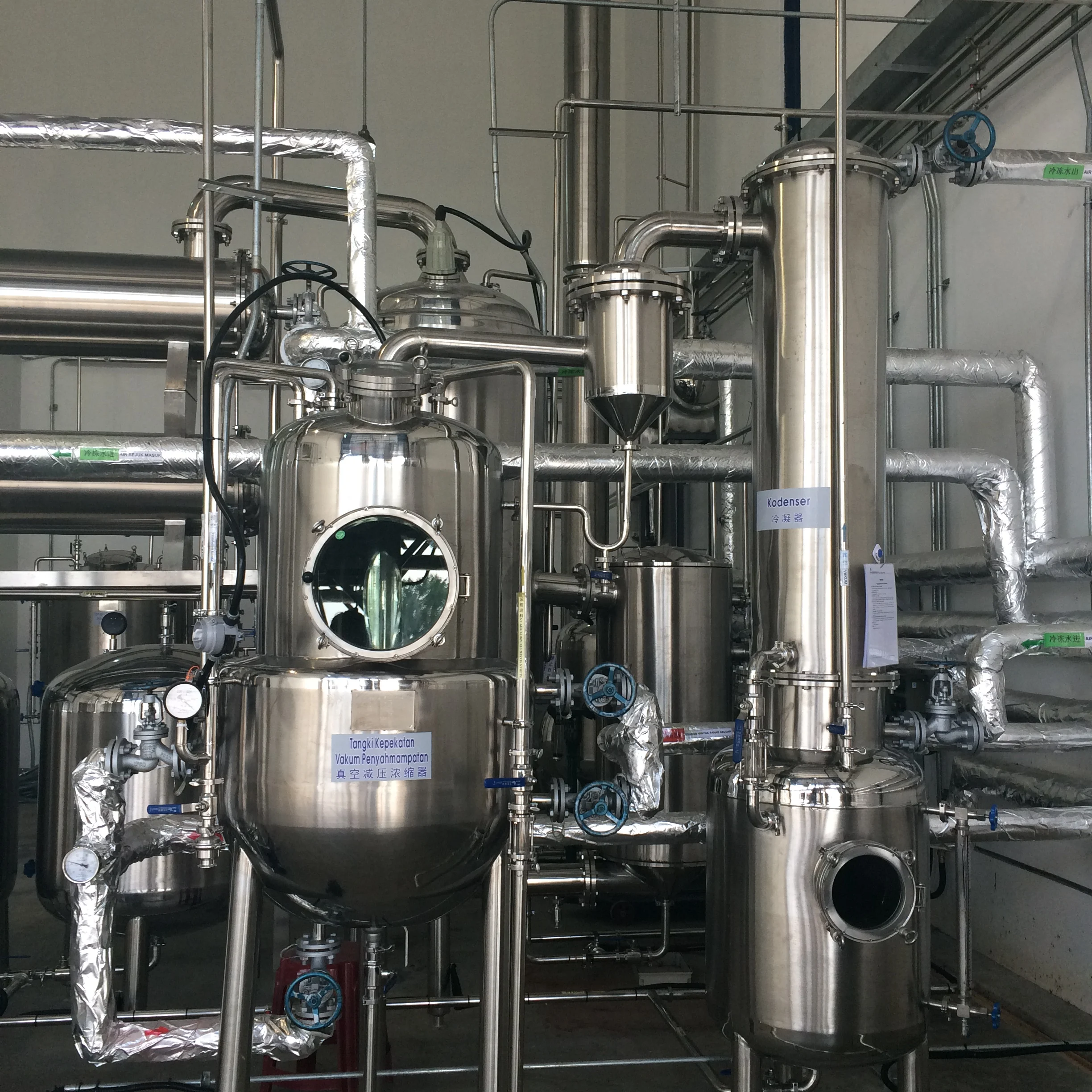

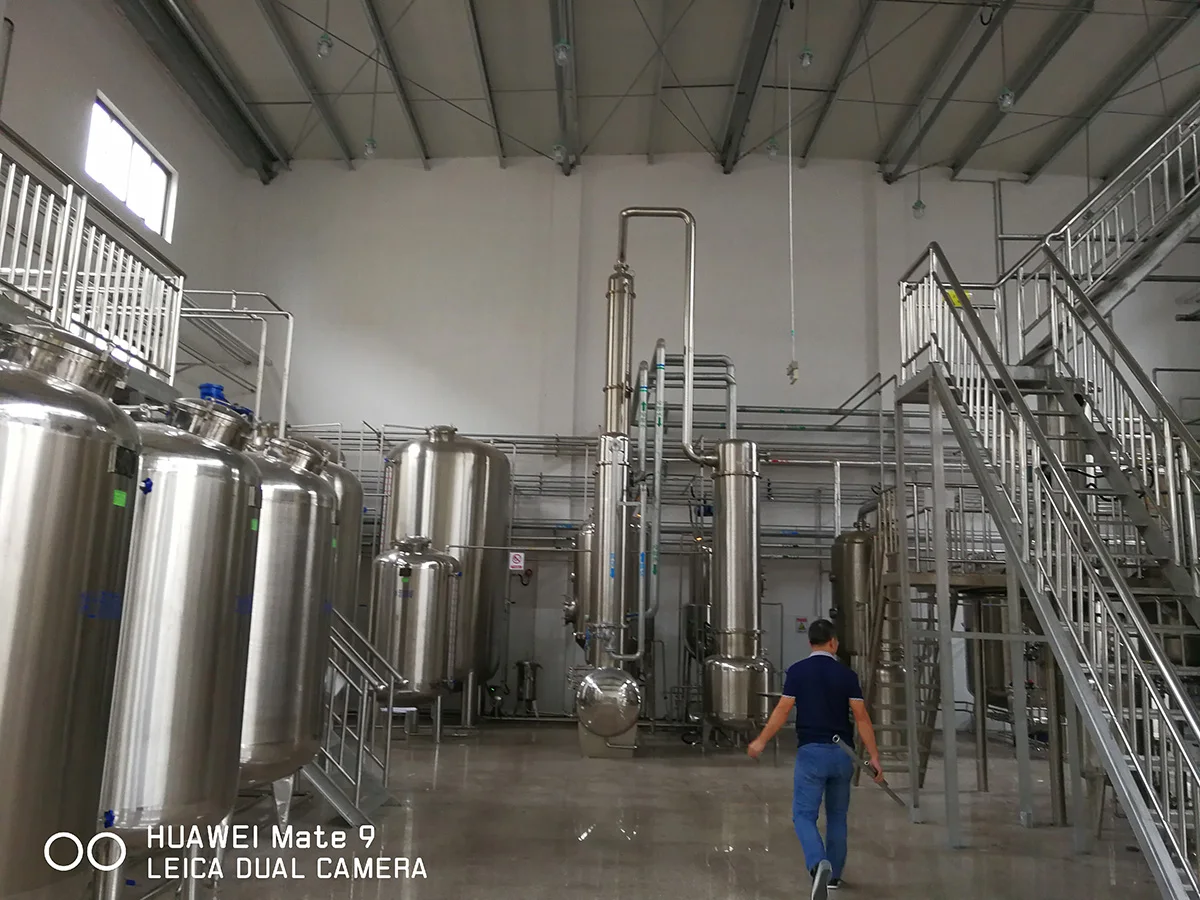

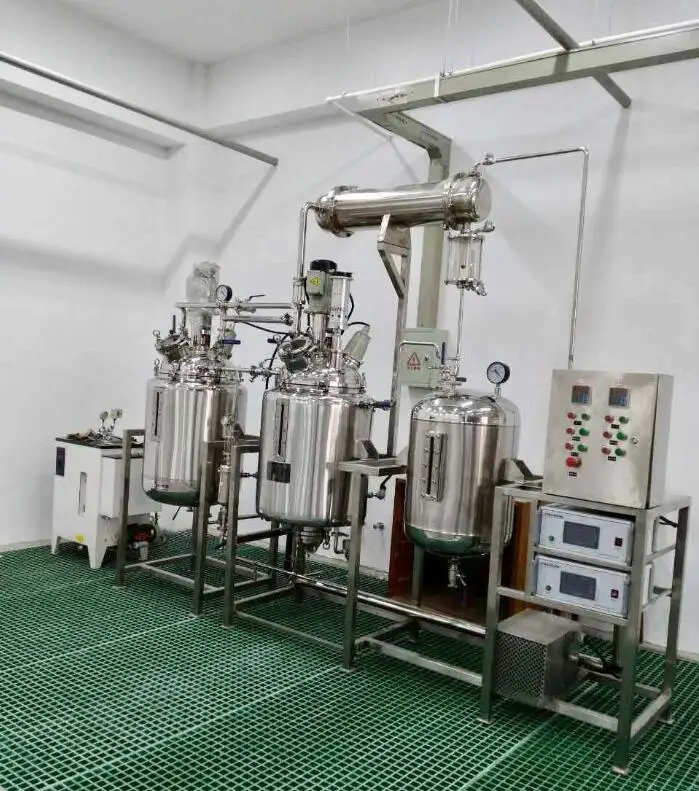

Project Samples

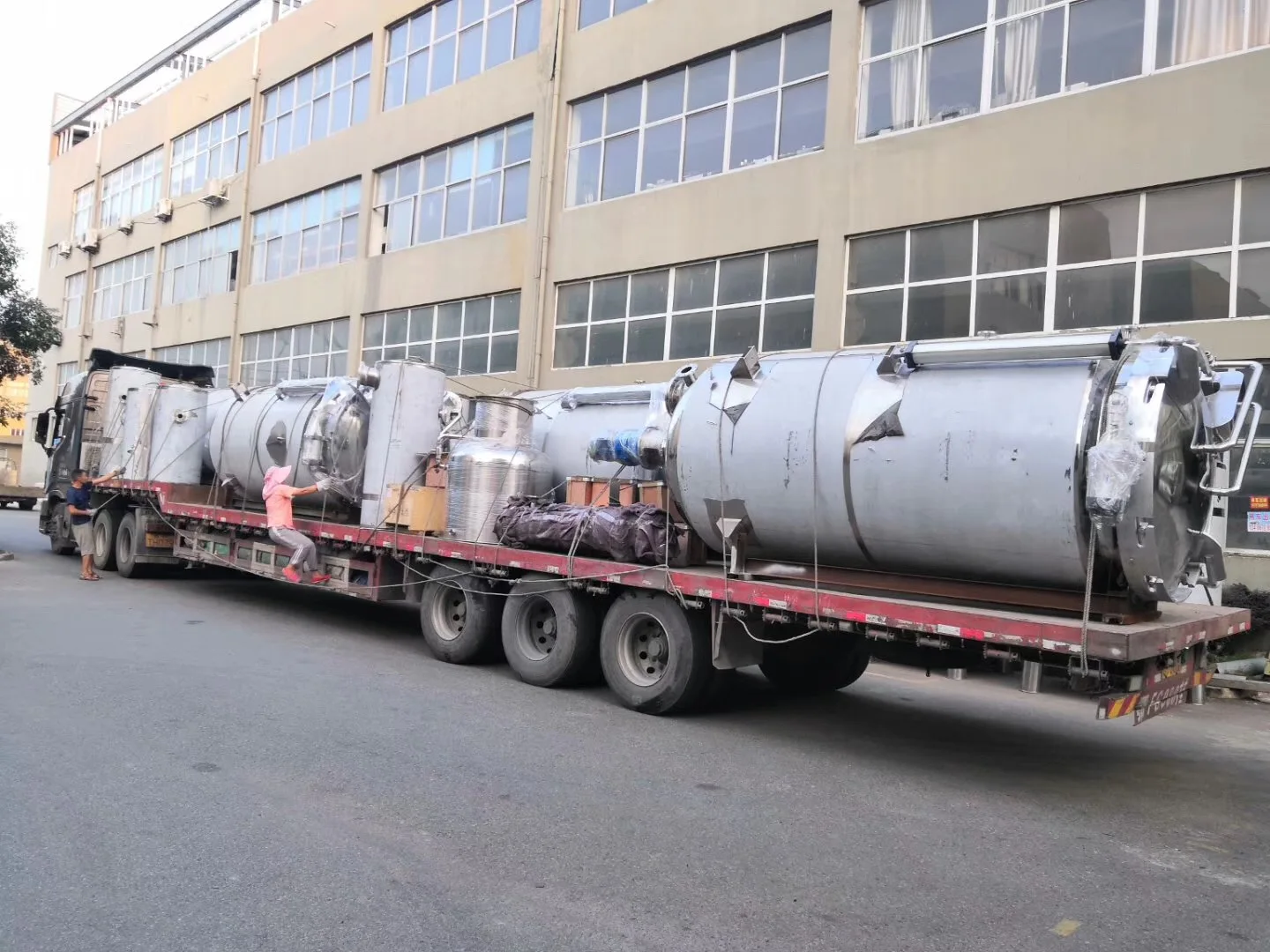

Packing&Shipping
There are two types of package solutions:

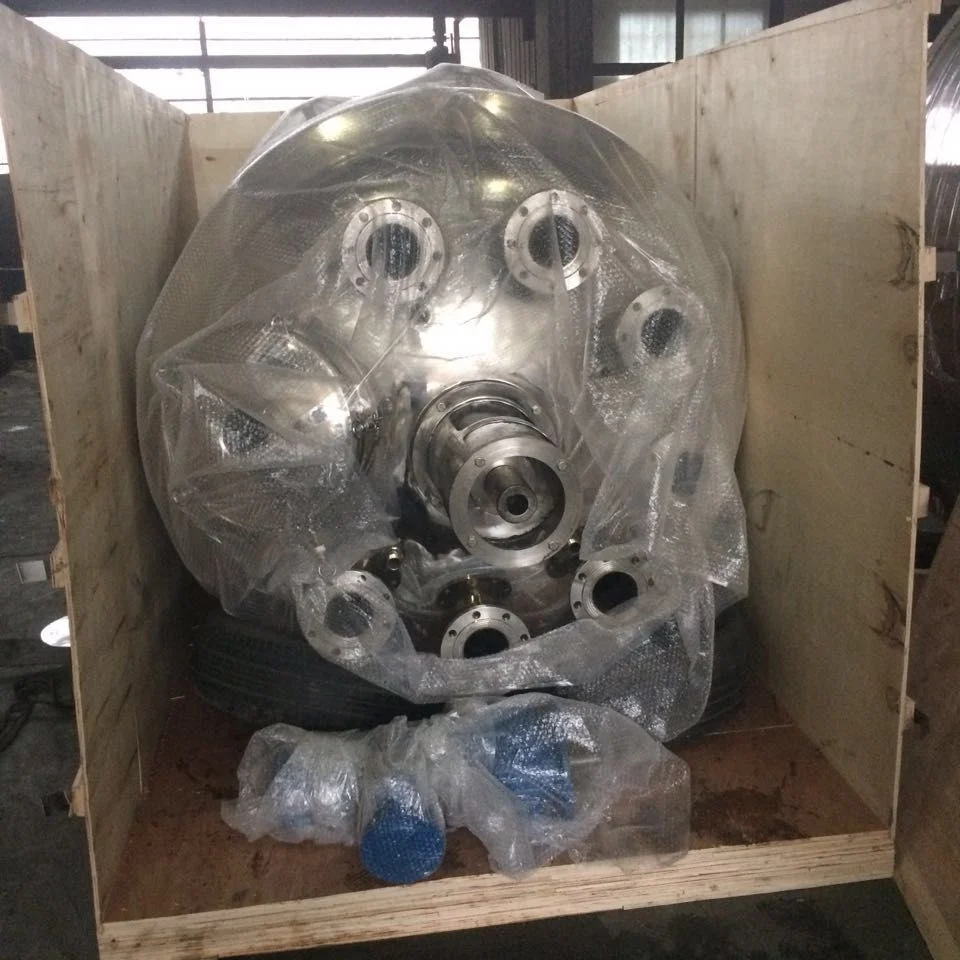

a. wood case package

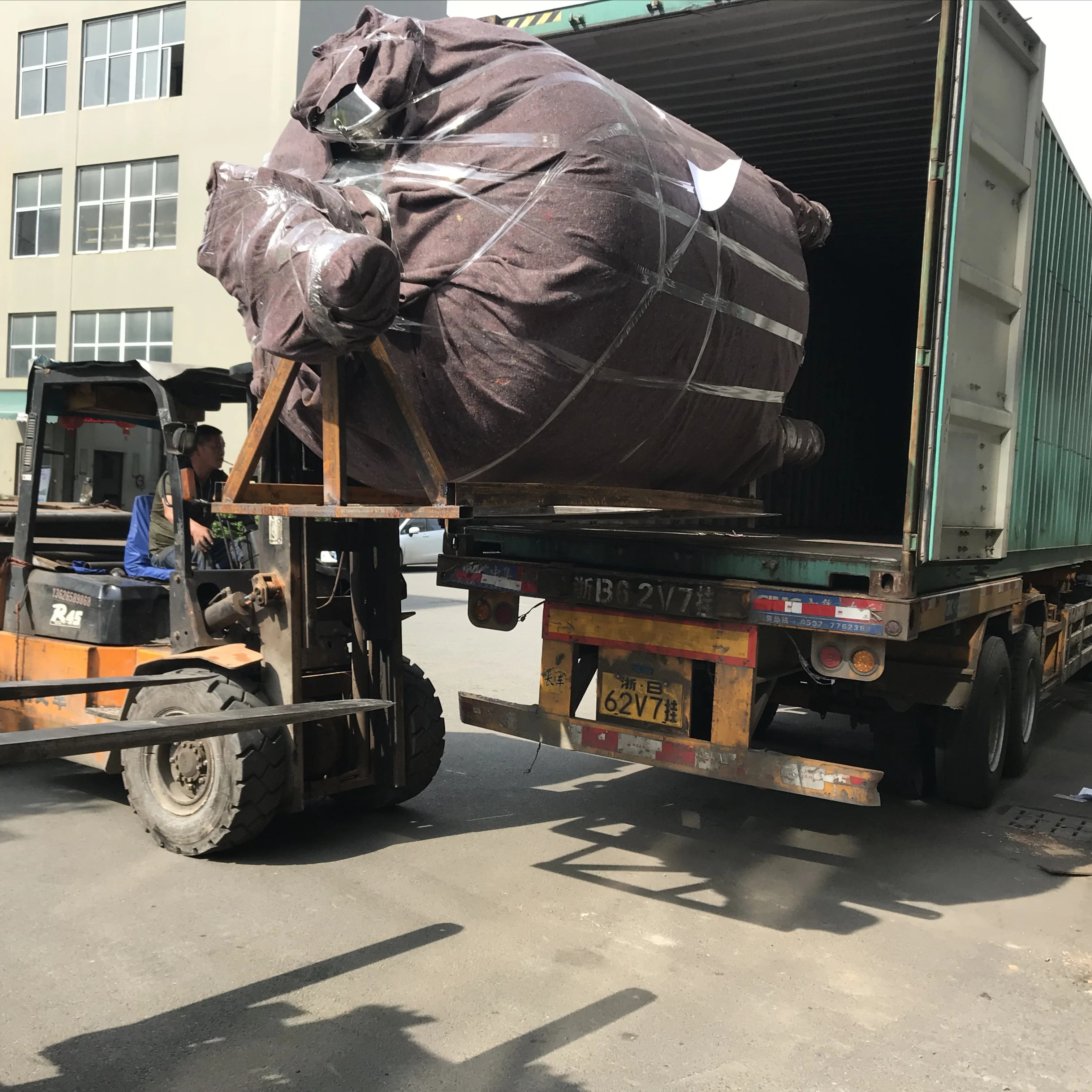

b. wrapped by black cloth and shipped
wood case package wrapped by black cloth package

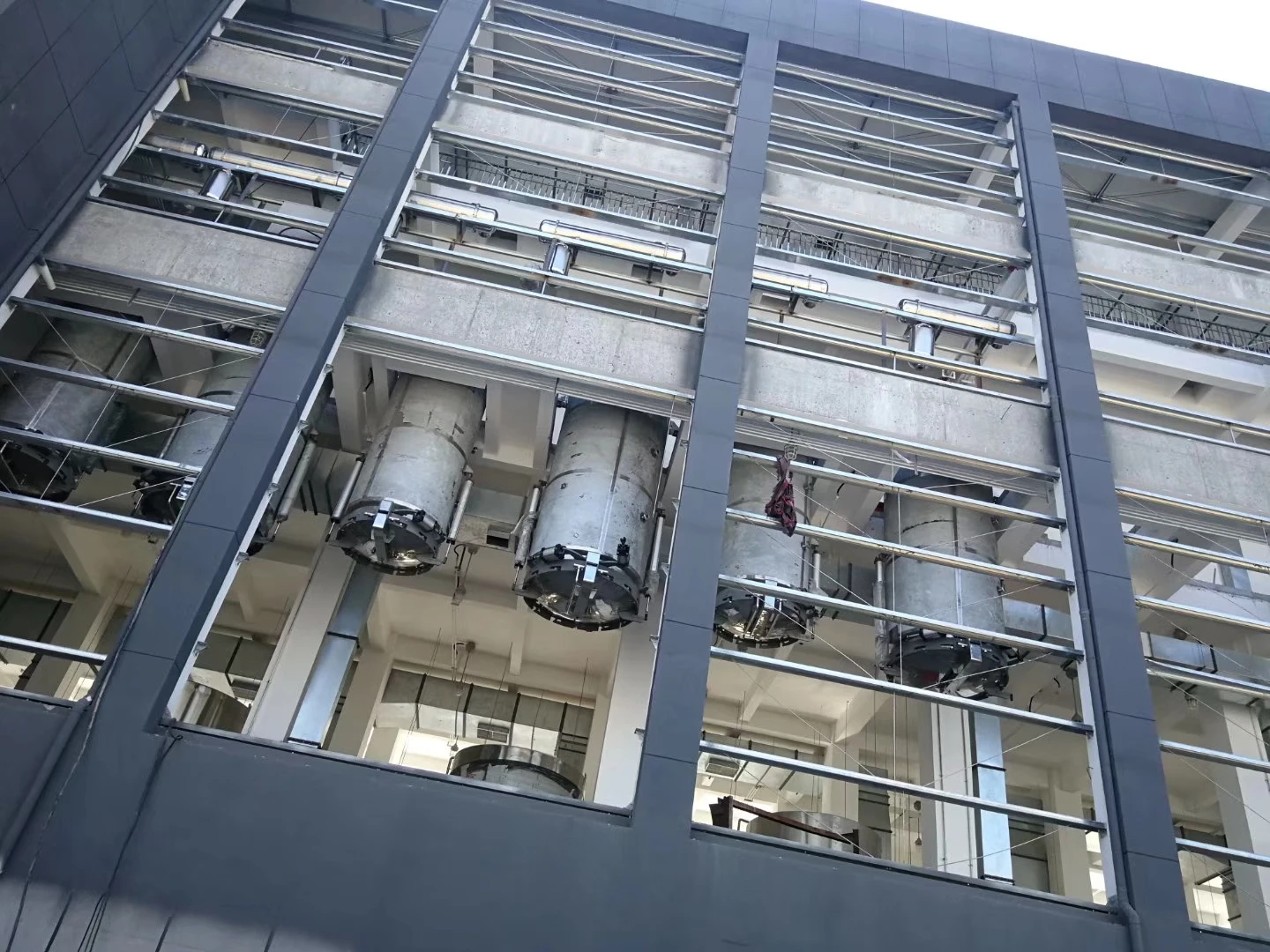

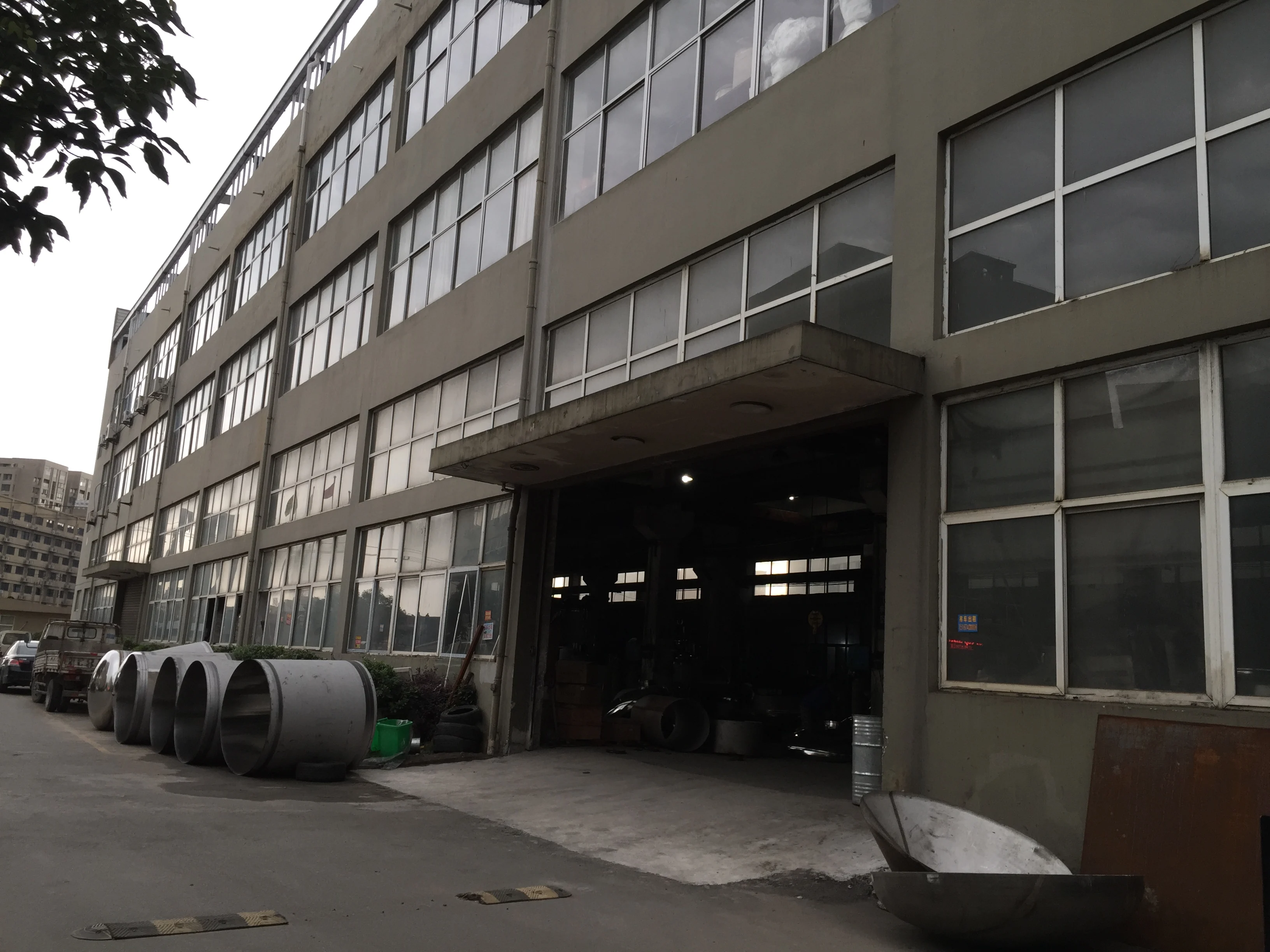

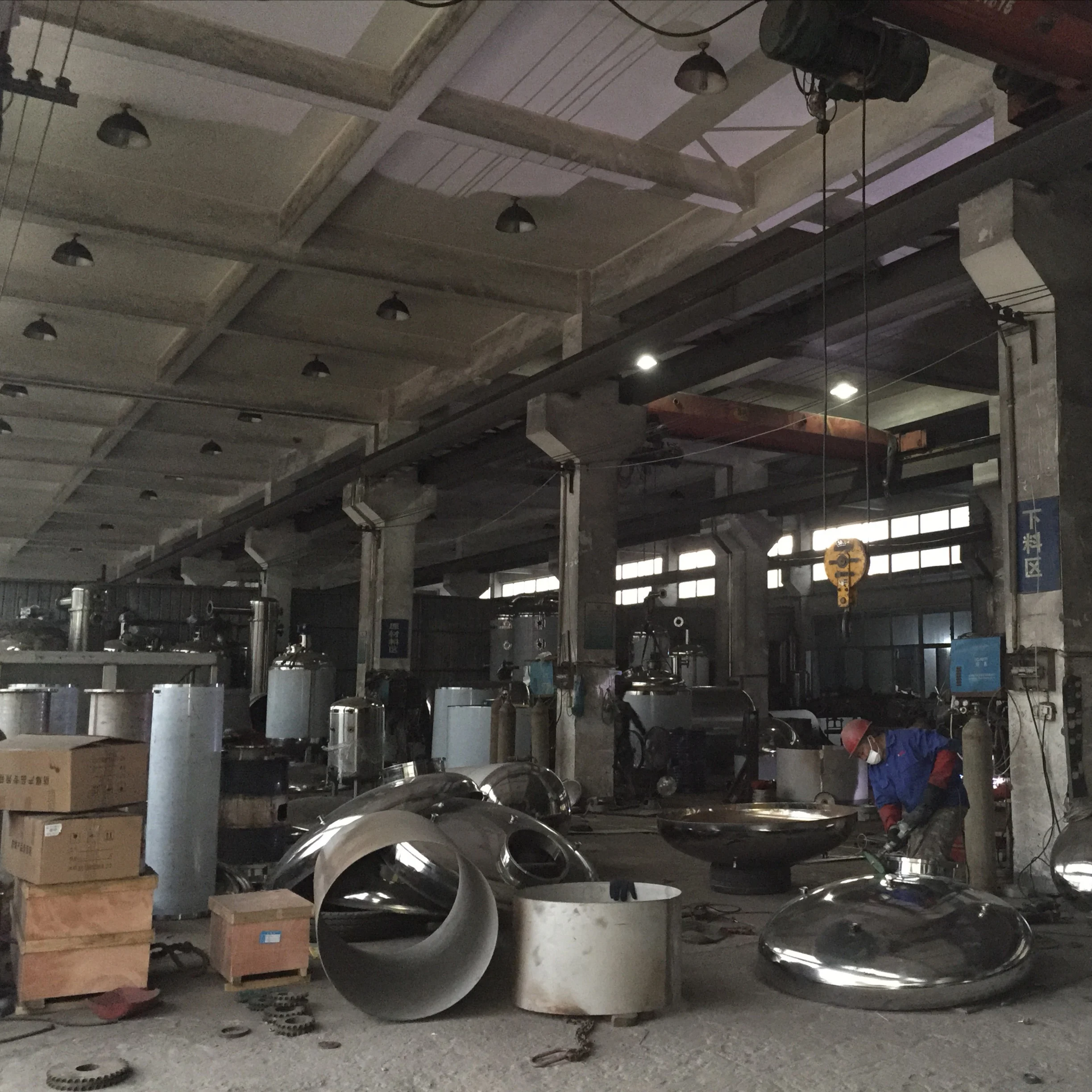

Company Profile

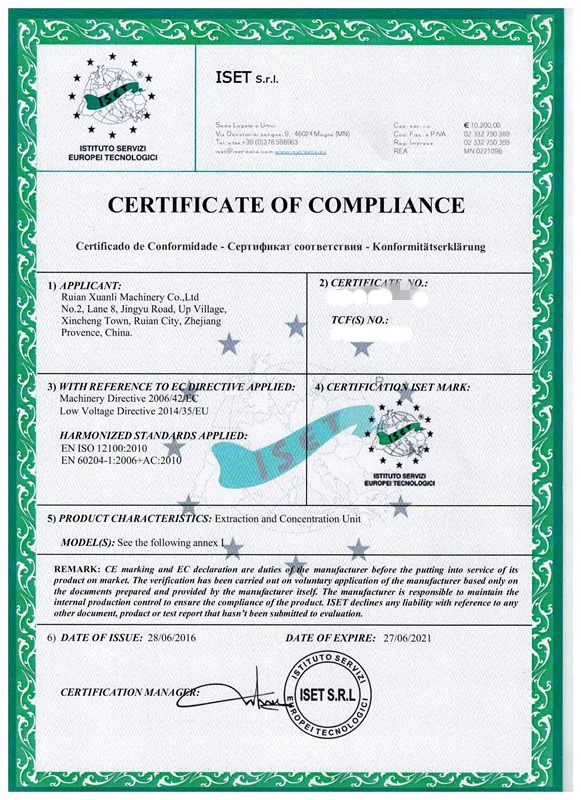

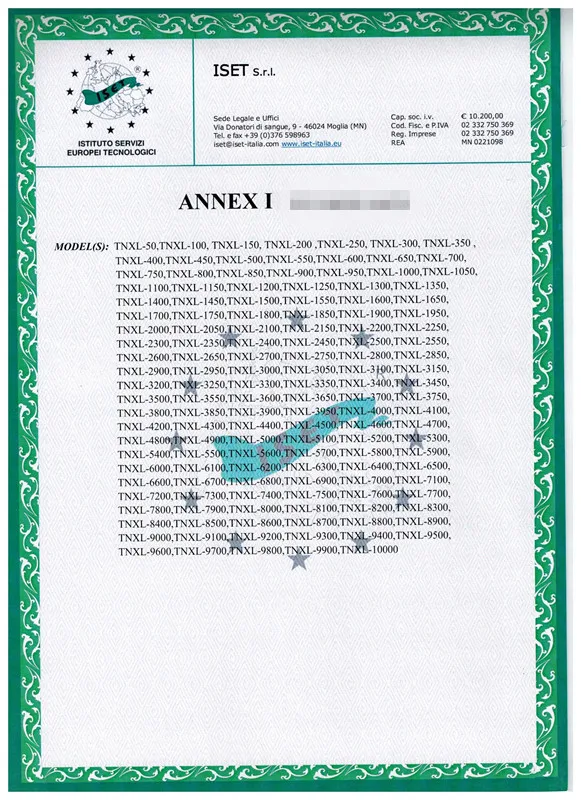

Certifications

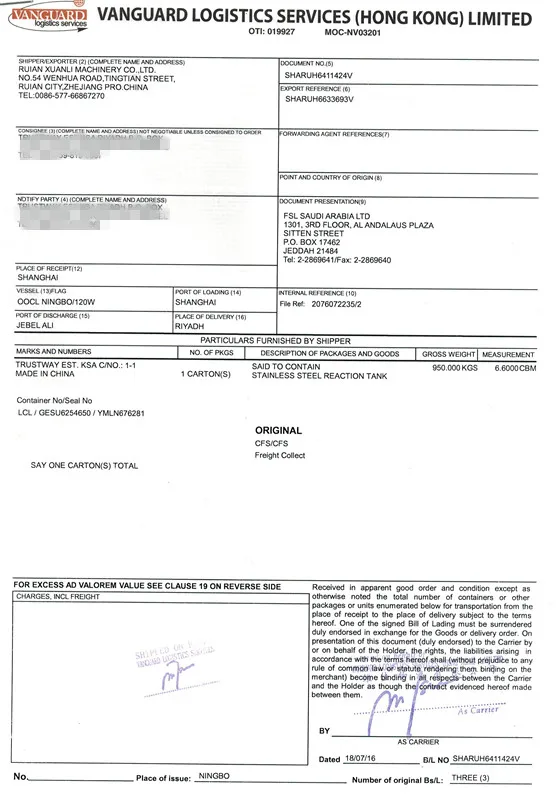

Shipping Documents
