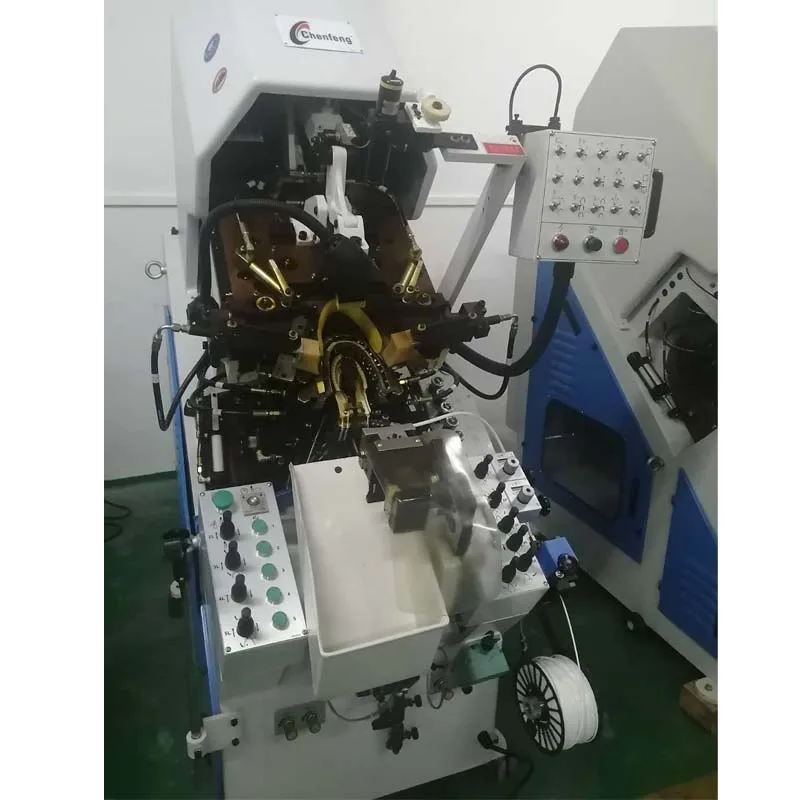

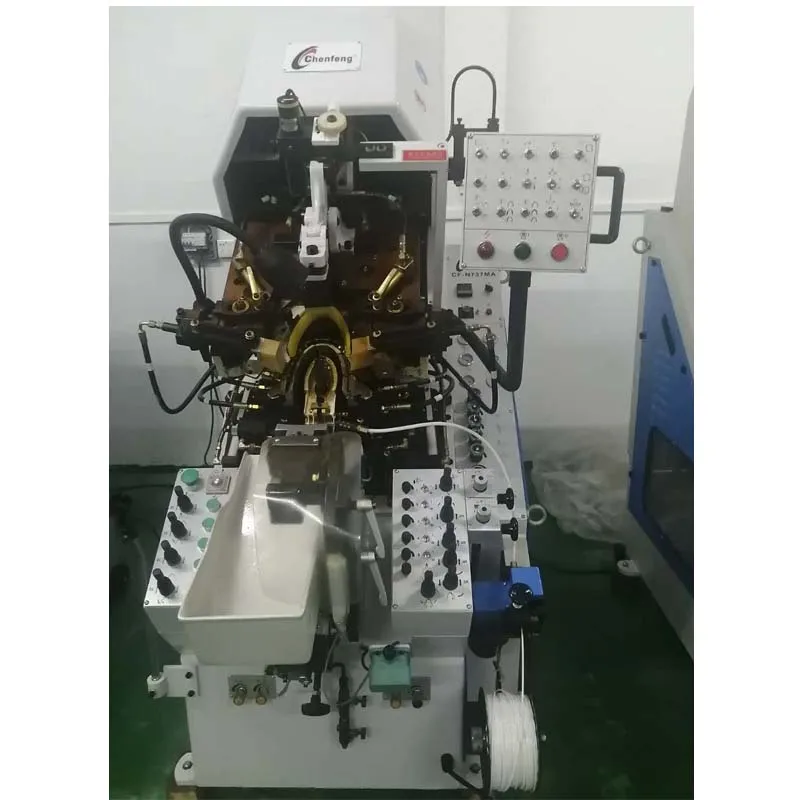

Авто chenfeng CF-N737MA носок laster используется для изготовления пвх

Fully hydraulic operated system.

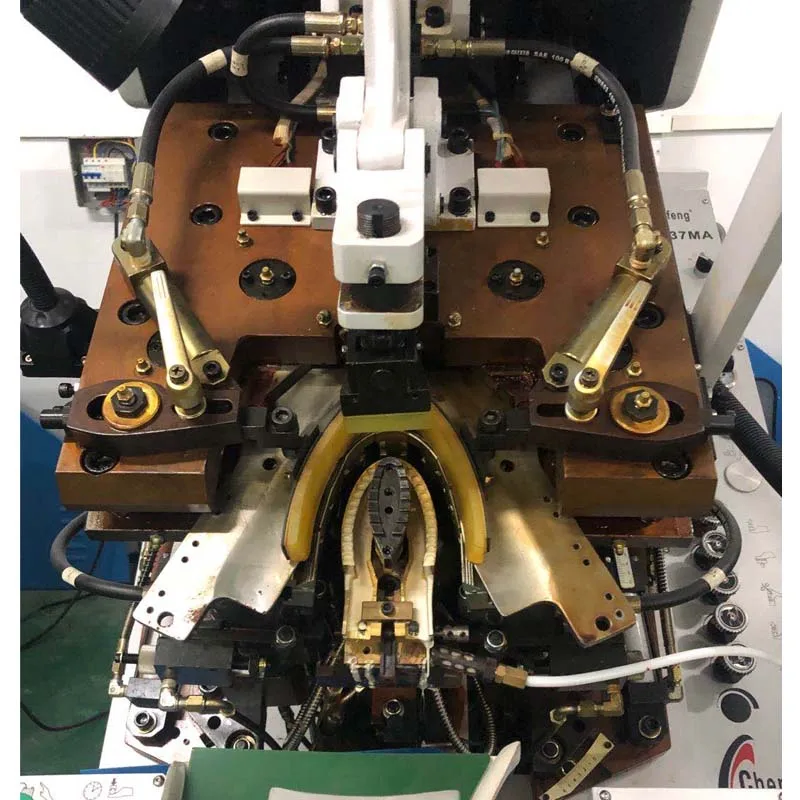

9 fine adjustable and quick-exchangeable pincers are mounted on a double tracking pincer plate .

The automatic turning inward of the last pincers left and right), increase the lasting perfection of inner part.

Each set of pincers (left and right) can be setting with automatic pulling or manual operated, preventing the upper made of different materials is only pulled on one side.

The upward stroke of the last support can be adjusted from the knob outside the machine.

There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support.

The toe pusher mechanism is designed with adjustable two step pressure. During the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set for the best operation

The forward movement of the wiper can be adjusted as no stepped variable speed controlled.

The standard equipment: Auxiliary wiper mechanism, Auxiliary side pusher mechanism and Toe projector mechanism.

Model

CF-N737MA

Pincers

9

Pump Motor

1.5KW

Max. Power Consumption

3.7KW

Oil pressure

50kg/cm2

Productivity

180 pairs/hour

Oil filling

100 liters

N.W.

1100KGS

Dimension

1000(L), 1700(W), 1900(H) mm

Packing size

1830(L), 1000(W), 2230(H) mm
