Комплект шпинделя с водяным охлаждением 100 мм 3 кВт шпиндель инвертором кВт/VFD + водяной насос 80 Вт зажим 13 шт. цанг
- Категории: Machine Tools Accessory >>>
- Поставщик: Changzhou,Handi,Motor,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

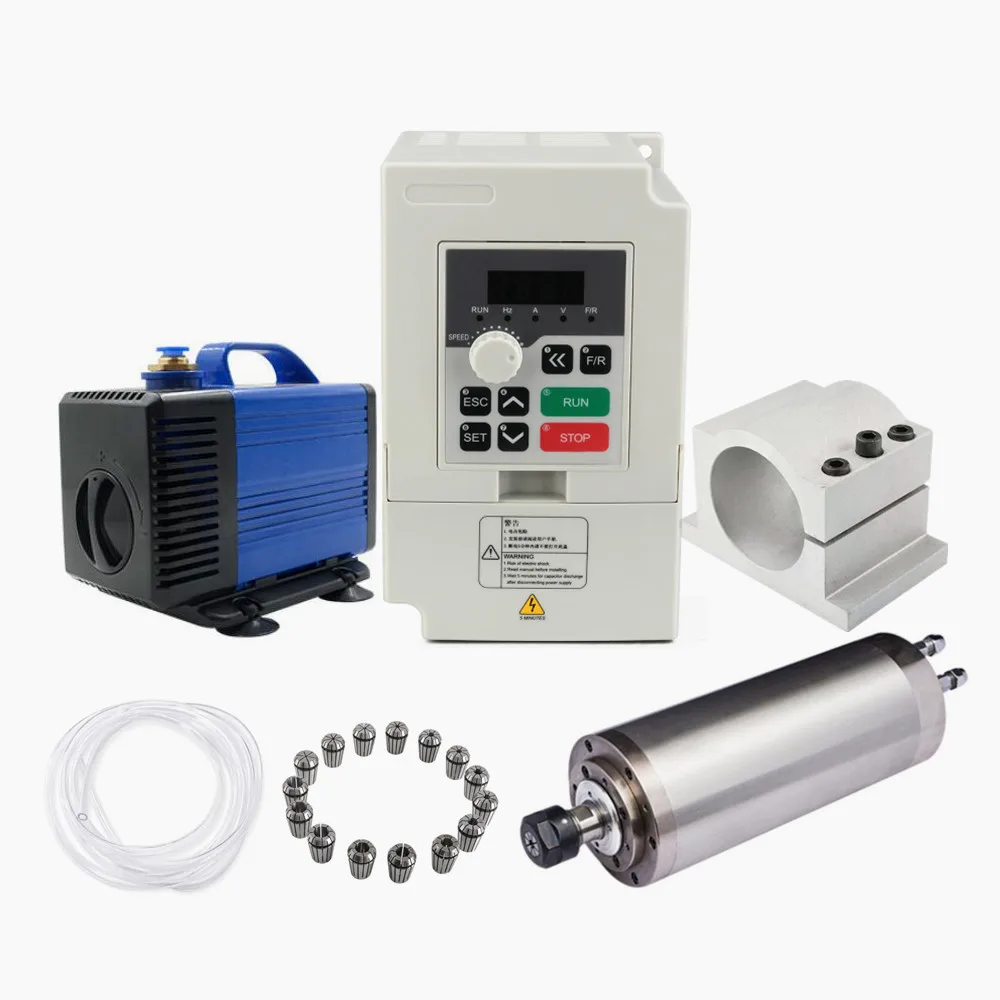

Water cooled spindle kit 100mm diameter 3kw spindle with 3.7kw inverter/VFD+80w water pump+100mm clamp+13pcs ER20 collets/
Product Description
Packing detailes:
| Item | Quantity |

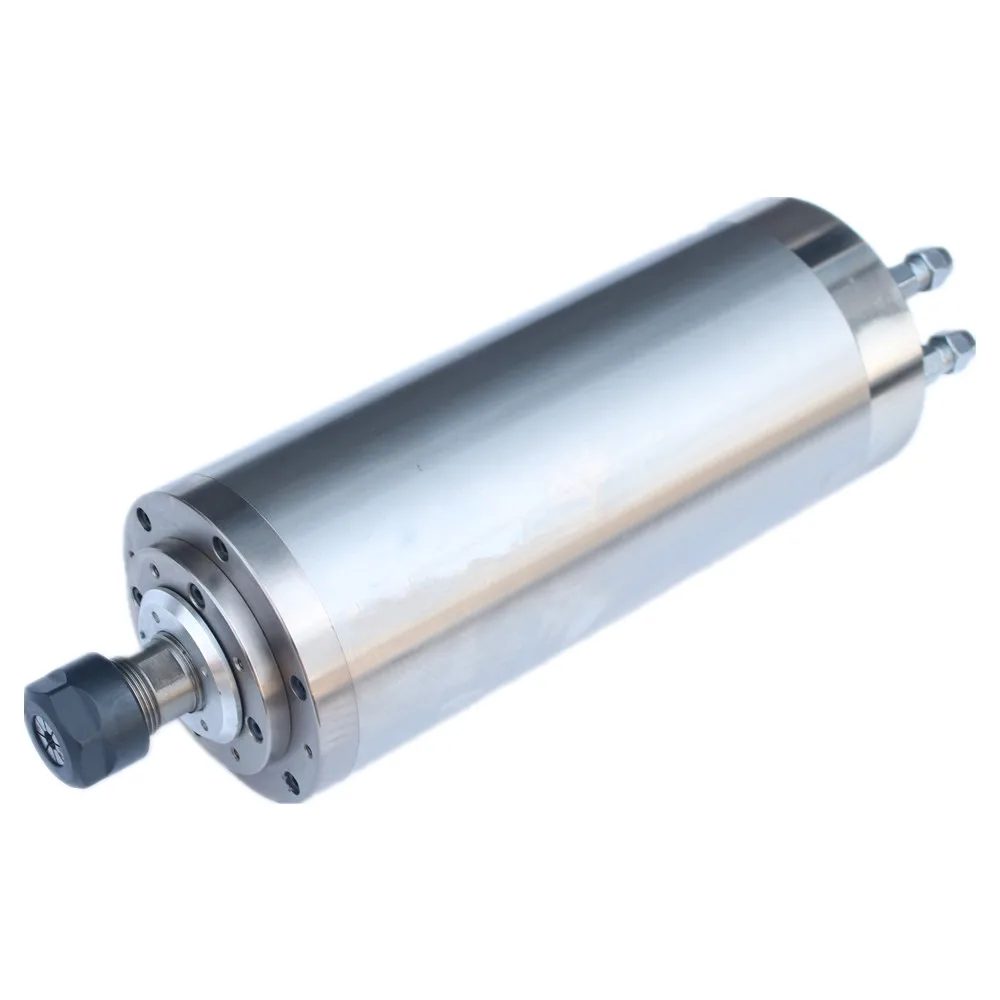

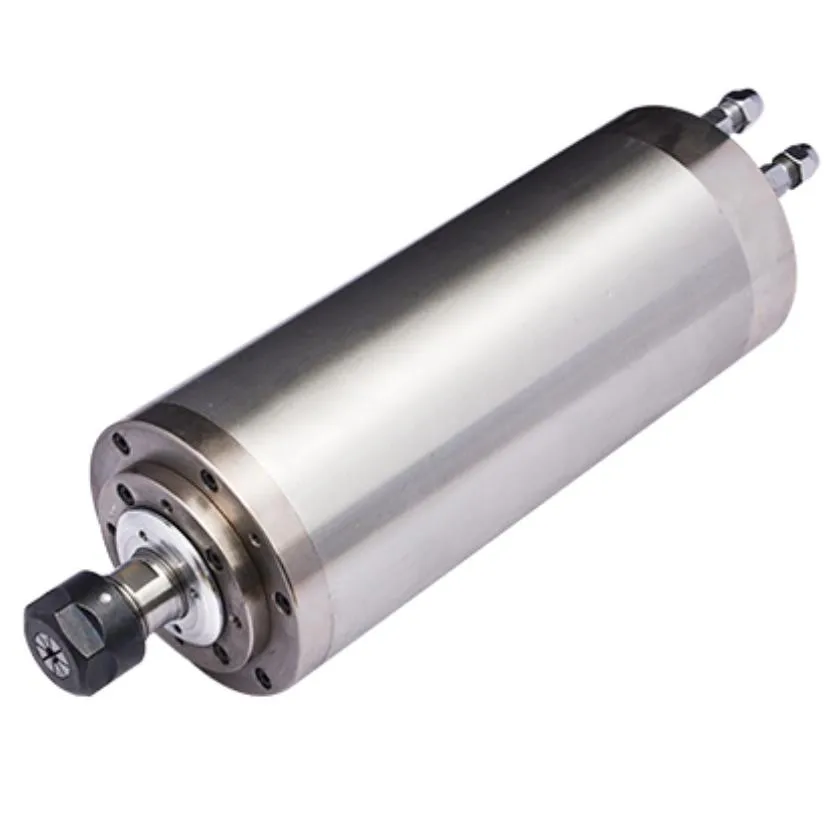

| 100mm 3kw Water cooled Spindle Motor 220V/380V | 1 PCS |
| 3.7KW Inverter 220V/380V | 1 PCS |

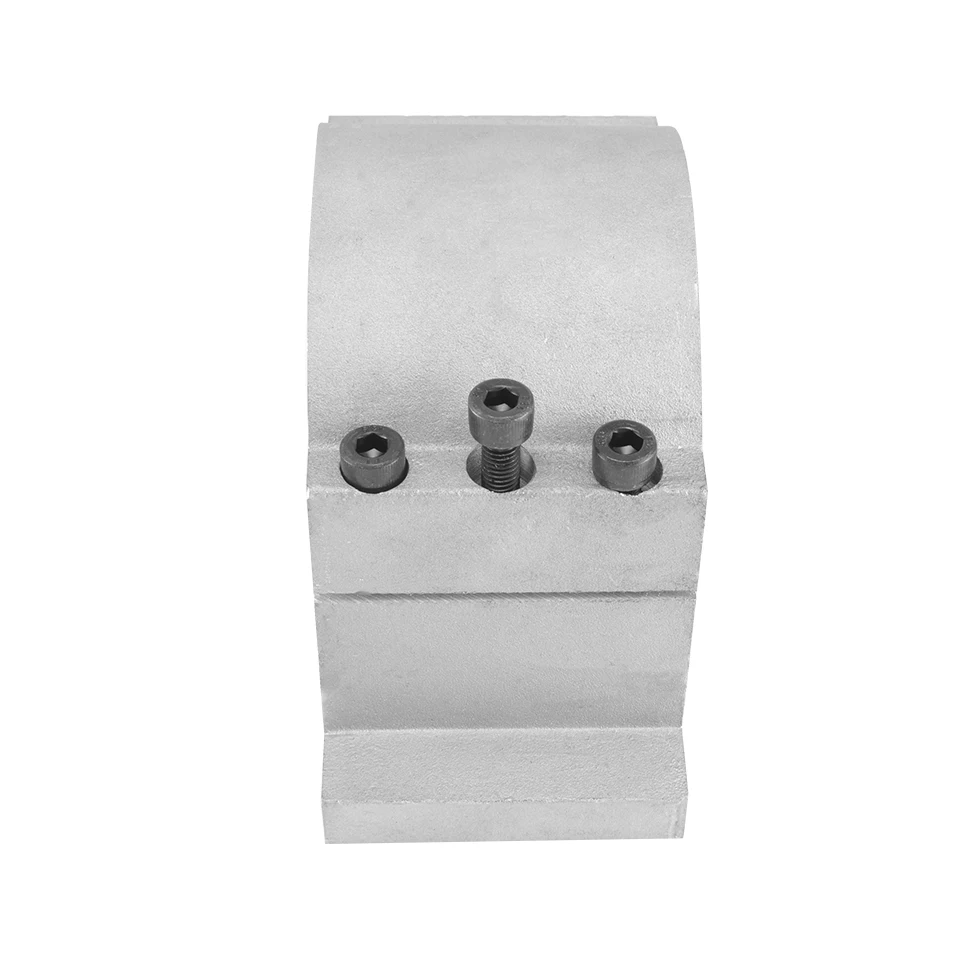

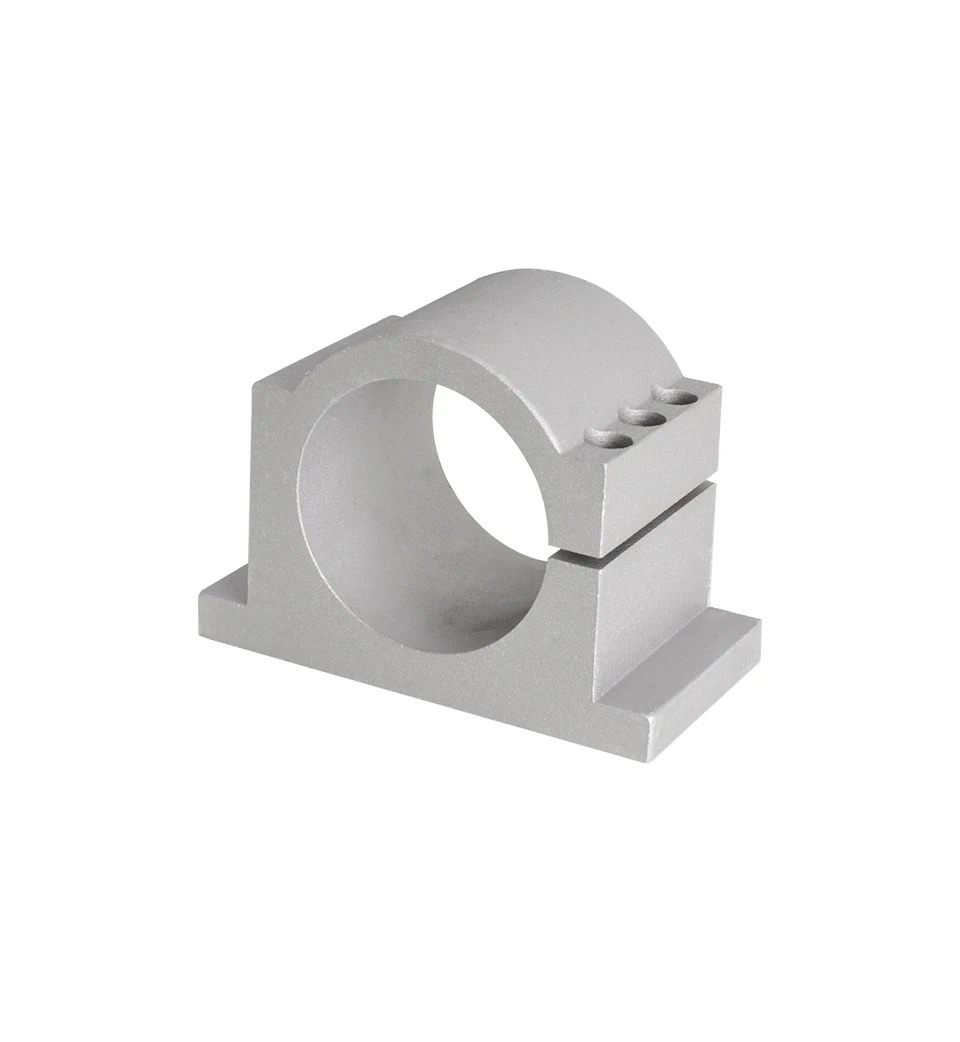

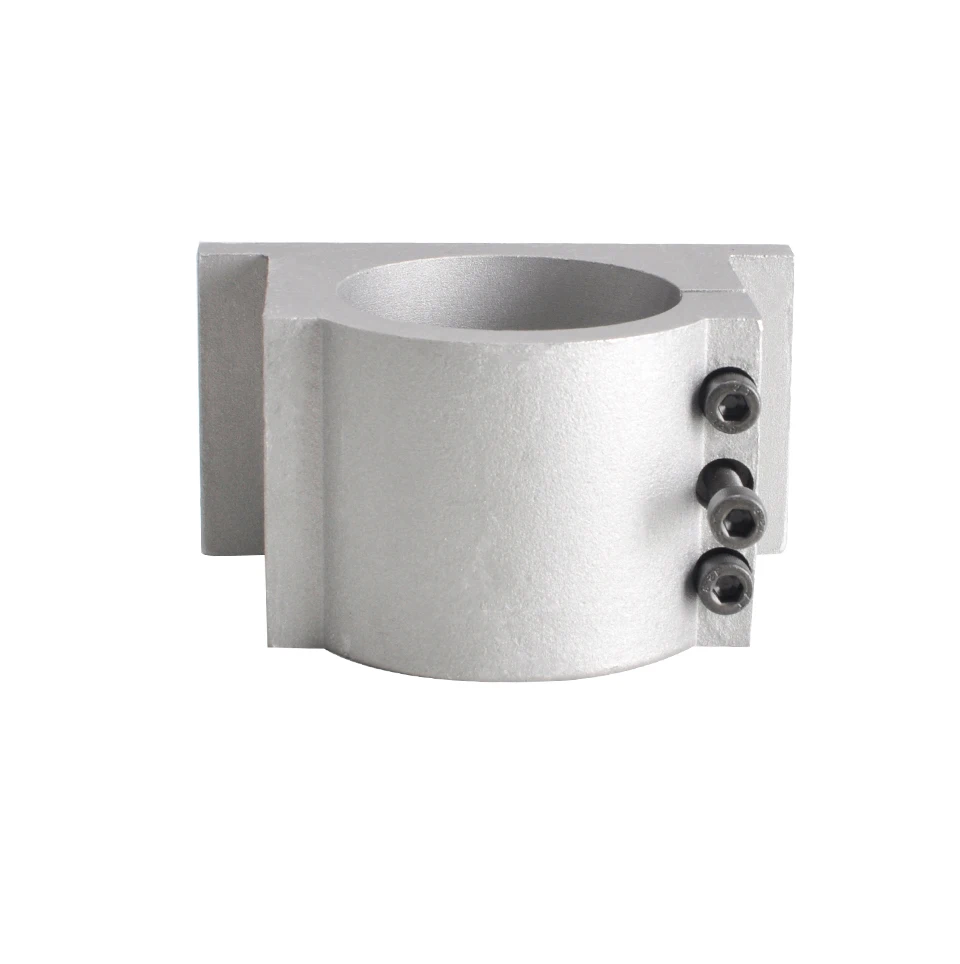

| 100mm Spindle Clamp | 1 PCS |

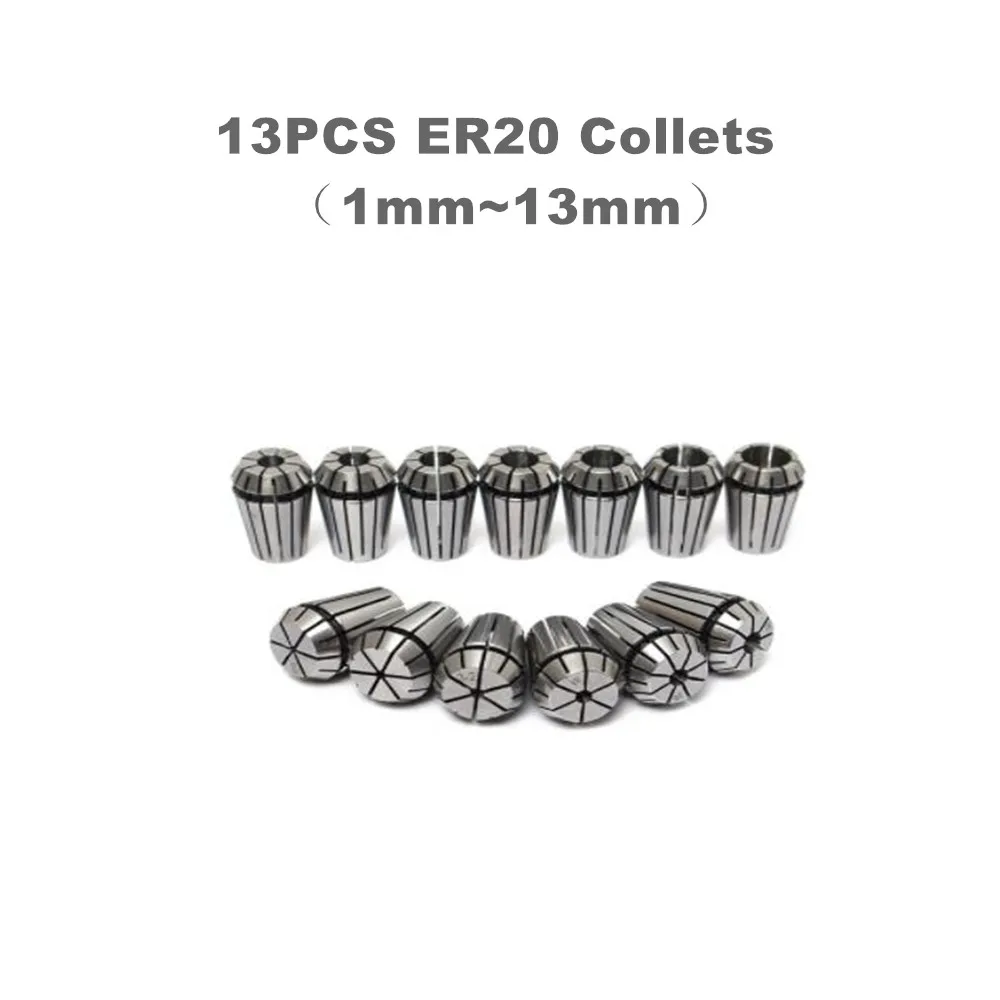

| ER20 Collet | 13 PCS |

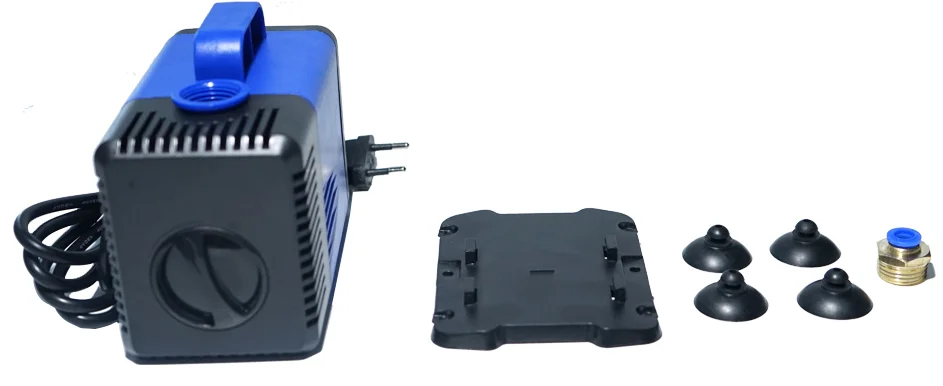

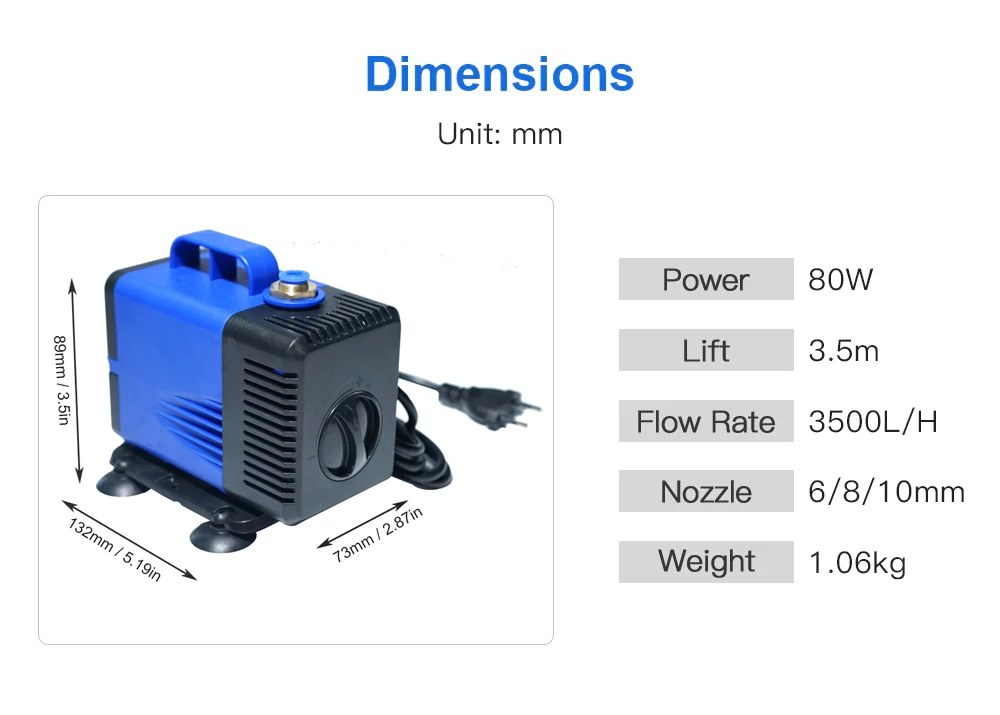

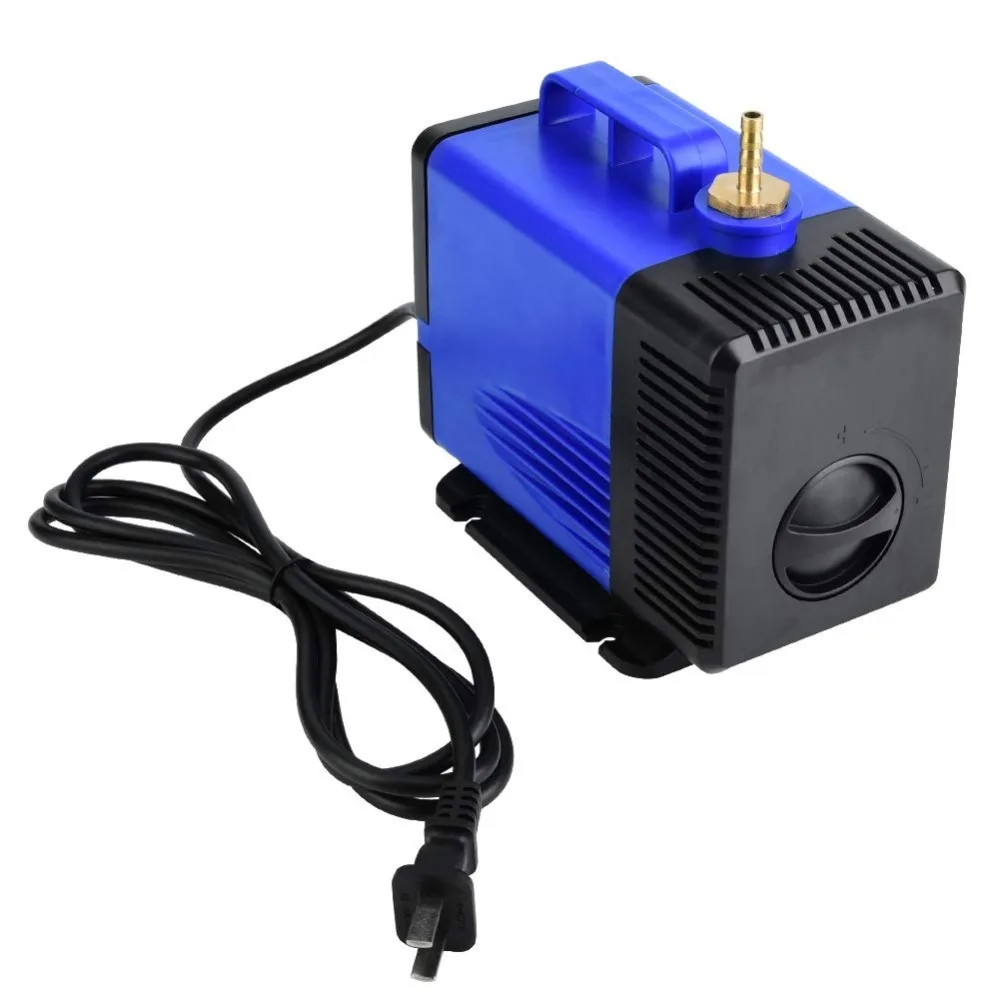

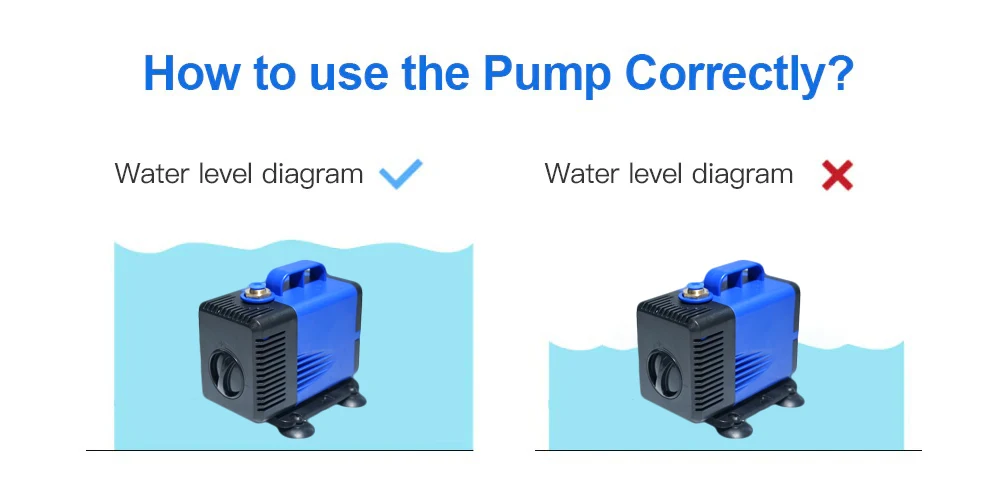

| 80W Water Pump+5M Water Pipe | 1 PCS |
Technical parameter:
| Spindle Model | Φ100*3KW ER20 Water Cooling |
| Power | 3KW |
| Voltage | 220V/380v |
| Current | 10A |
| Frequency | 400HZ |
| Weight | 8.8KG |
| Cooling type | ER20 φ3.175~φ12.7 |
| Shaft and connection | Water Cooling |
| Usage | Engraving machines |
| Wattantyperiod | Bearings for half year, other parts for one year |

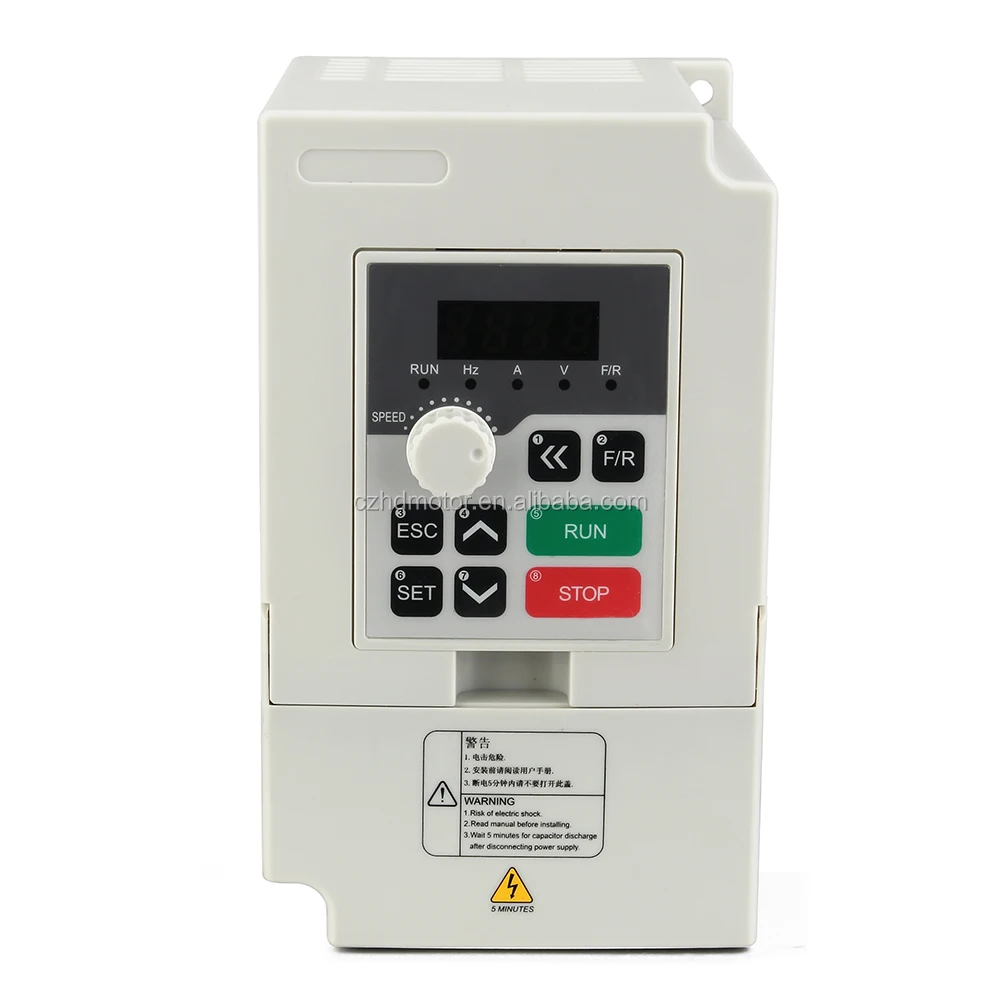

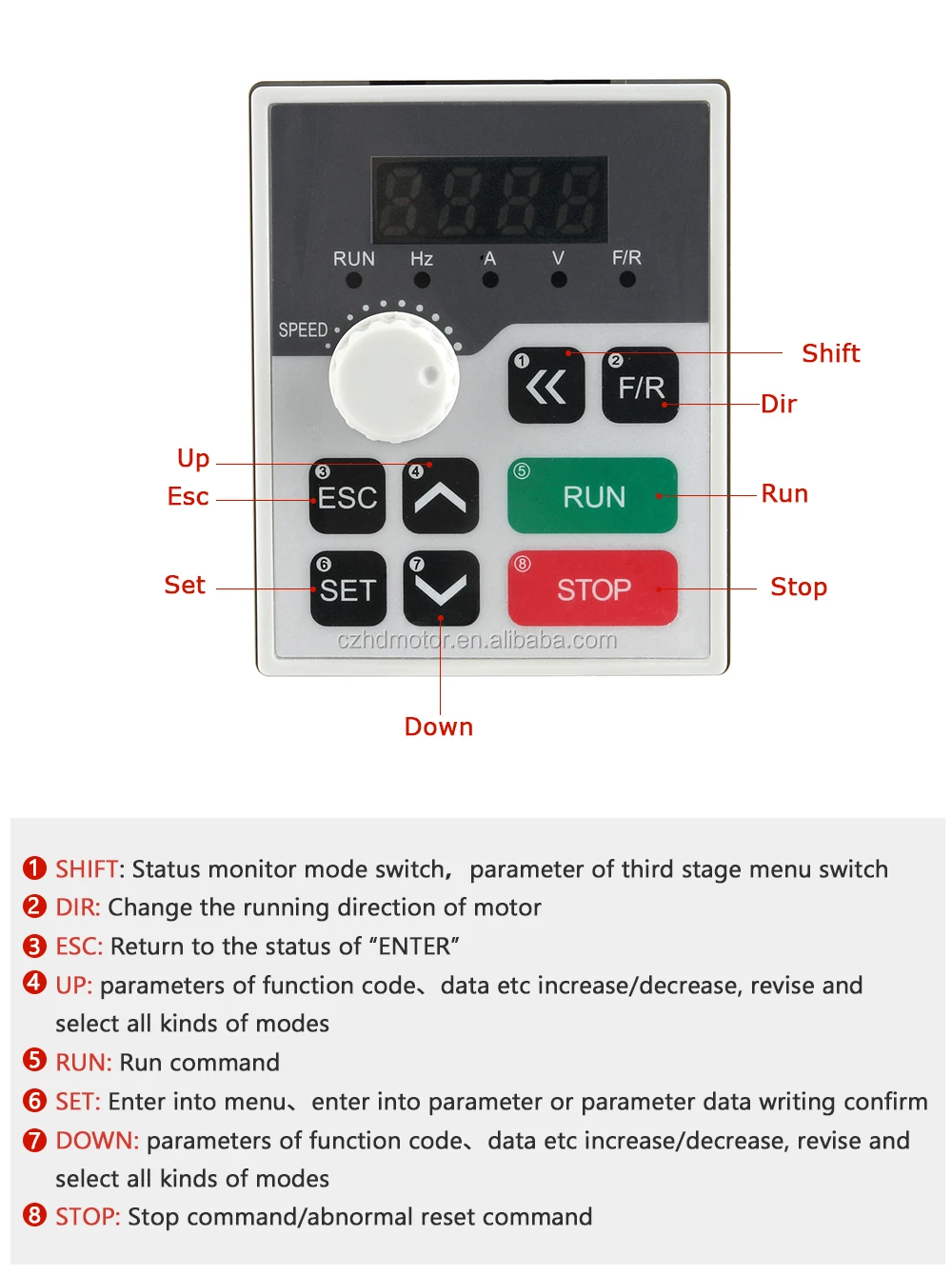

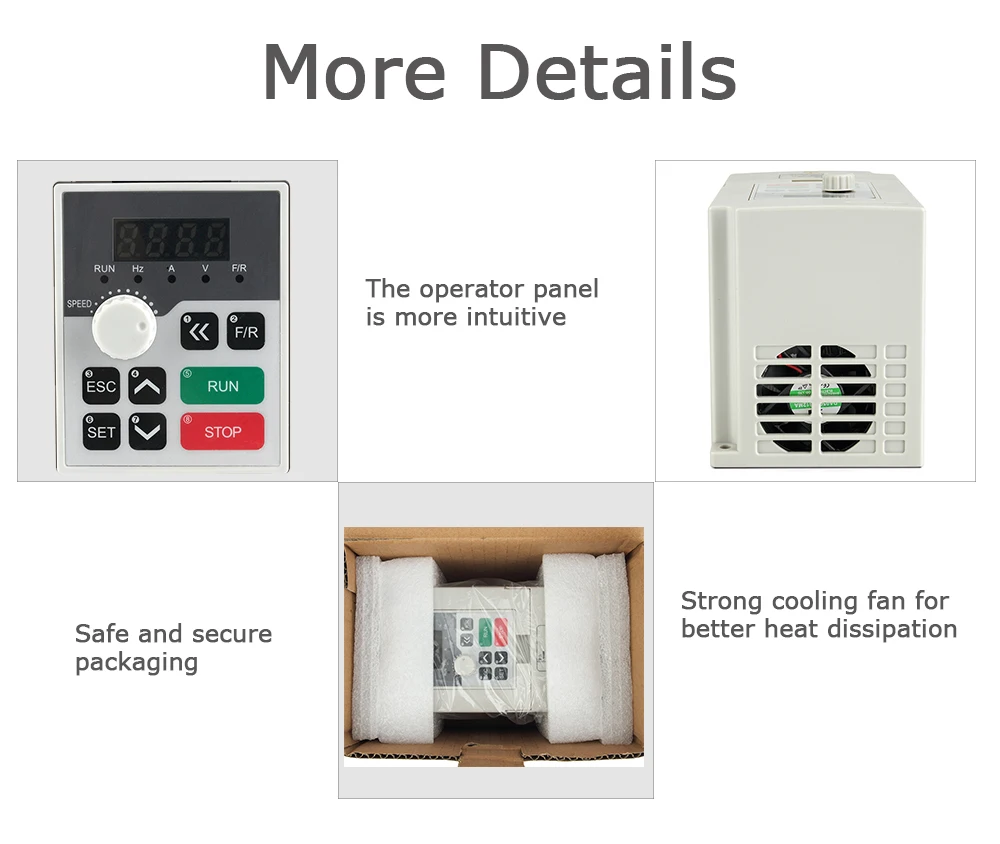

| Inverter Model | H100-3.7T4 |
| Power | 3.7KW |
| Voltage | 220V/380V |
| Current | 17A/8.5A |
| Frequency | 50HZ/60HZ |
