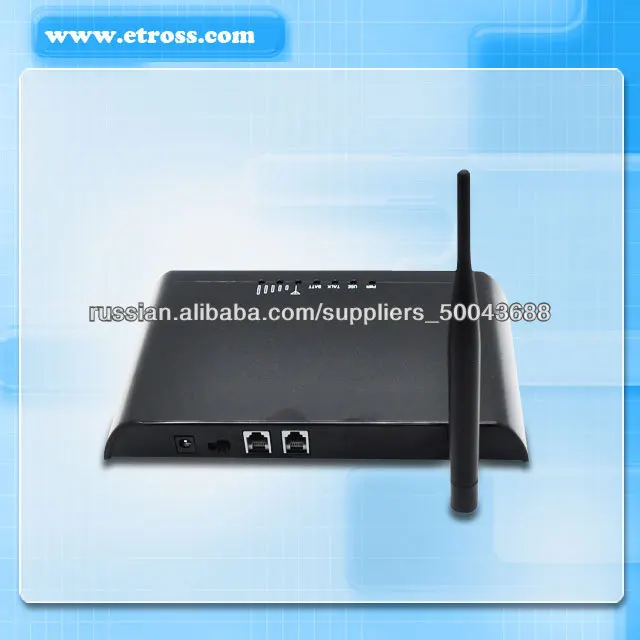

(EC25AFX module inside) 4G Fixed wireless terminal FWT-4G 8848 for USA market



Brand: Etross or OEM brand
Model no.: Etross-8848 4G
Product name: 4G GSM Fixed Wireless Terminal/GSM FWT/GSM FCT/GSM WLL/GSM gateway
Frequencies: 3G UMTS:850/900/1900/2100 MHz , GSM:850/900/1800/1900 MHz,4G B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28/B66/B71(4G band is optional, just contact with me for the 4G band you request)



The frequency is customized , if you need other frequency please inform me before place order .



1,General Description

4G LTE FWT ETS-8848 is a 4G Lte to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local land line(PSTN) except your calls will go out from the GSM network. This device can both receive and make calls.



The main application is: Connecting the RJ-11 FXS line to an ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect  FXO gateway to realize call termination; to connect alarm system for security purpose, etc.



It is a 4G LTE Fixed Wireless Terminal that produces an analog FXS phone line .



Module employed:

Quectel 4G LTE Standard EC25AFX



The main application is:

Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call,

Connecting the PBX for call extentions,

Connecting the billing systems for public phone use,

Connecting the  gateway to realize call termination,

Connecting the alarm system for security purpose, etc. It is not a gateway



Available in 3G Tri-Band UMTS/HSDPA/HSUPA(WCDMA/FDD):850/900/1900/2100 MHz

                 2G Quad-Band GSM850/900/1800/1900Mhz

                 4G (Optional for frequency)



2,Features and Functions:

1) It is a 1 port 4G LTE fixed wireless terminal which has 2 RJ-11 outputs for extensions;

2) It supports VoLTE function.

3) It can connect with ordinary telephone set, PBX , Gateway, Billing meter etc.

4) Employ industrial module Quectel EC2X series to make

5) Simple to install and easy to maintain

6) Steady module and reliable design ensures good performance

7) Provides optimized circuit directly connecting the exchange device for extensions

8) Compatible to most telephones, PBX device.

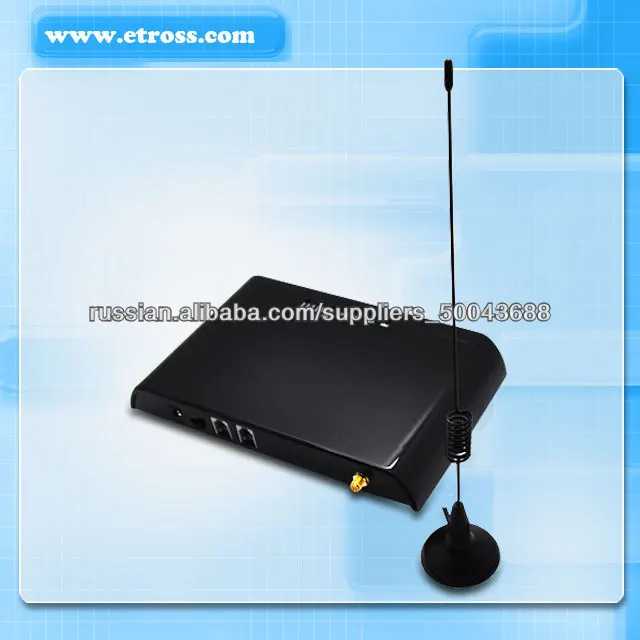

9) Strong signals with high gain antenna

10) Attractive plastic casing

11) SIM card supported (1.8V, 3V)

12) Caller ID display

13) Support DTMF/FSK

14) Provides reversal polarity signal for metering

15) No noise and clear voice

16) Suitable for wide voltage range and low power consumption

17) Suitable for all kinds of weather and environment

18) Locking PIN / network (optional)



3,Technical Specifications:



Air interface standard:

Quectel 4G LTE standard module EC2X is a wireless module which is designed for the global market.it can be designed in many kinds of applications which can work on 4G LTE network.



Quectel 4G LTE module EC2X support the Bands as the following:

EC25-EUX for example :

LTE FDD: B1/B3/B7/B8/B20/B28A

LTE TDD: B38/B40/B41

WCDMA: B1/B8

GSM/EDGE: B3/B8



Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W

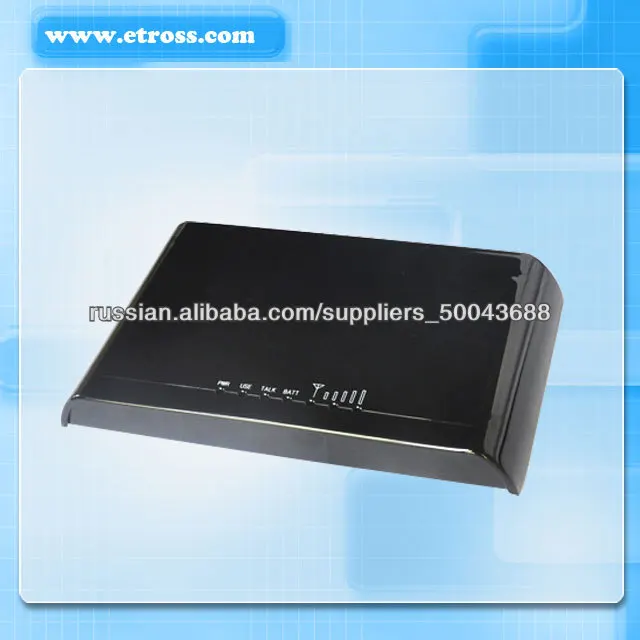

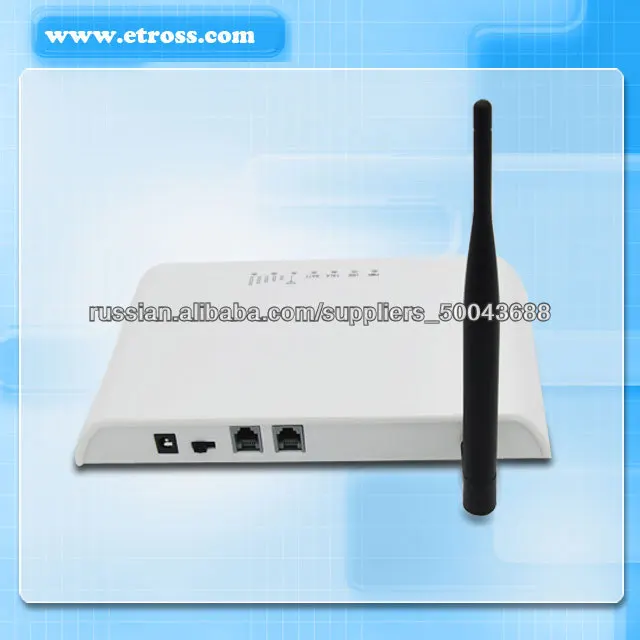

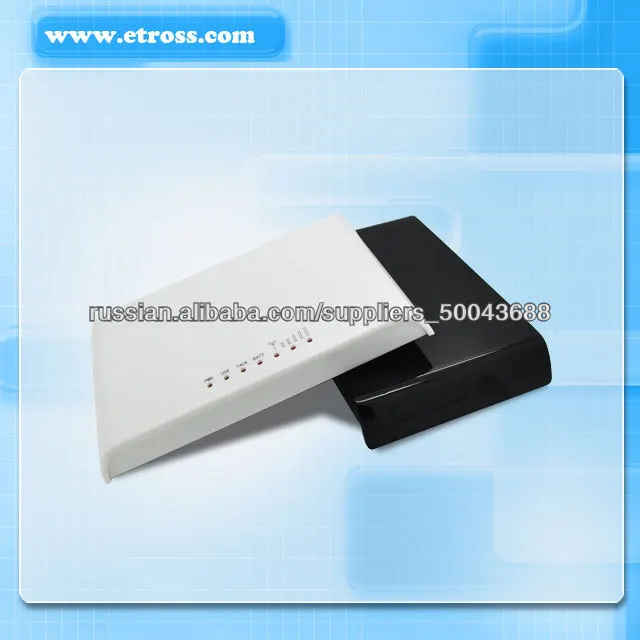

Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC  50~60Hz
                   Output: 5DC 2A.

AC-Adapter type: EU, US, AU, British type (can be optional)

Back up battery: Li-ion battery 3.7V 800mAh (Can be optional)



4, Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
