Dj контроллер звуковой миксер цифровой профессиональный аудио V24 24 каналов вход Многофункциональный
- Категории: DJ Controller\/Audio Console Mixer >>>
- Поставщик: Guangzhou,Marco,Electronics,&,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Recommend Products
Products Description
V24 : 24 channels Digital Mixer
Key features
1:24 channels Input (16 MIC, 2 stereo, 1 return, sound card, IMP3+ fiber)
2: Input processing-Input gain adjustment (electronic gain}, pre amplifier,
high and low pass filter, 4 segment parameter equalization, compressor,
noise gate, delay, input channel sound balance adjustment
3: MIC Input digital gain regulation
4:+48V phantom power (MIC channel ON/OFF independently)
5: Built-in 3x9 segment graphic equalizer (can be inserted into the 1-16
Input channel)
6: Input and Output EQ ON/OFF
7: stereo return Input
8: channel parameter fast copy function
9: each channel has a multi-function menu, mute button, monitor button
10: each channel with 100MM motorized fader, signal light, peak light (17
motorized faders}
11:12 channel Output (stereo main Output, 8 groups Output, 2 auxiliary
Output)
12: Output processing high and low pass filter, 15 segment parameter
balance, compressor, delay, phase
13: auxiliary Output (pre fader, post fader)
14: multi-track, multi-mode digital recording function
15: double row, 3 color, 12 stage level indicator light
16: built-in sound card (MP3, PC play music directly)
17:4 shortcut scene transfer mode, 20 scene storage
18: user parameter storage and transfer (can be managed on PC)
19: built- in 4 DSP effects
20:7 inch 800"480 high-definition color touch screen
21:FX pedal switch interface
22: fiber Input and Output
23: multi operating system manipulation software (10S system, WINDOWS
system), English/Chinese display
24: support wired network port adjustment (or external router wireless
regulation)
25: users can customize the layer, Output mixed editing function
26: parameter locking function
Technical
MIC/line Input 1-12 balance XLR jack
Input sensitivity (XLRITRS):-60-+10db I-50-+20db
Electronic gain:-32 to +10db, 0.7 steps
Maximum Input level (XLRITRS):+19db1+29db
Input impedance (XLRITRS):>5k/>10 K
THD+N uniform gain state Odb:0.0005%-89db (20-20KHZ, direct Output
@0db 1KHZ)
THD+N medium gain +30db:0.001-75db (20-20KHZ, direct Output @Odb
1 KHZ)
Output voltage: 4V MAX
Headphone output: 7V 220 Euro
Enter the 4 segment full parameter Equalization: 20-20kHz, +I-12db,
0 value 0.315.0
Frequency band 1:selectable Lshelf, PEQ
Frequency band 2:PEQ
Frequency band 3:PE0
Frequency band 4: selectable H shelf, PEO
Input independent delay: maximum 10ms
Output 15 segment full parameter Equalization: 20-20kHz,+/-12db,
0 value 0.315.0
Output independent delay: maximum 30ms
Compressor:
Switch: ON/OFF
Threshold/ratio -50dBu-6dBu/1:1-infinity
Impact/release 1 ms-127ms/1ms-127ms
Can be inserted into the 9 band graphic equalizer
63, 125, 250, 500, 1 K, 2K, 4K, 8K, 16K
Gain:+/-12d B
Control: RS232 central control
Application
Live performances, auditorium, theatre, conference room,
lecture hall, multi-function hall, recording studio and so on.
Key features
1:24 channels Input (16 MIC, 2 stereo, 1 return, sound card, IMP3+ fiber)
2: Input processing-Input gain adjustment (electronic gain}, pre amplifier,
high and low pass filter, 4 segment parameter equalization, compressor,
noise gate, delay, input channel sound balance adjustment
3: MIC Input digital gain regulation
4:+48V phantom power (MIC channel ON/OFF independently)
5: Built-in 3x9 segment graphic equalizer (can be inserted into the 1-16
Input channel)
6: Input and Output EQ ON/OFF
7: stereo return Input
8: channel parameter fast copy function
9: each channel has a multi-function menu, mute button, monitor button
10: each channel with 100MM motorized fader, signal light, peak light (17
motorized faders}
11:12 channel Output (stereo main Output, 8 groups Output, 2 auxiliary
Output)
12: Output processing high and low pass filter, 15 segment parameter
balance, compressor, delay, phase
13: auxiliary Output (pre fader, post fader)
14: multi-track, multi-mode digital recording function
15: double row, 3 color, 12 stage level indicator light
16: built-in sound card (MP3, PC play music directly)
17:4 shortcut scene transfer mode, 20 scene storage
18: user parameter storage and transfer (can be managed on PC)
19: built- in 4 DSP effects
20:7 inch 800"480 high-definition color touch screen
21:FX pedal switch interface
22: fiber Input and Output
23: multi operating system manipulation software (10S system, WINDOWS
system), English/Chinese display
24: support wired network port adjustment (or external router wireless
regulation)
25: users can customize the layer, Output mixed editing function
26: parameter locking function
Technical
MIC/line Input 1-12 balance XLR jack
Input sensitivity (XLRITRS):-60-+10db I-50-+20db
Electronic gain:-32 to +10db, 0.7 steps
Maximum Input level (XLRITRS):+19db1+29db
Input impedance (XLRITRS):>5k/>10 K
THD+N uniform gain state Odb:0.0005%-89db (20-20KHZ, direct Output
@0db 1KHZ)
THD+N medium gain +30db:0.001-75db (20-20KHZ, direct Output @Odb
1 KHZ)
Output voltage: 4V MAX
Headphone output: 7V 220 Euro
Enter the 4 segment full parameter Equalization: 20-20kHz, +I-12db,
0 value 0.315.0
Frequency band 1:selectable Lshelf, PEQ
Frequency band 2:PEQ
Frequency band 3:PE0
Frequency band 4: selectable H shelf, PEO
Input independent delay: maximum 10ms
Output 15 segment full parameter Equalization: 20-20kHz,+/-12db,
0 value 0.315.0
Output independent delay: maximum 30ms
Compressor:
Switch: ON/OFF
Threshold/ratio -50dBu-6dBu/1:1-infinity
Impact/release 1 ms-127ms/1ms-127ms
Can be inserted into the 9 band graphic equalizer
63, 125, 250, 500, 1 K, 2K, 4K, 8K, 16K
Gain:+/-12d B
Control: RS232 central control
Application

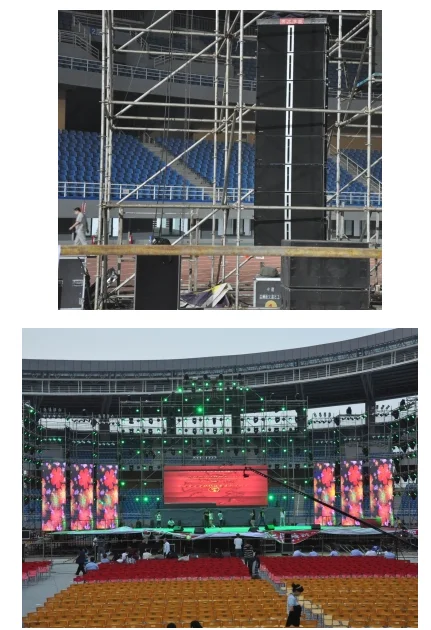

Live performances, auditorium, theatre, conference room,
lecture hall, multi-function hall, recording studio and so on.
Company Profile

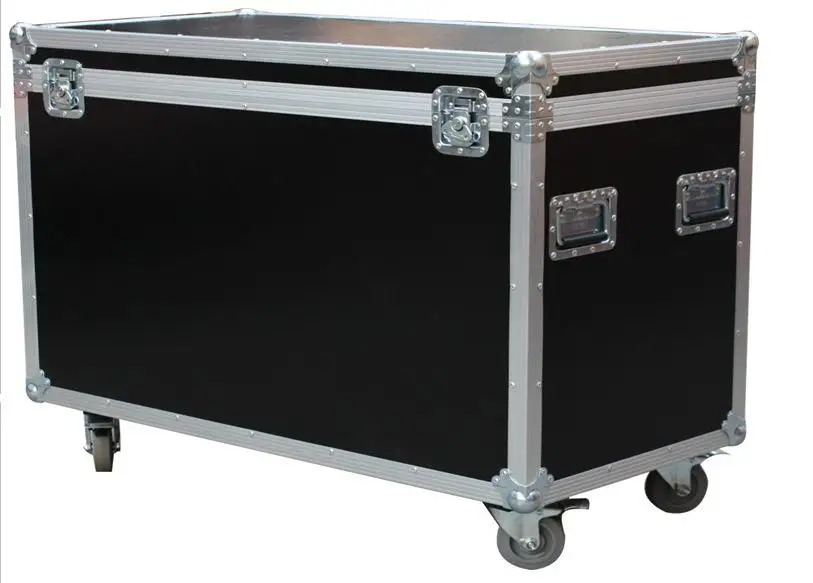

Product packaging
Our Advantages
FAQ
1. How about your quality?
Boutum is an old manufactuer, quality was proved, our biggest feature is DURABLE and STABLE! Our speakers able to be used about 10
years by some of our clients.
2. Can I have a sample order?
Yes, sample order is acceptable to check quality and design.
3. Do you offer OEM or ODM service?
Yes, we have our own R&D, production, marketing, after-sales department, OEM & ODM service is available.
4. What is your guarantee period?
3 years warranty, life time maintenance
5. What is your delivery time?
We have stock ensure samples quick sending. For bulk, 7-20 days after receiving the deposit.
6. Are you a manufacturer?
Yes. Boutum Audio is a professional speakers and amplifiers manufacturer with 24 years since 1992. With a rich experience in R&D,
manufacturing, exporting and sound project. At the same time, is agent of Pioneer DJ Equipment OVER 15 years.
Boutum is an old manufactuer, quality was proved, our biggest feature is DURABLE and STABLE! Our speakers able to be used about 10
years by some of our clients.
2. Can I have a sample order?
Yes, sample order is acceptable to check quality and design.
3. Do you offer OEM or ODM service?
Yes, we have our own R&D, production, marketing, after-sales department, OEM & ODM service is available.
4. What is your guarantee period?
3 years warranty, life time maintenance
5. What is your delivery time?
We have stock ensure samples quick sending. For bulk, 7-20 days after receiving the deposit.
6. Are you a manufacturer?
Yes. Boutum Audio is a professional speakers and amplifiers manufacturer with 24 years since 1992. With a rich experience in R&D,
manufacturing, exporting and sound project. At the same time, is agent of Pioneer DJ Equipment OVER 15 years.
